frodo2.communication.Queue Class Reference

A queue. More...

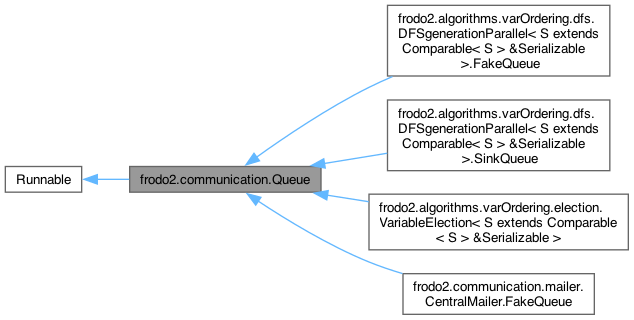

Inheritance diagram for frodo2.communication.Queue:

Public Member Functions
	Queue (boolean measureMsgs)
	Constructor.
	Queue (boolean measureMsgs, boolean init)
	Constructor.
void	toBeClosedUponKill (QueueInputPipeInterface input)
	Reminds the queue to close the given pipe when it is killed.
void	removeInputPipe (QueueInputPipeInterface input)
	Removes the given input pipe from the list of input pipes.
void	addOutputPipe (Object recipient, QueueOutputPipeInterface output)
	Adds an output pipe to this queue.
QueueOutputPipeInterface	getOutputPipe (Object recipient)
	Returns the output pipe corresponding to the given recipient.
void	removeOutputPipe (Object recipient)
	Removes the output pipe corresponding to the given recipient.
QueueIOPipe	addOutputQueue (Object recipient, Queue queue)
	Adds a new output pipe to the provided queue.
void	addIncomingMessagePolicy (IncomingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new incoming messages.
void	addIncomingMessagePolicy (Collection< MessageType > msgTypes, IncomingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new incoming messages.
void	addIncomingMessagePolicy (MessageType type, IncomingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new incoming messages of type type.
void	addOutgoingMessagePolicy (OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages.
void	addOutgoingMessagePolicy (Collection< MessageType > msgTypes, OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages.
void	addOutgoingMessagePolicy (MessageType type, OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages of type type.
void	addToInbox (MessageWrapper msg)
	Adds the input message to this queue's inbox.

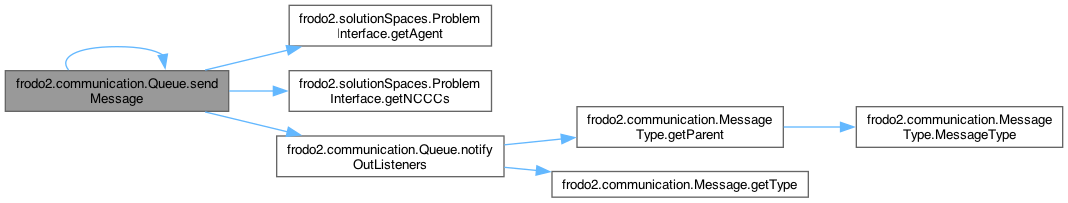

void	sendMessage (Object to, Message msg)
	Sends a message to a specified recipient.

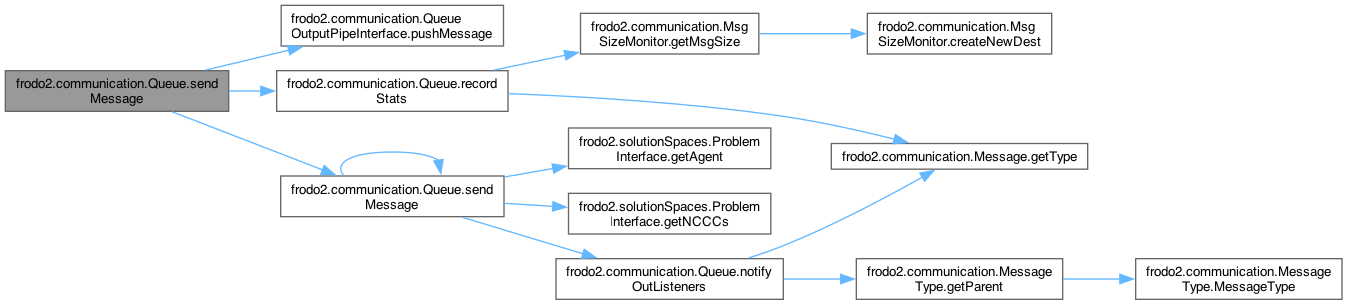

void	sendMessage (Object to, MessageWrapper msgWrap)
	Send a message that has already been wrapped.

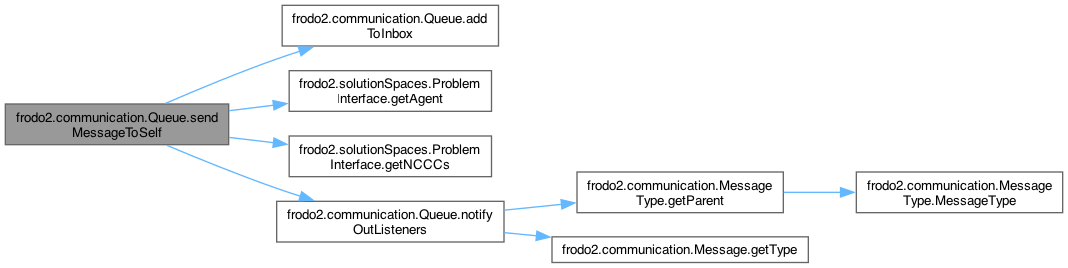

void	sendMessageToSelf (Message msg)
	Sends a message to itself.
void	end ()
	Kills the queue, making it unusable.

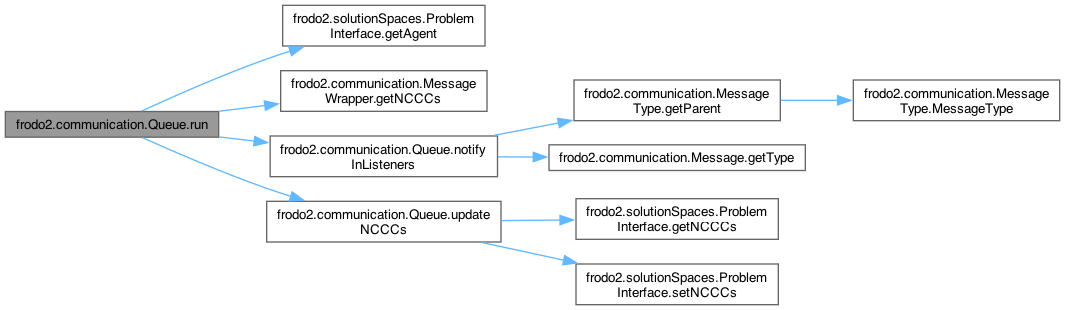

void	run ()
	Continuously processes all messages in the inbox.
void	deleteIncomingMessagePolicy (IncomingMsgPolicyInterface< MessageType > policy)
	Completely removes the input policy from all lists of listeners.
void	deleteStatsReporters ()
	Delete all StatsReporters.
void	deleteOutgoingMessagePolicy (OutgoingMsgPolicyInterface< MessageType > policy)
	Completely removes the outgoing message policy from all lists of listeners.
void	cleanQueue ()
	Removes all messages from the inbox.
void	setProblem (ProblemInterface<?, ?> problem)
	Sets the problem that is queried for NCCCs.
void	updateNCCCs (long msgNCCCs)
	Updates the queue's NCCC counter to the input count if the input is greater.
long	getCurrentTime ()
int	getInboxSize ()
MessageWrapper	getCurrentMessageWrapper ()
HashMap< MessageType, Integer >	getMsgNbrs ()
HashMap< Object, Integer >	getMsgNbrsSent ()
HashMap< MessageType, Long >	getMsgSizes ()
HashMap< Object, Long >	getMsgSizesSent ()
HashMap< MessageType, Long >	getMaxMsgSizes ()
void	resetStats ()
	Resets the metrics statistics.
void	resetMsgSizeMonitor ()
	Closes the MsgSizeMonitor and creates a new one.

Static Public Member Functions

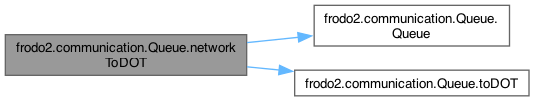

static String	networkToDOT (Queue[] queues)
	Generates a String representation in DOT format of a network of queues.

Protected Member Functions
	Queue ()
	Empty constructor that does absolutely nothing.

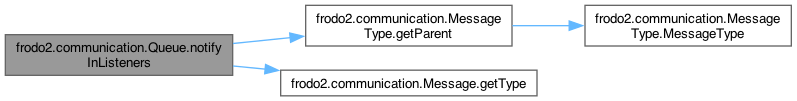

void	notifyInListeners (Message msg, Object toAgent)
	Notifies the incoming message listeners of a message.
boolean	notifyOutListeners (Object fromAgent, Message msg, Collection<? extends Object > toAgents)
	Notifies the outgoing message listeners of a message.

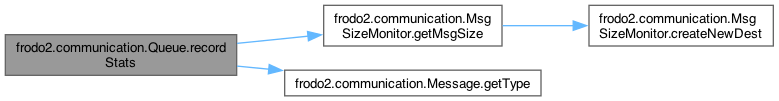

void	recordStats (Object to, Message msg)
	Records statistics about the input message.

Protected Attributes
Set< QueueInputPipeInterface >	inputs
	List of input pipes.
HashMap< Object, QueueOutputPipeInterface >	outputs
	Map associating an output pipe to each destination ID.
MsgSizeMonitor	monitor
	A monitor used to measure the sizes of the messages.
HashMap< MessageType, ArrayList< IncomingMsgPolicyInterface< MessageType > > >	inPolicies
	A list of listeners notified of incoming objects.
HashMap< MessageType, ArrayList< OutgoingMsgPolicyInterface< MessageType > > >	outPolicies
	A list of listeners notified of outgoing messages.
ProblemInterface<?, ?>	problem
	The problem used to obtain the current NCCC count.
final boolean	measureMsgs
	Whether to measure the number of messages and the total amount of information sent.
HashMap< MessageType, Integer >	msgNbrs
	For each message type, the number of messages sent of that type.
HashMap< MessageType, Long >	msgSizes
	For each message type, the total amount of information sent in messages of that type, in bytes.
HashMap< MessageType, Long >	maxMsgSizes
	For each message type, the size (in bytes) of the largest message of that type.
MessageWrapper	msgWrap
	The last wrapped message to have been received.

Package Functions

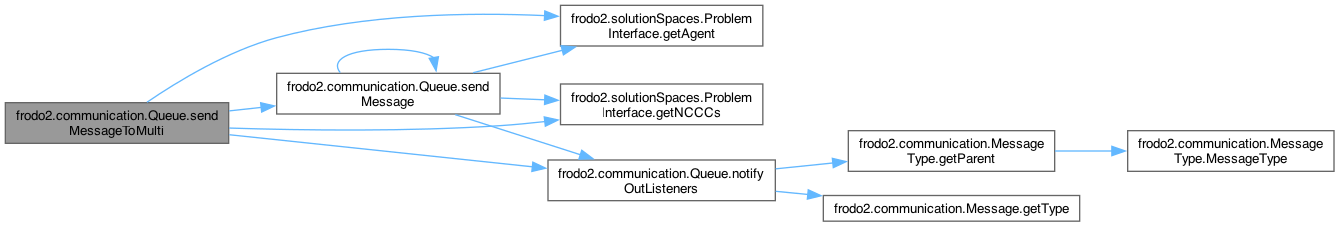

public< T extends Object > void	sendMessageToMulti (Collection< T > recipients, Message msg)
	Sends a message to all specified recipients.

Private Member Functions
void	init ()
	Helper function called by the constructors to avoid code redundancy.
void	toDOT (StringBuilder out, int ID)
	Creates a fragment of DOT representation for this queue and its pipes.

Private Attributes
BlockingQueue< MessageWrapper >	inbox
	The list of incoming messages waiting to be processed.
final ReentrantLock	outPolicies_lock = new ReentrantLock()
	Lock for outPolicies field.
boolean	keepGoing = true
	Used to tell the thread to stop.
Thread	myThread
	The queue's thread.
HashMap< Object, Integer >	msgNbrsSent
	The number of messages sent to each other agent.
HashMap< Object, Long >	msgSizesSent
	The amount of information sent to each other agent, in bytes.
final ReentrantLock	input_lock = new ReentrantLock()
	lock for input field
final ReentrantLock	output_lock = new ReentrantLock()
	lock for output field
final ReentrantLock	inPolicies_lock = new ReentrantLock()
	lock for inPolicies field

Detailed Description

A queue.

Author

Thomas Leaute

Constructor & Destructor Documentation

Queue() [1/3]

frodo2.communication.Queue.Queue ( )

protected

Empty constructor that does absolutely nothing.

Referenced by addOutputQueue(), networkToDOT(), and frodo2.algorithms.varOrdering.election.VariableElection< S extends Comparable< S > &Serializable >.setQueue().

Queue() [2/3]

frodo2.communication.Queue.Queue

(

boolean

measureMsgs

)

Constructor.

Parameters

measureMsgs

whether to measure the number of messages and the total amount of information sent

References measureMsgs.

Queue() [3/3]

frodo2.communication.Queue.Queue	(	boolean	measureMsgs,
		boolean	init )

Constructor.

Parameters

measureMsgs	whether to measure the number of messages and the total amount of information sent
init	whether the init() method should be called

References init(), and measureMsgs.

Here is the call graph for this function:

Member Function Documentation

addIncomingMessagePolicy() [1/3]

void frodo2.communication.Queue.addIncomingMessagePolicy	(	Collection< MessageType >	msgTypes,
		IncomingMsgPolicyInterface< MessageType >	policy )

Adds a listener to be notified of new incoming messages.

Parameters

msgTypes	the message types the policy should be registered for
policy	Incoming object policy to be added

References addIncomingMessagePolicy().

Here is the call graph for this function:

addIncomingMessagePolicy() [2/3]

void frodo2.communication.Queue.addIncomingMessagePolicy

(

IncomingMsgPolicyInterface< MessageType >

policy

)

Adds a listener to be notified of new incoming messages.

It prompts the listener for the types of messages it wants to listen to.

Parameters

policy

Incoming object policy to be added

Reimplemented in frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.

References addIncomingMessagePolicy(), and frodo2.communication.MessageListener< T >.getMsgTypes().

Referenced by addIncomingMessagePolicy(), addIncomingMessagePolicy(), frodo2.algorithms.dpop.param.test.ParamVALUEtest< U extends Addable< U > >.Listener.getStatsFromQueue(), frodo2.algorithms.dpop.test.VALUEpropagationTest< U extends Addable< U > >.Listener.getStatsFromQueue(), frodo2.algorithms.varOrdering.election.tests.SecureVarElectionTest.initiateParamAndListener(), frodo2.algorithms.varOrdering.election.tests.VariableElectionTest< S extends Comparable< S > &Serializable >.initiateParamAndListener(), frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.initiatingIDandListener(), frodo2.algorithms.varOrdering.election.tests.VarElectionMessengerTest.initiatingIDandListener(), frodo2.algorithms.dpop.test.UTILpropagationTest< U extends Addable< U > >.Listener.Listener(), frodo2.algorithms.dpop.test.VALUEpropagationTest< U extends Addable< U > >.Listener.Listener(), frodo2.algorithms.dpop.privacy.test.SecureRerootingTest.randomTest(), frodo2.algorithms.dpop.privacy.test.VariableObfuscationTest< V extends Addable< V > >.randomTest(), frodo2.algorithms.dpop.stochastic.test.LowestCommonAncestorsTest.setModules(), frodo2.algorithms.dpop.stochastic.test.SamplingPhaseTest.setModules(), frodo2.algorithms.dpop.privacy.test.SecureCircularRoutingTest.setUp(), frodo2.algorithms.dpop.stochastic.test.ExpectedUTILtest.Listener.setUpPrelimModules(), frodo2.algorithms.adopt.test.testADOPT.test(), frodo2.algorithms.asodpop.tests.ASODPOPBinaryTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.asodpop.tests.ASODPOPTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.duct.tests.NormalizeInfTest.test(), frodo2.algorithms.duct.tests.NormalizeTest.test(), frodo2.algorithms.odpop.tests.UTILpropagationTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.odpop.tests.VALUEpropagationTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.varOrdering.linear.tests.CentralLinearOrderingTest.test(), frodo2.daemon.TestLocalWhitePages.testLocalAgentAddressRequestUnknown(), frodo2.communication.mailer.tests.testCentralMailer.testNext(), frodo2.algorithms.adopt.test.testPreprocessing.testRandom(), frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationTest.testRandom(), and frodo2.algorithms.varOrdering.election.tests.VariableElectionTest< S extends Comparable< S > &Serializable >.testRandom().

Here is the call graph for this function:

addIncomingMessagePolicy() [3/3]

void frodo2.communication.Queue.addIncomingMessagePolicy	(	MessageType	type,
		IncomingMsgPolicyInterface< MessageType >	policy )

Adds a listener to be notified of new incoming messages of type type.

Parameters

type	the type of messages
policy	incoming object policy to be used

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References inPolicies, inPolicies_lock, and frodo2.communication.MessageListener< T >.setQueue().

Here is the call graph for this function:

addOutgoingMessagePolicy() [1/3]

void frodo2.communication.Queue.addOutgoingMessagePolicy	(	Collection< MessageType >	msgTypes,
		OutgoingMsgPolicyInterface< MessageType >	policy )

Adds a listener to be notified of new outgoing messages.

Parameters

msgTypes	the message types the policy should be registered for
policy	outgoing message policy to be added

References addOutgoingMessagePolicy().

Here is the call graph for this function:

addOutgoingMessagePolicy() [2/3]

void frodo2.communication.Queue.addOutgoingMessagePolicy	(	MessageType	type,
		OutgoingMsgPolicyInterface< MessageType >	policy )

Adds a listener to be notified of new outgoing messages of type type.

Parameters

type	the type of messages
policy	outgoing object policy to be used

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References outPolicies, outPolicies_lock, and frodo2.communication.MessageListener< T >.setQueue().

Here is the call graph for this function:

addOutgoingMessagePolicy() [3/3]

void frodo2.communication.Queue.addOutgoingMessagePolicy

(

OutgoingMsgPolicyInterface< MessageType >

policy

)

Adds a listener to be notified of new outgoing messages.

It prompts the listener for the types of messages it wants to listen to.

Parameters

policy

outgoing message policy to be added

References addOutgoingMessagePolicy(), and frodo2.communication.MessageListener< T >.getMsgTypes().

Referenced by addOutgoingMessagePolicy(), addOutgoingMessagePolicy(), frodo2.algorithms.dpop.privacy.test.SecureRerootingTest.randomTest(), and frodo2.algorithms.dpop.privacy.test.VariableObfuscationTest< V extends Addable< V > >.randomTest().

Here is the call graph for this function:

addOutputPipe()

void frodo2.communication.Queue.addOutputPipe	(	Object	recipient,
		QueueOutputPipeInterface	output )

Adds an output pipe to this queue.

Parameters

recipient	ID of the recipient
output	output pipe corresponding to the recipient

Warning

If there already exists a known recipient with name name, its pipe will be replaced by output.

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References frodo2.output, output_lock, and outputs.

Referenced by addOutputQueue(), frodo2.algorithms.test.AllTests.createQueueNetwork(), frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.setup(), frodo2.daemon.TestLocalWhitePages.testLocalAgentAddressRequestKnown(), frodo2.daemon.TestLocalWhitePages.testLocalAgentAddressRequestUnknown(), and frodo2.daemon.TestLocalWhitePages.testLocalAgentReporting().

addOutputQueue()

QueueIOPipe frodo2.communication.Queue.addOutputQueue	(	Object	recipient,
		Queue	queue )

Adds a new output pipe to the provided queue.

Parameters

recipient	ID of the recipient
queue	recipient

Returns

the created output pipe

Warning

If there already exists a known recipient with name recipient, its pipe will be replaced.

References addOutputPipe(), and Queue().

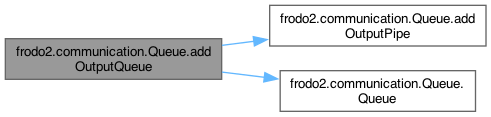

Here is the call graph for this function:

addToInbox()

void frodo2.communication.Queue.addToInbox

(

MessageWrapper

msg

)

Adds the input message to this queue's inbox.

Parameters

msg	the message

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References inbox.

Referenced by sendMessageToSelf().

cleanQueue()

void frodo2.communication.Queue.cleanQueue

(

)

Removes all messages from the inbox.

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References inbox.

deleteIncomingMessagePolicy()

void frodo2.communication.Queue.deleteIncomingMessagePolicy

(

IncomingMsgPolicyInterface< MessageType >

policy

)

Completely removes the input policy from all lists of listeners.

Parameters

policy

the policy to be removed

References inPolicies, and inPolicies_lock.

deleteOutgoingMessagePolicy()

void frodo2.communication.Queue.deleteOutgoingMessagePolicy

(

OutgoingMsgPolicyInterface< MessageType >

policy

)

Completely removes the outgoing message policy from all lists of listeners.

Parameters

policy

the policy to be removed

References outPolicies, and outPolicies_lock.

deleteStatsReporters()

void frodo2.communication.Queue.deleteStatsReporters

(

)

Delete all StatsReporters.

References inPolicies.

Referenced by frodo2.controller.ConfigurationManager.cleanProblem().

end()

void frodo2.communication.Queue.end

(

)

Kills the queue, making it unusable.

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References input_lock, inputs, keepGoing, monitor, myThread, and output_lock.

Referenced by frodo2.algorithms.dpop.privacy.test.VariableObfuscationTest< V extends Addable< V > >.randomTest(), frodo2.algorithms.dpop.privacy.test.SecureCircularRoutingTest.tearDown(), frodo2.algorithms.asodpop.tests.ASODPOPBinaryTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.asodpop.tests.ASODPOPTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.dpop.stochastic.test.LowestCommonAncestorsTest.test(), frodo2.algorithms.varOrdering.linear.tests.CentralLinearOrderingTest.test(), frodo2.daemon.TestLocalWhitePages.testLocalAgentAddressRequestKnown(), frodo2.daemon.TestLocalWhitePages.testLocalAgentAddressRequestUnknown(), frodo2.daemon.TestLocalWhitePages.testLocalAgentReporting(), frodo2.algorithms.adopt.test.testPreprocessing.testRandom(), and frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationTest.testRandom().

getCurrentMessageWrapper()

MessageWrapper frodo2.communication.Queue.getCurrentMessageWrapper

(

)

Returns

The message wrapper of the last message received

getCurrentTime()

long frodo2.communication.Queue.getCurrentTime

(

)

Returns

Get the current time of this queue, in nanoseconds since some fixed, arbitrary epoch

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

Referenced by frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.assign_CPA(), and frodo2.algorithms.synchbb.SynchBB< V extends Addable< V >, U extends Addable< U > >.send_token().

getInboxSize()

int frodo2.communication.Queue.getInboxSize

(

)

Returns

the size of the inbox

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

getMaxMsgSizes()

HashMap< MessageType, Long > frodo2.communication.Queue.getMaxMsgSizes

(

)

Returns

for each message type, the size (in bytes) of the largest message of that type

References maxMsgSizes.

getMsgNbrs()

HashMap< MessageType, Integer > frodo2.communication.Queue.getMsgNbrs

(

)

Returns

for each message type, the number of messages sent of that type

References msgNbrs.

getMsgNbrsSent()

HashMap< Object, Integer > frodo2.communication.Queue.getMsgNbrsSent

(

)

Returns

the number of messages sent to each other agent

References msgNbrsSent.

getMsgSizes()

HashMap< MessageType, Long > frodo2.communication.Queue.getMsgSizes

(

)

Returns

for each message type, the total amount of information sent in messages of that type, in bytes

References msgSizes.

getMsgSizesSent()

HashMap< Object, Long > frodo2.communication.Queue.getMsgSizesSent

(

)

Returns

the amount of information sent to each other agent, in bytes

References msgSizesSent.

getOutputPipe()

QueueOutputPipeInterface frodo2.communication.Queue.getOutputPipe

(

Object

recipient

)

Returns the output pipe corresponding to the given recipient.

Parameters

recipient

the recipient

Returns

its corresponding output pipe, or null if none

References output_lock, and outputs.

Referenced by frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.connect(), and frodo2.algorithms.test.AllTests.createQueueNetwork().

init()

void frodo2.communication.Queue.init ( )

private

Helper function called by the constructors to avoid code redundancy.

Reimplemented in frodo2.algorithms.varOrdering.election.VariableElection< S extends Comparable< S > &Serializable >.

References inbox, inPolicies, inputs, myThread, outPolicies, outputs, and frodo2.communication.MessageType.ROOT.

Referenced by Queue().

networkToDOT()

String frodo2.communication.Queue.networkToDOT ( Queue[] queues )

static

Generates a String representation in DOT format of a network of queues.

Parameters

queues

list of queues in the network

Returns

DOT representation for the network

Note

Only works with QueueIOPipes.

References Queue(), and toDOT().

Here is the call graph for this function:

notifyInListeners()

void frodo2.communication.Queue.notifyInListeners ( Message msg, Object toAgent )

protected

Notifies the incoming message listeners of a message.

Parameters

msg	the message
toAgent	ID of the destination agent

Reimplemented in frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue, and frodo2.communication.mailer.CentralMailer.FakeQueue.

References frodo2.communication.MessageType.getParent(), frodo2.communication.Message.getType(), inPolicies, and inPolicies_lock.

Referenced by run().

Here is the call graph for this function:

notifyOutListeners()

boolean frodo2.communication.Queue.notifyOutListeners ( Object fromAgent, Message msg, Collection<? extends Object > toAgents )

protected

Notifies the outgoing message listeners of a message.

Parameters

fromAgent	the sender agent
msg	the message
toAgents	the destination agents

Returns

true if the message should be discarded

Bug

very rarely throws a NullPointerException

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References frodo2.communication.OutgoingMsgPolicyInterface< T >.Decision.DISCARD, frodo2.communication.MessageType.getParent(), frodo2.communication.Message.getType(), and frodo2.java.

Referenced by sendMessage(), sendMessageToMulti(), and sendMessageToSelf().

Here is the call graph for this function:

recordStats()

void frodo2.communication.Queue.recordStats ( Object to, Message msg )

protected

Records statistics about the input message.

Parameters

to	recipient
msg	message

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References frodo2.controller.Controller.CONTROLLER, frodo2.daemon.Daemon.DAEMON, frodo2.communication.MsgSizeMonitor.getMsgSize(), frodo2.communication.Message.getType(), and frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR.

Referenced by sendMessage().

Here is the call graph for this function:

removeInputPipe()

void frodo2.communication.Queue.removeInputPipe

(

QueueInputPipeInterface

input

)

Removes the given input pipe from the list of input pipes.

Parameters

input

the input pipe to be removed

References input_lock, and inputs.

removeOutputPipe()

void frodo2.communication.Queue.removeOutputPipe

(

Object

recipient

)

Removes the output pipe corresponding to the given recipient.

Author

Brammert Ottens

Parameters

recipient

the recipient

References output_lock, and outputs.

resetMsgSizeMonitor()

void frodo2.communication.Queue.resetMsgSizeMonitor

(

)

Closes the MsgSizeMonitor and creates a new one.

Makes the queue forget all previously sent data, hereby resetting the one-time serialization overheads.

References frodo2.communication.MsgSizeMonitor.close().

Here is the call graph for this function:

resetStats()

void frodo2.communication.Queue.resetStats

(

)

Resets the metrics statistics.

Reimplemented in frodo2.communication.mailer.CentralMailer.FakeQueue.

References msgWrap.

run()

void frodo2.communication.Queue.run

(

)

Continuously processes all messages in the inbox.

See also

java.lang.Runnable#run()

References frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getAgent(), frodo2.communication.MessageWrapper.getNCCCs(), keepGoing, msgWrap, notifyInListeners(), and updateNCCCs().

Here is the call graph for this function:

sendMessage() [1/2]

void frodo2.communication.Queue.sendMessage	(	Object	to,
		Message	msg )

Sends a message to a specified recipient.

Parameters

to	recipient of the message
msg	message to be sent

Reimplemented in frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue, frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.SinkQueue, and frodo2.communication.mailer.CentralMailer.FakeQueue.

References frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getAgent(), frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getNCCCs(), msgWrap, notifyOutListeners(), and sendMessage().

Referenced by frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.assign_CPA(), frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.backtrack(), frodo2.algorithms.dpop.count.CountSolutionsVALUE< Val extends Addable< Val >, U extends Addable< U > >.computeOptValAndSendVALUEmsgs(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.init(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.nextMultiplication(), frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.notifyIn(), frodo2.algorithms.maxsum.MaxSum< V extends Addable< V >, U extends Addable< U > >.notifyIn(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.notifyIn(), frodo2.algorithms.varOrdering.linear.LinearOrdering< V extends Addable< V >, U extends Addable< U > >.notifyIn(), frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.processFbCpa(), frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.report(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.revealSol(), frodo2.algorithms.synchbb.SynchBB< V extends Addable< V >, U extends Addable< U > >.send_token(), frodo2.controller.ConfigurationManager.sendEmptyConfigs(), sendMessage(), sendMessage(), sendMessageToMulti(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.share(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.share0(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.shareVector(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.shareVectorOfZeros(), frodo2.algorithms.maxsum.MaxSum< V extends Addable< V >, U extends Addable< U > >.start(), frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.terminate(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.terminate(), and frodo2.algorithms.synchbb.SynchBB< V extends Addable< V >, U extends Addable< U > >.terminate().

Here is the call graph for this function:

sendMessage() [2/2]

void frodo2.communication.Queue.sendMessage	(	Object	to,
		MessageWrapper	msgWrap )

Send a message that has already been wrapped.

Parameters

to	The destination of the message
msgWrap	The wrapped message

Warning

Does not notify outgoing message listeners.

Reimplemented in frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue, and frodo2.communication.mailer.CentralMailer.FakeQueue.

References msgWrap, output_lock, outputs, frodo2.communication.QueueOutputPipeInterface.pushMessage(), recordStats(), and sendMessage().

Here is the call graph for this function:

sendMessageToMulti()

public< T extends Object > void frodo2.communication.Queue.sendMessageToMulti ( Collection< T > recipients, Message msg )

package

Sends a message to all specified recipients.

Parameters

<T>	the type used for recipient IDs
recipients	the recipients
msg	the message to be sent

Reimplemented in frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue, and frodo2.communication.mailer.CentralMailer.FakeQueue.

References frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getAgent(), frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getNCCCs(), msgWrap, notifyOutListeners(), and sendMessage().

Referenced by frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.assign_CPA(), frodo2.algorithms.varOrdering.linear.LinearOrdering< V extends Addable< V >, U extends Addable< U > >.notifyIn(), frodo2.algorithms.synchbb.SynchBB< V extends Addable< V >, U extends Addable< U > >.send_token(), frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.terminate(), and frodo2.algorithms.synchbb.SynchBB< V extends Addable< V >, U extends Addable< U > >.terminate().

Here is the call graph for this function:

sendMessageToSelf()

void frodo2.communication.Queue.sendMessageToSelf

(

Message

msg

)

Sends a message to itself.

Parameters

msg	message to be sent

Reimplemented in frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue, frodo2.algorithms.varOrdering.election.VariableElection< S extends Comparable< S > &Serializable >, and frodo2.communication.mailer.CentralMailer.FakeQueue.

References addToInbox(), frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getAgent(), frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getNCCCs(), msgWrap, and notifyOutListeners().

Referenced by frodo2.algorithms.dpop.privacy.EncryptedUTIL< V extends Addable< V >, U extends Addable< U >, E extends AddableLimited< U, E >.askDecrypt(), frodo2.algorithms.maxsum.MaxSum< V extends Addable< V >, U extends Addable< U > >.checkForTermination(), frodo2.algorithms.dpop.count.CountSolutionsVALUE< Val extends Addable< Val >, U extends Addable< U > >.computeOptValAndSendVALUEmsgs(), frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.computeOptValAndSendVALUEmsgs(), frodo2.algorithms.localSearch.dsa.DSA< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.localSearch.mgm.mgm2.MGM2< V extends Addable< V >, U extends Addable< U > >.init(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.init(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.init(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.init(), frodo2.algorithms.varOrdering.linear.CentralLinearOrdering< V extends Addable< V >, U extends Addable< U > >.init(), frodo2.daemon.userIO.UserIO.load(), frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.notifyIn(), frodo2.algorithms.maxsum.MaxSum< V extends Addable< V >, U extends Addable< U > >.notifyIn(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.notifyIn(), frodo2.algorithms.reformulation.ProblemRescaler< U extends Addable< U > >.notifyIn(), frodo2.algorithms.varOrdering.factorgraph.FactorGraphGen< V extends Addable< V >, U extends Addable< U > >.notifyIn(), frodo2.algorithms.varOrdering.linear.LinearOrdering< V extends Addable< V >, U extends Addable< U > >.notifyIn(), frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.passOn(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.processPending(), frodo2.algorithms.dpop.privacy.test.SecureRerootingTest.randomTest(), frodo2.algorithms.dpop.privacy.EncryptedUTIL< V extends Addable< V >, U extends Addable< U >, E extends AddableLimited< U, E >.sendOutput(), frodo2.algorithms.adopt.test.testADOPT.startADOPT(), frodo2.algorithms.duct.tests.NormalizeInfTest.startNormalization(), frodo2.algorithms.duct.tests.NormalizeTest.startNormalization(), frodo2.algorithms.dpop.test.UTILpropagationTest< U extends Addable< U > >.startUTIL(), frodo2.algorithms.asodpop.tests.ASODPOPBinaryTest< V extends Addable< V >, U extends Addable< U > >.startUTILpropagation(), frodo2.algorithms.asodpop.tests.ASODPOPTest< V extends Addable< V >, U extends Addable< U > >.startUTILpropagation(), frodo2.algorithms.odpop.tests.UTILpropagationTest< V extends Addable< V >, U extends Addable< U > >.startUTILpropagation(), frodo2.algorithms.odpop.tests.VALUEpropagationTest< V extends Addable< V >, U extends Addable< U > >.startUTILpropagation(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.terminate(), frodo2.algorithms.dpop.stochastic.test.LowestCommonAncestorsTest.test(), and frodo2.algorithms.adopt.test.testPreprocessing.testRandom().

Here is the call graph for this function:

setProblem()

void frodo2.communication.Queue.setProblem

(

ProblemInterface<?, ?>

problem

)

Sets the problem that is queried for NCCCs.

Parameters

problem

the problem

References problem.

Referenced by frodo2.algorithms.varOrdering.election.tests.SecureVarElectionTest.initiateParamAndListener(), frodo2.algorithms.varOrdering.election.tests.VariableElectionTest< S extends Comparable< S > &Serializable >.initiateParamAndListener(), frodo2.algorithms.dpop.test.UTILpropagationTest< U extends Addable< U > >.Listener.Listener(), frodo2.algorithms.dpop.test.VALUEpropagationTest< U extends Addable< U > >.Listener.Listener(), frodo2.algorithms.dpop.privacy.test.SecureRerootingTest.randomTest(), frodo2.algorithms.dpop.privacy.test.VariableObfuscationTest< V extends Addable< V > >.randomTest(), frodo2.algorithms.dpop.stochastic.test.SamplingPhaseTest.setModules(), frodo2.algorithms.dpop.privacy.test.SecureCircularRoutingTest.setUp(), frodo2.algorithms.adopt.test.testADOPT.test(), frodo2.algorithms.asodpop.tests.ASODPOPBinaryTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.asodpop.tests.ASODPOPTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.duct.tests.NormalizeInfTest.test(), frodo2.algorithms.duct.tests.NormalizeTest.test(), frodo2.algorithms.odpop.tests.UTILpropagationTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.odpop.tests.VALUEpropagationTest< V extends Addable< V >, U extends Addable< U > >.test(), frodo2.algorithms.varOrdering.linear.tests.CentralLinearOrderingTest.test(), frodo2.algorithms.adopt.test.testPreprocessing.testRandom(), frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationTest.testRandom(), and frodo2.algorithms.varOrdering.election.tests.VariableElectionTest< S extends Comparable< S > &Serializable >.testRandom().

toBeClosedUponKill()

void frodo2.communication.Queue.toBeClosedUponKill

(

QueueInputPipeInterface

input

)

Reminds the queue to close the given pipe when it is killed.

Parameters

input

pipe to be closed

References input_lock, and inputs.

toDOT()

void frodo2.communication.Queue.toDOT ( StringBuilder out, int ID )

private

Creates a fragment of DOT representation for this queue and its pipes.

Parameters

out	StringBuilder
ID	ID to be used to represent this queue

References inputs, frodo2.output, and outputs.

Referenced by networkToDOT().

updateNCCCs()

void frodo2.communication.Queue.updateNCCCs

(

long

msgNCCCs

)

Updates the queue's NCCC counter to the input count if the input is greater.

Parameters

msgNCCCs

input NCCC count

References frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getNCCCs(), and frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.setNCCCs().

Referenced by frodo2.communication.mailer.CentralMailer.run(), and run().

Here is the call graph for this function:

Member Data Documentation

inbox

BlockingQueue<MessageWrapper> frodo2.communication.Queue.inbox

private

The list of incoming messages waiting to be processed.

Referenced by addToInbox(), cleanQueue(), and init().

inPolicies

HashMap<MessageType, ArrayList< IncomingMsgPolicyInterface<MessageType> > > frodo2.communication.Queue.inPolicies

protected

A list of listeners notified of incoming objects.

These listeners are called whenever there is a new incoming object, in order to decide what to do with it. There is a list of listeners for each message type.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.addIncomingMessagePolicy(), addIncomingMessagePolicy(), deleteIncomingMessagePolicy(), deleteStatsReporters(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.FakeQueue(), frodo2.communication.mailer.CentralMailer.FakeQueue.FakeQueue(), init(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.notifyInListeners(), frodo2.communication.mailer.CentralMailer.FakeQueue.notifyInListeners(), and notifyInListeners().

inPolicies_lock

final ReentrantLock frodo2.communication.Queue.inPolicies_lock = new ReentrantLock()

private

lock for inPolicies field

Referenced by addIncomingMessagePolicy(), deleteIncomingMessagePolicy(), and notifyInListeners().

input_lock

final ReentrantLock frodo2.communication.Queue.input_lock = new ReentrantLock()

private

lock for input field

Referenced by end(), removeInputPipe(), and toBeClosedUponKill().

inputs

Set<QueueInputPipeInterface> frodo2.communication.Queue.inputs

protected

List of input pipes.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.end(), end(), frodo2.communication.mailer.CentralMailer.FakeQueue.FakeQueue(), init(), removeInputPipe(), toBeClosedUponKill(), and toDOT().

keepGoing

boolean frodo2.communication.Queue.keepGoing = true

private

Used to tell the thread to stop.

Referenced by end(), and run().

maxMsgSizes

HashMap<MessageType, Long> frodo2.communication.Queue.maxMsgSizes

protected

For each message type, the size (in bytes) of the largest message of that type.

Referenced by getMaxMsgSizes().

measureMsgs

final boolean frodo2.communication.Queue.measureMsgs

protected

Whether to measure the number of messages and the total amount of information sent.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.end(), Queue(), and Queue().

monitor

MsgSizeMonitor frodo2.communication.Queue.monitor

protected

A monitor used to measure the sizes of the messages.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.end(), and end().

msgNbrs

HashMap<MessageType, Integer> frodo2.communication.Queue.msgNbrs

protected

For each message type, the number of messages sent of that type.

Referenced by getMsgNbrs().

msgNbrsSent

HashMap<Object, Integer> frodo2.communication.Queue.msgNbrsSent

private

The number of messages sent to each other agent.

Referenced by getMsgNbrsSent().

msgSizes

HashMap<MessageType, Long> frodo2.communication.Queue.msgSizes

protected

For each message type, the total amount of information sent in messages of that type, in bytes.

Referenced by getMsgSizes().

msgSizesSent

HashMap<Object, Long> frodo2.communication.Queue.msgSizesSent

private

The amount of information sent to each other agent, in bytes.

Referenced by getMsgSizesSent().

msgWrap

MessageWrapper frodo2.communication.Queue.msgWrap

protected

The last wrapped message to have been received.

Referenced by resetStats(), run(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.sendMessage(), frodo2.communication.mailer.CentralMailer.FakeQueue.sendMessage(), frodo2.communication.mailer.CentralMailer.FakeQueue.sendMessage(), sendMessage(), sendMessage(), frodo2.communication.mailer.CentralMailer.FakeQueue.sendMessageToMulti(), sendMessageToMulti(), and sendMessageToSelf().

myThread

Thread frodo2.communication.Queue.myThread

private

The queue's thread.

Referenced by end(), and init().

outPolicies

HashMap<MessageType, ArrayList< OutgoingMsgPolicyInterface<MessageType> > > frodo2.communication.Queue.outPolicies

protected

A list of listeners notified of outgoing messages.

These listeners are called whenever there is a new outgoing message, in order to decide what to do with it. There is a list of listeners for each message type.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.addOutgoingMessagePolicy(), addOutgoingMessagePolicy(), deleteOutgoingMessagePolicy(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.FakeQueue(), frodo2.communication.mailer.CentralMailer.FakeQueue.FakeQueue(), init(), and frodo2.communication.mailer.CentralMailer.FakeQueue.notifyOutListeners().

outPolicies_lock

final ReentrantLock frodo2.communication.Queue.outPolicies_lock = new ReentrantLock()

private

Lock for outPolicies field.

Referenced by addOutgoingMessagePolicy(), and deleteOutgoingMessagePolicy().

output_lock

final ReentrantLock frodo2.communication.Queue.output_lock = new ReentrantLock()

private

lock for output field

Referenced by addOutputPipe(), end(), getOutputPipe(), removeOutputPipe(), and sendMessage().

outputs

HashMap<Object, QueueOutputPipeInterface> frodo2.communication.Queue.outputs

protected

Map associating an output pipe to each destination ID.

Referenced by addOutputPipe(), frodo2.communication.mailer.CentralMailer.FakeQueue.FakeQueue(), getOutputPipe(), init(), removeOutputPipe(), sendMessage(), and toDOT().

problem

ProblemInterface<?, ?> frodo2.communication.Queue.problem

protected

The problem used to obtain the current NCCC count.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.sendMessage(), frodo2.communication.mailer.CentralMailer.FakeQueue.sendMessageToMulti(), and setProblem().

---

The documentation for this class was generated from the following file:

• src/frodo2/communication/Queue.java
