There is one such FakeQueue for each candidate root. More...

Inheritance diagram for frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue:

[legend]

Public Member Functions
	FakeQueue (S root)
	Constructor.
void	sendMessage (Object to, Message msg)
void	sendMessage (Object to, MessageWrapper msgWrap)
void	sendMessageToSelf (Message msg)
void	notifyInListeners (Message msg, Object toAgent)
	Does the same as the superclass, but without the need to synchronize on a lock.
void	addIncomingMessagePolicyForReal (DFSgeneration<?, ?> dfsModule)
	Adds the input DFS module to the queue's listeners.
void	addIncomingMessagePolicy (IncomingMsgPolicyInterface< MessageType > policy)
	The module's queue is set to a SinkQueue so that all messages sent are discarded.
Public Member Functions inherited from frodo2.communication.Queue
	Queue (boolean measureMsgs)
	Constructor.
	Queue (boolean measureMsgs, boolean init)
	Constructor.
void	toBeClosedUponKill (QueueInputPipeInterface input)
	Reminds the queue to close the given pipe when it is killed.
void	removeInputPipe (QueueInputPipeInterface input)
	Removes the given input pipe from the list of input pipes.
void	addOutputPipe (Object recipient, QueueOutputPipeInterface output)
	Adds an output pipe to this queue.
QueueOutputPipeInterface	getOutputPipe (Object recipient)
	Returns the output pipe corresponding to the given recipient.
void	removeOutputPipe (Object recipient)
	Removes the output pipe corresponding to the given recipient.
QueueIOPipe	addOutputQueue (Object recipient, Queue queue)
	Adds a new output pipe to the provided queue.
void	addIncomingMessagePolicy (Collection< MessageType > msgTypes, IncomingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new incoming messages.
void	addIncomingMessagePolicy (MessageType type, IncomingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new incoming messages of type type.
void	addOutgoingMessagePolicy (OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages.
void	addOutgoingMessagePolicy (Collection< MessageType > msgTypes, OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages.
void	addOutgoingMessagePolicy (MessageType type, OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages of type type.
void	addToInbox (MessageWrapper msg)
	Adds the input message to this queue's inbox.
void	end ()
	Kills the queue, making it unusable.
void	run ()
	Continuously processes all messages in the inbox.
void	deleteIncomingMessagePolicy (IncomingMsgPolicyInterface< MessageType > policy)
	Completely removes the input policy from all lists of listeners.
void	deleteStatsReporters ()
	Delete all StatsReporters.
void	deleteOutgoingMessagePolicy (OutgoingMsgPolicyInterface< MessageType > policy)
	Completely removes the outgoing message policy from all lists of listeners.
void	cleanQueue ()
	Removes all messages from the inbox.
void	setProblem (ProblemInterface<?, ?> problem)
	Sets the problem that is queried for NCCCs.
void	updateNCCCs (long msgNCCCs)
	Updates the queue's NCCC counter to the input count if the input is greater.
long	getCurrentTime ()
int	getInboxSize ()
MessageWrapper	getCurrentMessageWrapper ()
HashMap< MessageType, Integer >	getMsgNbrs ()
HashMap< Object, Integer >	getMsgNbrsSent ()
HashMap< MessageType, Long >	getMsgSizes ()
HashMap< Object, Long >	getMsgSizesSent ()
HashMap< MessageType, Long >	getMaxMsgSizes ()
void	resetStats ()
	Resets the metrics statistics.
void	resetMsgSizeMonitor ()
	Closes the MsgSizeMonitor and creates a new one.

Package Functions
public< T extends Object > void	sendMessageToMulti (Collection< T > recipients, Message msg)

Private Member Functions
void	releaseOutput (String var, boolean isRoot)
	Releases the DFSoutput message for the input variable, and tell its children to do the same.

Private Attributes
final S	root
	The candidate root.
HashMap< String, MessageDFSoutput<?, ?> >	dfsOutputMsgs = new HashMap< String, MessageDFSoutput<?, ?> > ()
	For each internal variable, the DFSoutput message that is being held until it becomes clear that the candidate root is indeed a root.
HashMap< String, DFSorderOutputMessage >	dfsOrderMsgs = new HashMap<String, DFSorderOutputMessage> ()
	For each internal variable, the DFSorder message that is being held until it becomes clear that the candidate root is indeed a root.
HashMap< String, MessageDFSoutput<?, ?> >	dfsStatsMsgs = new HashMap< String, MessageDFSoutput<?, ?> > ()
	For each internal variable, the DFSstats message that is being held until it becomes clear that the candidate root is indeed a root.
HashMap< String, VarNbrMsg >	varNbrMsgs = new HashMap<String, VarNbrMsg> ()
	For each internal variable, the VarNbrMsg message that is being held until it becomes clear that the candidate root is indeed a root.
HashMap< String, List< String > >	children = new HashMap< String, List<String> > ()
	For each variable I own, its list of children.

Additional Inherited Members
Static Public Member Functions inherited from frodo2.communication.Queue
static String	networkToDOT (Queue[] queues)
	Generates a String representation in DOT format of a network of queues.
Protected Member Functions inherited from frodo2.communication.Queue
	Queue ()
	Empty constructor that does absolutely nothing.
boolean	notifyOutListeners (Object fromAgent, Message msg, Collection<? extends Object > toAgents)
	Notifies the outgoing message listeners of a message.
void	recordStats (Object to, Message msg)
	Records statistics about the input message.
Protected Attributes inherited from frodo2.communication.Queue
Set< QueueInputPipeInterface >	inputs
	List of input pipes.
HashMap< Object, QueueOutputPipeInterface >	outputs
	Map associating an output pipe to each destination ID.
MsgSizeMonitor	monitor
	A monitor used to measure the sizes of the messages.
HashMap< MessageType, ArrayList< IncomingMsgPolicyInterface< MessageType > > >	inPolicies
	A list of listeners notified of incoming objects.
HashMap< MessageType, ArrayList< OutgoingMsgPolicyInterface< MessageType > > >	outPolicies
	A list of listeners notified of outgoing messages.
ProblemInterface<?, ?>	problem
	The problem used to obtain the current NCCC count.
final boolean	measureMsgs
	Whether to measure the number of messages and the total amount of information sent.
HashMap< MessageType, Integer >	msgNbrs
	For each message type, the number of messages sent of that type.
HashMap< MessageType, Long >	msgSizes
	For each message type, the total amount of information sent in messages of that type, in bytes.
HashMap< MessageType, Long >	maxMsgSizes
	For each message type, the size (in bytes) of the largest message of that type.
MessageWrapper	msgWrap
	The last wrapped message to have been received.

Detailed Description

There is one such FakeQueue for each candidate root.

Constructor & Destructor Documentation

◆ FakeQueue()

frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.FakeQueue ( S root )

Constructor.

Parameters

root	The candidate root

References frodo2.communication.Queue.inPolicies, frodo2.communication.Queue.outPolicies, frodo2.communication.MessageType.ROOT, and root.

Member Function Documentation

◆ addIncomingMessagePolicy()

void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.addIncomingMessagePolicy ( IncomingMsgPolicyInterface< MessageType > policy )

The module's queue is set to a SinkQueue so that all messages sent are discarded.

See also: Queue#addIncomingMessagePolicy(IncomingMsgPolicyInterface)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.MessageListener< T >.setQueue().

Here is the call graph for this function:

◆ addIncomingMessagePolicyForReal()

void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.addIncomingMessagePolicyForReal ( DFSgeneration<?, ?> dfsModule )

Adds the input DFS module to the queue's listeners.

Parameters

dfsModule DFS module

Referenced by frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.newFakeQueue().

◆ notifyInListeners()

void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.notifyInListeners	(	Message	msg,
		Object	toAgent )

Does the same as the superclass, but without the need to synchronize on a lock.

See also: Queue.notifyInListeners(Message, Object)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.MessageType.equals(), frodo2.algorithms.varOrdering.dfs.VarNbrMsg.getDest(), frodo2.communication.MessageType.getParent(), frodo2.communication.Message.getType(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.MessageDFSoutput< V extends Addable< V >, U extends Addable >.getVar(), frodo2.communication.Queue.inPolicies, frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.OUTPUT_MSG_TYPE, frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.queue, frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.RELEASE_OUTPUT_MSG_TYPE, releaseOutput(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.rootElectionScores, and frodo2.algorithms.varOrdering.dfs.DFSgenerationWithOrder< V extends Addable< V >, U extends Addable >.VARIABLE_COUNT_TYPE.

Referenced by frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.init(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.newFakeQueue(), and frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.notifyIn().

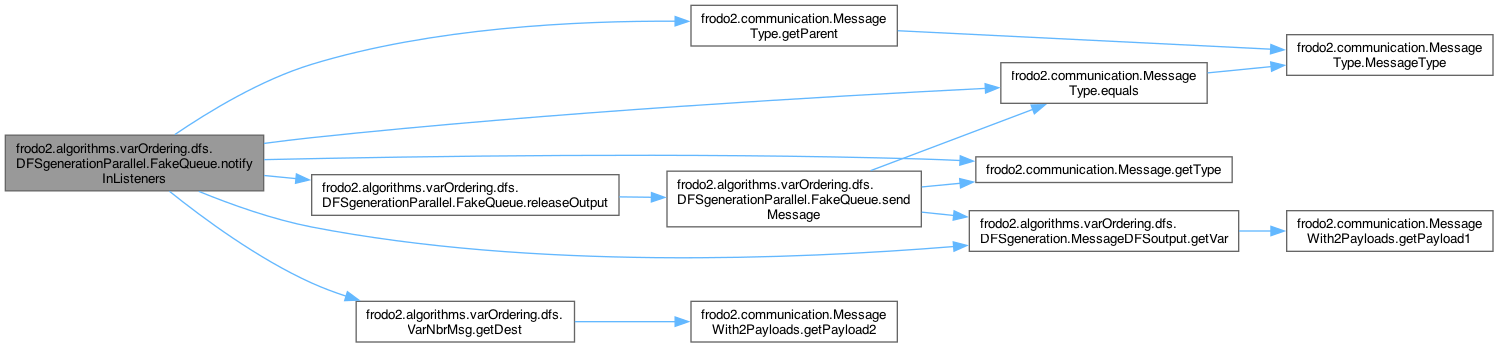

Here is the call graph for this function:

◆ releaseOutput()

void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.releaseOutput	(	String	var,
		boolean	isRoot )

private

Releases the DFSoutput message for the input variable, and tell its children to do the same.

Parameters

var	the variable whose DFSoutput message must be released
isRoot	whether the variable is the root

References frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.owners, frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.queue, sendMessage(), and frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR.

Referenced by notifyInListeners().

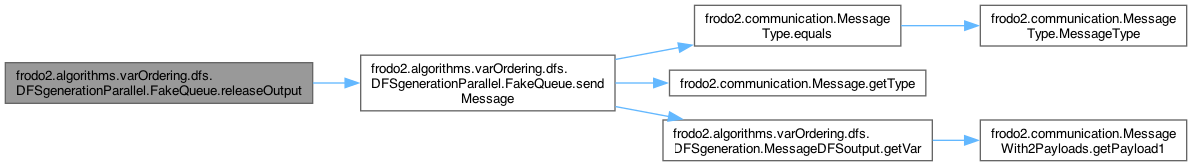

Here is the call graph for this function:

◆ sendMessage() [1/2]

void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.sendMessage	(	Object	to,
		Message	msg )

See also: Queue.sendMessage(java.lang.Object, Message)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.MessageType.equals(), frodo2.communication.Message.getType(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.MessageDFSoutput< V extends Addable< V >, U extends Addable >.getVar(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.queue, and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.STATS_MSG_TYPE.

Referenced by releaseOutput().

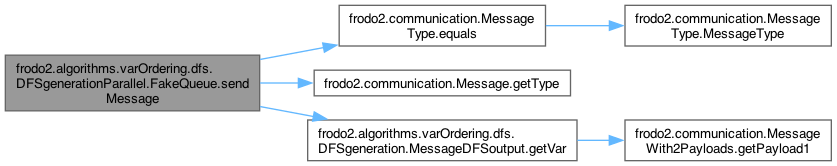

Here is the call graph for this function:

◆ sendMessage() [2/2]

void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.sendMessage	(	Object	to,
		MessageWrapper	msgWrap )

See also: Queue.sendMessage(java.lang.Object, MessageWrapper)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.Queue.msgWrap, and frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.queue.

◆ sendMessageToMulti()

public< T extends Object > void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.sendMessageToMulti	(	Collection< T >	recipients,
		Message	msg )

package

See also: Queue.sendMessageToMulti(java.util.Collection, Message)

Reimplemented from frodo2.communication.Queue.

References frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.queue.

◆ sendMessageToSelf()

void frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.sendMessageToSelf ( Message msg )

See also: Queue.sendMessageToSelf(Message)

Bug: very rarely throws a NullPointerException

Reimplemented from frodo2.communication.Queue.

Here is the call graph for this function:

Member Data Documentation

◆ children

HashMap< String, List<String> > frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.children = new HashMap< String, List<String> > ()

private

For each variable I own, its list of children.

◆ dfsOrderMsgs

HashMap<String, DFSorderOutputMessage> frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.dfsOrderMsgs = new HashMap<String, DFSorderOutputMessage> ()

private

For each internal variable, the DFSorder message that is being held until it becomes clear that the candidate root is indeed a root.

◆ dfsOutputMsgs

HashMap< String, MessageDFSoutput<?, ?> > frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.dfsOutputMsgs = new HashMap< String, MessageDFSoutput<?, ?> > ()

private

For each internal variable, the DFSoutput message that is being held until it becomes clear that the candidate root is indeed a root.

◆ dfsStatsMsgs

HashMap< String, MessageDFSoutput<?, ?> > frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.dfsStatsMsgs = new HashMap< String, MessageDFSoutput<?, ?> > ()

private

For each internal variable, the DFSstats message that is being held until it becomes clear that the candidate root is indeed a root.

◆ root

final S frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.root

private

The candidate root.

Referenced by FakeQueue().

◆ varNbrMsgs

HashMap<String, VarNbrMsg> frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.varNbrMsgs = new HashMap<String, VarNbrMsg> ()

private

For each internal variable, the VarNbrMsg message that is being held until it becomes clear that the candidate root is indeed a root.

The documentation for this class was generated from the following file:

src/frodo2/algorithms/varOrdering/dfs/DFSgenerationParallel.java
