Distributed DFS generation protocol. More...

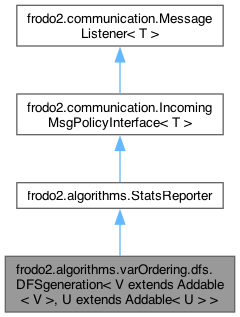

Inheritance diagram for frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >:

[legend]

Classes
class	DFSview
	The view of the DFS from one variable. More...
class	MessageDFSoutput
	Message class used for the output of the protocol. More...
interface	NextChildChoiceHeuristic
	Interface for heuristics used to choose a variable's next child from its list of open neighbors. More...
class	BlindScoringHeuristic
	A DFS heuristic based on a ScoringHeuristic that does not require message exchange between agents. More...
class	ScoreBroadcastingHeuristic
	Selects the next child as the one that has the highest score. More...

Public Member Functions
	DFSgeneration ()
	Default constructor.
	DFSgeneration (DCOPProblemInterface< V, U > problem, NextChildChoiceHeuristic heuristic)
	Constructor.
	DFSgeneration (DCOPProblemInterface< V, U > problem, Element parameters) throws ClassNotFoundException
	Constructor.
	DFSgeneration (Element parameters, DCOPProblemInterface< V, U > problem)
	The constructor called in "statistics gatherer" mode.
	DFSgeneration (DCOPProblemInterface< V, U > problem)
	Manual constructor for the "statistics gatherer" mode.
HashMap< String, DFSview< V, U > >	getDFS ()
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
	The algorithm.
void	setQueue (Queue queue)
void	getStatsFromQueue (Queue queue)
void	setSilent (boolean silent)
String	dfsToString ()
void	reset ()
long	getFinalTime ()
	Returns the time at which the DFS phase has finished, determined by looking at the timestamp of the stat messages.
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Member Functions
static< V extends Addable< V > U extends Addable< U > String	dfsToString (Map< String, DFSview< V, U > > dfs)

Static Public Attributes
static MessageType	FINISH_MSG_TYPE = AgentInterface.AGENT_FINISHED
	The type of the message telling the agent finished.
static MessageType	START_MSG_TYPE = AgentInterface.START_AGENT
	The type of the message telling the module to start.
static MessageType	ROOT_VAR_MSG_TYPE = LeaderElectionMaxID.OUTPUT_MSG_TYPE
	The type of the messages telling whether a given variable is a root.
static final MessageType	CHILD_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Child")
	The type of the message used to tell the recipient that it is a child of the sender.
static MessageType	PSEUDO_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Pseudo")
	The type of the message used to tell the recipient that it is a pseudo-child of the sender.
static MessageType	OUTPUT_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Output")
	The type of the output messages.
static final MessageType	STATS_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Stats")
	The type of the messages containing statistics.

Protected Member Functions
MessageType	getRootVarMsgType ()
MessageType	getChildMsgType ()
MessageType	getPseudoMsgType ()
MessageType	getOutputMsgType ()
	DFSgeneration (boolean withSharedVars)
	Empty constructor.
void	init ()
	Parses the problem.
void	init (String var)
	Parses the problem for only one variable.
void	processAdditionalMsgInformation (Message msg, String var, DFSview< V, U > dfsView)
	allows to process information included in messages which extend CHILDmsg
CHILDmsg	makeChildToken (Serializable rootID, String var, String dest, Collection< String > openNeighbors)
	makes the ChildToken Message with all the information required by the module
void	sendAdditionalDFSoutput (Serializable rootID, String myVar)
	Use this method to send additional output from DFS generation.

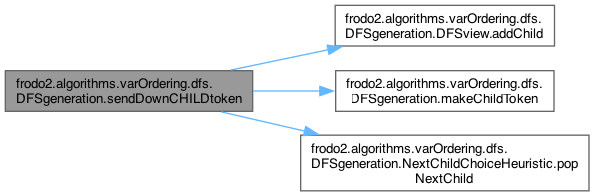

boolean	sendDownCHILDtoken (Serializable rootID, String var, Collection< String > openList, DFSview< V, U > myDFSview, Message msg)
	Attempts to choose the next child and sends it a CHILD token.

Protected Attributes
Queue	queue
	The queue on which it should call sendMessage().
boolean	started = false
	Whether the execution of the algorithm has started.
Map< String, Collection< String > >	openNeighbors
	For each variable that this agent owns, a collection of open neighbor variables.
HashMap< String, DFSview< V, U > >	dfsViews
	For every variable this agent owns, its view of the DFS.
Map< String, String >	owners
	For each known variable, the name of the agent that owns it.
int	totalNbrVars
	The total number of variables in the problem (used only in "statistics gatherer" mode).
NextChildChoiceHeuristic	heuristic
	The heuristic used to choose a variable's next child from its list of open neighbors.
DCOPProblemInterface< V, U >	problem
	The problem.
HashMap< Serializable, LinkedList< String > >	partialPaths = new HashMap< Serializable, LinkedList<String> > ()
	For each component, the current partial constraint graph traversal path.

Private Member Functions
NextChildChoiceHeuristic	createHeuristic (Class<? extends NextChildChoiceHeuristic > heuristicClass, Element heuristicParams)
	Instantiates a heuristic using reflection, based on the class name and the XCSP problem description.

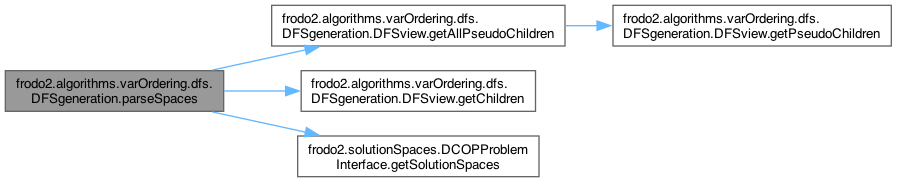

void	parseSpaces (String myVar, DFSview< V, U > myDFSview)
	Parses and records the spaces for the input variable.
void	resetComponent (String var)
	Resets all entries in this.dfsViews corresponding to variables in the component of the input variable.

Private Attributes
HashSet< String >	sentOutputs = new HashSet<String> ()
	The variables for which a DFSoutput has already been sent.
boolean	silent = false
	Whether the stats reporter should print its stats.
String	dotRendererClass = null
	Renderer to display DOT code.
long	finalTime = Long.MIN_VALUE
	The time at which the DFS procedure has finished.
final boolean	withSharedVars
	When parsing the constraints, whether to take into account variables with no specified owners.

Detailed Description

Distributed DFS generation protocol.

Author: Thomas Leaute, Jonas Helfer, Eric Zbinden

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Constructor & Destructor Documentation

◆ DFSgeneration() [1/6]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.DFSgeneration ( )

Default constructor.

Referenced by DFSgeneration().

◆ DFSgeneration() [2/6]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.DFSgeneration	(	DCOPProblemInterface< V, U >	problem,
		NextChildChoiceHeuristic	heuristic )

Constructor.

Parameters

problem	the problem
heuristic	the heuristic

References heuristic, and problem.

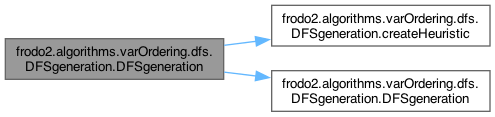

◆ DFSgeneration() [3/6]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.DFSgeneration	(	DCOPProblemInterface< V, U >	problem,
		Element	parameters ) throws ClassNotFoundException

Constructor.

Parameters

problem	this agent's problem
parameters	the parameters for DFSgeneration

Exceptions

ClassNotFoundException if the heuristic class is unknown

References createHeuristic(), DFSgeneration(), and problem.

Here is the call graph for this function:

◆ DFSgeneration() [4/6]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.DFSgeneration	(	Element	parameters,
		DCOPProblemInterface< V, U >	problem )

The constructor called in "statistics gatherer" mode.

Parameters

problem	the overall problem
parameters	the description of what statistics should be reported (currently unused)

References dfsViews, dotRendererClass, and problem.

◆ DFSgeneration() [5/6]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.DFSgeneration ( DCOPProblemInterface< V, U > problem )

Manual constructor for the "statistics gatherer" mode.

Parameters

problem the overall problem

References dfsViews, and problem.

◆ DFSgeneration() [6/6]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.DFSgeneration ( boolean withSharedVars )

protected

Empty constructor.

Parameters

withSharedVars When parsing the constraints, whether to take into account variables with no specified owners

References withSharedVars.

Member Function Documentation

◆ createHeuristic()

NextChildChoiceHeuristic frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.createHeuristic	(	Class<? extends NextChildChoiceHeuristic >	heuristicClass,
		Element	heuristicParams )

private

Instantiates a heuristic using reflection, based on the class name and the XCSP problem description.

Parameters

heuristicClass	the class of the heuristic
heuristicParams	the XML description of the heuristic

Returns: a new instance of the corresponding heuristic

References problem.

Referenced by DFSgeneration().

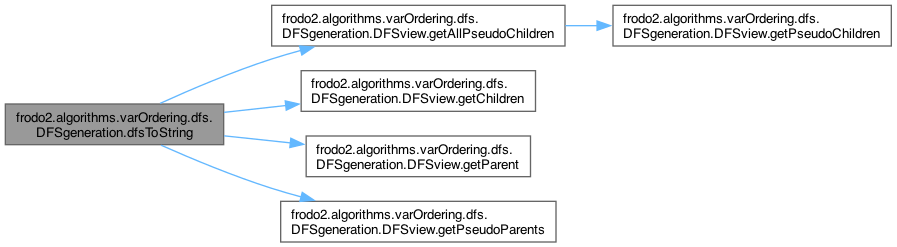

◆ dfsToString() [1/2]

String frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.dfsToString ( )

Returns: a DOT-formated representation of the dfs

References dfsToString().

Referenced by dfsToString().

Here is the call graph for this function:

◆ dfsToString() [2/2]

static< V extends Addable< V > U extends Addable String frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.dfsToString ( Map< String, DFSview< V, U > > dfs )

static

Here is the call graph for this function:

◆ getChildMsgType()

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getChildMsgType ( )

protected

Returns: The type of the message used to tell the recipient that it is a child of the sender

References CHILD_MSG_TYPE.

Referenced by getMsgTypes().

◆ getDFS()

HashMap< String, DFSview< V, U > > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getDFS ( )

Returns: the DFS

References dfsViews.

Referenced by frodo2.algorithms.dpop.DPOPsolver< V extends Addable< V >, U extends Addable >.getDFS().

◆ getFinalTime()

long frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getFinalTime ( )

Returns the time at which the DFS phase has finished, determined by looking at the timestamp of the stat messages.

Author: Brammert Ottens, 22 feb 2010

Returns: the time at which the DFS phase has finished

References finalTime.

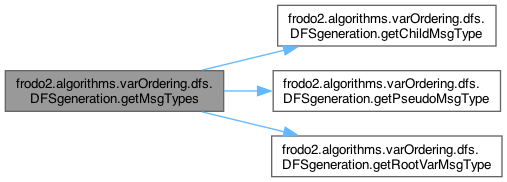

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getMsgTypes ( )

See also: IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References FINISH_MSG_TYPE, getChildMsgType(), getPseudoMsgType(), getRootVarMsgType(), and START_MSG_TYPE.

Here is the call graph for this function:

◆ getOutputMsgType()

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getOutputMsgType ( )

protected

Returns: The type of the output messages

References OUTPUT_MSG_TYPE.

Referenced by init().

◆ getPseudoMsgType()

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getPseudoMsgType ( )

protected

Returns: The type of the message used to tell the recipient that it is a pseudo-child of the sender

References PSEUDO_MSG_TYPE.

Referenced by getMsgTypes().

◆ getRootVarMsgType()

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getRootVarMsgType ( )

protected

Returns: the types of the messages telling whether a given variable is a root

References ROOT_VAR_MSG_TYPE.

Referenced by getMsgTypes().

◆ getStatsFromQueue()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.getStatsFromQueue ( Queue queue )

See also: StatsReporter.getStatsFromQueue(Queue)

Implements frodo2.algorithms.StatsReporter.

References queue, and STATS_MSG_TYPE.

◆ init() [1/2]

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.init ( )

protected

Parses the problem.

References dfsViews, init(), openNeighbors, and problem.

Referenced by init().

Here is the call graph for this function:

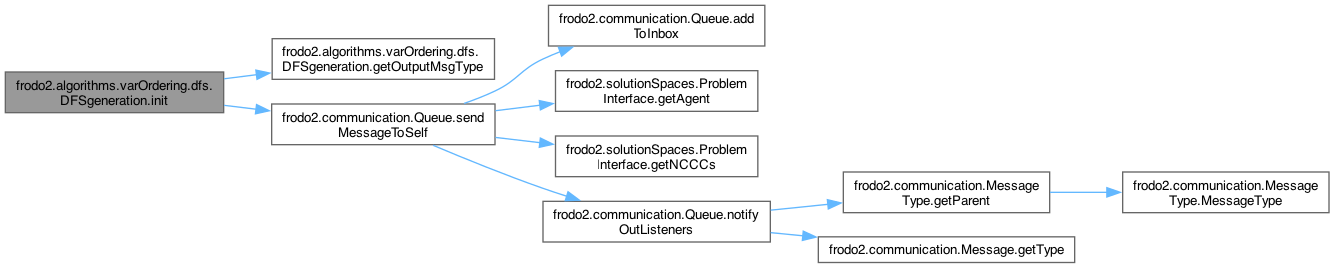

◆ init() [2/2]

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.init ( String var )

protected

Parses the problem for only one variable.

Parameters

var	the specified variable

References dfsViews, getOutputMsgType(), problem, and frodo2.communication.Queue.sendMessageToSelf().

Here is the call graph for this function:

◆ makeChildToken()

CHILDmsg frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.makeChildToken	(	Serializable	rootID,
		String	var,
		String	dest,
		Collection< String >	openNeighbors )

protected

makes the ChildToken Message with all the information required by the module

Parameters

rootID	The ID of the root
var	The variable concerned
dest	The destination variable
openNeighbors	The list of open neighbors of the current variable

Returns: The CHILDmsg to be sent

References openNeighbors.

Referenced by sendDownCHILDtoken().

◆ notifyIn()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.notifyIn ( Message msg )

The algorithm.

The algorithm is triggered by the receipt of a messages of type LeaderElectionMaxID.OUTPUT_MSG_TYPE, telling the agent whether each variable is a root. The actual implementation corresponds to the one described in the P-DPOP paper published in WI-IAT 2008.

Parameters

msg	the message received

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.communication.MessageType.equals(), notifyIn(), and STATS_MSG_TYPE.

Referenced by notifyIn().

Here is the call graph for this function:

◆ parseSpaces()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.parseSpaces	(	String	myVar,
		DFSview< V, U >	myDFSview )

private

Parses and records the spaces for the input variable.

Parameters

myVar	the variable
myDFSview	the variable's view of the DFS

References frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.DFSview< V extends Addable< V >, U extends Addable >.getAllPseudoChildren(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.DFSview< V extends Addable< V >, U extends Addable >.getChildren(), and frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getSolutionSpaces().

Here is the call graph for this function:

◆ processAdditionalMsgInformation()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.processAdditionalMsgInformation	(	Message	msg,
		String	var,
		DFSview< V, U >	dfsView )

protected

allows to process information included in messages which extend CHILDmsg

Parameters

msg	The message received
var	The variable concerned
dfsView	The dfsView of myVar

◆ reset()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.reset ( )

See also: StatsReporter.reset()

Implements frodo2.algorithms.StatsReporter.

References frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getVariables().

Referenced by frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.reset().

Here is the call graph for this function:

◆ resetComponent()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.resetComponent ( String var )

private

Resets all entries in this.dfsViews corresponding to variables in the component of the input variable.

Parameters

var	a variable in the component to be reset

◆ sendAdditionalDFSoutput()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.sendAdditionalDFSoutput	(	Serializable	rootID,
		String	myVar )

protected

Use this method to send additional output from DFS generation.

Parameters

rootID	The ID of the root
myVar	Variable name

◆ sendDownCHILDtoken()

boolean frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.sendDownCHILDtoken	(	Serializable	rootID,
		String	var,
		Collection< String >	openList,
		DFSview< V, U >	myDFSview,
		Message	msg )

protected

Attempts to choose the next child and sends it a CHILD token.

Parameters

rootID	the ID of the root
var	the variable whose next child must be chosen
openList	the list of open neighbors
myDFSview	the known dfsView for the input variable
msg	the message just received

Returns: false if and only if no CHILD token was sent because the open list is empty; true otherwise

References frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.DFSview< V extends Addable< V >, U extends Addable >.addChild(), makeChildToken(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.NextChildChoiceHeuristic.popNextChild(), and queue.

Here is the call graph for this function:

◆ setQueue()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.setQueue ( Queue queue )

See also: IncomingMsgPolicyInterface.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue, and setQueue().

Referenced by setQueue().

Here is the call graph for this function:

◆ setSilent()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.setSilent ( boolean silent )

See also: StatsReporter.setSilent(boolean)

Implements frodo2.algorithms.StatsReporter.

References silent.

Member Data Documentation

◆ CHILD_MSG_TYPE

final MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.CHILD_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Child")

static

The type of the message used to tell the recipient that it is a child of the sender.

Referenced by frodo2.algorithms.varOrdering.dfs.CHILDmsg.CHILDmsg(), frodo2.algorithms.varOrdering.dfs.CHILDmsg.CHILDmsg(), getChildMsgType(), and frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.notifyIn().

◆ dfsViews

HashMap< String, DFSview<V, U> > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.dfsViews

protected

For every variable this agent owns, its view of the DFS.

Referenced by DFSgeneration(), DFSgeneration(), getDFS(), init(), and init().

◆ dotRendererClass

String frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.dotRendererClass = null

private

Renderer to display DOT code.

Referenced by DFSgeneration().

◆ finalTime

long frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.finalTime = Long.MIN_VALUE

private

The time at which the DFS procedure has finished.

Referenced by getFinalTime().

◆ FINISH_MSG_TYPE

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.FINISH_MSG_TYPE = AgentInterface.AGENT_FINISHED

static

The type of the message telling the agent finished.

Referenced by getMsgTypes(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.getMsgTypes(), and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.notifyIn().

◆ heuristic

NextChildChoiceHeuristic frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.heuristic

protected

The heuristic used to choose a variable's next child from its list of open neighbors.

Referenced by DFSgeneration().

◆ openNeighbors

Map< String, Collection <String> > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.openNeighbors

protected

For each variable that this agent owns, a collection of open neighbor variables.

Referenced by init(), makeChildToken(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.BlindScoringHeuristic< S extends Comparable< S > &Serializable >.popNextChild(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.NextChildChoiceHeuristic.popNextChild(), and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.popNextChild().

◆ OUTPUT_MSG_TYPE

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.OUTPUT_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Output")

static

The type of the output messages.

◆ owners

Map<String, String> frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.owners

protected

For each known variable, the name of the agent that owns it.

◆ partialPaths

HashMap< Serializable, LinkedList<String> > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.partialPaths = new HashMap< Serializable, LinkedList<String> > ()

protected

For each component, the current partial constraint graph traversal path.

◆ problem

DCOPProblemInterface<V, U> frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.problem

protected

The problem.

Referenced by frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.BlindScoringHeuristic< S extends Comparable< S > &Serializable >.BlindScoringHeuristic(), createHeuristic(), DFSgeneration(), DFSgeneration(), DFSgeneration(), DFSgeneration(), init(), and init().

◆ PSEUDO_MSG_TYPE

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.PSEUDO_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Pseudo")

static

The type of the message used to tell the recipient that it is a pseudo-child of the sender.

Referenced by getPseudoMsgType().

◆ queue

Queue frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.queue

protected

The queue on which it should call sendMessage().

Referenced by getStatsFromQueue(), sendDownCHILDtoken(), and setQueue().

◆ ROOT_VAR_MSG_TYPE

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ROOT_VAR_MSG_TYPE = LeaderElectionMaxID.OUTPUT_MSG_TYPE

static

The type of the messages telling whether a given variable is a root.

Referenced by frodo2.algorithms.dpop.privacy.P2_DPOPsolver< V extends Addable< V >, U extends Addable >.clear(), frodo2.algorithms.dpop.privacy.P3halves_DPOPsolver< V extends Addable< V > >.clear(), frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationWithOrderTest.getMsgTypes(), getRootVarMsgType(), frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationWithOrderTest.notifyIn(), and frodo2.algorithms.dpop.privacy.test.SecureRerootingTest.randomTest().

◆ sentOutputs

HashSet<String> frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.sentOutputs = new HashSet<String> ()

private

The variables for which a DFSoutput has already been sent.

◆ silent

boolean frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.silent = false

private

Whether the stats reporter should print its stats.

Referenced by setSilent().

◆ START_MSG_TYPE

MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.START_MSG_TYPE = AgentInterface.START_AGENT

static

The type of the message telling the module to start.

Referenced by getMsgTypes(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.getMsgTypes(), and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.notifyIn().

◆ started

boolean frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.started = false

protected

Whether the execution of the algorithm has started.

◆ STATS_MSG_TYPE

final MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.STATS_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "Stats")

static

The type of the messages containing statistics.

Referenced by frodo2.algorithms.dpop.privacy.test.SecureCircularRoutingTest.getMsgTypes(), frodo2.algorithms.dpop.stochastic.CompleteUTIL< Val extends Addable< Val >, U extends Addable >.getStatsFromQueue(), frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.getStatsFromQueue(), getStatsFromQueue(), frodo2.algorithms.dpop.stochastic.CompleteUTIL< Val extends Addable< Val >, U extends Addable >.notifyIn(), frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.notifyIn(), notifyIn(), frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationTest.notifyIn(), frodo2.algorithms.varOrdering.dfs.DFSgenerationParallel< S extends Comparable< S > &Serializable >.FakeQueue.sendMessage(), and frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationTest.testRandom().

◆ totalNbrVars

int frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.totalNbrVars

protected

The total number of variables in the problem (used only in "statistics gatherer" mode).

◆ withSharedVars

final boolean frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.withSharedVars

private

When parsing the constraints, whether to take into account variables with no specified owners.

Referenced by DFSgeneration().

The documentation for this class was generated from the following file:

src/frodo2/algorithms/varOrdering/dfs/DFSgeneration.java

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DFSgeneration() [1/6]

◆ DFSgeneration() [2/6]

◆ DFSgeneration() [3/6]

◆ DFSgeneration() [4/6]

◆ DFSgeneration() [5/6]

◆ DFSgeneration() [6/6]

Member Function Documentation

◆ createHeuristic()

◆ dfsToString() [1/2]

◆ dfsToString() [2/2]

◆ getChildMsgType()

◆ getDFS()

◆ getFinalTime()

◆ getMsgTypes()

◆ getOutputMsgType()

◆ getPseudoMsgType()

◆ getRootVarMsgType()

◆ getStatsFromQueue()

◆ init() [1/2]

◆ init() [2/2]

◆ makeChildToken()

◆ notifyIn()

◆ parseSpaces()

◆ processAdditionalMsgInformation()

◆ reset()

◆ resetComponent()

◆ sendAdditionalDFSoutput()

◆ sendDownCHILDtoken()

◆ setQueue()

◆ setSilent()

Member Data Documentation

◆ CHILD_MSG_TYPE

◆ dfsViews

◆ dotRendererClass

◆ finalTime

◆ FINISH_MSG_TYPE

◆ heuristic

◆ openNeighbors

◆ OUTPUT_MSG_TYPE

◆ owners

◆ partialPaths

◆ problem

◆ PSEUDO_MSG_TYPE

◆ queue

◆ ROOT_VAR_MSG_TYPE

◆ sentOutputs

◆ silent

◆ START_MSG_TYPE

◆ started

◆ STATS_MSG_TYPE

◆ totalNbrVars

◆ withSharedVars
