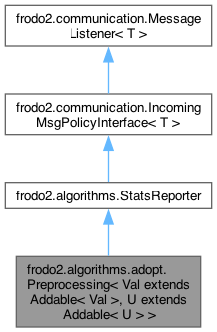

Inheritance diagram for frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >:

[legend]

Classes
interface	PreprocessingHeuristic
	This interface is used to implement the different heuristics for obtaining lower bounds. More...
class	SimpleHeuristic
	This simple heuristic sets all lower bounds to zero, and should be used when running the original adopt. More...
class	DP0
	Implementation of the DP0 heuristic. More...
class	DP1
	Implementation of the DP1 heuristic. More...
class	DP2
	Implementation of the DP2 heuristic. More...

Public Member Functions
	Preprocessing (Element e, DCOPProblemInterface< Val, U > problem)
	Constructor in stats gatherer mode.
	Preprocessing (ArrayList< String > variables, HashMap< String, Val[]> domains, String heuristicsName, U zeroObject) throws Exception
	Constructor.
	Preprocessing (DCOPProblemInterface< Val, U > problem, String heuristicsName) throws Exception
	Constructor.
	Preprocessing (DCOPProblemInterface< Val, U > problem, Element parameters) throws Exception
	Constructor from XML descriptions.
void	reset ()
UtilitySolutionSpace< Val, U >	createUtilitySpace (String[] variables, U utility)
	Convenience method to used to create a UtilitySpace<Val, U> and fill it with the value `utility`.
void	getStatsFromQueue (Queue queue)
HashMap< String, UtilitySolutionSpace< Val, U > >	getReportedHeuristics ()
	Returns the reported heuristics.
void	setSilent (boolean silent)
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	setQueue (Queue queue)
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Public Attributes
HashMap< String, UtilitySolutionSpace< Val, U > >	reportedHeuristics
	Container for the reported heuristics.

Static Public Attributes
static MessageType	START_MSG_TYPE = AgentInterface.START_AGENT
	The type of the message telling the module to start.
static final MessageType	HEURISTICS_MSG_TYPE = new MessageType ("ADOPT", "Preprocessing", "Heuristics")
	The type of message containing the heuristics.
static final MessageType	HEURISTICS_STAT_MSG_TYPE = new MessageType ("ADOPT", "Preprocessing", "Heuristics stats")
	The type of the heuristics stats message.

Private Member Functions
void	init ()
	Parses the problem.
void	setHeuristics (String heuristicName) throws ClassNotFoundException, InstantiationException, IllegalAccessException
	Helper function to set the heuristics used for preprocessing.

Private Attributes
boolean	reportStats = true
	Whether to report stats.
ArrayList< String >	variables = new ArrayList<String> ()
	A list of variables this agent owns.
HashMap< String, Val[]>	domains
	A list of domains of each of the variables.
PreprocessingHeuristic< Val, U >	heuristic
	The heuristic that is used to generate the lower bounds.
U	zeroObject
	used to create the null value
Queue	queue
	The agent's queue.
DCOPProblemInterface< Val, U >	problem
	The agent's problem.
Map< String, String >	owners = new HashMap<String, String> ()
	For each known variable, the name of the agent that owns it.
boolean	started = false
	Whether the algorithm has been started.

Detailed Description

Author: Brammert Ottens

Parameters

<Val>	type used for variable values
<U>	type used for utility values

The preprocessing listener computes heuristics for the lower bounds used by adopt. Currently, it implements the following heuristics:

trivial heuristic: set every lb to 0

Constructor & Destructor Documentation

◆ Preprocessing() [1/4]

frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable< U > >.Preprocessing	(	Element	e,
		DCOPProblemInterface< Val, U >	problem )

Constructor in stats gatherer mode.

Parameters

problem	not used at this time
e	not used at this time

References problem, and reportedHeuristics.

◆ Preprocessing() [2/4]

frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable< U > >.Preprocessing	(	ArrayList< String >	variables,
		HashMap< String, Val[]>	domains,
		String	heuristicsName,
		U	zeroObject ) throws Exception

Constructor.

Parameters

variables	the variables
domains	the domains
heuristicsName	name of the heuristics class used
zeroObject	the zero utility

Exceptions

Exception if an error occurs

References domains, setHeuristics(), variables, and zeroObject.

Here is the call graph for this function:

◆ Preprocessing() [3/4]

frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable< U > >.Preprocessing	(	DCOPProblemInterface< Val, U >	problem,
		String	heuristicsName ) throws Exception

Constructor.

Parameters

problem	the agent's problem
heuristicsName	name of the heuristic class used

Exceptions

Exception if an error occurs

References problem, and setHeuristics().

Here is the call graph for this function:

◆ Preprocessing() [4/4]

frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable< U > >.Preprocessing	(	DCOPProblemInterface< Val, U >	problem,
		Element	parameters ) throws Exception

Constructor from XML descriptions.

Parameters

problem	description of the problem
parameters	description of the parameters of Preprocessing

Exceptions

Exception if an error occurs

References problem, setHeuristics(), and zeroObject.

Here is the call graph for this function:

Member Function Documentation

◆ createUtilitySpace()

UtilitySolutionSpace< Val, U > frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable< U > >.createUtilitySpace	(	String[]	variables,
		U	utility )

Convenience method to used to create a UtilitySpace<Val, U> and fill it with the value utility.

Author: Brammert Ottens, 19 mei 2009

Parameters

variables	the variable for which the space must be created
utility	the utility to be used

Returns: a UtilitySpace over variable var with all utilities set to utility

References createUtilitySpace(), domains, and variables.

Referenced by createUtilitySpace(), and frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.PreprocessingHeuristic< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Addable >.VariableInfo().

Here is the call graph for this function:

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.getMsgTypes ( )

See also: IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, heuristic, frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.OUTPUT_MSG_TYPE, and START_MSG_TYPE.

◆ getReportedHeuristics()

HashMap< String, UtilitySolutionSpace< Val, U > > frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.getReportedHeuristics ( )

Returns the reported heuristics.

Author: Brammert Ottens, 22 jun 2009

Returns: the reported heuristics

Referenced by frodo2.algorithms.adopt.test.ADOPTagentTest< V extends Addable< V >, U extends Addable >.testRandom().

◆ getStatsFromQueue()

void frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.getStatsFromQueue ( Queue queue )

See also: StatsReporter.getStatsFromQueue(Queue)

Implements frodo2.algorithms.StatsReporter.

References HEURISTICS_STAT_MSG_TYPE, and queue.

◆ init()

void frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.init ( )

private

Parses the problem.

References domains, heuristic, owners, problem, and variables.

Referenced by notifyIn().

◆ notifyIn()

void frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.notifyIn ( Message msg )

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.communication.MessageType.equals(), HEURISTICS_STAT_MSG_TYPE, init(), notifyIn(), and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.OUTPUT_MSG_TYPE.

Referenced by notifyIn().

Here is the call graph for this function:

◆ reset()

void frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.reset ( )

See also: StatsReporter.reset()

Todo: Auto-generated method stub

Implements frodo2.algorithms.StatsReporter.

◆ setHeuristics()

void frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.setHeuristics ( String heuristicName ) throws ClassNotFoundException, InstantiationException, IllegalAccessException

private

Helper function to set the heuristics used for preprocessing.

Parameters

heuristicName the name of the heuristic class

Exceptions

ClassNotFoundException	if the heuristic class name is unknown
InstantiationException	if the heuristic class does not have an accessible nullary constructor
IllegalAccessException	if the heuristic class does not have an accessible nullary constructor

References Preprocessing(), and setHeuristics().

Referenced by Preprocessing(), Preprocessing(), Preprocessing(), and setHeuristics().

Here is the call graph for this function:

◆ setQueue()

void frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.setQueue ( Queue queue )

See also: IncomingMsgPolicyInterface.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

◆ setSilent()

void frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.setSilent ( boolean silent )

See also: StatsReporter.setSilent(boolean)

Implements frodo2.algorithms.StatsReporter.

Referenced by frodo2.algorithms.adopt.ADOPTsolver< V extends Addable< V >, U extends Addable >.getSolGatherers().

Member Data Documentation

◆ domains

HashMap<String, Val[]> frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.domains

private

A list of domains of each of the variables.

Referenced by createUtilitySpace(), init(), and Preprocessing().

◆ heuristic

PreprocessingHeuristic<Val, U> frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.heuristic

private

The heuristic that is used to generate the lower bounds.

Referenced by getMsgTypes(), and init().

◆ HEURISTICS_MSG_TYPE

final MessageType frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.HEURISTICS_MSG_TYPE = new MessageType ("ADOPT", "Preprocessing", "Heuristics")

static

The type of message containing the heuristics.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.getMsgTypes(), frodo2.algorithms.adopt.test.testPreprocessing.forwardHeuristicsMessage.getMsgTypes(), frodo2.algorithms.adopt.test.testPreprocessing.receiveLowerBounds.getMsgTypes(), frodo2.algorithms.adopt.test.testPreprocessing.forwardHeuristicsMessage.notifyIn(), and frodo2.algorithms.adopt.test.testPreprocessing.receiveLowerBounds.notifyIn().

◆ HEURISTICS_STAT_MSG_TYPE

final MessageType frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.HEURISTICS_STAT_MSG_TYPE = new MessageType ("ADOPT", "Preprocessing", "Heuristics stats")

static

The type of the heuristics stats message.

Referenced by getStatsFromQueue(), and notifyIn().

◆ owners

Map<String, String> frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.owners = new HashMap<String, String> ()

private

For each known variable, the name of the agent that owns it.

Referenced by init().

◆ problem

DCOPProblemInterface<Val, U> frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.problem

private

The agent's problem.

Referenced by init(), Preprocessing(), Preprocessing(), and Preprocessing().

◆ queue

Queue frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.queue

private

The agent's queue.

Referenced by getStatsFromQueue(), and setQueue().

◆ reportedHeuristics

HashMap<String, UtilitySolutionSpace<Val, U> > frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.reportedHeuristics

Container for the reported heuristics.

Referenced by Preprocessing().

◆ reportStats

boolean frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.reportStats = true

private

Whether to report stats.

◆ START_MSG_TYPE

MessageType frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.START_MSG_TYPE = AgentInterface.START_AGENT

static

The type of the message telling the module to start.

Referenced by getMsgTypes().

◆ started

boolean frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.started = false

private

Whether the algorithm has been started.

◆ variables

ArrayList<String> frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.variables = new ArrayList<String> ()

private

A list of variables this agent owns.

Referenced by createUtilitySpace(), init(), Preprocessing(), frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.DP1< Val extends Addable< Val >, U extends Addable >.VariableInfo.setParent(), frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.DP2< Val extends Addable< Val >, U extends Addable >.VariableInfo.setParent(), and frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.PreprocessingHeuristic< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Addable >.VariableInfo().

◆ zeroObject

U frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.zeroObject

private

used to create the null value

Referenced by Preprocessing(), Preprocessing(), and frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.PreprocessingHeuristic< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Addable >.VariableInfo().

The documentation for this class was generated from the following file:

src/frodo2/algorithms/adopt/Preprocessing.java
