This class implements the ADOPT algorithm as described in: More...

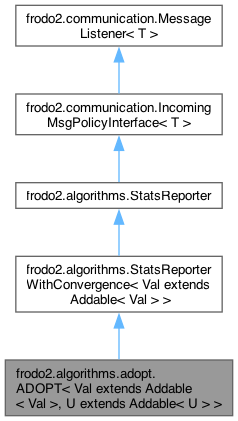

Inheritance diagram for frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >:

[legend]

Classes
interface	Version
	The different versions of adopt handle some things differently. More...
class	Original
	The original adopt version. More...
class	VariableInfo
	Helper class that contains all the info belonging to a specific variable. More...

Public Member Functions
	ADOPT (Element parameters, DCOPProblemInterface< Val, U > problem)
	Constructor for the stats gatherer mode.
	ADOPT (DCOPProblemInterface< Val, U > problem, Element parameters) throws Exception
	A constructor that takes in the description of the problem and the parameters of adopt.
	ADOPT (DCOPProblemInterface< Val, U > problem, String versionName, boolean convergence) throws Exception
	Constructor.
void	reset ()
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	setQueue (Queue queue)
void	getStatsFromQueue (Queue queue)
HashMap< String, ArrayList< CurrentAssignment< Val > > >	getAssignmentHistories ()
boolean	compatible (HashMap< String, Val > context1, HashMap< String, Val > context2)
	Two contexts are compatible if they agree on the shared variables.
void	sendMessageToVariable (String variable, Message msg)
	Sends a message to the owner of the variable.
void	setSilent (boolean silent)
Map< String, Val >	getCurrentSolution ()
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Member Functions
static< Val extends Addable< Val > U extends Addable< U > void	log (VariableInfo< Val, U > variable, String message)

Static Public Attributes
static MessageType	START_MSG_TYPE = AgentInterface.START_AGENT
	The type of the message telling the module to start.
static final MessageType	CONV_STATS_MSG_TYPE = new MessageType ("ADOPT", "ConvStats")
	The type of the message containing the assignment history.

Private Member Functions
void	init ()
	Parses the problem.
boolean	checkAllCostsNonNeg ()
void	setVersion (String versionName) throws ClassNotFoundException, NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException
	Helper function to set the heuristic used for preprocessing.
void	decideSingleton (VariableInfo< Val, U > variable)
	When this variable is isolated, immediately calculate its decision and terminate.

Private Attributes
Queue	queue
	The message queue.
U	infinity
	Infinite utility.
HashMap< String, VariableInfo< Val, U > >	infos
	For each variable all the info needed to run the algorithm.
Map< String, String >	owners = new HashMap<String, String>()
	For each known variable, the name of the agent that owns it.
Version< Val, U >	adoptVersion
	Object with version specific methods.
HashMap< String, Boolean >	variableReady = new HashMap<String, Boolean>()
	Variable used in order to determine whether the algorithm can be initiated or not for a particular variable.
int	variableReadyCounter = 0
	Variable that counts the number of variables that have terminated.
DCOPProblemInterface< Val, U >	problem
	The agent's problem.
boolean	started = false
	Whether the algorithm has been started.
final boolean	convergence
	`true` when the convergence history is to be stored
HashMap< String, ArrayList< CurrentAssignment< Val > > >	assignmentHistoriesMap
	For each variable its assignment history.

Static Private Attributes
static final boolean	LOG = false
	To log or not to log.

Detailed Description

This class implements the ADOPT algorithm as described in:

"An Asynchronous Complete Method for Distributed Constraint Optimization" P.J. Modi et al AAMAS03

Author: Brammert Ottens, Thomas Leaute

Parameters

<Val>	the type used for variable values
<U>	the type used for utility values

Warning: ADOPT only works for minimization problems, in which all costs are non-negative.

Constructor & Destructor Documentation

◆ ADOPT() [1/3]

frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.ADOPT	(	Element	parameters,
		DCOPProblemInterface< Val, U >	problem )

Constructor for the stats gatherer mode.

Parameters

problem	the overall problem
parameters	the parameters of the module

References assignmentHistoriesMap, and problem.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.Original< Val extends Addable< Val >, U extends Addable >.backTrack(), decideSingleton(), notifyIn(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.Original< Val extends Addable< Val >, U extends Addable >.Original(), and setVersion().

◆ ADOPT() [2/3]

frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.ADOPT	(	DCOPProblemInterface< Val, U >	problem,
		Element	parameters ) throws Exception

A constructor that takes in the description of the problem and the parameters of adopt.

Parameters

problem	Problem description
parameters	adopt's parameters

Exceptions

Exception if an error occurs

References infinity, problem, and setVersion().

Here is the call graph for this function:

◆ ADOPT() [3/3]

frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.ADOPT	(	DCOPProblemInterface< Val, U >	problem,
		String	versionName,
		boolean	convergence ) throws Exception

Constructor.

Parameters

problem	the problem
versionName	the name of the version of ADOPT
convergence	`true` when the assignment history should be stored

Exceptions

Exception if an error occurs

References convergence, infinity, problem, and setVersion().

Here is the call graph for this function:

Member Function Documentation

◆ checkAllCostsNonNeg()

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.checkAllCostsNonNeg ( )

private

Returns: true if all utilities in all spaces are non-negative, false otherwise

Author: Thomas Leaute

References frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getSolutionSpaces(), and frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.Iterator< V >.hasNext().

Referenced by init().

Here is the call graph for this function:

◆ compatible()

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.compatible	(	HashMap< String, Val >	context1,
		HashMap< String, Val >	context2 )

Two contexts are compatible if they agree on the shared variables.

Parameters

context1	the first context
context2	the second context

Returns: true if the contexts are compatible and false otherwise

◆ decideSingleton()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.decideSingleton ( VariableInfo< Val, U > variable )

private

When this variable is isolated, immediately calculate its decision and terminate.

Parameters

variable the information about the variable

References ADOPT(), frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, assignmentHistoriesMap, convergence, frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable >.currentAssignment, infos, LOG, log(), frodo2.output, queue, frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable >.setCurrentAssignmentSingleton(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable >.setDelta(), frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR, frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable >.variableID, and variableReadyCounter.

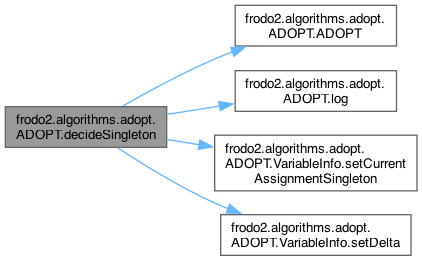

Here is the call graph for this function:

◆ getAssignmentHistories()

HashMap< String, ArrayList< CurrentAssignment< Val > > > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.getAssignmentHistories ( )

See also: StatsReporterWithConvergence.getAssignmentHistories()

Implements frodo2.algorithms.StatsReporterWithConvergence< Val extends Addable< Val > >.

References assignmentHistoriesMap.

◆ getCurrentSolution()

Map< String, Val > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.getCurrentSolution ( )

See also: StatsReporterWithConvergence.getCurrentSolution()

Todo: Auto-generated method stub

Implements frodo2.algorithms.StatsReporterWithConvergence< Val extends Addable< Val > >.

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.getMsgTypes ( )

See also: StatsReporterWithConvergence.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References adoptVersion, frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.adopt.Preprocessing< Val extends Addable< Val >, U extends Addable >.HEURISTICS_MSG_TYPE, frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.OUTPUT_MSG_TYPE, and START_MSG_TYPE.

◆ getStatsFromQueue()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.getStatsFromQueue ( Queue queue )

See also: StatsReporter.getStatsFromQueue(Queue)

Implements frodo2.algorithms.StatsReporter.

References CONV_STATS_MSG_TYPE, and queue.

◆ init()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.init ( )

private

Parses the problem.

References assignmentHistoriesMap, checkAllCostsNonNeg(), infinity, infos, problem, and variableReady.

Referenced by notifyIn().

Here is the call graph for this function:

◆ log()

static< Val extends Addable< Val > U extends Addable< U > void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.log	(	VariableInfo< Val, U >	variable,
		String	message )

static

References LOG, and frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable >.logFile.

Referenced by decideSingleton().

◆ notifyIn()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.notifyIn ( Message msg )

See also: StatsReporterWithConvergence.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References ADOPT(), frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.communication.MessageType.equals(), init(), notifyIn(), and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.OUTPUT_MSG_TYPE.

Referenced by notifyIn().

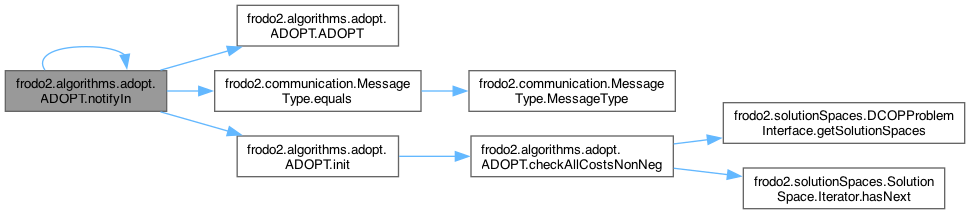

Here is the call graph for this function:

◆ reset()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.reset ( )

See also: StatsReporter.reset()

Todo: Auto-generated method stub

Implements frodo2.algorithms.StatsReporter.

◆ sendMessageToVariable()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.sendMessageToVariable	(	String	variable,
		Message	msg )

Sends a message to the owner of the variable.

Parameters

variable	the name of the destination variable
msg	the message

References owners, and queue.

◆ setQueue()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.setQueue ( Queue queue )

See also: StatsReporterWithConvergence.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

◆ setSilent()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.setSilent ( boolean silent )

See also: StatsReporter.setSilent(boolean)

Implements frodo2.algorithms.StatsReporter.

◆ setVersion()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.setVersion ( String versionName ) throws ClassNotFoundException, NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException

private

Helper function to set the heuristic used for preprocessing.

Parameters

versionName the name of the version class

Exceptions

ClassNotFoundException	if the version is not found
NoSuchMethodException	if the version class does not have a constructor taking a single argument of class ADOPT
InstantiationException	if calling the constructor for the version failed
IllegalAccessException	if calling the constructor for the version failed
InvocationTargetException	if calling the constructor for the version failed

References ADOPT(), and setVersion().

Referenced by ADOPT(), ADOPT(), and setVersion().

Here is the call graph for this function:

Member Data Documentation

◆ adoptVersion

Version<Val, U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.adoptVersion

private

Object with version specific methods.

Referenced by getMsgTypes().

◆ assignmentHistoriesMap

HashMap<String, ArrayList<CurrentAssignment<Val> > > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.assignmentHistoriesMap

private

For each variable its assignment history.

Referenced by ADOPT(), decideSingleton(), getAssignmentHistories(), and init().

◆ CONV_STATS_MSG_TYPE

final MessageType frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.CONV_STATS_MSG_TYPE = new MessageType ("ADOPT", "ConvStats")

static

The type of the message containing the assignment history.

Referenced by getStatsFromQueue().

◆ convergence

final boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.convergence

private

true when the convergence history is to be stored

Referenced by ADOPT(), and decideSingleton().

◆ infinity

U frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.infinity

private

Infinite utility.

Referenced by ADOPT(), ADOPT(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable >.checkUpperBounds(), and init().

◆ infos

HashMap<String, VariableInfo<Val, U> > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.infos

private

For each variable all the info needed to run the algorithm.

Referenced by decideSingleton(), and init().

◆ LOG

final boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.LOG = false

staticprivate

To log or not to log.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.Original< Val extends Addable< Val >, U extends Addable >.backTrack(), decideSingleton(), log(), and frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable >.VariableInfo().

◆ owners

Map<String, String> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.owners = new HashMap<String, String>()

private

For each known variable, the name of the agent that owns it.

Referenced by sendMessageToVariable().

◆ problem

DCOPProblemInterface<Val, U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.problem

private

The agent's problem.

Referenced by ADOPT(), ADOPT(), ADOPT(), and init().

◆ queue

Queue frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.queue

private

The message queue.

Referenced by decideSingleton(), getStatsFromQueue(), sendMessageToVariable(), and setQueue().

◆ START_MSG_TYPE

MessageType frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.START_MSG_TYPE = AgentInterface.START_AGENT

static

The type of the message telling the module to start.

Referenced by getMsgTypes().

◆ started

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.started = false

private

Whether the algorithm has been started.

◆ variableReady

HashMap<String, Boolean> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.variableReady = new HashMap<String, Boolean>()

private

Variable used in order to determine whether the algorithm can be initiated or not for a particular variable.

Referenced by init().

◆ variableReadyCounter

int frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable >.variableReadyCounter = 0

private

Variable that counts the number of variables that have terminated.

Referenced by decideSingleton().

The documentation for this class was generated from the following file:

src/frodo2/algorithms/adopt/ADOPT.java

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ADOPT() [1/3]

◆ ADOPT() [2/3]

◆ ADOPT() [3/3]

Member Function Documentation

◆ checkAllCostsNonNeg()

◆ compatible()

◆ decideSingleton()

◆ getAssignmentHistories()

◆ getCurrentSolution()

◆ getMsgTypes()

◆ getStatsFromQueue()

◆ init()

◆ log()

◆ notifyIn()

◆ reset()

◆ sendMessageToVariable()

◆ setQueue()

◆ setSilent()

◆ setVersion()

Member Data Documentation

◆ adoptVersion

◆ assignmentHistoriesMap

◆ CONV_STATS_MSG_TYPE

◆ convergence

◆ infinity

◆ infos

◆ LOG

◆ owners

◆ problem

◆ queue

◆ START_MSG_TYPE

◆ started

◆ variableReady

◆ variableReadyCounter
