frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > > Class Template Reference

Helper class that contains all the info belonging to a specific variable. More...

Public Member Functions
	VariableInfo (String variableID, Val[] domain, U zero)
	Constructor.
void	storeConstraint (UtilitySolutionSpace< Val, U > space)
	Makes this variable responsible for this constraint.
void	setDelta ()
	Given the current context, set the utilities for each value of this variable.
void	setCurrentAssignmentSingleton ()
	This function is used to find the optimal decision of a singleton agent.
void	setLowerBoundChild (String child, UtilitySolutionSpace< Val, U > bounds)
	Set the lower bound found by the Preprocessing module for child.
void	setOwnLowerBound (UtilitySolutionSpace< Val, U > bounds)
	Set the lower bound on ones own values, as determined by the Preprocessing module.
void	initializeBounds (U upperBound)
	Initializes the lower bounds to the value in lowerBounds, and set the upper bounds all to the same value upperBound.
void	resetBounds (Val d, String child, U upperBound)
	Resets the bounds for a particular value / child combination.
void	updateBounds (Val value, int child, U newLb, U newUb)
	Updates the bounds.
void	computeLB (Val value)
	Computes the sum of all child lower bounds for domain value "value".
void	computeUB (Val value)
	Computes the sum of all child upper bounds for domain value "value".
void	resetChildThreshold (Val d, String child, U zero)
	Resets the threshold for a particular value / child combination.
void	resetChildContext (Val d, int i)
	Resets the context for a particular value / child combination.
void	setSeparator (String parent, List< String > pseudoParents)
	Sets the separator of this variable.
void	setLowerNeighbours (List< String > children, List< String > pseudoChildren, U zero)
	Sets the lower neighbours of this variable.
U	getCurrentDelta ()
	Getter function.
boolean	isSingleton ()
	Check to see if this variable has any neighbours.
boolean	isReady ()
	A Variable is ready to start adopt when it has received all preprocessing messages.
boolean	checkUpperBounds ()
	This functions checks, for each value, whether the bounds add up and are equal to the overall bound.
String	toString ()

Public Attributes
boolean	initialized = false
	false when the variable is not initialized yet and true otherwise
boolean	terminate = false
	true when the variable received a terminate message from its parent
boolean	execution_terminated = false
	true when execution has been terminated
boolean	full_info = false
	True when the variable has received a VALUE message from all its higher priority neighbours.
int	full_info_counter = 0
	Counts from how many agents it has received a VALUE message.
int	nbrOfSeparators = 0
	The number of higher priority neighbours.
Message[]	lastValueSent
	For each lower priority neighbour the last VALUE message that has been sent.
Message	lastMessageReceived = null
	Remembers the last message that has been received.
String	variableID
	This variable's ID.
String[]	lowerNeighbours
	This variable's a list of lower neighbours.
HashMap< String, U >	hChild
	The lower bounds for the children determined by the Preprocessing module.
UtilitySolutionSpace< Val, U >	h
	The variables own lower bounds determined by the Preprocessing module.
int	numberOfChildren
	This variable's number of children.
String[]	separator
	The variable's parent and pseudo parents, separator[0] = parent, rest is pseudo parent.
HashMap< String, Integer >	neighbours
	A list of my neighbours and their pointers in the separator and lowerNeighbours lists.
ArrayList< ArrayList< U > >	lb
	For each variable/value v/d combination it contains a list of lower bounds for v's children.
U[]	lbSUM
	Stores the sum of all the values in lb.
ArrayList< ArrayList< U > >	ub
	For each variable/value v/d combination it contains a list of upper bounds for v's children.
U[]	ubSUM
	Stores the sum of all the values in ub.
U[][]	t
	For each variable/value v/d combination it contains the distribution of v's threshold over its children.
U	UB
	The current minimal upper bound.
ArrayList< U >	UBperD
	For each value the upper bound.
U	LB
	The current minimal lower bound.
ArrayList< U >	LBperD
	For each value the lower bound.
Val	lbD
	The value that minimizes the lower bound.
Val	ubD
	The value that minimizes the upper bound.
Val	currentAssignment
	For each variable the current assignment.
ArrayList< U >	delta
	Given the current context, this map contains the utilities for each value of this variable.
HashMap< Val, Integer >	valuePointer
	For each value the position in the lb and ub arrays.
ArrayList< Val >	domain
	The domain of this variable.
U	threshold
	The current threshold.
ArrayList< ArrayList< HashMap< String, Val > > >	context
	For each value and child, its context.
HashMap< String, Val >	currentContext
	For each variable, its current context.
BufferedWriter	logFile
	This variables private log file.

Private Attributes
U	zero
	A zero utility.
UtilitySolutionSpace< Val, U >	space
	The join of all constraints this variable is responsible for.

Detailed Description

Helper class that contains all the info belonging to a specific variable.

Parameters

<Val>	the type used for variable values
<U>	the type used for utility values

Constructor & Destructor Documentation

VariableInfo()

frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.VariableInfo	(	String	variableID,
		Val[]	domain,
		U	zero )

Constructor.

Parameters

variableID	the name of the variable
domain	the variable's domain
zero	the zero utility

References context, currentAssignment, currentContext, delta, domain, hChild, LB, lb, LBperD, lbSUM, frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.LOG, logFile, neighbours, t, UB, ub, UBperD, ubSUM, valuePointer, variableID, VariableInfo(), and zero.

Referenced by VariableInfo().

Here is the call graph for this function:

Member Function Documentation

checkUpperBounds()

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.checkUpperBounds

(

)

This functions checks, for each value, whether the bounds add up and are equal to the overall bound.

Returns

true when consistent and false otherwise

References delta, frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.infinity, ub, UBperD, valuePointer, and zero.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage().

computeLB()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.computeLB

(

Val

value

)

Computes the sum of all child lower bounds for domain value "value".

Parameters

value

the domain value

References frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.addDelayed(), computeLB(), delta, h, LB, lb, lbD, LBperD, lbSUM, frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.resolve(), valuePointer, and zero.

Referenced by computeLB(), resetBounds(), and updateBounds().

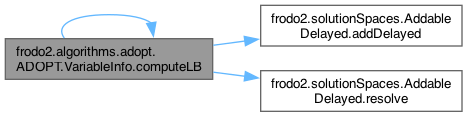

Here is the call graph for this function:

computeUB()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.computeUB

(

Val

value

)

Computes the sum of all child upper bounds for domain value "value".

Parameters

value

the domain value

References frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.addDelayed(), delta, full_info, frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.resolve(), UB, ub, ubD, UBperD, ubSUM, valuePointer, and zero.

Referenced by resetBounds(), and updateBounds().

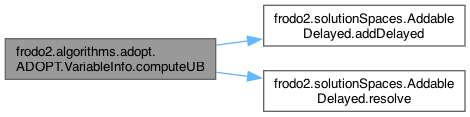

Here is the call graph for this function:

getCurrentDelta()

U frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.getCurrentDelta

(

)

Getter function.

Returns

the utility of this variable for the current value it set itself to

References currentAssignment, delta, and valuePointer.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant().

initializeBounds()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.initializeBounds

(

U

upperBound

)

Initializes the lower bounds to the value in lowerBounds, and set the upper bounds all to the same value upperBound.

Parameters

upperBound

the upper bound value

References hChild, initializeBounds(), lbSUM, ubSUM, and zero.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), and initializeBounds().

Here is the call graph for this function:

isReady()

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.isReady

(

)

A Variable is ready to start adopt when it has received all preprocessing messages.

That is, 1 message from its own preprocessing phase, and 1 for each one of its children.

Author

Brammert Ottens, 29 mei 2009

Returns

true when ready to start, and false otherwise

References h, hChild, and numberOfChildren.

isSingleton()

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.isSingleton

(

)

Check to see if this variable has any neighbours.

Returns

true when a singleton and false otherwise

References neighbours.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init().

resetBounds()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.resetBounds	(	Val	d,
		String	child,
		U	upperBound )

Resets the bounds for a particular value / child combination.

Parameters

d	the value
child	the child
upperBound	the upper bound

References computeLB(), computeUB(), lb, neighbours, ub, valuePointer, and zero.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset().

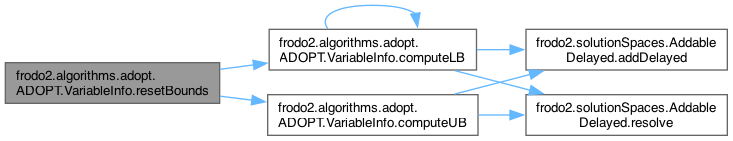

Here is the call graph for this function:

resetChildContext()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.resetChildContext	(	Val	d,
		int	i )

Resets the context for a particular value / child combination.

Parameters

d	the value
i	the index of the child

References context, and valuePointer.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset().

resetChildThreshold()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.resetChildThreshold	(	Val	d,
		String	child,
		U	zero )

Resets the threshold for a particular value / child combination.

Parameters

d	the value
child	the child
zero	the zero utility

References neighbours, t, valuePointer, and zero.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset().

setCurrentAssignmentSingleton()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.setCurrentAssignmentSingleton

(

)

This function is used to find the optimal decision of a singleton agent.

References currentAssignment, delta, valuePointer, and zero.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.decideSingleton().

setDelta()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.setDelta

(

)

Given the current context, set the utilities for each value of this variable.

Todo

when the deltas are set for the first time, the old LB(d) is always smaller. Find some way to fix this!

Todo

Use a sliced iterator instead? This might not be possible as the context can be incomplete.

References delta, domain, full_info, LB, lbD, LBperD, lbSUM, UB, ubD, UBperD, ubSUM, valuePointer, and zero.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.decideSingleton(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleTERMINATEmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage(), and frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init().

setLowerBoundChild()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.setLowerBoundChild	(	String	child,
		UtilitySolutionSpace< Val, U >	bounds )

Set the lower bound found by the Preprocessing module for child.

Author

Brammert Ottens, 19 mei 2009

Parameters

child	The child to whom the bounds belong
bounds	The bounds themselves

References frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable< U > >.blindProjectAll(), and hChild.

Here is the call graph for this function:

setLowerNeighbours()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.setLowerNeighbours	(	List< String >	children,
		List< String >	pseudoChildren,
		U	zero )

Sets the lower neighbours of this variable.

The first k are the children, the rest the pseudochildren

Parameters

children	the list of children
pseudoChildren	the list of pseudo-children
zero	the zero utility

References lowerNeighbours, numberOfChildren, setLowerNeighbours(), valuePointer, and zero.

Referenced by setLowerNeighbours().

Here is the call graph for this function:

setOwnLowerBound()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.setOwnLowerBound

(

UtilitySolutionSpace< Val, U >

bounds

)

Set the lower bound on ones own values, as determined by the Preprocessing module.

Author

Brammert Ottens, 19 mei 2009

Parameters

bounds

The bounds

References h.

setSeparator()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.setSeparator	(	String	parent,
		List< String >	pseudoParents )

Sets the separator of this variable.

Parameters

parent	the parent (or null if any)
pseudoParents	the list of pseudo-parents

References nbrOfSeparators, neighbours, and separator.

storeConstraint()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.storeConstraint

(

UtilitySolutionSpace< Val, U >

space

)

Makes this variable responsible for this constraint.

Parameters

space

the constraint

References frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable< U > >.join(), and space.

Here is the call graph for this function:

toString()

String frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.toString

(

)

See also

java.lang.Object#toString()

References context, currentAssignment, currentContext, delta, LB, lb, lbD, LBperD, numberOfChildren, separator, t, threshold, UB, ub, ubD, UBperD, and variableID.

updateBounds()

void frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.updateBounds	(	Val	value,
		int	child,
		U	newLb,
		U	newUb )

Updates the bounds.

Parameters

value	the value
child	the child
newUb	the new upper bound
newLb	the new lower bound

References computeLB(), computeUB(), lb, ub, and valuePointer.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage().

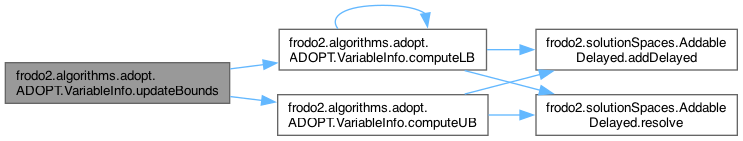

Here is the call graph for this function:

Member Data Documentation

context

ArrayList<ArrayList<HashMap<String, Val> > > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.context

For each value and child, its context.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.checkChildInfo(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), resetChildContext(), toString(), and VariableInfo().

currentAssignment

Val frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.currentAssignment

For each variable the current assignment.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.decideSingleton(), getCurrentDelta(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), setCurrentAssignmentSingleton(), toString(), and VariableInfo().

currentContext

HashMap<String, Val> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.currentContext

For each variable, its current context.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.checkChildInfo(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), toString(), and VariableInfo().

delta

ArrayList<U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.delta

Given the current context, this map contains the utilities for each value of this variable.

Referenced by checkUpperBounds(), computeLB(), computeUB(), getCurrentDelta(), setCurrentAssignmentSingleton(), setDelta(), toString(), and VariableInfo().

domain

ArrayList<Val> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.domain

The domain of this variable.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainChildThresholdInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), setDelta(), and VariableInfo().

execution_terminated

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.execution_terminated = false

true when execution has been terminated

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage().

full_info

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.full_info = false

True when the variable has received a VALUE message from all its higher priority neighbours.

Referenced by computeUB(), and setDelta().

full_info_counter

int frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.full_info_counter = 0

Counts from how many agents it has received a VALUE message.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage(), and frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init().

h

UtilitySolutionSpace<Val, U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.h

The variables own lower bounds determined by the Preprocessing module.

Referenced by computeLB(), isReady(), and setOwnLowerBound().

hChild

HashMap<String, U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.hChild

The lower bounds for the children determined by the Preprocessing module.

Referenced by initializeBounds(), isReady(), setLowerBoundChild(), and VariableInfo().

initialized

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.initialized = false

false when the variable is not initialized yet and true otherwise

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage().

lastMessageReceived

Message frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.lastMessageReceived = null

Remembers the last message that has been received.

When the same message is received multiple times in a row, only the first message is processed. The other messages do not contain any new information and only generate more messages

lastValueSent

Message [] frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.lastValueSent

For each lower priority neighbour the last VALUE message that has been sent.

LB

U frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.LB

The current minimal lower bound.

Referenced by computeLB(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainThresholdInvariant(), setDelta(), toString(), and VariableInfo().

lb

ArrayList<ArrayList<U> > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.lb

For each variable/value v/d combination it contains a list of lower bounds for v's children.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.checkChildInfo(), computeLB(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainChildThresholdInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), resetBounds(), toString(), updateBounds(), and VariableInfo().

lbD

Val frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.lbD

The value that minimizes the lower bound.

Referenced by computeLB(), setDelta(), and toString().

LBperD

ArrayList<U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.LBperD

For each value the lower bound.

Referenced by computeLB(), setDelta(), toString(), and VariableInfo().

lbSUM

U [] frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.lbSUM

Stores the sum of all the values in lb.

Uses some more memory in order to prevent having to check the delta each time

Referenced by computeLB(), initializeBounds(), setDelta(), and VariableInfo().

logFile

BufferedWriter frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.logFile

This variables private log file.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.log(), and VariableInfo().

lowerNeighbours

String [] frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.lowerNeighbours

This variable's a list of lower neighbours.

The first m entries are its children, the rest are its pseudo children

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), and setLowerNeighbours().

nbrOfSeparators

int frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.nbrOfSeparators = 0

The number of higher priority neighbours.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), and setSeparator().

neighbours

HashMap<String, Integer> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.neighbours

A list of my neighbours and their pointers in the separator and lowerNeighbours lists.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), isSingleton(), resetBounds(), resetChildThreshold(), setSeparator(), and VariableInfo().

numberOfChildren

int frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.numberOfChildren

This variable's number of children.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.checkChildInfo(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), isReady(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainChildThresholdInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), setLowerNeighbours(), and toString().

separator

String [] frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.separator

The variable's parent and pseudo parents, separator[0] = parent, rest is pseudo parent.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), setSeparator(), and toString().

space

UtilitySolutionSpace<Val, U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.space

private

The join of all constraints this variable is responsible for.

Referenced by storeConstraint().

t

U [][] frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.t

For each variable/value v/d combination it contains the distribution of v's threshold over its children.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainChildThresholdInvariant(), resetChildThreshold(), toString(), and VariableInfo().

terminate

boolean frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.terminate = false

true when the variable received a terminate message from its parent

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), and frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleVALUEmessage().

threshold

U frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.threshold

The current threshold.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainThresholdInvariant(), and toString().

UB

U frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.UB

The current minimal upper bound.

Referenced by computeUB(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainThresholdInvariant(), setDelta(), toString(), and VariableInfo().

ub

ArrayList<ArrayList<U> > frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.ub

For each variable/value v/d combination it contains a list of upper bounds for v's children.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.checkChildInfo(), checkUpperBounds(), computeUB(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainChildThresholdInvariant(), resetBounds(), toString(), updateBounds(), and VariableInfo().

ubD

Val frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.ubD

The value that minimizes the upper bound.

Referenced by computeUB(), setDelta(), and toString().

UBperD

ArrayList<U> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.UBperD

For each value the upper bound.

Referenced by checkUpperBounds(), computeUB(), setDelta(), toString(), and VariableInfo().

ubSUM

U [] frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.ubSUM

Stores the sum of all the values in ub.

Uses some more memory in order to prevent having to check the delta each time

Referenced by computeUB(), initializeBounds(), setDelta(), and VariableInfo().

valuePointer

HashMap<Val, Integer> frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.valuePointer

For each value the position in the lb and ub arrays.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.checkChildInfo(), checkUpperBounds(), computeLB(), computeUB(), getCurrentDelta(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainChildThresholdInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), resetBounds(), resetChildContext(), resetChildThreshold(), setCurrentAssignmentSingleton(), setDelta(), setLowerNeighbours(), updateBounds(), and VariableInfo().

variableID

String frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.variableID

This variable's ID.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.decideSingleton(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.handleCOSTmessage(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.init(), toString(), and VariableInfo().

zero

U frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.VariableInfo< Val extends Addable< Val >, U extends Serializable &Addable< U > >.zero

private

A zero utility.

Referenced by frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.checkChildInfo(), checkUpperBounds(), computeLB(), computeUB(), initializeBounds(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.maintainAllocationInvariant(), frodo2.algorithms.adopt.ADOPT< Val extends Addable< Val >, U extends Addable< U > >.Original< Val extends Addable< Val >, U extends Addable< U > >.reset(), resetBounds(), resetChildThreshold(), setCurrentAssignmentSingleton(), setDelta(), setLowerNeighbours(), and VariableInfo().

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/adopt/ADOPT.java
