Selects the next child as the one that has the highest score. More...

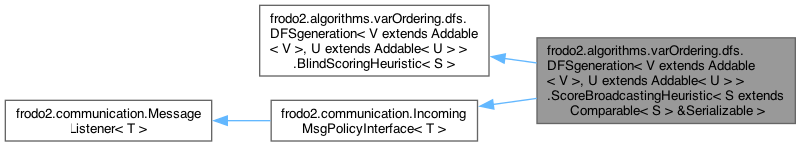

Inheritance diagram for frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >:

[legend]

Public Member Functions
	ScoreBroadcastingHeuristic (DCOPProblemInterface<?, ?> problem, Element params) throws Exception
	Constructor.
	ScoreBroadcastingHeuristic (ScoringHeuristic< S > heuristic, Map< String, Set< String > > neighborAgents)
	Constructor.
String	popNextChild (String var, DFSview<?, ?> unused, Collection< String > openNeighbors)
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	setQueue (Queue queue)
Public Member Functions inherited from frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.BlindScoringHeuristic< S >
	BlindScoringHeuristic (ScoringHeuristic< S > heuristic)
	Constructor.
String	popNextChild (String var, DFSview<?, ?> dfsView, Collection< String > openNeighbors)
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Package Attributes
static final MessageType	SCORE_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "ScoreBroadcastingHeuristic", "HeuristicScores")
	The type of messages containing the scores of given variables.
static final MessageType	SCORE_SINGLE_VAR_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "ScoreBroadcastingHeuristic", "HeuristicScoreSingleVar")
	The type of messages containing the scores of given variables.

Private Member Functions
void	init ()
	Parses the problem.
void	buildKnownVars (Map< String, Set< String > > neighborAgents)
	Builds the knownVars map.
void	reset ()
	Resets all problem-dependent fields (except the problem itself).

Private Attributes
DCOPProblemInterface<?, ?>	problem
	The problem.
boolean	started = false
	Whether the execution of the algorithm has started.
Map< String, Set< String > >	neighborAgents
	For each variable owned by this agent, the set of agents that own a variable connected to this variable.
HashMap< String, HashSet< String > >	knownVars = new HashMap< String, HashSet<String> > ()
	For each neighboring agent, the set of my variables it knows.
Map< String, S >	scores
	For each known variable, its score.
Queue	queue
	The queue used to exchange information about scores.

Additional Inherited Members
Protected Attributes inherited from frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.BlindScoringHeuristic< S >
ScoringHeuristic< S >	heuristic
	The ScoringHeuristic used.

Detailed Description

Selects the next child as the one that has the highest score.

Parameters

<S>	the type used for the scores

Constructor & Destructor Documentation

◆ ScoreBroadcastingHeuristic() [1/2]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.ScoreBroadcastingHeuristic	(	DCOPProblemInterface<?, ?>	problem,
		Element	params ) throws Exception

Constructor.

Parameters

problem	description of the agent's problem
params	the heuristic parameters

Exceptions

Exception if the constructor of the superclass throws an exception

References problem.

◆ ScoreBroadcastingHeuristic() [2/2]

frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.ScoreBroadcastingHeuristic	(	ScoringHeuristic< S >	heuristic,
		Map< String, Set< String > >	neighborAgents )

Constructor.

Parameters

heuristic	The ScoringHeuristic used
neighborAgents	for each variable owned by this agent, the set of agents that own a variable connected to this variable

References buildKnownVars(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.BlindScoringHeuristic< S >.heuristic, and neighborAgents.

Here is the call graph for this function:

Member Function Documentation

◆ buildKnownVars()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.buildKnownVars ( Map< String, Set< String > > neighborAgents )

private

Builds the knownVars map.

Parameters

neighborAgents for each internal variable, its collection of neighboring agents

References neighborAgents.

Referenced by init(), and ScoreBroadcastingHeuristic().

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.getMsgTypes ( )

See also: IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.FINISH_MSG_TYPE, SCORE_MSG_TYPE, SCORE_SINGLE_VAR_MSG_TYPE, and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.START_MSG_TYPE.

◆ init()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.init ( )

private

Parses the problem.

References buildKnownVars(), and problem.

Referenced by notifyIn(), and popNextChild().

Here is the call graph for this function:

◆ notifyIn()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.notifyIn ( Message msg )

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.communication.MessageType.equals(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.FINISH_MSG_TYPE, init(), notifyIn(), and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.START_MSG_TYPE.

Referenced by notifyIn().

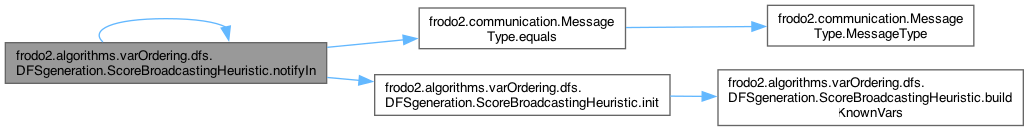

Here is the call graph for this function:

◆ popNextChild()

String frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.popNextChild	(	String	var,
		DFSview<?, ?>	unused,
		Collection< String >	openNeighbors )

See also: frodo2.algorithms.varOrdering.dfs.DFSgeneration.BlindScoringHeuristic.popNextChild(java.lang.String, DFSview, java.util.Collection)

References init(), and frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.openNeighbors.

Here is the call graph for this function:

◆ reset()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.reset ( )

private

Resets all problem-dependent fields (except the problem itself).

◆ setQueue()

void frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.setQueue ( Queue queue )

See also: IncomingMsgPolicyInterface.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

Member Data Documentation

◆ knownVars

HashMap< String, HashSet<String> > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.knownVars = new HashMap< String, HashSet<String> > ()

private

For each neighboring agent, the set of my variables it knows.

◆ neighborAgents

Map< String, Set<String> > frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.neighborAgents

private

For each variable owned by this agent, the set of agents that own a variable connected to this variable.

Referenced by buildKnownVars(), and ScoreBroadcastingHeuristic().

◆ problem

DCOPProblemInterface<?, ?> frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.problem

private

The problem.

Referenced by init(), and ScoreBroadcastingHeuristic().

◆ queue

Queue frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.queue

private

The queue used to exchange information about scores.

Referenced by setQueue().

◆ SCORE_MSG_TYPE

final MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.SCORE_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "ScoreBroadcastingHeuristic", "HeuristicScores")

staticpackage

The type of messages containing the scores of given variables.

Referenced by getMsgTypes(), frodo2.algorithms.varOrdering.dfs.ScoresMsg< S extends Serializable >.ScoresMsg(), and frodo2.algorithms.varOrdering.dfs.ScoresMsg< S extends Serializable >.ScoresMsg().

◆ SCORE_SINGLE_VAR_MSG_TYPE

final MessageType frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.SCORE_SINGLE_VAR_MSG_TYPE = new MessageType ("VarOrdering", "DFSgeneration", "ScoreBroadcastingHeuristic", "HeuristicScoreSingleVar")

staticpackage

The type of messages containing the scores of given variables.

Referenced by getMsgTypes(), frodo2.algorithms.varOrdering.dfs.ScoreMsg< S extends Serializable >.ScoreMsg(), and frodo2.algorithms.varOrdering.dfs.ScoreMsg< S extends Serializable >.ScoreMsg().

◆ scores

Map<String, S> frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.scores

private

For each known variable, its score.

◆ started

boolean frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.ScoreBroadcastingHeuristic< S extends Comparable< S > &Serializable >.started = false

private

Whether the execution of the algorithm has started.

The documentation for this class was generated from the following file:

src/frodo2/algorithms/varOrdering/dfs/DFSgeneration.java
