frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > > Class Template Reference

JUnit test for DPOPagent. More...

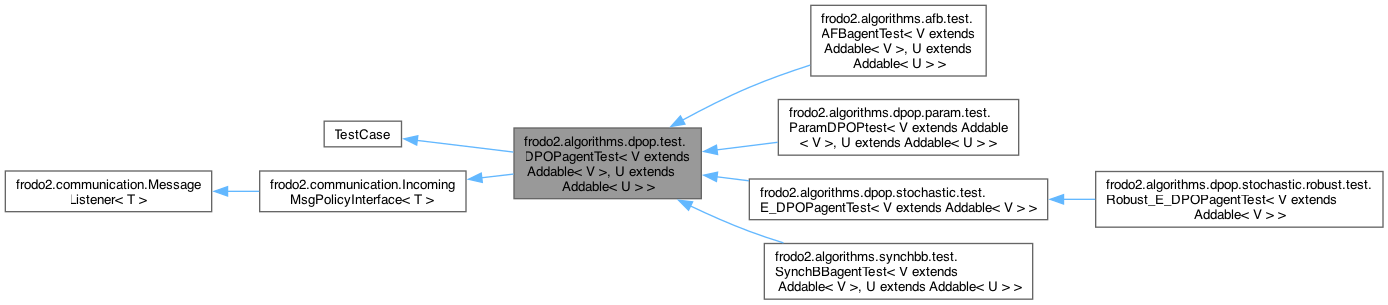

Inheritance diagram for frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >:

Public Member Functions
	DPOPagentTest (boolean useXCSP, boolean useTCP, boolean useCentralMailer, boolean useDelay, Class< V > domClass, Class< U > utilClass)
	Creates a JUnit test case corresponding to the input method.
	DPOPagentTest (boolean useXCSP, boolean swap, boolean minNCCCs, boolean countNCCCs, boolean ignoreHypercubeNCCCs)
	Constructor.
	DPOPagentTest (boolean useXCSP, boolean swap, boolean minNCCCs, boolean countNCCCs, boolean ignoreHypercubeNCCCs, String dpopPath)
	Constructor.
	DPOPagentTest (Class<? extends XCSPparser< V, U > > parserClass)
	Constructor for a test with a subsolver.
	DPOPagentTest (boolean useXCSP, boolean useTCP, boolean useCentralMailer, boolean useDelay, Class< V > domClass, Class< U > utilClass, MessageType startMsgType)
	Creates a JUnit test case corresponding to the input method.
	DPOPagentTest (boolean useXCSP, boolean useTCP, boolean useCentralMailer, boolean useDelay, Class< V > domClass, Class< U > utilClass, MessageType startMsgType, Class< ? extends XCSPparser< V, U > > parserClass, boolean swap, boolean minNCCCs, boolean countNCCCs, boolean measureMsgs, boolean ignoreHypercubeNCCCs)
	Creates a JUnit test case corresponding to the input method.
void	setUp () throws Exception
void	testRandom () throws Exception
	Tests the DPOPagent on a random problem.
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	setQueue (Queue queue)
	Does nothing.
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Member Functions
static TestSuite	suite ()

Protected Member Functions
void	setStartMsgType (MessageType startMsgType) throws JDOMException
	Sets the type of the start message for all modules.
void	tearDown () throws Exception
void	checkOutput () throws Exception
	Checks that the output of the algorithm is correct.

Protected Attributes
Document	agentConfig
	The agent configuration file.
Queue	queue
	The queue used to listen to the agents.
Map< Object, QueueOutputPipeInterface >	pipes
	For each agent, the output pipe to it.
RandGraphFactory.Graph	graph
	Random graph used to generate a constraint graph.
int	nbrMsgsReceived
	Used to track the number of various types of messages received from the agents.
int	nbrAgentsFinished
	Number of agents finished.
boolean	useCentralMailer = false
	true if the algorithm should be tested with the central mailer
Document	problemDoc
	The XCSP random problem file.
DCOPProblemInterface< V, U >	problem
	The problem.
Class< V >	domClass
	The class used for variable values.
Class< U >	utilClass
	The class used for utility values.
UTILpropagation< V, U >	utilModule
	The module listening for the optimal utility to the problem.
SolutionCollector< V, U >	solCollector
	The module listening for the optimal assignment to the problem.
boolean	useXCSP
	Whether to use XCSP.
MessageType	startMsgType
	The type of the start message.
boolean	countNCCCs
	Whether to count NCCCs.
boolean	maximize = true
	Whether we should maximize or minimize.
CentralMailer	mailman
	The CentralMailer.
boolean	aggregate = false
	true when the weighted sum hypercube should be tested

Private Member Functions
void	setStartMsgType (Element messages, MessageType startMsgType)
	Overwrites the type of the start messages.

Private Attributes
final int	maxNbrVars = 10
	Maximum number of variables in the problem.
final int	maxNbrEdges = 50
	Maximum number of binary constraints in the problem.
final int	maxNbrAgents = 10
	Maximum number of agents.
String	dpopPath = "src/frodo2/algorithms/dpop/DPOPagent.xml"
	The path to DPOPagent.xml.
QueueIOPipe	pipe
	The testers pipe.
Map< String, AgentInterface< V > >	agents
	All agents, indexed by their IDs.
int	nbrAgents
	Total number of agents.
final ReentrantLock	finished_lock = new ReentrantLock ()
	Used to make the test thread wait.
final Condition	finished = finished_lock.newCondition()
	Used to wake up the test thread when all agents have finished.
boolean	useDelay
	true when the central mailer is to be tested with delays
boolean	measureMsgs
	Whether to measure message numbers and sizes.
Class< ? extends XCSPparser< V, U > >	parserClass
	The class of the parser/subsolver to use.
boolean	useTCP
	Whether TCP pipes should be used for communication between agents.
boolean	minNCCCs
	Whether to optimize runtime or NCCC count.
boolean	ignoreHypercubeNCCCs
	Whether to ignore Hypercube NCCCs or not.
boolean	swap
	Whether we should swap.

Detailed Description

JUnit test for DPOPagent.

Author

Thomas Leaute

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Todo

Many tests should inherit this class to favor code reuse.

Constructor & Destructor Documentation

DPOPagentTest() [1/6]

frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.DPOPagentTest	(	boolean	useXCSP,
		boolean	useTCP,
		boolean	useCentralMailer,
		boolean	useDelay,
		Class< V >	domClass,
		Class< U >	utilClass )

Creates a JUnit test case corresponding to the input method.

Parameters

useXCSP	whether to use XCSP
useTCP	whether TCP pipes should be used for communication between agents
useCentralMailer	true when the central mailer should be tested
useDelay	true when the central mailer should be tested with a delay
domClass	the class to be used for variable values
utilClass	the class to be used for utility values

References domClass, DPOPagentTest(), useCentralMailer, useDelay, useTCP, useXCSP, and utilClass.

Referenced by DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), and suite().

Here is the call graph for this function:

DPOPagentTest() [2/6]

frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.DPOPagentTest	(	boolean	useXCSP,
		boolean	swap,
		boolean	minNCCCs,
		boolean	countNCCCs,
		boolean	ignoreHypercubeNCCCs )

Constructor.

Parameters

useXCSP	whether to use XCSP
swap	whether we should swap
minNCCCs	whether to optimize runtime or NCCC count
countNCCCs	whether to count NCCCs
ignoreHypercubeNCCCs	Whether to ignore Hypercube NCCCs or not

References countNCCCs, DPOPagentTest(), ignoreHypercubeNCCCs, minNCCCs, swap, and useXCSP.

Here is the call graph for this function:

DPOPagentTest() [3/6]

frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.DPOPagentTest	(	boolean	useXCSP,
		boolean	swap,
		boolean	minNCCCs,
		boolean	countNCCCs,
		boolean	ignoreHypercubeNCCCs,
		String	dpopPath )

Constructor.

Parameters

useXCSP	whether to use XCSP
swap	whether we should swap
minNCCCs	whether to optimize runtime or NCCC count
countNCCCs	whether to count NCCCs
ignoreHypercubeNCCCs	Whether to ignore Hypercube NCCCs or not
dpopPath	The path the the DPOP agent configuration file

References countNCCCs, dpopPath, ignoreHypercubeNCCCs, minNCCCs, swap, and useXCSP.

DPOPagentTest() [4/6]

frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.DPOPagentTest

(

Class<? extends XCSPparser< V, U > >

parserClass

)

Constructor for a test with a subsolver.

Parameters

parserClass

class of the parser/subsolver

References DPOPagentTest(), and parserClass.

Here is the call graph for this function:

DPOPagentTest() [5/6]

frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.DPOPagentTest	(	boolean	useXCSP,
		boolean	useTCP,
		boolean	useCentralMailer,
		boolean	useDelay,
		Class< V >	domClass,
		Class< U >	utilClass,
		MessageType	startMsgType )

Creates a JUnit test case corresponding to the input method.

Parameters

useXCSP	whether to use XCSP
useTCP	whether TCP pipes should be used for communication between agents
useCentralMailer	true when the central mailer should be tested
useDelay	true when the central mailer should be tested with a delay
domClass	the class to be used for variable values
utilClass	the class to be used for utility values
startMsgType	the type of the start message

References domClass, DPOPagentTest(), startMsgType, useCentralMailer, useDelay, useTCP, useXCSP, and utilClass.

Here is the call graph for this function:

DPOPagentTest() [6/6]

frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.DPOPagentTest	(	boolean	useXCSP,
		boolean	useTCP,
		boolean	useCentralMailer,
		boolean	useDelay,
		Class< V >	domClass,
		Class< U >	utilClass,
		MessageType	startMsgType,
		Class< ? extends XCSPparser< V, U > >	parserClass,
		boolean	swap,
		boolean	minNCCCs,
		boolean	countNCCCs,
		boolean	measureMsgs,
		boolean	ignoreHypercubeNCCCs )

Creates a JUnit test case corresponding to the input method.

Parameters

useXCSP	whether to use XCSP
useTCP	whether TCP pipes should be used for communication between agents
useCentralMailer	true when the central mailer should be tested
useDelay	true when the central mailer should be tested with a delay
domClass	the class to be used for variable values
utilClass	the class to be used for utility values
startMsgType	the type of the start message
parserClass	the class of the parser/subsolver
swap	whether we should swap
minNCCCs	whether to optimize runtime or NCCC count
countNCCCs	whether to count NCCCs
measureMsgs	whether to measure message numbers and sizes
ignoreHypercubeNCCCs	Whether to ignore Hypercube NCCCs or not

References countNCCCs, domClass, ignoreHypercubeNCCCs, measureMsgs, minNCCCs, parserClass, startMsgType, swap, useCentralMailer, useDelay, useTCP, useXCSP, and utilClass.

Member Function Documentation

checkOutput()

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.checkOutput ( ) throws Exception

protected

Checks that the output of the algorithm is correct.

Exceptions

Exception

if an error occurs

Reimplemented in frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >, frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >, frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >, frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >, and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.

References agentConfig, domClass, frodo2.algorithms.dpop.UTILpropagation< Val extends Addable< Val >, U extends Addable< U > >.getOptUtil(), frodo2.algorithms.SolutionCollector< V extends Addable< V >, U extends Addable< U > >.getSolution(), frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable< U > >.parse(), parserClass, problem, frodo2.algorithms.AbstractDCOPsolver< V extends Addable< V >, U extends Addable< U >, S extends Solution< V, U >.solve(), and utilClass.

Referenced by testRandom().

Here is the call graph for this function:

getMsgTypes()

Collection< MessageType > frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.getMsgTypes

(

)

See also

IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_CONNECTED, frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_ADDRESS_REQUEST, and frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_REPORTING.

notifyIn()

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.notifyIn

(

Message

msg

)

See also

IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_REPORTING, nbrAgents, notifyIn(), pipe, and pipes.

Referenced by notifyIn().

Here is the call graph for this function:

setQueue()

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.setQueue

(

Queue

queue

)

Does nothing.

See also

IncomingMsgPolicyInterface.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

setStartMsgType() [1/2]

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.setStartMsgType ( Element messages, MessageType startMsgType )

private

Overwrites the type of the start messages.

Parameters

messages	messages element
startMsgType	the new type of the start messages

References startMsgType.

setStartMsgType() [2/2]

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.setStartMsgType ( MessageType startMsgType ) throws JDOMException

protected

Sets the type of the start message for all modules.

Parameters

startMsgType

the new type for the start message

Exceptions

JDOMException

if parsing the agent configuration file failed

References agentConfig, setStartMsgType(), frodo2.algorithms.AgentInterface< V extends Addable< V > >.START_AGENT, and startMsgType.

Referenced by setStartMsgType(), and setUp().

Here is the call graph for this function:

setUp()

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.setUp

(

)

throws Exception

See also

junit.framework.TestCase#setUp()

Reimplemented in frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >, frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >, frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >, frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >, and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.

References frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable< U > >.addSpaceToIgnore(), agentConfig, domClass, frodo2.algorithms.test.AllTests.generateProblem(), frodo2.algorithms.RandGraphFactory.getRandGraph(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.getStatsFromQueue(), graph, mailman, maxNbrAgents, maxNbrEdges, maxNbrVars, minNCCCs, nbrAgentsFinished, nbrMsgsReceived, frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable< U > >.newInstance(), frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable< U > >.parse(), parserClass, pipes, problem, problemDoc, queue, frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.reset(), frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable< U > >.setDomClass(), frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.setDomClass(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.setSilent(), setStartMsgType(), frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable< U > >.setUtilClass(), frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.setUtilClass(), solCollector, frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR, swap, utilClass, and utilModule.

Here is the call graph for this function:

suite()

TestSuite frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.suite ( )

static

Returns

the test suite

Reimplemented in frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >, frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >, frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >, frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >, and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.

References DPOPagentTest(), and suite().

Referenced by frodo2.algorithms.dpop.test.AllTestsDPOP.suite(), and suite().

Here is the call graph for this function:

tearDown()

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.tearDown ( ) throws Exception

protected

See also

junit.framework.TestCase#tearDown()

Reimplemented in frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >, frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >, and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.

References agents, graph, mailman, pipe, pipes, problem, problemDoc, queue, solCollector, and utilModule.

testRandom()

void frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.testRandom

(

)

throws Exception

Tests the DPOPagent on a random problem.

Exceptions

Exception

if an error occurs

References agentConfig, agents, checkOutput(), frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.createAgent(), frodo2.communication.mailer.CentralMailer.execute(), graph, mailman, nbrAgents, nbrAgentsFinished, pipe, problem, queue, frodo2.timeout, useCentralMailer, and useTCP.

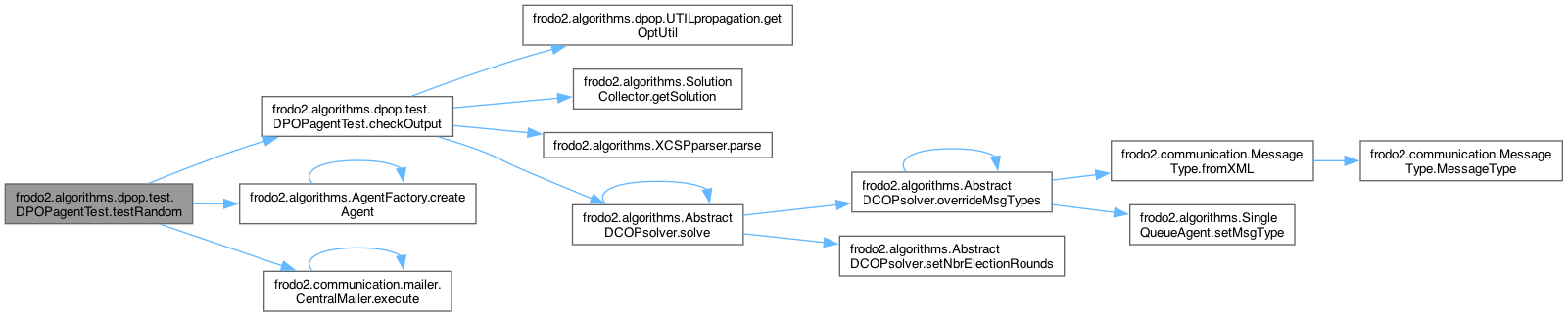

Here is the call graph for this function:

Member Data Documentation

agentConfig

Document frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.agentConfig

protected

The agent configuration file.

Referenced by checkOutput(), setStartMsgType(), frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), and testRandom().

agents

Map< String, AgentInterface<V> > frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.agents

private

All agents, indexed by their IDs.

Referenced by tearDown(), and testRandom().

aggregate

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.aggregate = false

protected

true when the weighted sum hypercube should be tested

countNCCCs

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.countNCCCs

protected

Whether to count NCCCs.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.AFBagentTest(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.SynchBBagentTest().

domClass

Class<V> frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.domClass

protected

The class used for variable values.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.AFBagentTest(), checkOutput(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.E_DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.ParamDPOPtest(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.Robust_E_DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.SynchBBagentTest().

dpopPath

String frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.dpopPath = "src/frodo2/algorithms/dpop/DPOPagent.xml"

private

The path to DPOPagent.xml.

Referenced by DPOPagentTest().

finished

final Condition frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.finished = finished_lock.newCondition()

private

Used to wake up the test thread when all agents have finished.

finished_lock

final ReentrantLock frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.finished_lock = new ReentrantLock ()

private

Used to make the test thread wait.

graph

RandGraphFactory.Graph frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.graph

protected

Random graph used to generate a constraint graph.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), tearDown(), and testRandom().

ignoreHypercubeNCCCs

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.ignoreHypercubeNCCCs

private

Whether to ignore Hypercube NCCCs or not.

Referenced by DPOPagentTest(), DPOPagentTest(), and DPOPagentTest().

mailman

CentralMailer frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.mailman

protected

The CentralMailer.

Referenced by frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), tearDown(), and testRandom().

maximize

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.maximize = true

protected

Whether we should maximize or minimize.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.AFBagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.checkOutput(), frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.SynchBBagentTest().

maxNbrAgents

final int frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.maxNbrAgents = 10

private

Maximum number of agents.

Referenced by setUp().

maxNbrEdges

final int frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.maxNbrEdges = 50

private

Maximum number of binary constraints in the problem.

Referenced by setUp().

maxNbrVars

final int frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.maxNbrVars = 10

private

Maximum number of variables in the problem.

Note

Must be at least 2.

Referenced by setUp().

measureMsgs

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.measureMsgs

private

Whether to measure message numbers and sizes.

Referenced by DPOPagentTest().

minNCCCs

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.minNCCCs

private

Whether to optimize runtime or NCCC count.

Referenced by DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), and setUp().

nbrAgents

int frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.nbrAgents

private

Total number of agents.

Referenced by notifyIn(), and testRandom().

nbrAgentsFinished

int frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.nbrAgentsFinished

protected

Number of agents finished.

Referenced by frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), and testRandom().

nbrMsgsReceived

int frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.nbrMsgsReceived

protected

Used to track the number of various types of messages received from the agents.

Referenced by frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), and setUp().

parserClass

Class< ? extends XCSPparser<V, U> > frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.parserClass

private

The class of the parser/subsolver to use.

Referenced by checkOutput(), DPOPagentTest(), DPOPagentTest(), and setUp().

pipe

QueueIOPipe frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.pipe

private

The testers pipe.

Referenced by notifyIn(), tearDown(), and testRandom().

pipes

Map<Object, QueueOutputPipeInterface> frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.pipes

protected

For each agent, the output pipe to it.

Referenced by notifyIn(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), and tearDown().

problem

DCOPProblemInterface<V, U> frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.problem

protected

The problem.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.checkOutput(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.checkOutput(), checkOutput(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.checkOutput(), frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), tearDown(), and testRandom().

problemDoc

Document frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.problemDoc

protected

The XCSP random problem file.

Referenced by frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.checkOutput(), frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), and tearDown().

queue

Queue frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.queue

protected

The queue used to listen to the agents.

Referenced by setQueue(), frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), tearDown(), and testRandom().

solCollector

SolutionCollector<V, U> frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.solCollector

protected

The module listening for the optimal assignment to the problem.

Referenced by frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.checkOutput(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), and tearDown().

startMsgType

MessageType frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.startMsgType

protected

The type of the start message.

Referenced by DPOPagentTest(), DPOPagentTest(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.E_DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.ParamDPOPtest(), setStartMsgType(), setStartMsgType(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), and frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp().

swap

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.swap

private

Whether we should swap.

Referenced by DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), and setUp().

useCentralMailer

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.useCentralMailer = false

protected

true if the algorithm should be tested with the central mailer

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.AFBagentTest(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.E_DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.ParamDPOPtest(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.Robust_E_DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.setUp(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.SynchBBagentTest(), and testRandom().

useDelay

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.useDelay

private

true when the central mailer is to be tested with delays

Referenced by DPOPagentTest(), DPOPagentTest(), and DPOPagentTest().

useTCP

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.useTCP

private

Whether TCP pipes should be used for communication between agents.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.AFBagentTest(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.E_DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.ParamDPOPtest(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.Robust_E_DPOPagentTest(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.SynchBBagentTest(), and testRandom().

useXCSP

boolean frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.useXCSP

protected

Whether to use XCSP.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.AFBagentTest(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.ParamDPOPtest(), and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.SynchBBagentTest().

utilClass

Class<U> frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.utilClass

protected

The class used for utility values.

Referenced by frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.AFBagentTest(), checkOutput(), DPOPagentTest(), DPOPagentTest(), DPOPagentTest(), frodo2.algorithms.dpop.param.test.ParamDPOPtest< V extends Addable< V >, U extends Addable< U > >.ParamDPOPtest(), frodo2.algorithms.afb.test.AFBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), setUp(), frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.setUp(), and frodo2.algorithms.synchbb.test.SynchBBagentTest< V extends Addable< V >, U extends Addable< U > >.SynchBBagentTest().

utilModule

UTILpropagation<V, U> frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.utilModule

protected

The module listening for the optimal utility to the problem.

Referenced by frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.checkOutput(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.checkOutput(), frodo2.algorithms.dpop.stochastic.robust.test.Robust_E_DPOPagentTest< V extends Addable< V > >.setUp(), frodo2.algorithms.dpop.stochastic.test.E_DPOPagentTest< V extends Addable< V > >.setUp(), setUp(), and tearDown().

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/dpop/test/DPOPagentTest.java
