frodo2.communication.mailer.CentralMailer Class Reference

Centralized mail man that enforces that only one agent is awake at a time, which is useful to measure distributed runtime. More...

Inheritance diagram for frodo2.communication.mailer.CentralMailer:

Classes
class	FakeQueue
	The queue associated with a specific agent. More...
class	TimestampComparator
	A comparator used in the PriorityQueue to order messages according to their timestamps. More...
class	DelayGenerator
	Abstract class that defines the functions needed in a delay generator. More...
class	NegativeExponentialDistribution
	This class is used to generate message delay according to the negative exponential distribution. More...

Public Member Functions
	CentralMailer (boolean measureMsgs, boolean useDelayGenerator, Element parameters)
	Constructor.
	CentralMailer (ProblemInterface<?, ?> problem, Element agentConfig)
	Constructor.
void	start ()
boolean	execute ()
	Executes the algorithm.
boolean	execute (long timeout)
	Executes the algorithm.
void	run ()
	Waits for a message to be available and then delivers it.
void	end ()
	Kills the CentralMailer.
Queue	newQueue (String agent)
	Creates a new queue for the given agent.
Queue	newQueue (String agent, boolean updateTime)
	Creates a new queue for the given agent.

Static Public Attributes
static final MessageType	ERROR_MSG = MessageType.SYSTEM.newChild("CentralMailer", "CentralMailerError")
	Type of messages sent when an exception occurs.
static final MessageType	OutOfMemMsg = MessageType.SYSTEM.newChild("CentralMailer", "OutOfMem")
	Type of out of memory message.

Protected Member Functions
boolean	checkTimestamp (long time)
	Checks that the input time is higher than the last timestamp.

Protected Attributes
HashMap< String, FakeQueue >	queues
	Each agent's queue.
PriorityQueue< MessageWrapper >	orderedQueue
	The ordered repository of messages.
long	lastTimeStamp = Long.MIN_VALUE
	The time stamp of the last message that has been released.
LinkedList< MessageWrapper >	outbox = new LinkedList<MessageWrapper> ()
	Buffer of messages waiting to be put into the priority queue.
final DelayGenerator	delayGenerator
	Used to generate random delays.
final boolean	measuringMsgs
	Whether to measure the number of messages and the total amount of information sent.
ReentrantLock	lock = new ReentrantLock()
	The lock used for synchronization.
Condition	msgReady = this.lock.newCondition()
	The condition on which the timed thread awaits to deliver a message.
Condition	msgDone = this.lock.newCondition()
	The condition on which execute() awaits to proceed to the next message.
FakeQueue	currentQueue
	The currently active queue.
volatile MessageWrapper	currentMsg
	The message delivered to the currently active Queue.
boolean	stop = true
	Flag used to tell the CentralMailer that it should terminate.
boolean	idleMsgsSent = false
	Whether the agents have already been notified that they are all idle.

Private Attributes
HashMap< MessageType, Collection< IncomingMsgPolicyInterface< MessageType > > >	eavesdroppersIn
	The eavesdroppers for incoming messages, per message type.
HashMap< MessageType, Collection< OutgoingMsgPolicyInterface< MessageType > > >	eavesdroppersOut
	The eavesdroppers for outgoing messages.

Detailed Description

Centralized mail man that enforces that only one agent is awake at a time, which is useful to measure distributed runtime.

Author

Thomas Leaute

Constructor & Destructor Documentation

CentralMailer() [1/2]

frodo2.communication.mailer.CentralMailer.CentralMailer	(	boolean	measureMsgs,
		boolean	useDelayGenerator,
		Element	parameters )

Constructor.

Parameters

measureMsgs	whether to measure the number and sizes of messages
useDelayGenerator	true when the DelayGenerator is to be used
parameters	parameters of the CentralMailer (not used in this implementation)

References delayGenerator, orderedQueue, and frodo2.communication.MessageType.ROOT.

CentralMailer() [2/2]

frodo2.communication.mailer.CentralMailer.CentralMailer	(	ProblemInterface<?, ?>	problem,
		Element	agentConfig )

Constructor.

Parameters

problem	the problem instance
agentConfig	the agent configuration

References frodo2.algorithms.Eavesdroppable< T >.getEavesdropper(), frodo2.communication.MessageListener< T >.getMsgTypes(), and frodo2.communication.MessageType.ROOT.

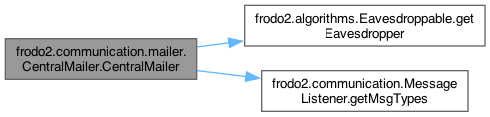

Here is the call graph for this function:

Member Function Documentation

checkTimestamp()

boolean frodo2.communication.mailer.CentralMailer.checkTimestamp ( long time )

protected

Checks that the input time is higher than the last timestamp.

Parameters

time	input time

Returns

true iff the test passed

Referenced by run().

end()

void frodo2.communication.mailer.CentralMailer.end

(

)

Kills the CentralMailer.

References lock, and stop.

execute() [1/2]

boolean frodo2.communication.mailer.CentralMailer.execute

(

)

Executes the algorithm.

Returns

true if the algorithm correctly terminated; false if it timed out

References frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.DEFAULT_TIMEOUT, and execute().

Referenced by execute(), frodo2.communication.mailer.tests.testCentralMailer.testNext(), frodo2.algorithms.adopt.test.ADOPTagentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.asodpop.tests.ASODPOPagentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.asodpop.tests.ASODPOPBinaryAgentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.dpop.test.DPOPagentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.duct.tests.DUCTagentTest.testRandom(), frodo2.algorithms.localSearch.dsa.tests.DSAagentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.localSearch.mgm.mgm2.tests.MGM2agentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.localSearch.mgm.tests.MGMagentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.odpop.tests.ODPOPagentTest< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.odpop.tests.ODPOPagentTestBinaryDomains< V extends Addable< V >, U extends Addable< U > >.testRandom(), frodo2.algorithms.odpop.tests.ODPOPagentTestFullDomain< V extends Addable< V >, U extends Addable< U > >.testRandom(), and frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.waitForEnd().

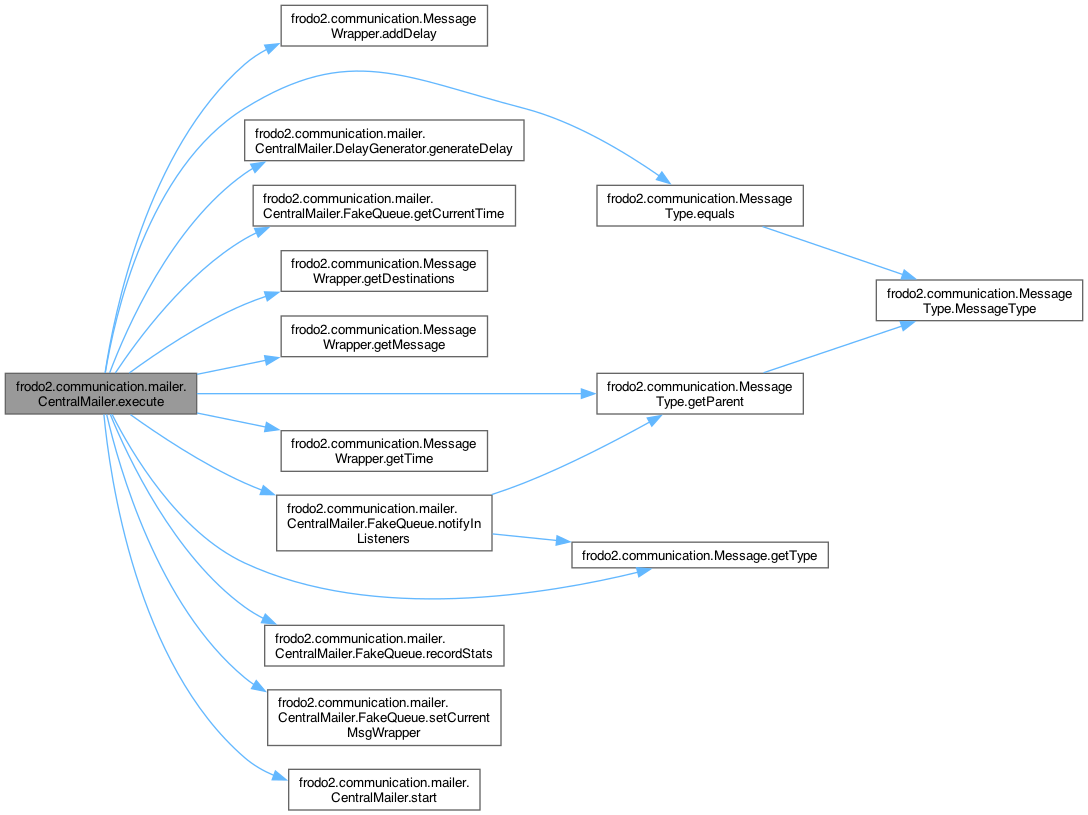

Here is the call graph for this function:

execute() [2/2]

boolean frodo2.communication.mailer.CentralMailer.execute

(

long

timeout

)

Executes the algorithm.

Parameters

timeout

the timeout in milliseconds

Returns

true if the algorithm correctly terminated; false if it timed out

References frodo2.communication.MessageWrapper.addDelay(), frodo2.communication.mailer.CentralMailer.FakeQueue.agent, frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.AgentInterface< V extends Addable< V > >.ALL_AGENTS_IDLE, frodo2.controller.Controller.CONTROLLER, frodo2.daemon.Daemon.DAEMON, frodo2.communication.MessageType.equals(), ERROR_MSG, frodo2.communication.mailer.CentralMailer.DelayGenerator.generateDelay(), frodo2.communication.mailer.CentralMailer.FakeQueue.getCurrentTime(), frodo2.communication.MessageWrapper.getDestinations(), frodo2.communication.MessageWrapper.getMessage(), frodo2.communication.MessageType.getParent(), frodo2.communication.MessageWrapper.getTime(), frodo2.communication.Message.getType(), lastTimeStamp, frodo2.communication.mailer.CentralMailer.FakeQueue.notifyInListeners(), OutOfMemMsg, frodo2.communication.mailer.CentralMailer.FakeQueue.recordStats(), frodo2.communication.mailer.CentralMailer.FakeQueue.setCurrentMsgWrapper(), start(), frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR, stop, and frodo2.timeout.

Here is the call graph for this function:

newQueue() [1/2]

Queue frodo2.communication.mailer.CentralMailer.newQueue

(

String

agent

)

Creates a new queue for the given agent.

Parameters

agent

agent name

Returns

a queue

References newQueue().

Referenced by newQueue().

Here is the call graph for this function:

newQueue() [2/2]

Queue frodo2.communication.mailer.CentralMailer.newQueue	(	String	agent,
		boolean	updateTime )

Creates a new queue for the given agent.

Parameters

agent	agent name
updateTime	If false, this queue's time will always remain frozen at its initial value

Returns

a queue

References frodo2.controller.Controller.CONTROLLER, frodo2.daemon.Daemon.DAEMON, and frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR.

run()

void frodo2.communication.mailer.CentralMailer.run

(

)

Waits for a message to be available and then delivers it.

See also

java.lang.Thread#run()

Bug

Store the message if required

References frodo2.communication.mailer.CentralMailer.FakeQueue.agent, checkTimestamp(), frodo2.daemon.Daemon.DAEMON, ERROR_MSG, frodo2.communication.mailer.CentralMailer.FakeQueue.freezeTime(), frodo2.communication.MessageWrapper.getMessage(), frodo2.communication.MessageWrapper.getNCCCs(), frodo2.communication.MessageType.getParent(), frodo2.communication.MessageWrapper.getTime(), frodo2.communication.Message.getType(), lock, frodo2.communication.mailer.CentralMailer.FakeQueue.notifyInListeners(), OutOfMemMsg, frodo2.communication.Queue.updateNCCCs(), and frodo2.communication.mailer.CentralMailer.FakeQueue.updateTime.

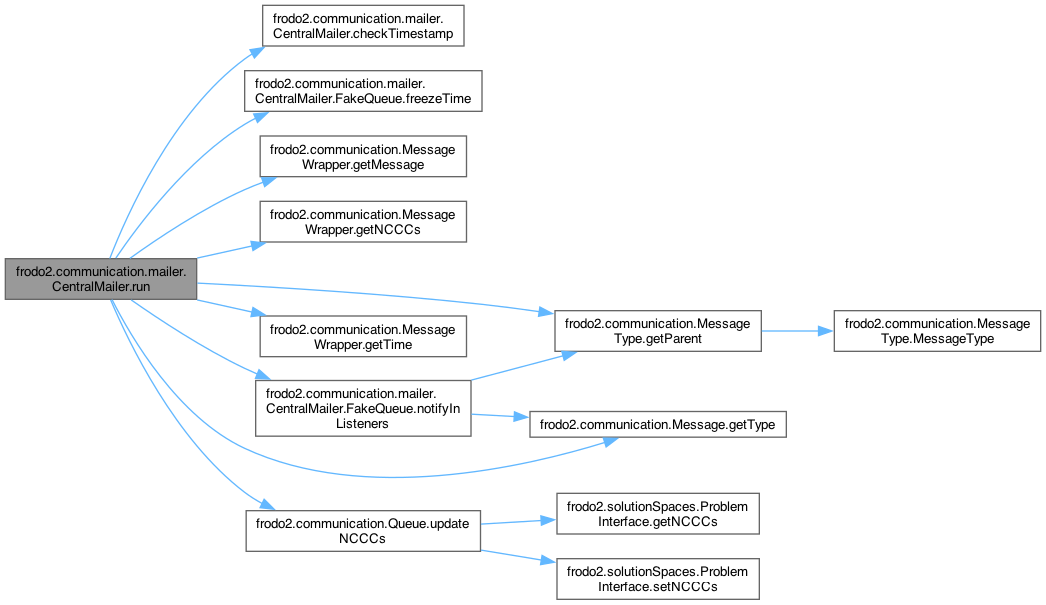

Here is the call graph for this function:

start()

void frodo2.communication.mailer.CentralMailer.start

(

)

See also

java.lang.Thread#start()

Referenced by execute().

Member Data Documentation

currentMsg

volatile MessageWrapper frodo2.communication.mailer.CentralMailer.currentMsg

protected

The message delivered to the currently active Queue.

currentQueue

FakeQueue frodo2.communication.mailer.CentralMailer.currentQueue

protected

The currently active queue.

delayGenerator

final DelayGenerator frodo2.communication.mailer.CentralMailer.delayGenerator

protected

Used to generate random delays.

Todo

Add message delays toXML configuration files.

Referenced by CentralMailer().

eavesdroppersIn

HashMap< MessageType, Collection< IncomingMsgPolicyInterface<MessageType> > > frodo2.communication.mailer.CentralMailer.eavesdroppersIn

private

Initial value:

=
                        new HashMap< MessageType, Collection< IncomingMsgPolicyInterface<MessageType> > > ()

The eavesdroppers for incoming messages, per message type.

eavesdroppersOut

HashMap< MessageType, Collection< OutgoingMsgPolicyInterface<MessageType> > > frodo2.communication.mailer.CentralMailer.eavesdroppersOut

private

Initial value:

=
                        new HashMap< MessageType, Collection< OutgoingMsgPolicyInterface<MessageType> > > ()

The eavesdroppers for outgoing messages.

ERROR_MSG

final MessageType frodo2.communication.mailer.CentralMailer.ERROR_MSG = MessageType.SYSTEM.newChild("CentralMailer", "CentralMailerError")

static

Type of messages sent when an exception occurs.

Referenced by execute(), frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.getMsgTypes(), and run().

idleMsgsSent

boolean frodo2.communication.mailer.CentralMailer.idleMsgsSent = false

protected

Whether the agents have already been notified that they are all idle.

lastTimeStamp

long frodo2.communication.mailer.CentralMailer.lastTimeStamp = Long.MIN_VALUE

protected

The time stamp of the last message that has been released.

Referenced by execute().

lock

ReentrantLock frodo2.communication.mailer.CentralMailer.lock = new ReentrantLock()

protected

The lock used for synchronization.

Referenced by end(), and run().

measuringMsgs

final boolean frodo2.communication.mailer.CentralMailer.measuringMsgs

protected

Whether to measure the number of messages and the total amount of information sent.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.FakeQueue().

msgDone

Condition frodo2.communication.mailer.CentralMailer.msgDone = this.lock.newCondition()

protected

The condition on which execute() awaits to proceed to the next message.

msgReady

Condition frodo2.communication.mailer.CentralMailer.msgReady = this.lock.newCondition()

protected

The condition on which the timed thread awaits to deliver a message.

orderedQueue

PriorityQueue<MessageWrapper> frodo2.communication.mailer.CentralMailer.orderedQueue

protected

The ordered repository of messages.

Referenced by CentralMailer(), frodo2.communication.mailer.CentralMailer.FakeQueue.cleanQueue(), and frodo2.communication.mailer.CentralMailer.FakeQueue.getInboxSize().

outbox

LinkedList<MessageWrapper> frodo2.communication.mailer.CentralMailer.outbox = new LinkedList<MessageWrapper> ()

protected

Buffer of messages waiting to be put into the priority queue.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.addToInbox(), and frodo2.communication.mailer.CentralMailer.FakeQueue.sendMessageToMulti().

OutOfMemMsg

final MessageType frodo2.communication.mailer.CentralMailer.OutOfMemMsg = MessageType.SYSTEM.newChild("CentralMailer", "OutOfMem")

static

Type of out of memory message.

Referenced by execute(), frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.getMsgTypes(), and run().

queues

HashMap<String, FakeQueue> frodo2.communication.mailer.CentralMailer.queues

protected

Each agent's queue.

Referenced by frodo2.communication.mailer.CentralMailer.FakeQueue.sendMessage().

stop

boolean frodo2.communication.mailer.CentralMailer.stop = true

protected

Flag used to tell the CentralMailer that it should terminate.

Referenced by end(), and execute().

---

The documentation for this class was generated from the following file:

• src/frodo2/communication/mailer/CentralMailer.java
