JUnit tests for the MGM agent. More...

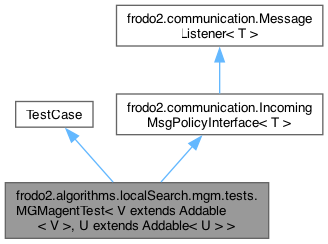

Inheritance diagram for frodo2.algorithms.localSearch.mgm.tests.MGMagentTest< V extends Addable< V >, U extends Addable >:

[legend]

Public Member Functions
	MGMagentTest (boolean useXCSP, boolean useTCP, boolean countNCCCs, boolean useCentralMailer, MessageType startMsgType, Class< V > domClass, Class< U > utilClass)
	Creates a JUnit test case corresponding to the input method.
void	setUp () throws Exception
void	testRandom ()
	Tests the DSAagent on a random problem.
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	setQueue (Queue queue)
	Does nothing.
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Member Functions
static TestSuite	suite ()

Protected Member Functions
void	tearDown () throws Exception

Protected Attributes
final ReentrantLock	finished_lock = new ReentrantLock ()
	Used to make the test thread wait.
final Condition	finished = finished_lock.newCondition()
	Used to wake up the test thread when all agents have finished.

Private Member Functions
void	setStartMsgType (MessageType startMsgType) throws JDOMException
	Sets the type of the start message for all modules.

Private Attributes
final int	maxNbrVars = 5
	Maximum number of variables in the problem.
final int	maxNbrEdges = 10
	Maximum number of binary constraints in the problem.
final int	maxNbrAgents = 5
	Maximum number of agents.
Queue	queue
	The queue used to listen to the agents.
Map< Object, QueueOutputPipeInterface >	pipes
	For each agent, the output pipe to it.
QueueIOPipe	pipe
	The tester's pipe.
Map< String, AgentInterface< V > >	agents
	All agents, indexed by their IDs.
int	nbrAgents
	Total number of agents.
int	nbrMsgsReceived
	Used to track the number of various types of messages received from the agents.
int	nbrAgentsFinished
	Number of agents finished.
boolean	useXCSP
	Whether to use XCSP.
boolean	useTCP
	Whether TCP pipes should be used for communication between agents.
boolean	countNCCCs = false
	Whether we should count Non-Concurrent Constraint Checks.
MGM< V, U >	statsGatherer
	The MGM stats gatherer listening for the solution.
MessageType	startMsgType
	The type of the start message.
Document	agentDesc
	The description of the agent.
boolean	useCentralMailer
	`true` if the algorithm must be tested with the central mailer
DCOPProblemInterface< V, U >	problem
	The overall problem.
CentralMailer	mailman
	The CentralMailer.
Class< V >	domClass
	The class used for variable values.
Class< U >	utilClass
	The class used for utility values.

Detailed Description

JUnit tests for the MGM agent.

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Author: Brammert Ottens, Thomas Leaute

Constructor & Destructor Documentation

◆ MGMagentTest()

frodo2.algorithms.localSearch.mgm.tests.MGMagentTest< V extends Addable< V >, U extends Addable< U > >.MGMagentTest	(	boolean	useXCSP,
		boolean	useTCP,
		boolean	countNCCCs,
		boolean	useCentralMailer,
		MessageType	startMsgType,
		Class< V >	domClass,
		Class< U >	utilClass )

Creates a JUnit test case corresponding to the input method.

Parameters

useXCSP	Whether to use XCSP
useTCP	whether TCP pipes should be used for communication between agents
countNCCCs	whether we should tell the agent to count NCCCs
useCentralMailer	`true` when the central mailer should be used and tested
startMsgType	the type of the start message
domClass	The class used for variable values
utilClass	the class used for utility values

References countNCCCs, domClass, startMsgType, useCentralMailer, useTCP, useXCSP, and utilClass.

Referenced by suite().

Member Function Documentation

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.localSearch.mgm.tests.MGMagentTest< V extends Addable< V >, U extends Addable >.getMsgTypes ( )

See also: frodo2.communication.IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_CONNECTED, frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.SolutionCollector< V extends Addable< V >, U extends Addable >.ASSIGNMENT_MSG_TYPE, frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_ADDRESS_REQUEST, and frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_REPORTING.

◆ notifyIn()

void frodo2.algorithms.localSearch.mgm.tests.MGMagentTest< V extends Addable< V >, U extends Addable >.notifyIn ( Message msg )

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.communication.MessageType.equals(), frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_REPORTING, nbrAgents, notifyIn(), pipe, and pipes.

Referenced by notifyIn().

Here is the call graph for this function:

◆ setQueue()

void frodo2.algorithms.localSearch.mgm.tests.MGMagentTest< V extends Addable< V >, U extends Addable >.setQueue ( Queue queue )

Does nothing.

See also: frodo2.communication.IncomingMsgPolicyInterface.setQueue(frodo2.communication.Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

◆ setStartMsgType()

void frodo2.algorithms.localSearch.mgm.tests.MGMagentTest< V extends Addable< V >, U extends Addable >.setStartMsgType ( MessageType startMsgType ) throws JDOMException
