A convenience class to create agents. More...

Inheritance diagram for frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >:

[legend]

Public Member Functions
	AgentFactory (Document problemDesc, Document agentDesc)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, String outputFilePath)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, long timeout)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, String outputFilePath, long timeout)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, Collection<? extends StatsReporter > solGatherers)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, String outputFilePath, Collection<? extends StatsReporter > solGatherers, Long timeout, boolean statsToController)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, Collection<? extends StatsReporter > solGatherers, Long timeout, boolean statsToController)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, Collection<? extends StatsReporter > solGatherers, Long timeout, boolean useTCP, boolean statsToController)
	Constructor.
	AgentFactory (Document problemDesc, Document agentDesc, String outputFilePath, Collection<? extends StatsReporter > solGatherers, Long timeout, boolean useTCP, boolean statsToController)
	Constructor.
	AgentFactory (ProblemInterface< V, U > problem, Document agentDesc, Collection<? extends StatsReporter > solGatherers, Long timeout)
	Constructor.
	AgentFactory (ProblemInterface< V, U > problem, Document agentDesc, Collection<? extends StatsReporter > solGatherers, Long timeout, boolean useTCP)
	Constructor.
	AgentFactory (ProblemInterface< V, U > problem, Document agentDesc, Collection<? extends StatsReporter > solGatherers, Long timeout, boolean useTCP, boolean statsToController)
	Constructor.
	AgentFactory (ProblemInterface< V, U > problem, Document agentDesc, String outputFilePath, Collection<? extends StatsReporter > solGatherers, Long timeout, boolean useTCP, boolean statsToController)
	Constructor.

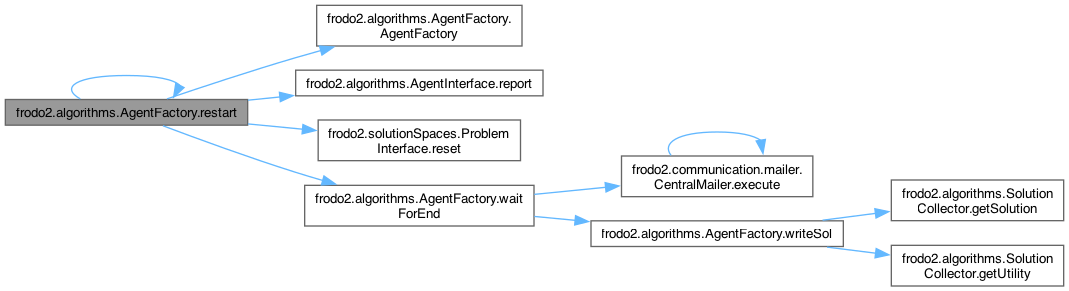

void	restart (ProblemInterface< V, U > problem)
	Restarts the algorithm on a new problem.
void	end ()
	Kills all agents and threads.
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	setQueue (Queue queue)
	Does nothing.
long	getNcccs ()
long	getTime ()
int	getNbrMsgs ()
long	getTotalMsgSize ()
long	getOverallMaxMsgSize ()
TreeMap< MessageType, Integer >	getMsgNbrs ()
TreeMap< Object, Integer >	getMsgNbrsSentPerAgent ()
TreeMap< Object, Integer >	getMsgNbrsReceivedPerAgent ()
TreeMap< MessageType, Long >	getMsgSizes ()
TreeMap< Object, Long >	getMsgSizesSentPerAgent ()
TreeMap< Object, Long >	getMsgSizesReceivedPerAgent ()
TreeMap< MessageType, Long >	getMaxMsgSizes ()
boolean	timedOut ()
boolean	outOfMemory ()
Map< String, V >	getCurrentSolution ()
	Method used to obtain the final solution in the case of a time out or an OutOfMemory exceptions.
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Member Functions
static< V extends Addable< V > U extends Addable< U > AgentInterface< V >	createAgent (QueueOutputPipeInterface toDaemonPipe, QueueOutputPipeInterface toControllerPipe, ProblemInterface< V, U > probDesc, Document agentDesc, int port)
static< V extends Addable< V > U extends Addable< U > AgentInterface< V >	createAgent (QueueOutputPipeInterface toDaemonPipe, QueueOutputPipeInterface toControllerPipe, ProblemInterface< V, U > probDesc, Document agentDesc, boolean statsToController, int port)
static< V extends Addable< V > U extends Addable< U > AgentInterface< V >	createAgent (QueueOutputPipeInterface controllerPipe, ProblemInterface< V, U > probDesc, Document agentDesc, CentralMailer mailman)

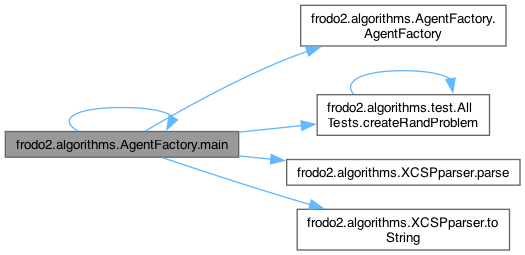

static void	main (String[] args)
	Runs the input algorithm on the input problem.
static void	printMsgStats (Map< MessageType, Integer > msgNbrs, Map< Object, Integer > msgNbrsSentPerAgent, Map< Object, Integer > msgNbrsReceivedPerAgent, Map< MessageType, Long > msgSizes, Map< Object, Long > msgSizesSentPerAgent, Map< Object, Long > msgSizesReceivedPerAgent, Map< MessageType, Long > maxMsgSizes)
	Prints the message statistics.

Static Public Attributes
static long	DEFAULT_TIMEOUT = 600000
	The default timeout in milliseconds.

Protected Member Functions
	AgentFactory ()
	Empty constructor.

Static Package Functions

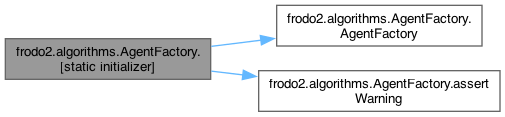

	[static initializer]

Private Member Functions
void	init (Collection<? extends StatsReporter > solGatherers, Long timeout, boolean statsToController)
	Convenience method called by constructors to reuse code.
ProblemInterface	parseProblem (Document problemDesc) throws ClassNotFoundException, NoSuchMethodException, IllegalArgumentException, InstantiationException, IllegalAccessException, InvocationTargetException
	Parses the given problem.

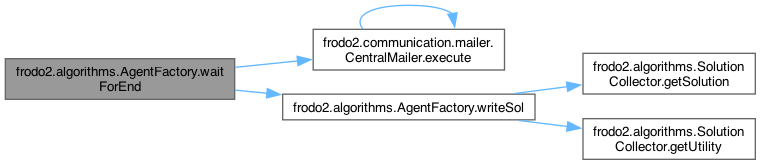

void	waitForEnd ()
	Waits for the algorithm to terminate.

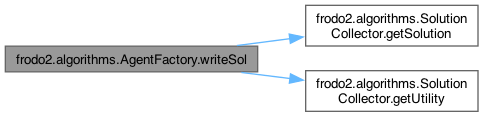

void	writeSol ()
	Writes the reported solution to the output file.

Static Private Member Functions
static boolean	assertWarning ()
	Prints a warning a returns `true`.
static< V extends Addable< V > U extends Addable< U > AgentInterface< V >	instantiateAgent (ProblemInterface< V, U > probDesc, Document agentDesc, CentralMailer mailman) throws ClassNotFoundException, NoSuchMethodException, IllegalArgumentException, InstantiationException, IllegalAccessException, InvocationTargetException

Private Attributes
Queue	queue
	The queue used to listen to the agents.
int	nbrAgents
	Total number of agents.
Map< String, AgentInterface< V > >	agents
	All agents, indexed by their IDs.
Map< String, ProblemInterface< V, U > >	subProbs
	Each agent's subproblem.
int	nbrAgentsFinished
	Number of agents finished.
Object	nbrAgentsFinished_lock = new Object ()
	Used to synchronize access to nbrAgentsFinished.
boolean	done = false
	Whether the agents have finished.
Map< Object, QueueOutputPipeInterface >	pipes = new HashMap<Object, QueueOutputPipeInterface> ()
	For each agent, its input pipe.
QueueIOPipe	pipe
	The central listener's own pipe.
int	nbrMsgsReceived = 0
	Used to track the number of various types of messages received from the agents.
final boolean	measureMsgs
	Whether to measure the number of messages and the total amount of information sent.
TreeMap< MessageType, Integer >	msgNbrs = new TreeMap<MessageType, Integer> ()
	For each message type, the number of messages sent of that type.
TreeMap< Object, Integer >	msgNbrsSentPerAgent = new TreeMap<Object, Integer> ()
	For each agent, the number of messages sent by that agent.
TreeMap< Object, Integer >	msgNbrsReceivedPerAgent = new TreeMap<Object, Integer> ()
	For each agent, the number of messages received by that agent.
TreeMap< MessageType, Long >	msgSizes = new TreeMap<MessageType, Long> ()
	For each message type, the total amount of information sent in messages of that type, in bytes.
TreeMap< Object, Long >	msgSizesSentPerAgent = new TreeMap<Object, Long> ()
	For each agent, the total amount of information sent by that agent, in bytes.
TreeMap< Object, Long >	msgSizesReceivedPerAgent = new TreeMap<Object, Long> ()
	For each agent, the total amount of information received by that agent, in bytes.
TreeMap< MessageType, Long >	maxMsgSizes = new TreeMap<MessageType, Long> ()
	For each message type, the size (in bytes) of the largest message.
boolean	statsToController
	If true, stats should be sent to the controller; else, to the daemon.
long	startTime
	The start time of the algorithm, in milliseconds.
boolean	silent = false
	Whether information should be printed out.
long	finalTime = -1
	The timestamp (in nanoseconds) of the AGENT_FINISHED message with the highest time stamp.
long	finalNCCCcount = -1
	The nccc stamp of the AGENT_FINISHED message with the highest nccc stamp.
long	timeout = DEFAULT_TIMEOUT
	The timeout in milliseconds.
boolean	timedOut = false
	`true` when the agent factory timed out before all the agents finished
final boolean	measureTime
	Whether we should measure simulated time (`true`) or wall clock time (`false`).
Document	agentDesc
	The agent configuration.
ProblemInterface< V, U >	problem
	The problem.
CentralMailer	mailman
	The CentralMailer.
final boolean	useTCP
	Whether to use TCP pipes or shared memory pipes.
boolean	outOfMemory
	`true` when algorithm ran out of memory
final String	outputFilePath
	The path to the output file.
SolutionCollector< V, U >	solCollector
	The solution collector.

Static Private Attributes
static int	port = 5000
	The TCP port used for the first agent, which gets incremented for each subsequent agent.

Detailed Description

A convenience class to create agents.

Author: Thomas Leaute; Brammert Ottens

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Constructor & Destructor Documentation

◆ AgentFactory() [1/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.AgentFactory ( )

protected

Empty constructor.

Referenced by [static initializer](), AgentFactory(), init(), main(), and restart().

◆ AgentFactory() [2/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description

References agentDesc.

◆ AgentFactory() [3/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		String	outputFilePath )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
outputFilePath	the path to the output file

References agentDesc, and outputFilePath.

◆ AgentFactory() [4/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		long	timeout )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
timeout	the timeout in milliseconds

References agentDesc, and timeout.

◆ AgentFactory() [5/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		String	outputFilePath,
		long	timeout )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
outputFilePath	the path to the output file
timeout	the timeout in milliseconds

References agentDesc, outputFilePath, and timeout.

◆ AgentFactory() [6/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		Collection<? extends StatsReporter >	solGatherers )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)

References agentDesc.

◆ AgentFactory() [7/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		String	outputFilePath,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	statsToController )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
outputFilePath	the path to the output file
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
statsToController	if true, stats should be sent to the controller; else, to the daemon

References agentDesc, outputFilePath, statsToController, and timeout.

◆ AgentFactory() [8/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	statsToController )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
statsToController	if true, stats should be sent to the controller; else, to the daemon

References agentDesc, statsToController, and timeout.

◆ AgentFactory() [9/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	useTCP,
		boolean	statsToController )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
useTCP	Whether to use TCP pipes or shared memory pipes
statsToController	if true, stats should be sent to the controller; else, to the daemon

References agentDesc, statsToController, timeout, and useTCP.

◆ AgentFactory() [10/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	Document	problemDesc,
		Document	agentDesc,
		String	outputFilePath,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	useTCP,
		boolean	statsToController )

Constructor.

Parameters

problemDesc	the problem description
agentDesc	the agent description
outputFilePath	the path to the output file
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
useTCP	Whether to use TCP pipes or shared memory pipes
statsToController	if true, stats should be sent to the controller; else, to the daemon

References agentDesc, AgentFactory(), measureMsgs, measureTime, outputFilePath, parseProblem(), problem, statsToController, timeout, and useTCP.

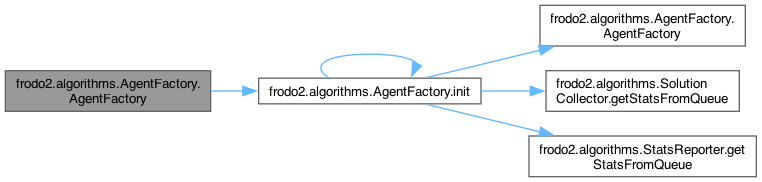

Here is the call graph for this function:

◆ AgentFactory() [11/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	ProblemInterface< V, U >	problem,
		Document	agentDesc,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout )

Constructor.

Parameters

problem	the problem
agentDesc	the agent description
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.

References agentDesc, problem, and timeout.

◆ AgentFactory() [12/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	ProblemInterface< V, U >	problem,
		Document	agentDesc,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	useTCP )

Constructor.

Parameters

problem	the problem
agentDesc	the agent description
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
useTCP	Whether to use TCP pipes or shared memory pipes

References agentDesc, problem, timeout, and useTCP.

◆ AgentFactory() [13/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	ProblemInterface< V, U >	problem,
		Document	agentDesc,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	useTCP,
		boolean	statsToController )

Constructor.

Parameters

problem	the problem
agentDesc	the agent description
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
useTCP	Whether to use TCP pipes or shared memory pipes
statsToController	if true, stats should be sent to the controller; else, to the daemon

References agentDesc, problem, statsToController, timeout, and useTCP.

◆ AgentFactory() [14/14]

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.AgentFactory	(	ProblemInterface< V, U >	problem,
		Document	agentDesc,
		String	outputFilePath,
		Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	useTCP,
		boolean	statsToController )

Constructor.

Parameters

problem	the problem
agentDesc	the agent description
outputFilePath	the path to the output file
solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
useTCP	Whether to use TCP pipes or shared memory pipes
statsToController	if true, stats should be sent to the controller; else, to the daemon

References agentDesc, init(), measureMsgs, measureTime, outputFilePath, problem, statsToController, timeout, and useTCP.

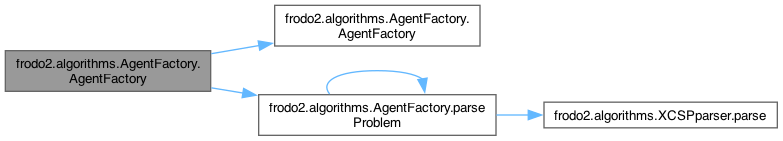

Here is the call graph for this function:

Member Function Documentation

◆ [static initializer]()

frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.[static initializer]

staticpackage

References AgentFactory(), and assertWarning().

Here is the call graph for this function:

◆ assertWarning()

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.assertWarning ( )

staticprivate

Prints a warning a returns true.

Returns: true

Referenced by [static initializer]().

◆ createAgent() [1/3]

static< V extends Addable< V > U extends Addable< U > AgentInterface< V > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.createAgent	(	QueueOutputPipeInterface	controllerPipe,
		ProblemInterface< V, U >	probDesc,
		Document	agentDesc,
		CentralMailer	mailman )

static

References agentDesc, instantiateAgent(), mailman, and frodo2.algorithms.AgentInterface< V extends Addable< V > >.setup().

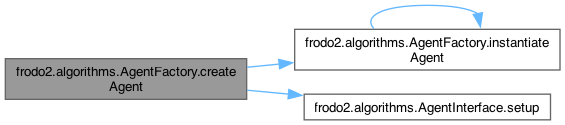

Here is the call graph for this function:

◆ createAgent() [2/3]

static< V extends Addable< V > U extends Addable< U > AgentInterface< V > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.createAgent	(	QueueOutputPipeInterface	toDaemonPipe,
		QueueOutputPipeInterface	toControllerPipe,
		ProblemInterface< V, U >	probDesc,
		Document	agentDesc,
		boolean	statsToController,
		int	port )

static

References agentDesc, instantiateAgent(), port, frodo2.algorithms.AgentInterface< V extends Addable< V > >.setup(), and statsToController.

Here is the call graph for this function:

◆ createAgent() [3/3]

static< V extends Addable< V > U extends Addable< U > AgentInterface< V > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.createAgent	(	QueueOutputPipeInterface	toDaemonPipe,
		QueueOutputPipeInterface	toControllerPipe,
		ProblemInterface< V, U >	probDesc,
		Document	agentDesc,
		int	port )

static

References agentDesc, createAgent(), and port.

Here is the call graph for this function:

◆ end()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.end ( )

Kills all agents and threads.

References agents, mailman, and queue.

Referenced by frodo2.algorithms.dpop.count.SolutionCounter< V extends Addable< V >, U extends Addable >.count(), and frodo2.gui.SimpleGUI.solveProblem().

◆ getCurrentSolution()

Map< String, V > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getCurrentSolution ( )

Method used to obtain the final solution in the case of a time out or an OutOfMemory exceptions.

Author: Brammert Ottens, Thomas Leaute

Returns: the solution found by the algorithm upon termination

References agents.

◆ getMaxMsgSizes()

TreeMap< MessageType, Long > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMaxMsgSizes ( )

Returns: for each message type, the size (in bytes) of the largest message of that type

◆ getMsgNbrs()

TreeMap< MessageType, Integer > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMsgNbrs ( )

Author: Brammert Ottens, 24 aug 2009

Returns: the total number of messages that have been sent

◆ getMsgNbrsReceivedPerAgent()

TreeMap< Object, Integer > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMsgNbrsReceivedPerAgent ( )

Returns: the number of messages received by each agent

References msgNbrsReceivedPerAgent.

◆ getMsgNbrsSentPerAgent()

TreeMap< Object, Integer > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMsgNbrsSentPerAgent ( )

Returns: the number of messages sent by each agent

References msgNbrsSentPerAgent.

◆ getMsgSizes()

TreeMap< MessageType, Long > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMsgSizes ( )

Author: Brammert Ottens, 24 aug 2009

Returns: the total amount of information that has been sent

◆ getMsgSizesReceivedPerAgent()

TreeMap< Object, Long > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMsgSizesReceivedPerAgent ( )

Returns: the amount of information received by each agent, in bytes

References msgSizesReceivedPerAgent.

◆ getMsgSizesSentPerAgent()

TreeMap< Object, Long > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMsgSizesSentPerAgent ( )

Returns: the amount of information sent by each agent, in bytes

References msgSizesSentPerAgent.

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getMsgTypes ( )

See also: IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_CONNECTED, frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.AgentInterface< V extends Addable< V > >.ComStatsMessage.COM_STATS_MSG_TYPE, frodo2.communication.mailer.CentralMailer.ERROR_MSG, frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_ADDRESS_REQUEST, frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_REPORTING, and frodo2.communication.mailer.CentralMailer.OutOfMemMsg.

◆ getNbrMsgs()

int frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getNbrMsgs ( )

Returns: the total number of messages sent

◆ getNcccs()

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getNcccs ( )

Returns: the total number of ncccs used during experimentation

◆ getOverallMaxMsgSize()

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getOverallMaxMsgSize ( )

Returns: the size (in bytes) of the largest message

◆ getTime()

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getTime ( )

Returns: the total needed time, equal to the highest timestamp across all AGENT_FINISHED messages received (in milliseconds)

References finalTime.

◆ getTotalMsgSize()

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.getTotalMsgSize ( )

Returns: the total amount of information sent, in bytes

◆ init()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.init	(	Collection<? extends StatsReporter >	solGatherers,
		Long	timeout,
		boolean	statsToController )

private

Convenience method called by constructors to reuse code.

Parameters

solGatherers	listeners that will be notified of the statistics sent by the agents (if not `null`, behaves silently)
timeout	the timeout, in milliseconds. If `null`, uses the default timeout.
statsToController	if true, stats should be sent to the controller; else, to the daemon

References agentDesc, AgentFactory(), agents, frodo2.algorithms.SolutionCollector< V extends Addable< V >, U extends Addable >.getStatsFromQueue(), frodo2.algorithms.StatsReporter.getStatsFromQueue(), init(), mailman, nbrAgents, pipe, port, problem, queue, silent, statsToController, subProbs, timeout, and useTCP.

Referenced by AgentFactory(), and init().

Here is the call graph for this function:

◆ instantiateAgent()

static< V extends Addable< V > U extends Addable< U > AgentInterface< V > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.instantiateAgent	(	ProblemInterface< V, U >	probDesc,
		Document	agentDesc,
		CentralMailer	mailman ) throws ClassNotFoundException, NoSuchMethodException, IllegalArgumentException, InstantiationException, IllegalAccessException, InvocationTargetException

staticprivate

References agentDesc, instantiateAgent(), and mailman.

Referenced by createAgent(), createAgent(), and instantiateAgent().

Here is the call graph for this function:

◆ main()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.main ( String[] args )

static

Runs the input algorithm on the input problem.

Parameters

args	the problem file and the agent description file

Todo

Test the simple mode.

Add a way to check the version number.

References AgentFactory(), frodo2.algorithms.test.AllTests.createRandProblem(), main(), outputFilePath, frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable >.parse(), problem, timeout, and frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable >.toString().

Referenced by main(), and frodo2.algorithms.test.MASparserTest.testSampleSolve().

Here is the call graph for this function:

◆ notifyIn()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.notifyIn ( Message msg )

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Todo: is this synchronization necessary?...

Todo: is this synchronization necessary?...

Todo: Also report communication stats after a timeout.

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.controller.WhitePages.CONNECT_AGENT, frodo2.communication.MessageType.equals(), frodo2.algorithms.AgentInterface< V extends Addable< V > >.LOCAL_AGENT_REPORTING, nbrAgents, notifyIn(), pipe, pipes, and queue.

Referenced by notifyIn().

Here is the call graph for this function:

◆ outOfMemory()

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.outOfMemory ( )

Author: Brammert Ottens, 7 jan 2010

Returns: true when the algorithm ran out of memory

◆ parseProblem()

ProblemInterface frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.parseProblem ( Document problemDesc ) throws ClassNotFoundException, NoSuchMethodException, IllegalArgumentException, InstantiationException, IllegalAccessException, InvocationTargetException

private

Parses the given problem.

Parameters

problemDesc the problem in XCSP format

Returns: the problem

Exceptions

ClassNotFoundException	if the parser class was not found
NoSuchMethodException	if the parser does not have a constructor that takes in a Document
InvocationTargetException	if the parser constructor throws an exception
IllegalAccessException	if the parser constructor is not accessible
InstantiationException	if the parser class is abstract
IllegalArgumentException	if the argument to the parser constructor is illegal

References frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable >.parse(), and parseProblem().

Referenced by AgentFactory(), and parseProblem().

Here is the call graph for this function:

◆ printMsgStats()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable< U > >.printMsgStats	(	Map< MessageType, Integer >	msgNbrs,
		Map< Object, Integer >	msgNbrsSentPerAgent,
		Map< Object, Integer >	msgNbrsReceivedPerAgent,
		Map< MessageType, Long >	msgSizes,
		Map< Object, Long >	msgSizesSentPerAgent,
		Map< Object, Long >	msgSizesReceivedPerAgent,
		Map< MessageType, Long >	maxMsgSizes )

static

Prints the message statistics.

Parameters

msgNbrs	For each message type, the number of messages sent of that type
msgNbrsSentPerAgent	For each agent, the number of messages sent by that agent
msgNbrsReceivedPerAgent	For each agent, the number of messages received by that agent
msgSizes	For each message type, the total amount of information sent in messages of that type, in bytes
msgSizesSentPerAgent	For each agent, the total amount of information sent by that agent, in bytes
msgSizesReceivedPerAgent	For each agent, the total amount of information received by that agent, in bytes
maxMsgSizes	For each message type, the size (in bytes) of the largest message

References maxMsgSizes, msgNbrs, msgNbrsReceivedPerAgent, msgNbrsSentPerAgent, msgSizes, msgSizesReceivedPerAgent, and msgSizesSentPerAgent.

◆ restart()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.restart ( ProblemInterface< V, U > problem )

Restarts the algorithm on a new problem.

Parameters

problem the new problem

References agentDesc, AgentFactory(), agents, mailman, pipe, port, problem, frodo2.algorithms.AgentInterface< V extends Addable< V > >.report(), frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable >.reset(), restart(), statsToController, and waitForEnd().

Referenced by restart(), and frodo2.algorithms.AbstractSolver, U extends Addable, S extends Solution< V, U >.solve().

Here is the call graph for this function:

◆ setQueue()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.setQueue ( Queue queue )

Does nothing.

See also: IncomingMsgPolicyInterface.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

◆ timedOut()

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.timedOut ( )

Author: Brammert Ottens, 22 sep 2009

Returns: true when the agent factory timed

◆ waitForEnd()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.waitForEnd ( )

private

Waits for the algorithm to terminate.

References agents, done, frodo2.communication.mailer.CentralMailer.execute(), startTime, timedOut, timeout, and writeSol().

Referenced by restart().

Here is the call graph for this function:

◆ writeSol()

void frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.writeSol ( )

private

Writes the reported solution to the output file.

References frodo2.algorithms.SolutionCollector< V extends Addable< V >, U extends Addable >.getSolution(), and frodo2.algorithms.SolutionCollector< V extends Addable< V >, U extends Addable >.getUtility().

Referenced by waitForEnd().

Here is the call graph for this function:

Member Data Documentation

◆ agentDesc

Document frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.agentDesc

private

The agent configuration.

Referenced by AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), createAgent(), createAgent(), createAgent(), init(), instantiateAgent(), and restart().

◆ agents

Map< String, AgentInterface<V> > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.agents

private

All agents, indexed by their IDs.

Referenced by end(), getCurrentSolution(), init(), restart(), and waitForEnd().

◆ DEFAULT_TIMEOUT

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.DEFAULT_TIMEOUT = 600000

static

The default timeout in milliseconds.

Referenced by frodo2.communication.mailer.CentralMailer.execute().

◆ done

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.done = false

private

Whether the agents have finished.

Referenced by waitForEnd().

◆ finalNCCCcount

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.finalNCCCcount = -1

private

The nccc stamp of the AGENT_FINISHED message with the highest nccc stamp.

◆ finalTime

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.finalTime = -1

private

The timestamp (in nanoseconds) of the AGENT_FINISHED message with the highest time stamp.

Referenced by getTime().

◆ mailman

CentralMailer frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.mailman

private

The CentralMailer.

Referenced by createAgent(), end(), init(), instantiateAgent(), and restart().

◆ maxMsgSizes

TreeMap<MessageType, Long> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.maxMsgSizes = new TreeMap<MessageType, Long> ()

private

For each message type, the size (in bytes) of the largest message.

Referenced by printMsgStats().

◆ measureMsgs

final boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.measureMsgs

private

Whether to measure the number of messages and the total amount of information sent.

Referenced by AgentFactory(), and AgentFactory().

◆ measureTime

final boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.measureTime

private

Whether we should measure simulated time (true) or wall clock time (false).

Referenced by AgentFactory(), and AgentFactory().

◆ msgNbrs

TreeMap<MessageType, Integer> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.msgNbrs = new TreeMap<MessageType, Integer> ()

private

For each message type, the number of messages sent of that type.

Referenced by printMsgStats().

◆ msgNbrsReceivedPerAgent

TreeMap<Object, Integer> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.msgNbrsReceivedPerAgent = new TreeMap<Object, Integer> ()

private

For each agent, the number of messages received by that agent.

Referenced by getMsgNbrsReceivedPerAgent(), and printMsgStats().

◆ msgNbrsSentPerAgent

TreeMap<Object, Integer> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.msgNbrsSentPerAgent = new TreeMap<Object, Integer> ()

private

For each agent, the number of messages sent by that agent.

Referenced by getMsgNbrsSentPerAgent(), and printMsgStats().

◆ msgSizes

TreeMap<MessageType, Long> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.msgSizes = new TreeMap<MessageType, Long> ()

private

For each message type, the total amount of information sent in messages of that type, in bytes.

Referenced by printMsgStats().

◆ msgSizesReceivedPerAgent

TreeMap<Object, Long> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.msgSizesReceivedPerAgent = new TreeMap<Object, Long> ()

private

For each agent, the total amount of information received by that agent, in bytes.

Referenced by getMsgSizesReceivedPerAgent(), and printMsgStats().

◆ msgSizesSentPerAgent

TreeMap<Object, Long> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.msgSizesSentPerAgent = new TreeMap<Object, Long> ()

private

For each agent, the total amount of information sent by that agent, in bytes.

Referenced by getMsgSizesSentPerAgent(), and printMsgStats().

◆ nbrAgents

int frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.nbrAgents

private

Total number of agents.

Referenced by init(), and notifyIn().

◆ nbrAgentsFinished

int frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.nbrAgentsFinished

private

Number of agents finished.

◆ nbrAgentsFinished_lock

Object frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.nbrAgentsFinished_lock = new Object ()

private

Used to synchronize access to nbrAgentsFinished.

◆ nbrMsgsReceived

int frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.nbrMsgsReceived = 0

private

Used to track the number of various types of messages received from the agents.

◆ outOfMemory

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.outOfMemory

private

true when algorithm ran out of memory

◆ outputFilePath

final String frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.outputFilePath

private

The path to the output file.

Referenced by AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), and main().

◆ pipe

QueueIOPipe frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.pipe

private

The central listener's own pipe.

Referenced by init(), notifyIn(), and restart().

◆ pipes

Map<Object, QueueOutputPipeInterface> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.pipes = new HashMap<Object, QueueOutputPipeInterface> ()

private

For each agent, its input pipe.

Referenced by notifyIn().

◆ port

int frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.port = 5000

staticprivate

The TCP port used for the first agent, which gets incremented for each subsequent agent.

Referenced by createAgent(), createAgent(), init(), and restart().

◆ problem

ProblemInterface<V, U> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.problem

private

The problem.

Referenced by AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), init(), main(), and restart().

◆ queue

Queue frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.queue

private

The queue used to listen to the agents.

Referenced by end(), init(), notifyIn(), and setQueue().

◆ silent

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.silent = false

private

Whether information should be printed out.

Referenced by init().

◆ solCollector

SolutionCollector<V, U> frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.solCollector

private

The solution collector.

◆ startTime

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.startTime

private

The start time of the algorithm, in milliseconds.

Referenced by waitForEnd().

◆ statsToController

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.statsToController

private

If true, stats should be sent to the controller; else, to the daemon.

Referenced by AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), createAgent(), init(), and restart().

◆ subProbs

Map< String, ProblemInterface<V, U> > frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.subProbs

private

Each agent's subproblem.

Referenced by init().

◆ timedOut

boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.timedOut = false

private

true when the agent factory timed out before all the agents finished

Referenced by waitForEnd().

◆ timeout

long frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.timeout = DEFAULT_TIMEOUT

private

The timeout in milliseconds.

Referenced by AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), init(), main(), and waitForEnd().

◆ useTCP

final boolean frodo2.algorithms.AgentFactory< V extends Addable< V >, U extends Addable >.useTCP

private

Whether to use TCP pipes or shared memory pipes.

Referenced by AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), AgentFactory(), and init().

The documentation for this class was generated from the following file:

src/frodo2/algorithms/AgentFactory.java

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Package Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ AgentFactory() [1/14]

◆ AgentFactory() [2/14]

◆ AgentFactory() [3/14]

◆ AgentFactory() [4/14]

◆ AgentFactory() [5/14]

◆ AgentFactory() [6/14]

◆ AgentFactory() [7/14]

◆ AgentFactory() [8/14]

◆ AgentFactory() [9/14]

◆ AgentFactory() [10/14]

◆ AgentFactory() [11/14]

◆ AgentFactory() [12/14]

◆ AgentFactory() [13/14]

◆ AgentFactory() [14/14]

Member Function Documentation

◆ [static initializer]()

◆ assertWarning()

◆ createAgent() [1/3]

◆ createAgent() [2/3]

◆ createAgent() [3/3]

◆ end()

◆ getCurrentSolution()

◆ getMaxMsgSizes()

◆ getMsgNbrs()

◆ getMsgNbrsReceivedPerAgent()

◆ getMsgNbrsSentPerAgent()

◆ getMsgSizes()

◆ getMsgSizesReceivedPerAgent()

◆ getMsgSizesSentPerAgent()

◆ getMsgTypes()

◆ getNbrMsgs()

◆ getNcccs()

◆ getOverallMaxMsgSize()

◆ getTime()

◆ getTotalMsgSize()

◆ init()

◆ instantiateAgent()

◆ main()

◆ notifyIn()

◆ outOfMemory()

◆ parseProblem()

◆ printMsgStats()

◆ restart()

◆ setQueue()

◆ timedOut()

◆ waitForEnd()

◆ writeSol()

Member Data Documentation

◆ agentDesc

◆ agents

◆ DEFAULT_TIMEOUT

◆ done

◆ finalNCCCcount

◆ finalTime

◆ mailman

◆ maxMsgSizes

◆ measureMsgs

◆ measureTime

◆ msgNbrs

◆ msgNbrsReceivedPerAgent

◆ msgNbrsSentPerAgent

◆ msgSizes

◆ msgSizesReceivedPerAgent

◆ msgSizesSentPerAgent

◆ nbrAgents

◆ nbrAgentsFinished

◆ nbrAgentsFinished_lock

◆ nbrMsgsReceived

◆ outOfMemory
