The controller class, a container for the listeners that do the actual work. More...

Inheritance diagram for frodo2.controller.Controller:

Public Member Functions
	Controller (boolean local, boolean ui, String workDir)
	Constructor for the controller.
	Controller (DistributedSolver<?, ?, ?> solver)
	Constructor to use a solver in distributed mode.
	Controller (boolean local, boolean ui)
	Constructor for the controller.
	Controller (boolean local, boolean ui, String testDir, int size)
void	addAgent (String agentId, AgentInterface<?> agent)
	Function to add agents to the repository.
void	addOutputPipe (String fromID, String toID, QueueOutputPipeInterface pipe)
	Add agent toID's input pipe as an output pipe to agent fromID's queue.
Collection< String >	getAgents ()
void	exit (boolean quit)
	This function must be called to stop the controller.
void	setFinished ()
	This functions sets a boolean value to true when finished.
void	endQueue ()
	This function is there mainly for test purposes and can be removed in the end.
void	clearAgents ()
	Delete all the agents from the repository.

Static Public Member Functions
static void	main (String[] args)

Public Attributes
boolean	isSuspended = false
	is true when the experiment is suspended and false otherwise
boolean	isStopped = true
	Is true when the experiment has stopped and false when it is running.
boolean	isFinished = false
	Is true when the experiments are finished.
Object	isFinishedSync
	Used to synchronized access to isFinished.

Static Public Attributes
static final String	CONTROLLER = "frodo2.controller.Controller"
	The destination ID of messages that are meant for the Controller.
static PipeFactory	PipeFactoryInstance = new TCPPipeFactory()
	The instance of the PipeFactory Visitor.
static final int	PORT = 3000
	The port the controller is listening to.
static Integer	daemonNb = null
	counts the number of instantiated daemon in order to launch the controller when everybody is ready.

Protected Attributes
Queue	controlQueue
	The queue that is used to send and receive messages.

Private Member Functions
void	init (String workDir, DistributedSolver<?, ?, ?> solver)
	Initializes the controller.
void	initLocal (boolean ui, String workDir)
	Initializes the controller for running the experiments itself.
void	run ()
	Start the controller.

Private Attributes
UserIO	userIO
	userIO takes care of all the user input and output
ConfigurationManager	confManager
	the configuration manager sets up the experiments
WhitePages	wp
	The global white pages.
LocalWhitePages	lwp
	The local white pages, used when the experiments are run locally.
Constructor	constructor
	The agent constructor, used when the experiments are run locally.
HashMap< String, AgentInterface<?> >	agents
	Agent repository, used when experiments are run locally.
QueueInputPipeInterface	input
	The input pipe for external messages.

Detailed Description

The controller class, a container for the listeners that do the actual work.

Author: Brammert Ottens; Thomas Leaute

Constructor & Destructor Documentation

◆ Controller() [1/4]

frodo2.controller.Controller.Controller	(	boolean	local,
		boolean	ui,
		String	workDir )

Constructor for the controller.

Experiments can either be run on the same machine the controller is running on, or on (a) separate machine(s).

Parameters

local	true if the experiments are run locally
ui	true if the user interface should be used
workDir	folder containing the files mentioned in the configuration document. Must end with a slash.

References init(), and initLocal().

Referenced by init(), and main().

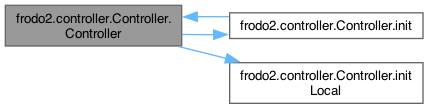

Here is the call graph for this function:

◆ Controller() [2/4]

frodo2.controller.Controller.Controller ( DistributedSolver<?, ?, ?> solver )

Constructor to use a solver in distributed mode.

Parameters

solver the distributed solver

References init().

Here is the call graph for this function:

◆ Controller() [3/4]

frodo2.controller.Controller.Controller	(	boolean	local,
		boolean	ui )

Constructor for the controller.

Experiments can either be run on the same machine the controller is running on, or on (a) separate machine(s).

Parameters

local	true if the experiments are run locally
ui	true if the user interface should be used

◆ Controller() [4/4]

frodo2.controller.Controller.Controller	(	boolean	local,
		boolean	ui,
		String	testDir,
		int	size )

Parameters

local	true if the experiments are run locally
ui	true if the user interface should be used
testDir	the working directory
size	the number of daemon to be instantiated

References daemonNb.

Member Function Documentation

◆ addAgent()

void frodo2.controller.Controller.addAgent	(	String	agentId,
		AgentInterface<?>	agent )

Function to add agents to the repository.

Only to be used when the experiments are run locally

Parameters

agentId	the agent's ID
agent	the agent itself

References agents, and userIO.

◆ addOutputPipe()

void frodo2.controller.Controller.addOutputPipe	(	String	fromID,
		String	toID,
		QueueOutputPipeInterface	pipe )

Add agent toID's input pipe as an output pipe to agent fromID's queue.

Parameters

fromID	the ID of the sender agent
toID	the ID of the recipient agent
pipe	the pipe

References agents.

◆ clearAgents()

void frodo2.controller.Controller.clearAgents ( )

Delete all the agents from the repository.

References agents.

◆ endQueue()

void frodo2.controller.Controller.endQueue ( )

This function is there mainly for test purposes and can be removed in the end.

References controlQueue.

◆ exit()

void frodo2.controller.Controller.exit ( boolean quit )

This function must be called to stop the controller.

Parameters

quit	whether the JVM should be terminated

References controlQueue.

◆ getAgents()

Collection< String > frodo2.controller.Controller.getAgents ( )

Returns: the set of agents known to the controller

References agents.

◆ init()

void frodo2.controller.Controller.init	(	String	workDir,
		DistributedSolver<?, ?, ?>	solver )

private

Initializes the controller.

Parameters

workDir	folder containing the files mentioned in the configuration document. Must end with a slash.
solver	the distributed solver, if any

References confManager, Controller(), controlQueue, isFinishedSync, PORT, userIO, and wp.

Referenced by Controller(), and Controller().

Here is the call graph for this function:

◆ initLocal()

void frodo2.controller.Controller.initLocal	(	boolean	ui,
		String	workDir )

private

Initializes the controller for running the experiments itself.

Parameters

ui	currently unused parameter
workDir	folder containing the files mentioned in the configuration document. Must end with a slash.

Bug: ui is not used.

References agents, confManager, constructor, controlQueue, input, isFinishedSync, lwp, and userIO.

Referenced by Controller().

◆ main()

void frodo2.controller.Controller.main ( String[] args )

static

Parameters

args	if -local then the experiments are run on the local machine (default is distributed) if -license is passed as an argument, displays the license and returns

References Controller().

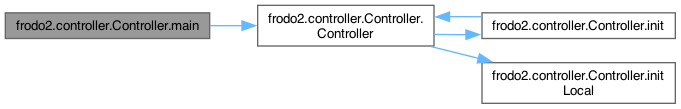

Here is the call graph for this function:

◆ run()

void frodo2.controller.Controller.run ( )

private

Start the controller.

References userIO.

◆ setFinished()

void frodo2.controller.Controller.setFinished ( )

This functions sets a boolean value to true when finished.

References isFinished, and isFinishedSync.

Member Data Documentation

◆ agents

HashMap< String, AgentInterface<?> > frodo2.controller.Controller.agents

private

Agent repository, used when experiments are run locally.

Referenced by addAgent(), addOutputPipe(), clearAgents(), getAgents(), and initLocal().

◆ confManager

ConfigurationManager frodo2.controller.Controller.confManager

private

the configuration manager sets up the experiments

Referenced by init(), and initLocal().

◆ constructor

Constructor frodo2.controller.Controller.constructor

private

The agent constructor, used when the experiments are run locally.

Referenced by initLocal().

◆ CONTROLLER

final String frodo2.controller.Controller.CONTROLLER = "frodo2.controller.Controller"

static

The destination ID of messages that are meant for the Controller.

Referenced by frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.connect(), frodo2.communication.mailer.CentralMailer.execute(), frodo2.communication.mailer.CentralMailer.newQueue(), frodo2.algorithms.test.MessageDebugger.notifyOut(), frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.oneMoreNeighbor(), frodo2.communication.Queue.recordStats(), and frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.setup().

◆ controlQueue

Queue frodo2.controller.Controller.controlQueue

protected

The queue that is used to send and receive messages.

Referenced by endQueue(), exit(), init(), initLocal(), frodo2.controller.TestController.ControllerExtension.setUp(), and frodo2.controller.TestController.ControllerExtension.start().

◆ daemonNb

Integer frodo2.controller.Controller.daemonNb = null

static

counts the number of instantiated daemon in order to launch the controller when everybody is ready.

Referenced by Controller().

◆ input

QueueInputPipeInterface frodo2.controller.Controller.input

private

The input pipe for external messages.

Referenced by initLocal().

◆ isFinished

boolean frodo2.controller.Controller.isFinished = false

Is true when the experiments are finished.

Referenced by setFinished().

◆ isFinishedSync

Object frodo2.controller.Controller.isFinishedSync

Used to synchronized access to isFinished.

Referenced by init(), initLocal(), and setFinished().

◆ isStopped

boolean frodo2.controller.Controller.isStopped = true

Is true when the experiment has stopped and false when it is running.

◆ isSuspended

boolean frodo2.controller.Controller.isSuspended = false

is true when the experiment is suspended and false otherwise

◆ lwp

LocalWhitePages frodo2.controller.Controller.lwp

private

The local white pages, used when the experiments are run locally.

Referenced by initLocal().

◆ PipeFactoryInstance

PipeFactory frodo2.controller.Controller.PipeFactoryInstance = new TCPPipeFactory()

static

The instance of the PipeFactory Visitor.

Referenced by frodo2.daemon.TestLocalWhitePages.SimpleAgent.agentReportGlobal(), frodo2.algorithms.test.AllTests.createQueueNetwork(), frodo2.controller.TestController.DaemonExtension.DaemonExtension(), frodo2.daemon.Daemon.init(), frodo2.daemon.userIO.UserIO.registerController(), frodo2.controller.TestConfigurationManager.setUp(), frodo2.controller.TestWhitePages.setUp(), frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.setup(), frodo2.daemon.TestLocalWhitePages.testAgentAddress(), frodo2.controller.TestWhitePages.testAgentReporting(), frodo2.controller.TestWhitePages.testDaemonReporting(), frodo2.controller.TestWhitePages.testKillAllAgents(), and frodo2.daemon.TestLocalWhitePages.testLocalAgentAddressRequestUnknown().

◆ PORT

final int frodo2.controller.Controller.PORT = 3000

static

The port the controller is listening to.

Todo: Should be customizable.

Referenced by frodo2.daemon.Constructor.Constructor(), frodo2.controller.TestController.DaemonExtension.DaemonExtension(), init(), frodo2.daemon.Daemon.main(), and frodo2.daemon.userIO.Console.parseInput().

◆ userIO

UserIO frodo2.controller.Controller.userIO

private

userIO takes care of all the user input and output

Referenced by addAgent(), init(), initLocal(), and run().

◆ wp

WhitePages frodo2.controller.Controller.wp

private

The global white pages.

Referenced by init().

The documentation for this class was generated from the following file:

src/frodo2/controller/Controller.java
