Inheritance diagram for frodo2.daemon.Daemon:

Public Member Functions
	Daemon (boolean useUI)
	The constructor.
	Daemon (boolean useUI, int port)
	The constructor.
	Daemon (boolean useUI, int port, String workDir)
	The constructor.
	Daemon (AgentAddress controllerAddress, boolean useUI)
	A constructor that tells the daemon the controller's address.
	Daemon (AgentAddress controllerAddress, boolean useUI, String workDir)
	A constructor that tells the daemon the controller's address.
	Daemon (AgentAddress controllerAddress, boolean useUI, int port)
	A constructor that tells the daemon the controller's address.
	Daemon (AgentAddress controllerAddress, boolean useUI, int port, String workDir)
	A constructor that tells the daemon the controller's address.
int	getPort ()
Collection< String >	getAgents ()
	get the list of agents running under this daemon
void	addAgent (String ID, AgentInterface<?> agent)
	Add an agent to the list of agents.
void	addOutputPipe (String fromID, String toID, QueueOutputPipeInterface pipe)
	Add agent toID's input pipe as an output pipe to agent fromID's queue.
void	registerDaemon ()
	Register the daemon to the controller.
QueueIOPipe	getInput ()
	Getter for the Daemons internal input pipe.
void	clearAgents ()
	Delete the pointers to all agents that are running.
void	exit (boolean quit)
	Exit the daemon.

Static Public Member Functions
static void	main (String[] args)

Public Attributes
String	daemonId
	The daemons local Id.
AgentAddress	daemonAddress
	The daemon address.

Static Public Attributes
static final String	DAEMON = "frodo2.daemon.Daemon"
	The id of the daemon.

Protected Attributes
Queue	daemonQueue
	The daemons queue.
boolean	isFinished = false
	When the controller is non-omniscient, keeps track of whether the daemon has run out of problem instances to solve.

Private Member Functions
void	init (boolean useUI, String workDir)
	Initialisation.

Private Attributes
QueueIOPipe	inputInternal
	The pipe for receiving internal messages.
UserIO	ui
	User interface.
LocalWhitePages	lwp
	Local white pages.
Constructor	constructor
	the constructor
HashMap< String, AgentInterface<?> >	agentList
	A list of agents.
int	port
	The port number that the daemon listens on.
LocalConfigManager	configMan
	The local configuration manager.

Static Private Attributes
static final int	DEFAULT_PORT = 25000
	The default port the Daemon is listening to.

Detailed Description

Author: Brammert Ottens, Thomas Leaute This is the client side daemon that spawns new agents for the experiments

Constructor & Destructor Documentation

◆ Daemon() [1/7]

frodo2.daemon.Daemon.Daemon ( boolean useUI )

The constructor.

Parameters

useUI whether or not to use the User Interface

References DEFAULT_PORT.

Referenced by Daemon(), and main().

◆ Daemon() [2/7]

frodo2.daemon.Daemon.Daemon	(	boolean	useUI,
		int	port )

The constructor.

Parameters

useUI	whether or not to use the User Interface
port	the port number the daemon listens on

References port.

◆ Daemon() [3/7]

frodo2.daemon.Daemon.Daemon	(	boolean	useUI,
		int	port,
		String	workDir )

The constructor.

Parameters

useUI	whether or not to use the User Interface
port	the port number the daemon listens on
workDir	the working directory

References init(), and port.

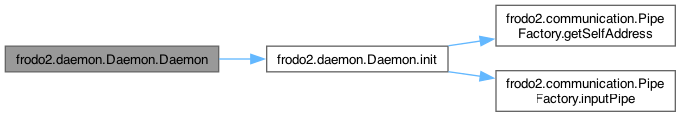

Here is the call graph for this function:

◆ Daemon() [4/7]

frodo2.daemon.Daemon.Daemon	(	AgentAddress	controllerAddress,
		boolean	useUI )

A constructor that tells the daemon the controller's address.

Parameters

controllerAddress	address of the controller
useUI	whether or not to use the User Interface

◆ Daemon() [5/7]

frodo2.daemon.Daemon.Daemon	(	AgentAddress	controllerAddress,
		boolean	useUI,
		String	workDir )

A constructor that tells the daemon the controller's address.

Parameters

controllerAddress	address of the controller
useUI	whether or not to use the User Interface
workDir	the working directory

References Daemon().

Here is the call graph for this function:

◆ Daemon() [6/7]

frodo2.daemon.Daemon.Daemon	(	AgentAddress	controllerAddress,
		boolean	useUI,
		int	port )

A constructor that tells the daemon the controller's address.

Parameters

controllerAddress	address of the controller
useUI	whether or not to use the User Interface
port	the port number the daemon listens on

References port.

◆ Daemon() [7/7]

frodo2.daemon.Daemon.Daemon	(	AgentAddress	controllerAddress,
		boolean	useUI,
		int	port,
		String	workDir )

A constructor that tells the daemon the controller's address.

Parameters

controllerAddress	address of the controller
useUI	whether or not to use the User Interface
port	the port number the daemon listens on
workDir	the working directory

References init(), port, and ui.

Here is the call graph for this function:

Member Function Documentation

◆ addAgent()

void frodo2.daemon.Daemon.addAgent	(	String	ID,
		AgentInterface<?>	agent )

Add an agent to the list of agents.

Parameters

ID	ID of the agent
agent	the agent itself

References agentList.

◆ addOutputPipe()

void frodo2.daemon.Daemon.addOutputPipe	(	String	fromID,
		String	toID,
		QueueOutputPipeInterface	pipe )

Add agent toID's input pipe as an output pipe to agent fromID's queue.

Parameters

fromID	ID of the sender agent
toID	ID of the recipient agent
pipe	the pipe the sender should use to send messages to the recipient

References agentList.

◆ clearAgents()

void frodo2.daemon.Daemon.clearAgents ( )

Delete the pointers to all agents that are running.

Used to clear up after an experiment.

References agentList.

◆ exit()

void frodo2.daemon.Daemon.exit ( boolean quit )

Exit the daemon.

Parameters

quit	whether the JVM should be terminated

Bug: Before exiting, the Daemon should warn the Controller.

References daemonQueue, and ui.

◆ getAgents()

Collection< String > frodo2.daemon.Daemon.getAgents ( )

get the list of agents running under this daemon

Returns: a collection of agent names

References agentList.

◆ getInput()

QueueIOPipe frodo2.daemon.Daemon.getInput ( )

Getter for the Daemons internal input pipe.

Returns: QueueIOPipe

References inputInternal.

◆ getPort()

int frodo2.daemon.Daemon.getPort ( )

Returns: the port number that the daemon listens on

◆ init()

void frodo2.daemon.Daemon.init	(	boolean	useUI,
		String	workDir )

private

Initialisation.

Parameters

useUI	whether or not to use the User Interface
workDir	the working directory

References agentList, constructor, daemonAddress, daemonId, daemonQueue, frodo2.communication.PipeFactory.getSelfAddress(), inputInternal, frodo2.communication.PipeFactory.inputPipe(), lwp, frodo2.controller.Controller.PipeFactoryInstance, port, and ui.

Referenced by Daemon(), and Daemon().

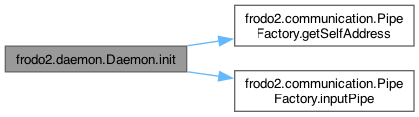

Here is the call graph for this function:

◆ main()

void frodo2.daemon.Daemon.main ( String[] args )

static

Parameters

args	arguments passed to the main method

Todo: The controller's port should be parameterizable

References Daemon(), DEFAULT_PORT, and frodo2.controller.Controller.PORT.

Here is the call graph for this function:

◆ registerDaemon()

void frodo2.daemon.Daemon.registerDaemon ( )

Register the daemon to the controller.

Only to be used for testing purposes!

References frodo2.daemon.LocalWhitePages.CONTROLLER_ID, daemonAddress, daemonId, daemonQueue, and frodo2.controller.messages.MessageAgentReporting.DEAMON_REPORTING.

Member Data Documentation

◆ agentList

HashMap< String, AgentInterface<?> > frodo2.daemon.Daemon.agentList

private

A list of agents.

Referenced by addAgent(), addOutputPipe(), clearAgents(), getAgents(), and init().

◆ configMan

LocalConfigManager frodo2.daemon.Daemon.configMan

private

The local configuration manager.

◆ constructor

Constructor frodo2.daemon.Daemon.constructor

private

the constructor

Referenced by init().

◆ DAEMON

final String frodo2.daemon.Daemon.DAEMON = "frodo2.daemon.Daemon"

static

The id of the daemon.

Referenced by frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.connect(), frodo2.communication.mailer.CentralMailer.execute(), frodo2.communication.mailer.CentralMailer.newQueue(), frodo2.algorithms.test.MessageDebugger.notifyOut(), frodo2.communication.Queue.recordStats(), frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.report(), frodo2.communication.mailer.CentralMailer.run(), and frodo2.algorithms.SingleQueueAgent< Val extends Addable< Val > >.setup().

◆ daemonAddress

AgentAddress frodo2.daemon.Daemon.daemonAddress

The daemon address.

Referenced by init(), and registerDaemon().

◆ daemonId

String frodo2.daemon.Daemon.daemonId

The daemons local Id.

Referenced by init(), and registerDaemon().

◆ daemonQueue

Queue frodo2.daemon.Daemon.daemonQueue

protected

The daemons queue.

Referenced by exit(), init(), and registerDaemon().

◆ DEFAULT_PORT

final int frodo2.daemon.Daemon.DEFAULT_PORT = 25000

staticprivate

The default port the Daemon is listening to.

Referenced by Daemon(), and main().

◆ inputInternal

QueueIOPipe frodo2.daemon.Daemon.inputInternal

private

The pipe for receiving internal messages.

Referenced by getInput(), and init().

◆ isFinished

boolean frodo2.daemon.Daemon.isFinished = false

protected

When the controller is non-omniscient, keeps track of whether the daemon has run out of problem instances to solve.

Reimplemented in frodo2.controller.TestController.DaemonExtension.

◆ lwp

LocalWhitePages frodo2.daemon.Daemon.lwp

private

Local white pages.

Referenced by init().

◆ port

int frodo2.daemon.Daemon.port

private

The port number that the daemon listens on.

Referenced by Daemon(), Daemon(), Daemon(), Daemon(), and init().

◆ ui

UserIO frodo2.daemon.Daemon.ui

private

User interface.

Referenced by Daemon(), exit(), and init().

The documentation for this class was generated from the following file:

src/frodo2/daemon/Daemon.java
