The queue associated with a specific agent. More...

Inheritance diagram for frodo2.communication.mailer.CentralMailer.FakeQueue:

[legend]

Public Member Functions
void	addIncomingMessagePolicy (MessageType type, IncomingMsgPolicyInterface< MessageType > policy)
	Does exactly the same as the superclass, except that synchronizing over a lock is not necessary.
void	addOutgoingMessagePolicy (MessageType type, OutgoingMsgPolicyInterface< MessageType > policy)
	Does exactly the same as the superclass, except that synchronizing over a lock is not necessary.
void	addOutputPipe (Object recipient, QueueOutputPipeInterface output)
void	addToInbox (MessageWrapper msg)
	Adds the input message wrapper to the buffer of messages waiting to be put into the central priority queue.
void	cleanQueue ()
	Removes this agent from the lists of destinations of all messages in the central priority queue.
void	end ()
long	getCurrentTime ()
int	getInboxSize ()
void	resetStats ()
void	sendMessage (Object to, Message msg)
void	sendMessage (Object to, MessageWrapper msgWrap)
void	sendMessageToSelf (Message msg)
Public Member Functions inherited from frodo2.communication.Queue
	Queue (boolean measureMsgs)
	Constructor.
	Queue (boolean measureMsgs, boolean init)
	Constructor.
void	toBeClosedUponKill (QueueInputPipeInterface input)
	Reminds the queue to close the given pipe when it is killed.
void	removeInputPipe (QueueInputPipeInterface input)
	Removes the given input pipe from the list of input pipes.
QueueOutputPipeInterface	getOutputPipe (Object recipient)
	Returns the output pipe corresponding to the given recipient.
void	removeOutputPipe (Object recipient)
	Removes the output pipe corresponding to the given recipient.
QueueIOPipe	addOutputQueue (Object recipient, Queue queue)
	Adds a new output pipe to the provided queue.
void	addIncomingMessagePolicy (IncomingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new incoming messages.
void	addIncomingMessagePolicy (Collection< MessageType > msgTypes, IncomingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new incoming messages.
void	addOutgoingMessagePolicy (OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages.
void	addOutgoingMessagePolicy (Collection< MessageType > msgTypes, OutgoingMsgPolicyInterface< MessageType > policy)
	Adds a listener to be notified of new outgoing messages.
void	run ()
	Continuously processes all messages in the inbox.
void	deleteIncomingMessagePolicy (IncomingMsgPolicyInterface< MessageType > policy)
	Completely removes the input policy from all lists of listeners.
void	deleteStatsReporters ()
	Delete all StatsReporters.
void	deleteOutgoingMessagePolicy (OutgoingMsgPolicyInterface< MessageType > policy)
	Completely removes the outgoing message policy from all lists of listeners.
void	setProblem (ProblemInterface<?, ?> problem)
	Sets the problem that is queried for NCCCs.
void	updateNCCCs (long msgNCCCs)
	Updates the queue's NCCC counter to the input count if the input is greater.
MessageWrapper	getCurrentMessageWrapper ()
HashMap< MessageType, Integer >	getMsgNbrs ()
HashMap< Object, Integer >	getMsgNbrsSent ()
HashMap< MessageType, Long >	getMsgSizes ()
HashMap< Object, Long >	getMsgSizesSent ()
HashMap< MessageType, Long >	getMaxMsgSizes ()
void	resetMsgSizeMonitor ()
	Closes the MsgSizeMonitor and creates a new one.

Protected Member Functions
	FakeQueue (String agent)
	Constructor.
	FakeQueue (String agent, boolean updateTime)
	Constructor.
void	notifyInListeners (Message msg, Object toAgent)
	Does the same as the superclass, but without the need to synchronize on a lock.
boolean	notifyOutListeners (Object fromAgent, Message msg, Collection<? extends Object > toAgents)
	Does the same as the superclass, but without the need to synchronize on a lock.
void	recordStats (Object to, Message msg)
void	setCurrentMsgWrapper (MessageWrapper wrap)
	Sets the current message wrapper.
void	freezeTime ()
	Sets the queue's timestamp to the current time.
void	updateTime (long msgTime)
	Updates this queue's timer to the input time if the input is greater, and resets the start time to the current system time.
Protected Member Functions inherited from frodo2.communication.Queue
	Queue ()
	Empty constructor that does absolutely nothing.

Protected Attributes
String	agent
	The agent name.
int	messageCounter
	Counts the total number of messages having been sent by this queue.
long	time = Long.MIN_VALUE
	Functions as a timer for the agent that owns this queue.
Protected Attributes inherited from frodo2.communication.Queue
Set< QueueInputPipeInterface >	inputs
	List of input pipes.
HashMap< Object, QueueOutputPipeInterface >	outputs
	Map associating an output pipe to each destination ID.
MsgSizeMonitor	monitor
	A monitor used to measure the sizes of the messages.
HashMap< MessageType, ArrayList< IncomingMsgPolicyInterface< MessageType > > >	inPolicies
	A list of listeners notified of incoming objects.
HashMap< MessageType, ArrayList< OutgoingMsgPolicyInterface< MessageType > > >	outPolicies
	A list of listeners notified of outgoing messages.
ProblemInterface<?, ?>	problem
	The problem used to obtain the current NCCC count.
final boolean	measureMsgs
	Whether to measure the number of messages and the total amount of information sent.
HashMap< MessageType, Integer >	msgNbrs
	For each message type, the number of messages sent of that type.
HashMap< MessageType, Long >	msgSizes
	For each message type, the total amount of information sent in messages of that type, in bytes.
HashMap< MessageType, Long >	maxMsgSizes
	For each message type, the size (in bytes) of the largest message of that type.
MessageWrapper	msgWrap
	The last wrapped message to have been received.

Package Functions

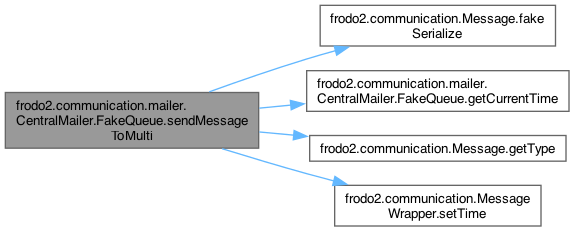

public< T extends Object > void	sendMessageToMulti (Collection< T > recipients, Message msg)

Private Attributes
long	startTime = 0
	The last time we started measuring time again after interrupting the measurement.
final boolean	updateTime
	If `false`, this queue's time will always remain frozen at its initial value.

Additional Inherited Members
Static Public Member Functions inherited from frodo2.communication.Queue
static String	networkToDOT (Queue[] queues)
	Generates a String representation in DOT format of a network of queues.

Detailed Description

The queue associated with a specific agent.

Constructor & Destructor Documentation

◆ FakeQueue() [1/2]

frodo2.communication.mailer.CentralMailer.FakeQueue.FakeQueue ( String agent )

protected

Constructor.

Parameters

agent the agent name

References agent.

◆ FakeQueue() [2/2]

frodo2.communication.mailer.CentralMailer.FakeQueue.FakeQueue	(	String	agent,
		boolean	updateTime )

protected

Constructor.

Parameters

agent	the agent name
updateTime	If `false`, this queue's time will always remain frozen at its initial value

References agent, frodo2.communication.Queue.inPolicies, frodo2.communication.Queue.inputs, frodo2.communication.mailer.CentralMailer.measuringMsgs, frodo2.communication.Queue.outPolicies, frodo2.communication.Queue.outputs, frodo2.communication.MessageType.ROOT, and updateTime.

Member Function Documentation

◆ addIncomingMessagePolicy()

void frodo2.communication.mailer.CentralMailer.FakeQueue.addIncomingMessagePolicy	(	MessageType	type,
		IncomingMsgPolicyInterface< MessageType >	policy )

Does exactly the same as the superclass, except that synchronizing over a lock is not necessary.

See also: Queue#addIncomingMessagePolicy(MessageType, IncomingMsgPolicyInterface)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.Queue.inPolicies, and frodo2.communication.MessageListener< T >.setQueue().

Here is the call graph for this function:

◆ addOutgoingMessagePolicy()

void frodo2.communication.mailer.CentralMailer.FakeQueue.addOutgoingMessagePolicy	(	MessageType	type,
		OutgoingMsgPolicyInterface< MessageType >	policy )

Does exactly the same as the superclass, except that synchronizing over a lock is not necessary.

See also: Queue#addOutgoingMessagePolicy(MessageType, OutgoingMsgPolicyInterface)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.Queue.outPolicies, and frodo2.communication.MessageListener< T >.setQueue().

Here is the call graph for this function:

◆ addOutputPipe()

void frodo2.communication.mailer.CentralMailer.FakeQueue.addOutputPipe	(	Object	recipient,
		QueueOutputPipeInterface	output )

See also: Queue.addOutputPipe(Object, QueueOutputPipeInterface)

Reimplemented from frodo2.communication.Queue.

References frodo2.output.

◆ addToInbox()

void frodo2.communication.mailer.CentralMailer.FakeQueue.addToInbox ( MessageWrapper msg )

Adds the input message wrapper to the buffer of messages waiting to be put into the central priority queue.

See also: Queue.addToInbox(MessageWrapper)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.mailer.CentralMailer.outbox.

◆ cleanQueue()

void frodo2.communication.mailer.CentralMailer.FakeQueue.cleanQueue ( )

Removes this agent from the lists of destinations of all messages in the central priority queue.

Reimplemented from frodo2.communication.Queue.

References agent, frodo2.communication.MessageWrapper.getDestinations(), and frodo2.communication.mailer.CentralMailer.orderedQueue.

Here is the call graph for this function:

◆ end()

void frodo2.communication.mailer.CentralMailer.FakeQueue.end ( )

See also: Queue.end()

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.Queue.inputs, frodo2.communication.Queue.measureMsgs, and frodo2.communication.Queue.monitor.

◆ freezeTime()

void frodo2.communication.mailer.CentralMailer.FakeQueue.freezeTime ( )

protected

Sets the queue's timestamp to the current time.

References startTime.

Referenced by frodo2.communication.mailer.CentralMailer.run().

◆ getCurrentTime()

long frodo2.communication.mailer.CentralMailer.FakeQueue.getCurrentTime ( )

See also: Queue.getCurrentTime()

Reimplemented from frodo2.communication.Queue.

References startTime, and time.

Referenced by frodo2.communication.mailer.CentralMailer.execute(), getInboxSize(), sendMessage(), and sendMessageToMulti().

◆ getInboxSize()

int frodo2.communication.mailer.CentralMailer.FakeQueue.getInboxSize ( )

See also: Queue.getInboxSize()

Reimplemented from frodo2.communication.Queue.

References getCurrentTime(), and frodo2.communication.mailer.CentralMailer.orderedQueue.

Here is the call graph for this function:

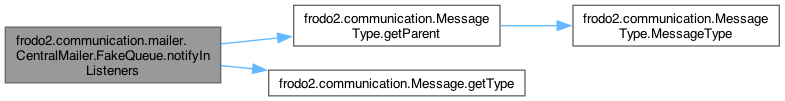

◆ notifyInListeners()

void frodo2.communication.mailer.CentralMailer.FakeQueue.notifyInListeners	(	Message	msg,
		Object	toAgent )

protected

Does the same as the superclass, but without the need to synchronize on a lock.

See also: Queue.notifyInListeners(Message, Object)

Reimplemented from frodo2.communication.Queue.

References frodo2.communication.MessageType.getParent(), frodo2.communication.Message.getType(), and frodo2.communication.Queue.inPolicies.

Referenced by frodo2.communication.mailer.CentralMailer.execute(), and frodo2.communication.mailer.CentralMailer.run().

Here is the call graph for this function:

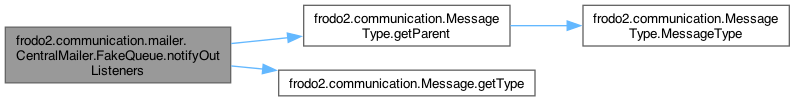

◆ notifyOutListeners()

boolean frodo2.communication.mailer.CentralMailer.FakeQueue.notifyOutListeners	(	Object	fromAgent,
		Message	msg,
		Collection<? extends Object >	toAgents )
