VALUE propagation protocol. More...

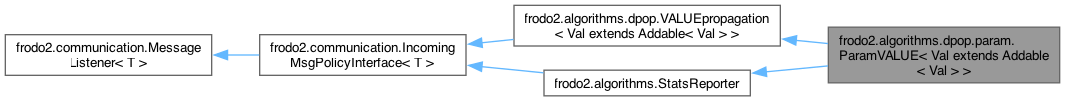

Inheritance diagram for frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >:

[legend]

Classes
class	AssignmentMessage
	A message holding the optimal assignment to some variables, conditioned on the values of the parameters (if any). More...

Public Member Functions
	ParamVALUE ()
	Default constructor.
	ParamVALUE (DCOPProblemInterface< Val, ? extends Addable<?> > problem, Boolean swap)
	Manual constructor that does not use XML elements.
	ParamVALUE (DCOPProblemInterface< Val, ? extends Addable<?> > problem, Element parameters)
	Constructor from XML elements.
	ParamVALUE (Element parameters, DCOPProblemInterface< Val, ?> problem)
	The constructor called in "statistics gatherer" mode.
void	reset ()
Collection< MessageType >	getMsgTypes ()
void	setSilent (boolean silent)
void	notifyIn (Message msg)
void	getStatsFromQueue (Queue queue)
Map< String[], BasicUtilitySolutionSpace< Val, ArrayList< Val > > >	getParamSolution ()
Public Member Functions inherited from frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >
	VALUEpropagation ()
	Default constructor.
	VALUEpropagation (DCOPProblemInterface< Val, ?> problem, Boolean swap)
	Manual constructor that does not use XML elements.
	VALUEpropagation (DCOPProblemInterface< Val, ?> problem, Element parameters)
	Constructor from XML elements.
void	setQueue (Queue queue)
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Attributes
static final MessageType	PARAM_VALUE_MSG_TYPE = new MessageType ("Param-DPOP", "VALUE", "VALUE")
	The type of the VALUE messages.
static final MessageType	PARAM_OUTPUT_MSG_TYPE = new MessageType ("Param-DPOP", "VALUE", "Output")
	The type of the output messages containing the optimal assignment to a variable.
Static Public Attributes inherited from frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >
static MessageType	START_MSG_TYPE = AgentInterface.START_AGENT
	The type of the message telling the module to start.
static MessageType	FINISH_MSG_TYPE = AgentInterface.AGENT_FINISHED
	The type of the message telling the agent finished.
static MessageType	DFS_MSG_TYPE = DFSgeneration.OUTPUT_MSG_TYPE
	The type of the messages containing information about the DFS.
static MessageType	UTIL_MSG_TYPE = UTILpropagation.OUTPUT_MSG_TYPE
	The type of the messages containing optimal conditional assignments.
static MessageType	SEPARATOR_MSG_TYPE = UTILpropagation.SEPARATOR_MSG_TYPE
	The type of the messages containing information about separators.
static final MessageType	VALUE_MSG_TYPE = new MessageType ("DPOP", "VALUEpropagation", "VALUE")
	The type of the VALUE messages.

Private Member Functions
void	sendVALUEmessage (String child, String[] separator, String[] vars, BasicUtilitySolutionSpace< Val, ArrayList< Val > > opt, VALUEmsg< Val > valueMsg)
	Instantiates a VALUE message and sends it.
void	computeOptValAndSendVALUEmsgs (String[] vars, BasicUtilitySolutionSpace< Val, ArrayList< Val > > optAssignments, VALUEmsg< Val > valueMsg)
	Compute the optimal assignment to some variables, and sends VALUE messages to children accordingly.

Private Attributes
HashMap< String, VALUEmsg< Val > >	valueMessages = new HashMap< String, VALUEmsg<Val> > ()
	For each variable, the VALUE message received containing its separator's optimal assignments.
boolean	reportStats = true
	Whether to report stats.
HashMap< String[], BasicUtilitySolutionSpace< Val, ArrayList< Val > > >	solution = new HashMap< String[], BasicUtilitySolutionSpace< Val, ArrayList<Val> > > ()
	For an array of variables, their optimal values, conditioned on the values of the parameters (if any).
HashSet< String >	roots = new HashSet<String> ()
	The subset of this agent's variables that are roots.

Additional Inherited Members
Protected Member Functions inherited from frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >
void	init ()
	Parses the problem.
Protected Attributes inherited from frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >
Queue	queue
	The queue on which it should call sendMessage().
DCOPProblemInterface< Val, ?>	problem
	The problem.
boolean	started = false
	Whether the execution of the algorithm has started.
HashMap< String, String[]>	separators
	For each variable, its separator.
HashMap< String, List< String > >	allChildren
	For each variable, the list of its children.
HashMap< String, SolutionMessage< Val > >	condAssignments
	For each variable, its optimal assignment conditioned on the assignments to its separator.
int	nbrVarsDone = 0
	The number of variables owned by this agents that have already sent VALUE messages to all their children.

Detailed Description

VALUE propagation protocol.

Author: Thomas Leaute

Parameters

<Val> type used for variable values

Todo: Improve the implementation by reasoning on groups of variables to be projected together.

Constructor & Destructor Documentation

◆ ParamVALUE() [1/4]

frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.ParamVALUE ( )

Default constructor.

◆ ParamVALUE() [2/4]

frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.ParamVALUE	(	DCOPProblemInterface< Val, ? extends Addable<?> >	problem,
		Boolean	swap )

Manual constructor that does not use XML elements.

Parameters

problem	the problem
swap	if `true`, conditional optimal assignments are swapped until the VALUE message is received

References frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.problem, and frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.swap.

◆ ParamVALUE() [3/4]

frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.ParamVALUE	(	DCOPProblemInterface< Val, ? extends Addable<?> >	problem,
		Element	parameters )

Constructor from XML elements.

Parameters

problem	description of the problem
parameters	not used because ParamVALUE cannot be parameterized

References frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.problem.

◆ ParamVALUE() [4/4]

frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.ParamVALUE	(	Element	parameters,
		DCOPProblemInterface< Val, ?>	problem )

The constructor called in "statistics gatherer" mode.

Parameters

problem	the overall problem
parameters	the description of what statistics should be reported (currently unused)

References frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.problem.

Member Function Documentation

◆ computeOptValAndSendVALUEmsgs()

void frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.computeOptValAndSendVALUEmsgs	(	String[]	vars,
		BasicUtilitySolutionSpace< Val, ArrayList< Val > >	optAssignments,
		VALUEmsg< Val >	valueMsg )

private

Compute the optimal assignment to some variables, and sends VALUE messages to children accordingly.

Parameters

vars	the variables to be optimized
optAssignments	the conditional optimal assignments to variable var
valueMsg	the VALUE message received for variable var

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.allChildren, frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.compose(), frodo2.algorithms.dpop.param.VALUEmsg< Val extends Addable< Val > >.getValues(), frodo2.algorithms.dpop.param.VALUEmsg< Val extends Addable< Val > >.getVariables(), frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.queue, sendVALUEmessage(), frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.separators, solution, and frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR.

Referenced by notifyIn().

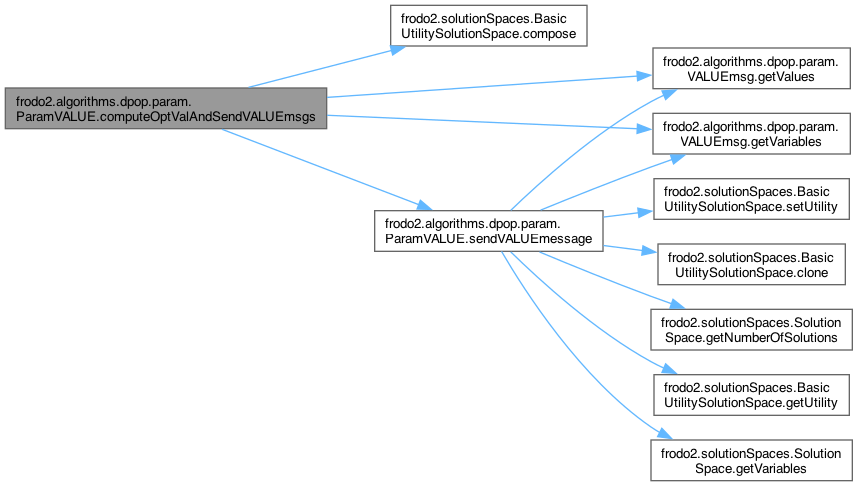

Here is the call graph for this function:

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.getMsgTypes ( )

See also: VALUEpropagation.getMsgTypes()

Reimplemented from frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.dpop.UTILpropagation< Val extends Addable< Val >, U extends Addable >.OUTPUT_MSG_TYPE, frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable >.OUTPUT_MSG_TYPE, PARAM_VALUE_MSG_TYPE, frodo2.algorithms.dpop.UTILpropagation< Val extends Addable< Val >, U extends Addable >.SEPARATOR_MSG_TYPE, and frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.START_MSG_TYPE.

◆ getParamSolution()

Map< String[], BasicUtilitySolutionSpace< Val, ArrayList< Val > > > frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.getParamSolution ( )

Returns: for each variable, its assignment in the optimal solution found to the problem conditioned on the parameters

◆ getStatsFromQueue()

void frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.getStatsFromQueue ( Queue queue )

See also: StatsReporter.getStatsFromQueue(Queue)

Implements frodo2.algorithms.StatsReporter.

References PARAM_OUTPUT_MSG_TYPE, and frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.queue.

◆ notifyIn()

void frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.notifyIn ( Message msg )

See also: VALUEpropagation.notifyIn(Message)

Reimplemented from frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, computeOptValAndSendVALUEmsgs(), frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.condAssignments, frodo2.communication.MessageType.equals(), frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.init(), notifyIn(), frodo2.algorithms.dpop.UTILpropagation< Val extends Addable< Val >, U extends Addable >.OUTPUT_MSG_TYPE, PARAM_OUTPUT_MSG_TYPE, frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.started, and valueMessages.

Referenced by notifyIn().

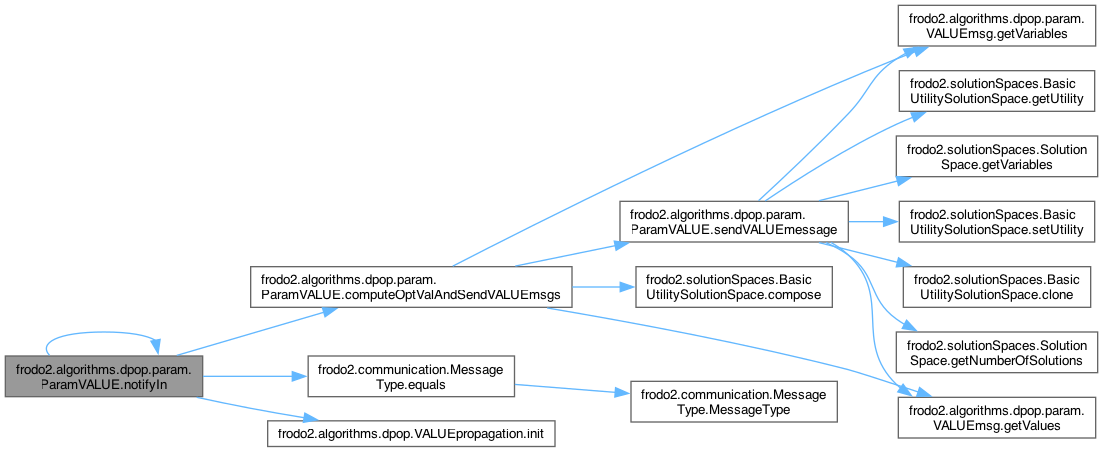

Here is the call graph for this function:

◆ reset()

void frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.reset ( )

See also: VALUEpropagation.reset()

Reimplemented from frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.

References roots, solution, and valueMessages.

◆ sendVALUEmessage()

void frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.sendVALUEmessage	(	String	child,
		String[]	separator,
		String[]	vars,
		BasicUtilitySolutionSpace< Val, ArrayList< Val > >	opt,
		VALUEmsg< Val >	valueMsg )

private

Instantiates a VALUE message and sends it.

Parameters

child	destination variable of the message
separator	separator of child, parameters included
vars	the variables whose optimal values have just been computed
opt	optimal values for variables in vars, conditioned on the values of the parameters (if any)
valueMsg	VALUE message received from parent

Todo: Remove dependency on Hypercube.

Todo: Performance improvement: do this before entering the for loop on k

References frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.clone(), frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.getNumberOfSolutions(), frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.getUtility(), frodo2.algorithms.dpop.param.VALUEmsg< Val extends Addable< Val > >.getValues(), frodo2.algorithms.dpop.param.VALUEmsg< Val extends Addable< Val > >.getVariables(), frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.getVariables(), frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.problem, frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.queue, and frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.setUtility().

Referenced by computeOptValAndSendVALUEmsgs().

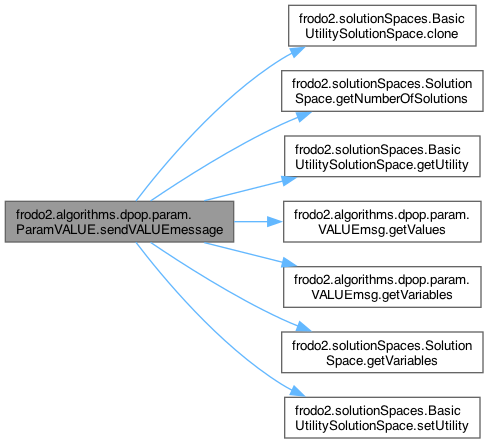

Here is the call graph for this function:

◆ setSilent()

void frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.setSilent ( boolean silent )

See also: StatsReporter.setSilent(boolean)

Implements frodo2.algorithms.StatsReporter.

Member Data Documentation

◆ PARAM_OUTPUT_MSG_TYPE

final MessageType frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.PARAM_OUTPUT_MSG_TYPE = new MessageType ("Param-DPOP", "VALUE", "Output")

static

The type of the output messages containing the optimal assignment to a variable.

Referenced by frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.AssignmentMessage< Val extends Addable< Val > >.AssignmentMessage(), frodo2.algorithms.dpop.param.test.ParamVALUEtest >.Listener.getMsgTypes(), getStatsFromQueue(), frodo2.algorithms.dpop.param.test.ParamVALUEtest >.Listener.getStatsFromQueue(), and notifyIn().

◆ PARAM_VALUE_MSG_TYPE

final MessageType frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.PARAM_VALUE_MSG_TYPE = new MessageType ("Param-DPOP", "VALUE", "VALUE")

static

The type of the VALUE messages.

Referenced by getMsgTypes(), and frodo2.algorithms.dpop.param.VALUEmsg< Val extends Addable< Val > >.VALUEmsg().

◆ reportStats

boolean frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.reportStats = true

private

Whether to report stats.

◆ roots

HashSet<String> frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.roots = new HashSet<String> ()

private

The subset of this agent's variables that are roots.

Referenced by reset().

◆ solution

HashMap< String[], BasicUtilitySolutionSpace< Val, ArrayList<Val> > > frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.solution = new HashMap< String[], BasicUtilitySolutionSpace< Val, ArrayList<Val> > > ()

private

For an array of variables, their optimal values, conditioned on the values of the parameters (if any).

Todo: It might be more efficient to store a single BasicUtilitySolutionSpace holding the information about all variables.

Referenced by computeOptValAndSendVALUEmsgs(), and reset().

◆ valueMessages

HashMap< String, VALUEmsg<Val> > frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.valueMessages = new HashMap< String, VALUEmsg<Val> > ()

private

For each variable, the VALUE message received containing its separator's optimal assignments.

Referenced by notifyIn(), and reset().

The documentation for this class was generated from the following file:

src/frodo2/algorithms/dpop/param/ParamVALUE.java
