VALUE propagation protocol. More...

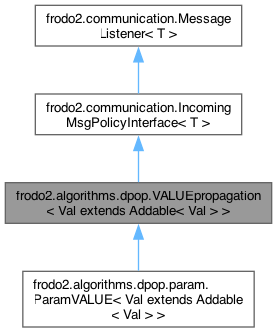

Inheritance diagram for frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >:

[legend]

Public Member Functions
	VALUEpropagation ()
	Default constructor.
	VALUEpropagation (DCOPProblemInterface< Val, ?> problem, Boolean swap)
	Manual constructor that does not use XML elements.
	VALUEpropagation (DCOPProblemInterface< Val, ?> problem, Element parameters)
	Constructor from XML elements.
void	reset ()
	Resets the state, only keeping the problem.
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
	The algorithm.
void	setQueue (Queue queue)
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Attributes
static MessageType	START_MSG_TYPE = AgentInterface.START_AGENT
	The type of the message telling the module to start.
static MessageType	FINISH_MSG_TYPE = AgentInterface.AGENT_FINISHED
	The type of the message telling the agent finished.
static MessageType	DFS_MSG_TYPE = DFSgeneration.OUTPUT_MSG_TYPE
	The type of the messages containing information about the DFS.
static MessageType	UTIL_MSG_TYPE = UTILpropagation.OUTPUT_MSG_TYPE
	The type of the messages containing optimal conditional assignments.
static MessageType	SEPARATOR_MSG_TYPE = UTILpropagation.SEPARATOR_MSG_TYPE
	The type of the messages containing information about separators.
static final MessageType	VALUE_MSG_TYPE = new MessageType ("DPOP", "VALUEpropagation", "VALUE")
	The type of the VALUE messages.

Protected Member Functions
void	init ()
	Parses the problem.

Protected Attributes
Queue	queue
	The queue on which it should call sendMessage().
DCOPProblemInterface< Val, ?>	problem
	The problem.
boolean	started = false
	Whether the execution of the algorithm has started.
HashMap< String, String[]>	separators
	For each variable, its separator.
HashMap< String, List< String > >	allChildren
	For each variable, the list of its children.
HashMap< String, SolutionMessage< Val > >	condAssignments
	For each variable, its optimal assignment conditioned on the assignments to its separator.
int	nbrVarsDone = 0
	The number of variables owned by this agents that have already sent VALUE messages to all their children.

Private Member Functions
void	sendVALUEmessage (String child, String[] separator, HashMap< String, Val > optVals, VALUEmsg< Val > valueMsg)
	Instantiates a VALUE message and sends it.
void	computeOptValAndSendVALUEmsgs (String[] vars, BasicUtilitySolutionSpace< Val, ArrayList< Val > > optAssignments, VALUEmsg< Val > valueMsg)
	Compute the optimal assignments to some variables, and sends VALUE messages to children accordingly.

Private Attributes
HashMap< String, VALUEmsg< Val > >	valueMessages
	For each variable, the VALUE message received containing its separator's optimal assignments.
HashMap< String, String >	allParents
	The parent for each of my variables.
HashMap< String, String >	condAssignmentsFiles
	For each variable, the file containing its optimal assignment conditioned on the assignments to its separator.
HashMap< String, Val >	solution
	For each variable, its optimal value.
final boolean	swap
	If `true`, conditional optimal assignments are swapped until the VALUE message is received.
HashMap< String, Integer >	clusterSizes = new HashMap<String, Integer> ()
	How many variables there are in each cluster, identified by its root.
HashMap< String, String >	owners = new HashMap<String, String> ()
	For each child variable, its corresponding agent.

Detailed Description

VALUE propagation protocol.

Author: Thomas Leaute

Parameters

<Val> type used for variable values

Todo: Improve the implementation by reasoning on groups of variables to be projected together.

Constructor & Destructor Documentation

◆ VALUEpropagation() [1/3]

frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.VALUEpropagation ( )

Default constructor.

◆ VALUEpropagation() [2/3]

frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.VALUEpropagation	(	DCOPProblemInterface< Val, ?>	problem,
		Boolean	swap )

Manual constructor that does not use XML elements.

Parameters

problem	the problem
swap	if `true`, conditional optimal assignments are swapped until the VALUE message is received

References problem, and swap.

◆ VALUEpropagation() [3/3]

frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.VALUEpropagation	(	DCOPProblemInterface< Val, ?>	problem,
		Element	parameters )

Constructor from XML elements.

Parameters

problem	description of the problem
parameters	the parameters of the module

References problem.

Member Function Documentation

◆ computeOptValAndSendVALUEmsgs()

void frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.computeOptValAndSendVALUEmsgs	(	String[]	vars,
		BasicUtilitySolutionSpace< Val, ArrayList< Val > >	optAssignments,
		VALUEmsg< Val >	valueMsg )

private

Compute the optimal assignments to some variables, and sends VALUE messages to children accordingly.

Parameters

vars	the variables to be optimized
optAssignments	the conditional optimal assignments to the variables
valueMsg	the VALUE message received for the variables

References allChildren, FINISH_MSG_TYPE, frodo2.algorithms.dpop.VALUEmsg< Val extends Addable< Val > >.getDest(), frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable< U > >.getNbrIntVars(), frodo2.algorithms.dpop.VALUEmsg< Val extends Addable< Val > >.getValues(), frodo2.algorithms.dpop.VALUEmsg< Val extends Addable< Val > >.getVariables(), queue, frodo2.communication.Queue.sendMessageToSelf(), sendVALUEmessage(), separators, solution, and frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR.

Referenced by notifyIn().

Here is the call graph for this function:

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.getMsgTypes ( )

See also: IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

Reimplemented in frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.

References DFS_MSG_TYPE, FINISH_MSG_TYPE, SEPARATOR_MSG_TYPE, START_MSG_TYPE, UTIL_MSG_TYPE, and VALUE_MSG_TYPE.

◆ init()

void frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.init ( )

protected

Parses the problem.

Referenced by frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.notifyIn(), and notifyIn().

◆ notifyIn()

void frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.notifyIn ( Message msg )

The algorithm.

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Todo: Swap the optimal assignments BEFORE sending up the UTIL message, and on the fly.

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

Reimplemented in frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.

References computeOptValAndSendVALUEmsgs(), condAssignments, frodo2.communication.MessageType.equals(), FINISH_MSG_TYPE, init(), notifyIn(), UTIL_MSG_TYPE, and valueMessages.

Referenced by notifyIn().

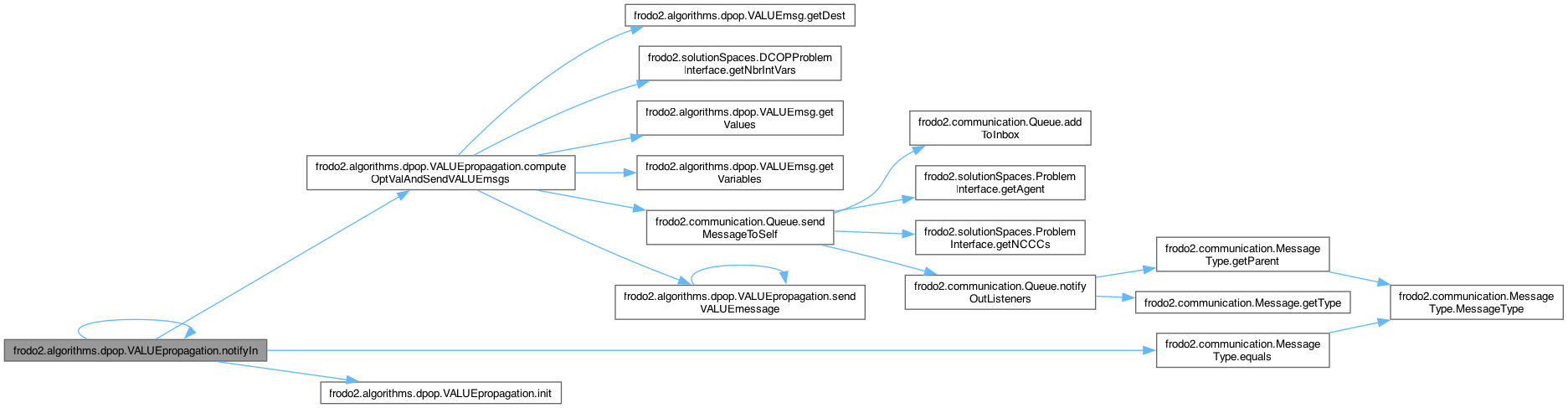

Here is the call graph for this function:

◆ reset()

void frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.reset ( )

Resets the state, only keeping the problem.

Reimplemented in frodo2.algorithms.dpop.param.ParamVALUE< Val extends Addable< Val > >.

◆ sendVALUEmessage()

void frodo2.algorithms.dpop.VALUEpropagation< Val extends Addable< Val > >.sendVALUEmessage	(	String	child,
		String[]	separator,
		HashMap< String, Val >	optVals,
		VALUEmsg< Val >	valueMsg )

private

Instantiates a VALUE message and sends it.

Parameters

child	destination variable of the message
separator	variables to be mentioned in the message
optVals	the optimal values for some variables
valueMsg	VALUE message received from parent

References queue, and sendVALUEmessage().

Referenced by computeOptValAndSendVALUEmsgs(), and sendVALUEmessage().

Here is the call graph for this function:
