JUnit test for the class LeaderElectionMaxID. More...

Inheritance diagram for frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >:

[legend]

Public Member Functions
	LeaderElectionMaxIDTest (String method)
	Constructor that instantiates a test only for the input method.
void	testRandomSharedMemory () throws IOException
	Tests the DFS generation protocol on a random graph using QueueIOPipes.
void	testRandomTCP () throws IOException
	Tests the DFS generation protocol on a random graph using TCP pipes.
void	testRandom (boolean useTCP) throws IOException
	Tests the leader election protocol on a random graph of "agents".
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
	Keeps track of the output of the leader election protocol sent by each agent.
void	setQueue (Queue queue)
	Does nothing in this case.
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Member Functions
static TestSuite	suite ()
static Map< String, String >	computeLeaders (List< String > nodes, List< List< String > > components)
	Compute the leaders.
static< S extends Comparable< S > Map< String, S >	computeLeaders (int nbrAgents, List< List< String > > components, Map< String, S > uniqueIDs)
	Compute the leaders.

Protected Member Functions
void	setUp ()
void	tearDown () throws Exception
	Ends all queues.
Map< String, S >	initiatingIDandListener ()
	Compute uniqueID, link them with variable name and generate listeners.
void	checkOutputs (Map< String, S > allUniqueIDs)
	Called to verify output correctness.
int	getNbrMsgsNeeded ()

Protected Attributes
int	nbrAgents
	Number of agents in the test.
Map< String, Queue >	queues
	List of queues, indexed by agent name.
Map< String, MessageLEoutput< String > >	outputs
	For each agent, the output of LeaderElectionMaxID.
Integer	remainingOutputs
	Current number of agents that still need to their output of the leader election protocol.
final ReentrantLock	finished_lock = new ReentrantLock ()
	Used to make the test thread wait.
final Condition	finished = finished_lock.newCondition()
	Used to wake up the test thread when all agents have finished.
RandGraphFactory.Graph	graph
	Random graph used to generate a constraint graph.
Map< String, QueueOutputPipeInterface >	pipes
	One output pipe used to send messages to each queue, indexed by the queue's agent name.

Private Attributes
final int	maxNbrAgents = 5
	Maximum number of agents in the random graph.
final int	maxNbrPipes = 10
	Maximum number of pipes (edges) in the random graph.

Detailed Description

JUnit test for the class LeaderElectionMaxID.

Author: Thomas Leaute

Parameters

<S>	type used for scores

Constructor & Destructor Documentation

◆ LeaderElectionMaxIDTest()

frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.LeaderElectionMaxIDTest ( String method )

Constructor that instantiates a test only for the input method.

Parameters

method test method

Referenced by suite().

Member Function Documentation

◆ checkOutputs()

void frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.checkOutputs ( Map< String, S > allUniqueIDs )

protected

Called to verify output correctness.

Parameters

allUniqueIDs a mapping between Names and IDs

References computeLeaders(), frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.MessageLEoutput< T extends Comparable< T > &Serializable >.getFlag(), frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.MessageLEoutput< T extends Comparable< T > &Serializable >.getLeader(), graph, and outputs.

Referenced by testRandom().

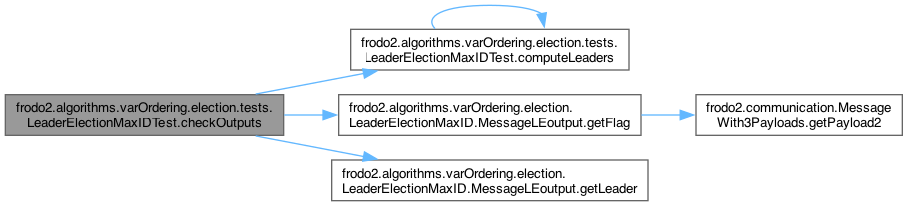

Here is the call graph for this function:

◆ computeLeaders() [1/2]

static< S extends Comparable< S > Map< String, S > frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.computeLeaders	(	int	nbrAgents,
		List< List< String > >	components,
		Map< String, S >	uniqueIDs )

static

Compute the leaders.

Parameters

<S>	the type used for the scores
nbrAgents	number of agents
components	components in the graph
uniqueIDs	for each variable, its unique ID

Returns: for each agent, its leader

References nbrAgents.

◆ computeLeaders() [2/2]

Map< String, String > frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.computeLeaders	(	List< String >	nodes,
		List< List< String > >	components )

static

Compute the leaders.

Parameters

nodes	list of nodes in the graph
components	components in the graph

Returns: for each agent, its leader

References computeLeaders().

Referenced by checkOutputs(), frodo2.algorithms.varOrdering.election.tests.VariableElectionTest< S extends Comparable< S > &Serializable >.checkOutputs(), computeLeaders(), frodo2.algorithms.dpop.privacy.test.SecureRerootingTest.randomTest(), and frodo2.algorithms.varOrdering.dfs.tests.DFSgenerationTest.testRandom().

Here is the call graph for this function:

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.getMsgTypes ( )

See also: frodo2.communication.IncomingMsgPolicyInterface.getMsgTypes()

It listens to the output of the leader election protocol.

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.LE_MSG_TYPE, and frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.OUTPUT_MSG_TYPE.

◆ getNbrMsgsNeeded()

int frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.getNbrMsgsNeeded ( )

protected

Returns: the expected number of messages exchanged

References graph, and nbrAgents.

Referenced by testRandom().

◆ initiatingIDandListener()

Map< String, S > frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.initiatingIDandListener ( )

protected

Compute uniqueID, link them with variable name and generate listeners.

Returns: the map name-id

References frodo2.communication.Queue.addIncomingMessagePolicy(), graph, initiatingIDandListener(), nbrAgents, and queues.

Referenced by initiatingIDandListener(), and testRandom().

Here is the call graph for this function:

◆ notifyIn()

void frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.notifyIn ( Message msg )

Keeps track of the output of the leader election protocol sent by each agent.

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References notifyIn(), and frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.OUTPUT_MSG_TYPE.

Referenced by notifyIn().

Here is the call graph for this function:

◆ setQueue()

void frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.setQueue ( Queue queue )

Does nothing in this case.

Parameters

queue the queue

Implements frodo2.communication.MessageListener< T >.

◆ setUp()

void frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.setUp ( )

protected

See also: junit.framework.TestCase#setUp()

References frodo2.algorithms.RandGraphFactory.getRandGraph(), graph, maxNbrAgents, and maxNbrPipes.

Here is the call graph for this function:

◆ suite()

TestSuite frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.suite ( )

static

Returns: the test suite for this test

References LeaderElectionMaxIDTest().

Referenced by frodo2.algorithms.varOrdering.election.tests.AllTestsElection.suite().

Here is the call graph for this function:

◆ tearDown()

void frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.tearDown ( ) throws Exception

protected

Ends all queues.

See also: junit.framework.TestCase#tearDown()

References graph, outputs, pipes, and queues.

◆ testRandom()

void frodo2.algorithms.varOrdering.election.tests.LeaderElectionMaxIDTest< S extends Comparable< S > >.testRandom ( boolean useTCP ) throws IOException

Tests the leader election protocol on a random graph of "agents".

Parameters

useTCP true whether TCP pipes should be used instead of QueueIOPipes

Exceptions

IOException thrown if the method fails to create pipes

References checkOutputs(), frodo2.algorithms.test.AllTests.createQueueNetwork(), getNbrMsgsNeeded(), graph, initiatingIDandListener(), nbrAgents, pipes, queues, and frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.START_MSG_TYPE.

Referenced by testRandomSharedMemory(), and testRandomTCP().

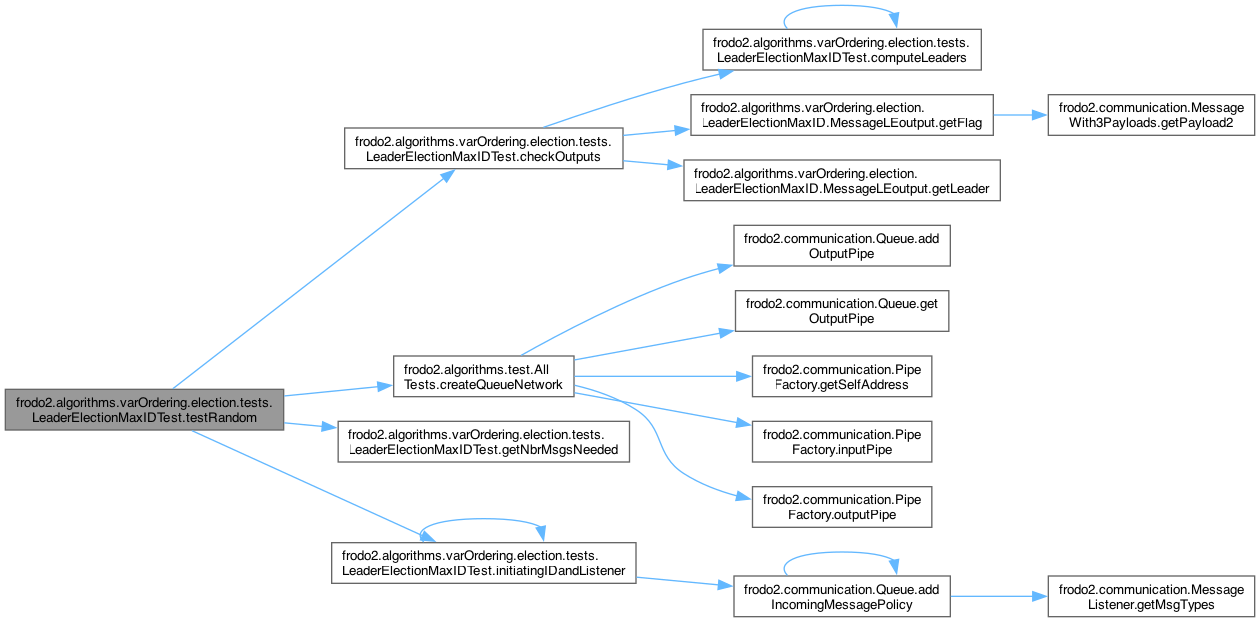

Here is the call graph for this function:
