P2-DPOP's variable re-ordering algorithm. More...

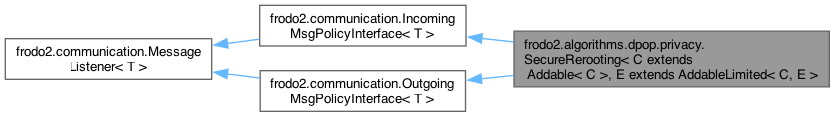

Inheritance diagram for frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >:

[legend]

Classes
class	VariableInfo
	Convenient class to store information about a variable of this agent. More...
class	SecureRootingMsg
	Message used to tell a variable that it is the new root of its component. More...

Public Member Functions
	SecureRerooting (DCOPProblemInterface<?, C > problem, Element params)
	Constructor.
void	setQueue (Queue queue)
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
Decision	notifyOut (Message msg)
	Re-encrypts vector messages the first time they leave the agent.
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.
Public Member Functions inherited from frodo2.communication.OutgoingMsgPolicyInterface< T >
default Decision	notifyOut (Object fromAgent, Message msg)
	Notifies the listener of an outgoing message.
default Decision	notifyOut (Object fromAgent, Message msg, Collection<? extends Object > toAgents)
	Notifies the listener of an outgoing message.
default Decision	notifyOut (Message msg, Collection<? extends Object > toAgents)
	Notifies the listener of an outgoing message.

Static Public Attributes
static MessageType	OUTPUT = new MessageType ("P3/2-DPOP", "SecureRerooting", "NewRoot")
	Type of output of the secureRerooting module.
static final MessageType	DONE = new MessageType ("P3/2-DPOP", "SecureRerooting", "Done")
	Token type telling the reroot of the dfs can be executed now.
static final MessageType	VECTOR_TYPE = new MessageType ("P3/2-DPOP", "SecureRerooting", "Vector")
	The type of the message containing an ordering vector.
static final MessageType	REROOTING_REQUEST_TYPE = new MessageType ("P3/2-DPOP", "SecureRerooting", "RerootRequest")
	The type of the messages sent to request a rerooting of the variable order.

Private Member Functions
void	init ()
	Initiate the module.
void	passOn (VariableInfo info, ArrayList< E > vector, String owner, final short round)
	Sends a vector to the previous variable in the linear ordering.
void	processVectorMsg (VariableInfo info, VectorMsg< C, E > msg)
	Processes a received vector message.

Private Attributes
final C	rootElement
	Set to 0, to identify the root of the component in the vector.
final C	notRootElement
	Set to 1, for non-root variables in the vector.
final C	fakeElement
	Set to 2, for fake variables in the vector.
Random	rand = new SecureRandom()
	Random generator.
Map< String, VariableInfo >	infos
	All information about the variables owned by this agent.
HashMap< VectorMsg< C, E >, VariableInfo >	vectorSent = new HashMap< VectorMsg<C, E>, VariableInfo > ()
	A set of vector messages sent, used to detect when one leaves the agent, so as only to re-encrypt it then.
Queue	queue
	Queue where messages are received.
boolean	started = false
	true if this module has started
DCOPProblemInterface<?, C >	problem
	The problem interface.

Detailed Description

P2-DPOP's variable re-ordering algorithm.

This is the InitializeOrder() and ShiftOrder() procedures from the following paper, modified so as not to re-shuffle at every iteration:

Thomas Leaute and Boi Faltings. Privacy-preserving multi-agent constraint satisfaction. In Proceedings of the 2009 IEEE International Conference on PrivAcy, Security, riSk and Trust (PASSAT'09), Vancouver, British Columbia, August 29-31 2009. IEEE Computer Society Press.

Author: Eric Zbinden, Thomas Leaute

Parameters

<C>	class used for clear text vector element
<E>	class used for encrypted vector element

Todo: It is inefficient to use bit-array-based ElGamalBigIntegers, because we don't need (partial) additive homomorphism

Constructor & Destructor Documentation

◆ SecureRerooting()

frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.SecureRerooting	(	DCOPProblemInterface<?, C >	problem,
		Element	params )

Constructor.

Parameters

problem	the agent's subproblem
params	the parameters of the module

References problem, and SecureRerooting().

Referenced by SecureRerooting().

Here is the call graph for this function:

Member Function Documentation

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.getMsgTypes ( )

See also: IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.CRYPTO_SCHEME_TYPE, frodo2.algorithms.dpop.privacy.SecureCircularRouting.DELIVERY_MSG_TYPE, frodo2.algorithms.varOrdering.dfs.DFSgenerationWithOrder< V extends Addable< V >, U extends Addable< U > >.OUTPUT_ORDER_TYPE, frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.OUTPUT_TYPE, frodo2.algorithms.dpop.privacy.SecureCircularRouting.PREVIOUS_MSG_TYPE, REROOTING_REQUEST_TYPE, frodo2.algorithms.dpop.privacy.SecureCircularRouting.TO_LAST_LEAF_MSG_TYPE, frodo2.algorithms.varOrdering.dfs.DFSgenerationWithOrder< V extends Addable< V >, U extends Addable< U > >.VARIABLE_COUNT_TYPE, and frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.VECTOR_OUTPUT_TYPE.

◆ init()

void frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.init ( )

private

Initiate the module.

References infos, problem, and started.

Referenced by notifyIn().

◆ notifyIn()

void frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.notifyIn ( Message msg )

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.algorithms.dpop.privacy.SecureCircularRouting.DELIVERY_MSG_TYPE, DONE, init(), frodo2.communication.MessageType.isParent(), notifyIn(), and started.

Referenced by notifyIn().

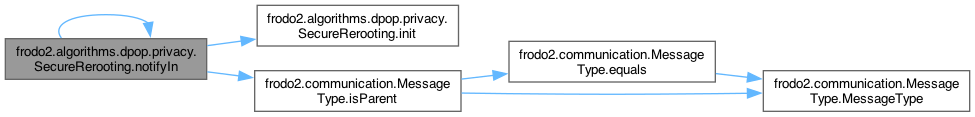

Here is the call graph for this function:

◆ notifyOut()

Decision frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.notifyOut ( Message msg )

Re-encrypts vector messages the first time they leave the agent.

See also: OutgoingMsgPolicyInterface.notifyOut(Message)

Implements frodo2.communication.OutgoingMsgPolicyInterface< T >.

References frodo2.communication.OutgoingMsgPolicyInterface< T >.Decision.DONTCARE, frodo2.communication.MessageType.isParent(), notifyOut(), frodo2.algorithms.dpop.privacy.SecureCircularRouting.PREVIOUS_MSG_TYPE, and frodo2.algorithms.dpop.privacy.SecureCircularRouting.TO_LAST_LEAF_MSG_TYPE.

Referenced by notifyOut().

Here is the call graph for this function:

◆ passOn()

void frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.passOn	(	VariableInfo	info,
		ArrayList< E >	vector,
		String	owner,
		final short	round )

private

Sends a vector to the previous variable in the linear ordering.

Parameters

info	the sender variable
vector	the vector
owner	the codename of the initial sender of the vector
round	the round

References frodo2.algorithms.dpop.privacy.SecureCircularRouting.PREVIOUS_MSG_TYPE, frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.VariableInfo.self, and frodo2.communication.Queue.sendMessageToSelf().

Referenced by processVectorMsg().

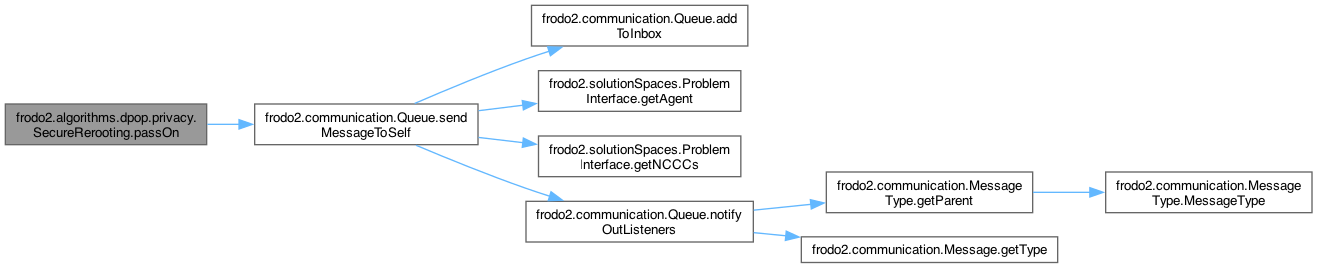

Here is the call graph for this function:

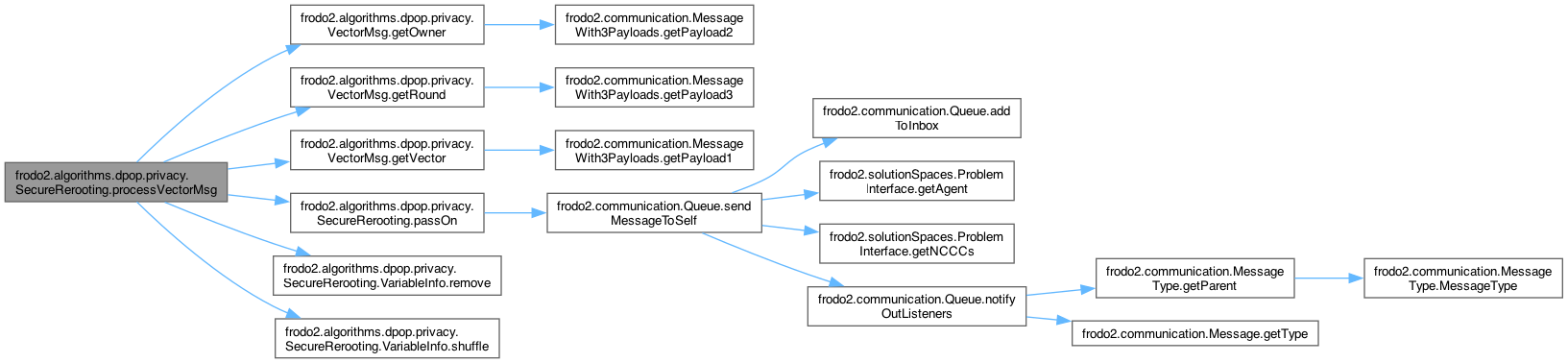

◆ processVectorMsg()

void frodo2.algorithms.dpop.privacy.SecureRerooting< C extends Addable< C >, E extends AddableLimited< C, E >.processVectorMsg	(	VariableInfo	info,
		VectorMsg< C, E >	msg )
