P2-DPOP's collaborative decryption module. More...

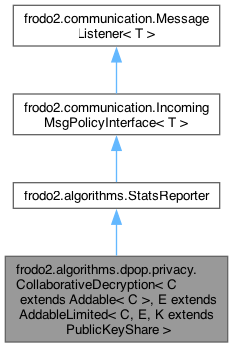

Inheritance diagram for frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >:

[legend]

Classes
class	VariableInfo
	Convent class to store information about a variable. More...
class	StatRequestOutput
	Message sent to stat gatherer with all decryption requests for an agent. More...
class	CryptoSchemeMsg
	Message used to transfer the cryptoScheme to others modules of this agent. More...
class	VectorOutput
	Vector decryption Output Message. More...
class	DecryptionOutput
	Decryption Output Message. More...

Public Member Functions
	CollaborativeDecryption (DCOPProblemInterface<?, C > problem, Element parameters) throws ClassNotFoundException, NoSuchMethodException
	Constructor from XML descriptions.
	CollaborativeDecryption (Element parameters, DCOPProblemInterface<?, C > problem)
	The constructor called in "statistics gatherer" mode.
void	setQueue (Queue queue)
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
int	requestCount ()
void	getStatsFromQueue (Queue queue)
void	reset ()
void	setSilent (boolean silent)
Map< String, Integer >	getRequestCountMapping ()
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Attributes
static final MessageType	CRYPTO_SCHEME_TYPE = new MessageType ("P3/2-DPOP", "CollaborativeDecryption", "CryptoScheme")
	The type of the messages containing the CryptoScheme.
static final MessageType	REQUEST_TYPE = new MessageType ("P3/2-DPOP", "CollaborativeDecryption", "DecryptionRequest")
	The type of the messages corresponding to decryption requests.
static final MessageType	OUTPUT_TYPE = new MessageType ("P3/2-DPOP", "CollaborativeDecryption", "DecryptionOutput")
	The type of the messages containing the outputs of decryptions.
static final MessageType	VECTOR_REQUEST_TYPE = new MessageType ("P3/2-DPOP", "CollaborativeDecryption", "VectorDecryptionRequest")
	The type of the messages corresponding to vector decryption requests.
static final MessageType	VECTOR_OUTPUT_TYPE = new MessageType ("P3/2-DPOP", "CollaborativeDecryption", "VectorDecryptionOutput")
	The type of the messages containing the outputs of decryptions.
static final MessageType	STAT_REQUEST_TYPE = new MessageType ("P3/2-DPOP", "CollaborativeDecryption", "StatRequest")
	The type of the message containing the decryption request stats.
static final MessageType	KEY_SHARE_TYPE = new MessageType ("P3/2-DPOP", "CollaborativeDecryption", "KeyShareType")
	The type of the message used to exchange KeyPair.

Private Member Functions
boolean	checkModulus (Element params)
	Checks that the ElGamal modulus has a number of bits greater than the product of all domain sizes.
void	init ()
	Initiate the statistic gatherer.
void	addDecryptRequest (String var)
	Add one to the request counter of a variable passed in argument.

Private Attributes
DCOPProblemInterface<?, C >	problem
	This problem.
Queue	queue
	Queue of this agent module.
boolean	reportStats = true
	Whether to report stats.
Constructor<? extends CryptoScheme< C, E, K > >	cryptoConstr
	Constructor for the CryptoScheme.
Element	cryptoParameter
	Parameters to pass to the CryptoScheme constructor.
Map< String, VariableInfo >	infos
	All variableInfos of this agent.
HashMap< String, Integer >	requestCount
	Number of Decryption requests received for every variable.
Random	rand = new SecureRandom()
	A source of randomness.
boolean	started = false
	Whether the algorithm has already started.

Detailed Description

P2-DPOP's collaborative decryption module.

This is the Decrypt() procedure from the following paper: Thomas Leaute and Boi Faltings. Privacy-preserving multi-agent constraint satisfaction. In Proceedings of the 2009 IEEE International Conference on PrivAcy, Security, riSk and Trust (PASSAT'09), Vancouver, British Columbia, August 29-31 2009. IEEE Computer Society Press.

Author: Eric Zbinden, Thomas Leaute

Parameters

<C>	the type used for cleartext numbers
<E>	the type used for encrypted numbers
<K>	the class used for shares of the public key

Constructor & Destructor Documentation

◆ CollaborativeDecryption() [1/2]

frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.CollaborativeDecryption	(	DCOPProblemInterface<?, C >	problem,
		Element	parameters ) throws ClassNotFoundException, NoSuchMethodException

Constructor from XML descriptions.

Parameters

problem	description of the problem
parameters	description of the parameters of CollaborativeDecryption

Exceptions

ClassNotFoundException	if the class for the CryptoScheme is not found
NoSuchMethodException	if the CryptoScheme does not have a constructor that takes in an Element

References CollaborativeDecryption(), and problem.

Referenced by CollaborativeDecryption(), and frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.VectorOutput< C extends Addable< C > >.VectorOutput().

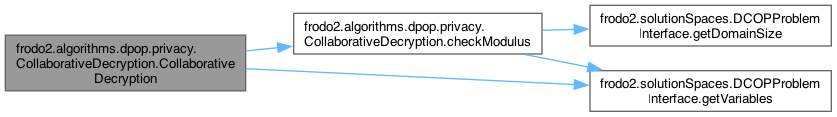

Here is the call graph for this function:

◆ CollaborativeDecryption() [2/2]

frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.CollaborativeDecryption	(	Element	parameters,
		DCOPProblemInterface<?, C >	problem )

The constructor called in "statistics gatherer" mode.

Parameters

problem	the overall problem
parameters	the description of what statistics should be reported

References checkModulus(), frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getVariables(), problem, and requestCount.

Here is the call graph for this function:

Member Function Documentation

◆ addDecryptRequest()

void frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.addDecryptRequest ( String var )

private

Add one to the request counter of a variable passed in argument.

Parameters

var	the variable who ask a decryption

References requestCount.

◆ checkModulus()

boolean frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.checkModulus ( Element params )

private

Checks that the ElGamal modulus has a number of bits greater than the product of all domain sizes.

Parameters

params the CryptoScheme params

Returns: whether the ElGamal modulus has a number of bits greater than the product of all domain sizes

References frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getDomainSize(), and frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getVariables().

Referenced by CollaborativeDecryption().

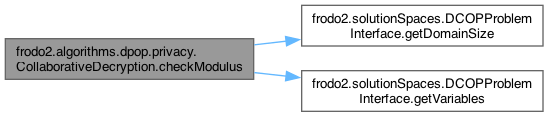

Here is the call graph for this function:

◆ getMsgTypes()

Collection< MessageType > frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.getMsgTypes ( )

See also: IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

References frodo2.algorithms.AgentInterface< V extends Addable< V > >.AGENT_FINISHED, frodo2.algorithms.dpop.privacy.SecureCircularRouting.DELIVERY_MSG_TYPE, frodo2.algorithms.varOrdering.dfs.DFSgenerationWithOrder< V extends Addable< V >, U extends Addable >.OUTPUT_ORDER_TYPE, REQUEST_TYPE, frodo2.algorithms.AgentInterface< V extends Addable< V > >.START_AGENT, frodo2.algorithms.varOrdering.dfs.DFSgenerationWithOrder< V extends Addable< V >, U extends Addable >.VARIABLE_COUNT_TYPE, and VECTOR_REQUEST_TYPE.

◆ getRequestCountMapping()

Map< String, Integer > frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.getRequestCountMapping ( )

Returns: the mapping of the number of decryption requests. Used in statistic gathering mode

◆ getStatsFromQueue()

void frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.getStatsFromQueue ( Queue queue )

See also: StatsReporter.getStatsFromQueue(Queue)

Implements frodo2.algorithms.StatsReporter.

References queue, and STAT_REQUEST_TYPE.

◆ init()

void frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.init ( )

private

Initiate the statistic gatherer.

References cryptoConstr, frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getMyVars(), frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable >.getNbrNeighbors(), infos, and requestCount.

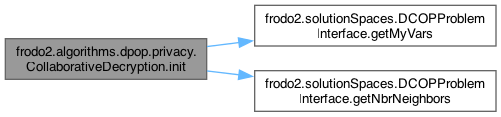

Here is the call graph for this function:

◆ notifyIn()

void frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.notifyIn ( Message msg )

See also: IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

References frodo2.communication.MessageType.equals(), notifyIn(), and STAT_REQUEST_TYPE.

Referenced by notifyIn().

Here is the call graph for this function:

◆ requestCount()

int frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.requestCount ( )

Returns: the total number of decryption requests. Used in statistic gathering mode

References requestCount.

◆ reset()

void frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.reset ( )

See also: StatsReporter.reset()

Implements frodo2.algorithms.StatsReporter.

References requestCount.

◆ setQueue()

void frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.setQueue ( Queue queue )

See also: IncomingMsgPolicyInterface.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

◆ setSilent()

void frodo2.algorithms.dpop.privacy.CollaborativeDecryption< C extends Addable< C >, E extends AddableLimited< C, E, K extends PublicKeyShare >.setSilent ( boolean silent )
