frodo2.algorithms.dpop.stochastic.LowestCommonAncestors Class Reference

An algorithm to compute multiple Lowest Common Ancestors. More...

Inheritance diagram for frodo2.algorithms.dpop.stochastic.LowestCommonAncestors:

Classes
class	NodeInfo
	Information about a node in the DFS. More...

Public Member Functions
	LowestCommonAncestors (Map< String, Set< String > > flags, Map< String, String > owners)
	Constructor.
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	setQueue (Queue queue)
Public Member Functions inherited from frodo2.communication.IncomingMsgPolicyInterface< T >
default void	notifyIn (Message msg, Object toAgent)
	Notifies the listener of an incoming message.

Static Public Attributes
static MessageType	DFS_MSG_TYPE = DFSgeneration.OUTPUT_MSG_TYPE
	The type of the message containing information about the DFS.
static final MessageType	PHASE1_MSG_TYPE = new MessageType ("E[DPOP]", "LowestCommonAncestors", "LCAmsg1")
	The type of a phase 1 message.
static final MessageType	PHASE2_MSG_TYPE = new MessageType ("E[DPOP]", "LowestCommonAncestors", "LCAmsg2")
	The type of a phase 2 message.
static final MessageType	OUTPUT_MSG_TYPE = new MessageType ("E[DPOP]", "LowestCommonAncestors", "LCAoutput")
	The type of the output messages.

Protected Member Functions
	LowestCommonAncestors ()
	Empty constructor with no specified flags.
void	setFlags (Map< String, ? extends Set< String > > flags)
	Adds flags.
LCAmsg1	newPhase1msg (String node, NodeInfo nodeInfo)
	Creates a new Phase 1 message.
void	terminatePhase2 (String node, NodeInfo nodeInfo, Set< String > pendingFlags)
	Sends messages to children and the output message.
void	sendOutput (String node, NodeInfo nodeInfo)
	Sends the output message.

Protected Attributes
Queue	queue
	The queue.
HashMap< String, NodeInfo >	infos
	The known information about each node.
Map< String, String >	owners = new HashMap<String, String> ()
	For each known node, the name of the agent that owns it.

Detailed Description

An algorithm to compute multiple Lowest Common Ancestors.

Nodes in the DFS can have flags of various types. The algorithm computes, for each flag type, the lca of all nodes with that flag.

Author

Thomas Leaute

Constructor & Destructor Documentation

LowestCommonAncestors() [1/2]

frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.LowestCommonAncestors	(	Map< String, Set< String > >	flags,
		Map< String, String >	owners )

Constructor.

Parameters

flags	for each node, a set of flags
owners	for each node, the ID of the owner agent

References owners.

LowestCommonAncestors() [2/2]

frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.LowestCommonAncestors ( )

protected

Empty constructor with no specified flags.

Member Function Documentation

getMsgTypes()

Collection< MessageType > frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.getMsgTypes

(

)

See also

IncomingMsgPolicyInterface.getMsgTypes()

Implements frodo2.communication.MessageListener< T >.

Reimplemented in frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.

References DFS_MSG_TYPE, PHASE1_MSG_TYPE, and PHASE2_MSG_TYPE.

newPhase1msg()

LCAmsg1 frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.newPhase1msg ( String node, NodeInfo nodeInfo )

protected

Creates a new Phase 1 message.

Parameters

node	sender variable
nodeInfo	information concerning the sender variable

Returns

a new Phase1 message

References frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.allFlags, and frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.parent.

notifyIn()

void frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.notifyIn

(

Message

msg

)

See also

IncomingMsgPolicyInterface.notifyIn(Message)

Implements frodo2.communication.IncomingMsgPolicyInterface< T >.

Reimplemented in frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.

References frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.allFlags, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.childFlags, DFS_MSG_TYPE, frodo2.communication.MessageType.equals(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.DFSview< V extends Addable< V >, U extends Addable< U > >.getChildren(), frodo2.algorithms.dpop.stochastic.LCAmsg1.getDest(), frodo2.algorithms.dpop.stochastic.LCAmsg1.getFlags(), frodo2.algorithms.dpop.stochastic.LCAmsg2.getFlags(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.MessageDFSoutput< V extends Addable< V >, U extends Addable< U > >.getNeighbors(), frodo2.algorithms.dpop.stochastic.LCAmsg2.getNode(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.DFSview< V extends Addable< V >, U extends Addable< U > >.getParent(), frodo2.algorithms.dpop.stochastic.LCAmsg1.getSender(), frodo2.communication.Message.getType(), frodo2.algorithms.varOrdering.dfs.DFSgeneration< V extends Addable< V >, U extends Addable< U > >.MessageDFSoutput< V extends Addable< V >, U extends Addable< U > >.getVar(), frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.lcas, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.myFlags, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.nbrMsgsRemaining, notifyIn(), owners, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.parent, PHASE1_MSG_TYPE, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.phase1msgs, PHASE2_MSG_TYPE, queue, sendOutput(), and terminatePhase2().

Referenced by notifyIn().

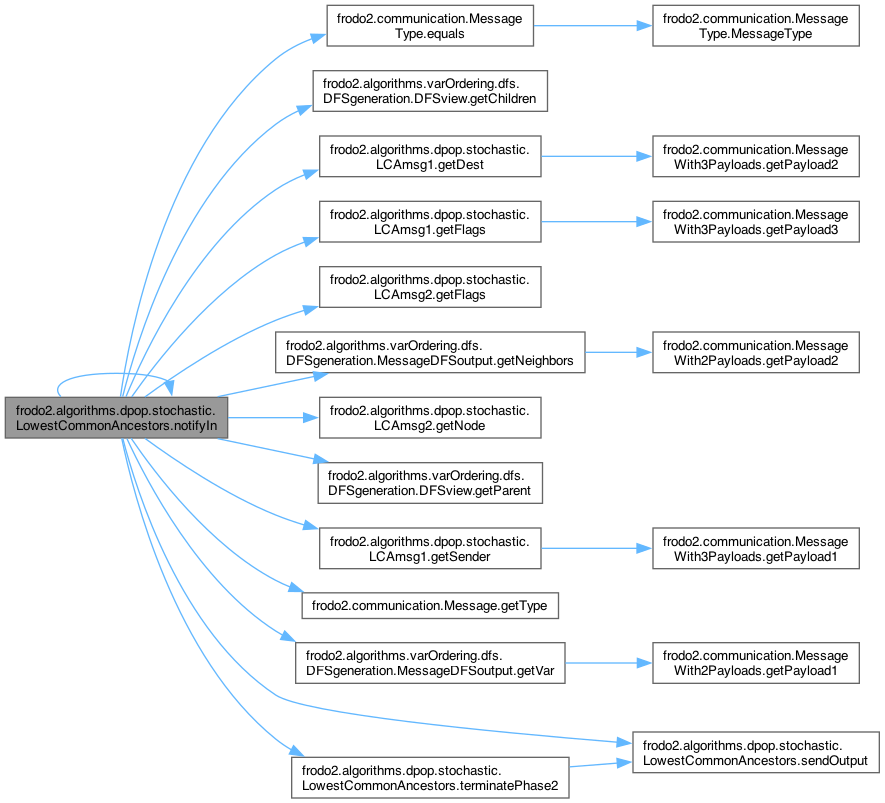

Here is the call graph for this function:

sendOutput()

void frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.sendOutput ( String node, NodeInfo nodeInfo )

protected

Sends the output message.

Parameters

node	the corresponding node in the DFS
nodeInfo	the info about the node

References frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.lcas, OUTPUT_MSG_TYPE, and queue.

Referenced by notifyIn(), and terminatePhase2().

setFlags()

void frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.setFlags ( Map< String, ? extends Set< String > > flags )

protected

Adds flags.

Parameters

flags

for each node, a set of flags

setQueue()

void frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.setQueue

(

Queue

queue

)

See also

IncomingMsgPolicyInterface.setQueue(Queue)

Implements frodo2.communication.MessageListener< T >.

References queue.

terminatePhase2()

void frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.terminatePhase2 ( String node, NodeInfo nodeInfo, Set< String > pendingFlags )

protected

Sends messages to children and the output message.

Parameters

node	the current node
nodeInfo	information about the current node
pendingFlags	a set of flags whose lca has not yet been computed

References frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.childFlags, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.lcas, owners, PHASE2_MSG_TYPE, queue, and sendOutput().

Referenced by notifyIn().

Here is the call graph for this function:

Member Data Documentation

DFS_MSG_TYPE

MessageType frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.DFS_MSG_TYPE = DFSgeneration.OUTPUT_MSG_TYPE

static

The type of the message containing information about the DFS.

Referenced by getMsgTypes(), notifyIn(), and frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLeaves< V extends Addable< V >, U extends Addable< U > >.notifyIn().

infos

HashMap<String, NodeInfo> frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.infos

protected

The known information about each node.

Referenced by frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtRoots< V extends Addable< V >, U extends Addable< U > >.notifyIn().

OUTPUT_MSG_TYPE

final MessageType frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.OUTPUT_MSG_TYPE = new MessageType ("E[DPOP]", "LowestCommonAncestors", "LCAoutput")

static

The type of the output messages.

Referenced by frodo2.algorithms.dpop.stochastic.test.LowestCommonAncestorsTest.getMsgTypes(), frodo2.algorithms.dpop.stochastic.test.LowestCommonAncestorsTest.notifyIn(), and sendOutput().

owners

Map<String, String> frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.owners = new HashMap<String, String> ()

protected

For each known node, the name of the agent that owns it.

Referenced by LowestCommonAncestors(), notifyIn(), terminatePhase2(), and frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.terminatePhase2().

PHASE1_MSG_TYPE

final MessageType frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.PHASE1_MSG_TYPE = new MessageType ("E[DPOP]", "LowestCommonAncestors", "LCAmsg1")

static

The type of a phase 1 message.

Referenced by getMsgTypes(), frodo2.algorithms.dpop.stochastic.LCAmsg1.LCAmsg1(), notifyIn(), frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.notifyIn(), and frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtRoots< V extends Addable< V >, U extends Addable< U > >.notifyIn().

PHASE2_MSG_TYPE

final MessageType frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.PHASE2_MSG_TYPE = new MessageType ("E[DPOP]", "LowestCommonAncestors", "LCAmsg2")

static

The type of a phase 2 message.

Referenced by getMsgTypes(), frodo2.algorithms.dpop.stochastic.test.SamplingPhaseTest.getMsgTypes(), notifyIn(), frodo2.algorithms.dpop.stochastic.test.SamplingPhaseTest.notifyIn(), and terminatePhase2().

queue

Queue frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.queue

protected

The queue.

Referenced by frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.getStatsFromQueue(), frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLeaves< V extends Addable< V >, U extends Addable< U > >.init(), notifyIn(), sendOutput(), frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.sendOutput(), setQueue(), terminatePhase2(), and frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.terminatePhase2().

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/dpop/stochastic/LowestCommonAncestors.java
