The version of the SamplingPhase that samples at the lcas. More...

Inheritance diagram for frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >:

[legend]

Public Member Functions
	AtLCAs ()
	Nullary constructor.
	AtLCAs (Element parameters, DCOPProblemInterface< V, U > problem)
	Constructor in statistics gatherer mode.
	AtLCAs (DCOPProblemInterface< V, U > problem, Element parameters)
	Constructor.
void	notifyIn (Message msg)
Public Member Functions inherited from frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >
void	reset ()
Collection< MessageType >	getMsgTypes ()
void	notifyIn (Message msg)
void	getStatsFromQueue (Queue queue)
void	setSilent (boolean silent)
String	dfsToString ()

Protected Member Functions
	AtLCAs (Element parameters, DCOPProblemInterface< V, U > problem, boolean parseProj)
	Constructor in statistics gatherer mode.
void	init ()
Map< V, Double >	combineSamples (Map< V, Double > samples1, Map< V, Double > samples2)
	Merges two sample sets and then reduces the result.
LCAmsg1	newPhase1msg (String node, NodeInfo nodeInfo)
void	proposeSamples (String var, NodeInfo nodeInfo)
	Sample all random variables linked to the current variable, and add them to the proposed samples for this variable.
void	terminatePhase2 (String node, NodeInfo nodeInfo, Set< String > pendingFlags)
void	terminatePhase2 (String node, NodeInfo nodeInfo, Set< String > pendingFlags, HashMap< String, Map< V, Double > > samplesFromParent)
	Sends messages to children and the output message.
void	sendOutput (String node, NodeInfo nodeInfo)
Protected Member Functions inherited from frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >
	SamplingPhase ()
	Nullary constructor.
void	init ()
	Parses the problem.

Protected Attributes
Collection< String >	allRandVars
	The random variables in the problem.
WhereToProject	whereToProject = WhereToProject.LCAS
	Where random variables are being projected out.
HashMap< String, HashMap< String, Map< V, Double > > >	samples = new HashMap< String, HashMap< String, Map<V, Double> > > ()
	For each decision variable, for each random variable, a set of proposed sample values.
HashMap< String, Map< V, Double > >	finalSamples = new HashMap< String, Map<V, Double> > ()
	For each random variable, the final set of samples chosen.
Protected Attributes inherited from frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >
DCOPProblemInterface< V, U >	problem
	The problem.
boolean	started
	Whether the execution of the algorithm has started.
int	nbrSamples
	The number of samples for each random variable.
HashMap< String, UtilitySolutionSpace< V, U > >	probLaws
	For each random variable, its non-sampled probability law.
boolean	reportStats
	Whether to report stats.
WhereToProject	proj
	Where the random variables should be projected out.

Private Member Functions
void	chooseSamples (String var, NodeInfo nodeInfo)
	Combines the proposed samples for each random variable for which the input variable is the lca.
Map< V, Double >	downSample (Map< V, Double > samples)
	Down-samples the input sample set to make it have the proper size.

Additional Inherited Members
Static Public Attributes inherited from frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >
static MessageType	START_MSG_TYPE
	The type of the start message.
static final MessageType	RAND_VARS_PROJ_MSG_TYPE
	The type of the messages telling what random variables should be projected out at given decision variable.

Detailed Description

The version of the SamplingPhase that samples at the lcas.

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Constructor & Destructor Documentation

◆ AtLCAs() [1/4]

frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.AtLCAs ( )

Nullary constructor.

◆ AtLCAs() [2/4]

frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.AtLCAs	(	Element	parameters,
		DCOPProblemInterface< V, U >	problem )

Constructor in statistics gatherer mode.

Parameters

problem	the overall problem
parameters	the parameters

References frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >.problem.

◆ AtLCAs() [3/4]

frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.AtLCAs	(	Element	parameters,
		DCOPProblemInterface< V, U >	problem,
		boolean	parseProj )

protected

Constructor in statistics gatherer mode.

Parameters

problem	the overall problem
parameters	the parameters
parseProj	whether to parse where random variables should be projected out

References frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >.problem, and frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.WhereToProject.ROOTS.

◆ AtLCAs() [4/4]

frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.AtLCAs	(	DCOPProblemInterface< V, U >	problem,
		Element	parameters )

Constructor.

Parameters

problem	the problem
parameters	the parameters

References frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >.problem, and frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.WhereToProject.ROOTS.

Member Function Documentation

◆ chooseSamples()

void frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.chooseSamples	(	String	var,
		NodeInfo	nodeInfo )

private

Combines the proposed samples for each random variable for which the input variable is the lca.

Parameters

var	the current variable
nodeInfo	information about the current variable

References downSample(), finalSamples, and frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.lcas.

Referenced by sendOutput(), and terminatePhase2().

Here is the call graph for this function:

◆ combineSamples()

Map< V, Double > frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.combineSamples	(	Map< V, Double >	samples1,
		Map< V, Double >	samples2 )

protected

Merges two sample sets and then reduces the result.

Parameters

samples1	first sample set
samples2	second sample set

Returns: the reduced combination of the two input sample sets

Referenced by proposeSamples().

◆ downSample()

Map< V, Double > frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.downSample ( Map< V, Double > samples )

private

Down-samples the input sample set to make it have the proper size.

Parameters

samples proposed samples

Returns: new sample set of the appropriate size

Todo: Test this method separately?

References samples.

Referenced by chooseSamples().

◆ init()

void frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.init ( )

protected

See also: SamplingPhase.init()

References frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >.problem.

◆ newPhase1msg()

LCAmsg1 frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.newPhase1msg	(	String	node,
		NodeInfo	nodeInfo )

protected

See also: LowestCommonAncestors.newPhase1msg(java.lang.String, LowestCommonAncestors.NodeInfo)

References frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.allFlags, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.parent, and proposeSamples().

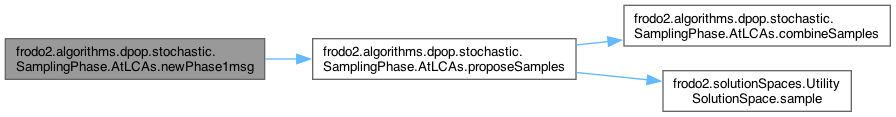

Here is the call graph for this function:

◆ notifyIn()

void frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.notifyIn ( Message msg )

See also: SamplingPhase.notifyIn(Message)

References frodo2.communication.MessageType.equals(), notifyIn(), and frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.PHASE1_MSG_TYPE.

Referenced by notifyIn().

Here is the call graph for this function:

◆ proposeSamples()

void frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.proposeSamples	(	String	var,
		NodeInfo	nodeInfo )

protected

Sample all random variables linked to the current variable, and add them to the proposed samples for this variable.

Parameters

var	the current variable
nodeInfo	information about the current variable

References combineSamples(), frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.myFlags, and frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable >.sample().

Referenced by newPhase1msg(), sendOutput(), and terminatePhase2().

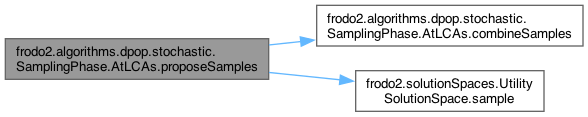

Here is the call graph for this function:

◆ sendOutput()

void frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.sendOutput	(	String	node,
		NodeInfo	nodeInfo )

protected

See also: LowestCommonAncestors.sendOutput(java.lang.String, LowestCommonAncestors.NodeInfo)

References chooseSamples(), finalSamples, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.lcas, frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.WhereToProject.LEAVES, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.NodeInfo.myFlags, frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >.problem, proposeSamples(), frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.queue, and frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR.

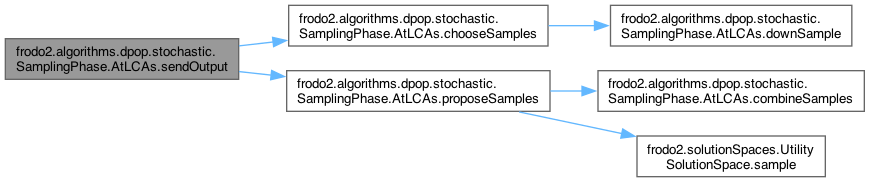

Here is the call graph for this function:

◆ terminatePhase2() [1/2]

void frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.terminatePhase2	(	String	node,
		NodeInfo	nodeInfo,
		Set< String >	pendingFlags )

protected

See also: LowestCommonAncestors.terminatePhase2(java.lang.String, LowestCommonAncestors.NodeInfo, java.util.Set)

References terminatePhase2().

Referenced by terminatePhase2(), and terminatePhase2().

Here is the call graph for this function:

◆ terminatePhase2() [2/2]

void frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable< U > >.AtLCAs< V extends Addable< V >, U extends Addable< U > >.terminatePhase2	(	String	node,
		NodeInfo	nodeInfo,
		Set< String >	pendingFlags,
		HashMap< String, Map< V, Double > >	samplesFromParent )

protected

Sends messages to children and the output message.

Parameters

node	the current node
nodeInfo	information about the current node
pendingFlags	a set of flags whose lca has not yet been computed
samplesFromParent	the samples received from the parent

References chooseSamples(), finalSamples, frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.WhereToProject.LEAVES, frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.owners, frodo2.algorithms.dpop.stochastic.SamplingPhase< V, U >.problem, proposeSamples(), frodo2.algorithms.dpop.stochastic.LowestCommonAncestors.queue, samples, frodo2.algorithms.AgentInterface< V extends Addable< V > >.STATS_MONITOR, and terminatePhase2().

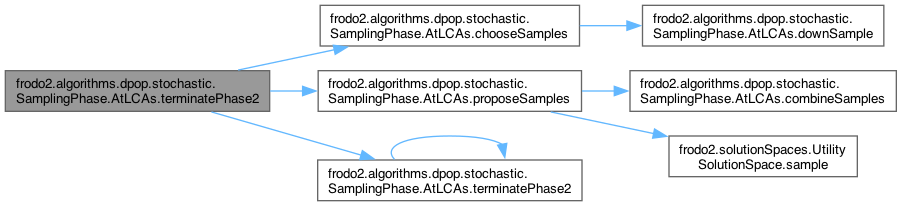

Here is the call graph for this function:

Member Data Documentation

◆ allRandVars

Collection<String> frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.allRandVars

protected

The random variables in the problem.

◆ finalSamples

HashMap< String, Map<V, Double> > frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.finalSamples = new HashMap< String, Map<V, Double> > ()

protected

For each random variable, the final set of samples chosen.

Referenced by chooseSamples(), sendOutput(), and terminatePhase2().

◆ samples

HashMap< String, HashMap< String, Map<V, Double> > > frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.samples = new HashMap< String, HashMap< String, Map<V, Double> > > ()

protected

For each decision variable, for each random variable, a set of proposed sample values.

Referenced by downSample(), and terminatePhase2().

◆ whereToProject

WhereToProject frodo2.algorithms.dpop.stochastic.SamplingPhase< V extends Addable< V >, U extends Addable >.AtLCAs< V extends Addable< V >, U extends Addable >.whereToProject = WhereToProject.LCAS

protected

Where random variables are being projected out.

The documentation for this class was generated from the following file:

src/frodo2/algorithms/dpop/stochastic/SamplingPhase.java
