An interface for visualizing agents, variables, constraints, and message exchanges. More...

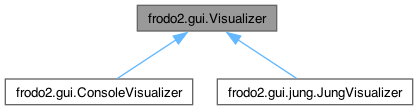

Inheritance diagram for frodo2.gui.Visualizer:

[legend]

Classes
enum	MsgVisualization
	Whether and how long to display a message type. More...

Public Member Functions
abstract boolean	setCompiled (boolean compiled)
	Configures the compilation mode.
abstract void	render (DCOPProblemInterface<?, ?> problem)
	Renders the input problem instance.
final void	showOutgoingAgentMessage (Object fromAgent, Message msg, Object toAgent)
	Visualizes an outgoing message.
final void	showIncomingAgentMessage (Message msg, Object toAgent)
	Visualizes an incoming message.

Static Public Member Functions
static long	getDisplayTime ()
static MsgVisualization	getMsgViz (MessageType msgType)
	Looks up the visualization strategy for a given message type.
static void	setMsgViz (MessageType msgType, MsgVisualization viz)
	Sets the visualization strategy for a given message type.

Protected Member Functions
	Visualizer ()
	Constructor.
abstract void	showOutgoingAgentMessage (Object fromAgent, Message msg, Object toAgent, MsgVisualization viz)
	Visualizes an outgoing message.
abstract void	showIncomingAgentMessage (Message msg, Object toAgent, MsgVisualization viz)
	Visualizes an incoming message.
final void	wait (MsgVisualization viz)
	Waits until the specified condition.

Static Private Attributes
static VisualizerControls	controls
	The GUI to control how much time each message is displayed.
static long	displayTime = 25
	How long each message should be displayed, in ms.
static MsgVisualization	defaultViz = MsgVisualization.STEPPED
	The default message visualization strategy.
static final ConcurrentHashMap< MessageType, MsgVisualization >	msgViz = new ConcurrentHashMap<MessageType, MsgVisualization> ()
	For each message type, how long to display messages.

Detailed Description

An interface for visualizing agents, variables, constraints, and message exchanges.

Author: Thomas Leaute

Todo

Make it possible to switch between primal constraint graph, bi-partite function graph, and dual decision graph

Make it possible to switch between decomposition, clustering (nodes owned by common agent close together), and compilation

Make it possible to switch between pair-wise graph and hypergraph (= function graph with hidden nodes?)

Make it possible to display messages exchanged between nodes

Render the construction of the variable ordering

Display outbound UTIL message computation progress bars for DPOP

Constructor & Destructor Documentation

◆ Visualizer()

frodo2.gui.Visualizer.Visualizer ( )

protected

Constructor.

References controls.

Referenced by getMsgViz().

Member Function Documentation

◆ getDisplayTime()

long frodo2.gui.Visualizer.getDisplayTime ( )

static

Todo: Make it settable in the GUI in a thread-safe fashion

Returns: how long each message should be displayed, in ms

References displayTime.

Referenced by frodo2.gui.VisualizerControls.MsgTypeSetting.MsgTypeSetting(), and wait().

◆ getMsgViz()

MsgVisualization frodo2.gui.Visualizer.getMsgViz ( MessageType msgType )

static

Looks up the visualization strategy for a given message type.

Parameters

msgType the message type

Returns: how long to display each message of the input message type

Todo: Notify the visualizer controls so that it can highlight the current message type

References controls, defaultViz, getMsgViz(), frodo2.communication.MessageType.getParent(), msgViz, frodo2.gui.Visualizer.MsgVisualization.STEPPED, and Visualizer().

Referenced by getMsgViz(), frodo2.gui.VisualizerControls.MsgTypeSetting.MsgTypeSetting(), showIncomingAgentMessage(), and showOutgoingAgentMessage().

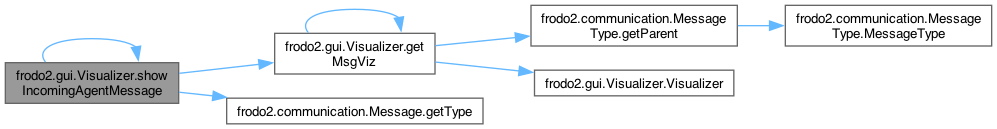

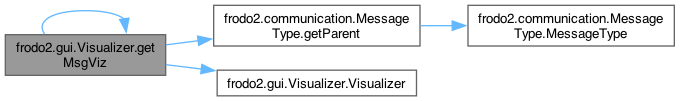

Here is the call graph for this function:

◆ render()

abstract void frodo2.gui.Visualizer.render ( DCOPProblemInterface<?, ?> problem )

abstract

Renders the input problem instance.

Parameters

problem the problem instance

Reimplemented in frodo2.gui.ConsoleVisualizer, and frodo2.gui.jung.JungVisualizer.

Referenced by frodo2.algorithms.test.MessageDebugger.createVisualizer().

◆ setCompiled()

abstract boolean frodo2.gui.Visualizer.setCompiled ( boolean compiled )

abstract

Configures the compilation mode.

Parameters

compiled whether or not the graph should be compiled

Returns: the previous value of the setting

Reimplemented in frodo2.gui.ConsoleVisualizer, and frodo2.gui.jung.JungVisualizer.

Referenced by frodo2.algorithms.test.MessageDebugger.createVisualizer().

◆ setMsgViz()

void frodo2.gui.Visualizer.setMsgViz	(	MessageType	msgType,
		MsgVisualization	viz )

static

Sets the visualization strategy for a given message type.

Parameters

msgType	the message type
viz	how long to display each message of the input type

References msgViz.

Referenced by frodo2.gui.VisualizerControls.MsgTypeSetting.stateChanged().

◆ showIncomingAgentMessage() [1/2]

final void frodo2.gui.Visualizer.showIncomingAgentMessage	(	Message	msg,
		Object	toAgent )

Visualizes an incoming message.

Parameters

msg	the message
toAgent	ID of the destination agent

References getMsgViz(), frodo2.communication.Message.getType(), frodo2.gui.Visualizer.MsgVisualization.NONE, and showIncomingAgentMessage().

Referenced by frodo2.algorithms.test.MessageDebugger.notifyIn(), and showIncomingAgentMessage().

Here is the call graph for this function:

◆ showIncomingAgentMessage() [2/2]

abstract void frodo2.gui.Visualizer.showIncomingAgentMessage	(	Message	msg,
		Object	toAgent,
		MsgVisualization	viz )

abstractprotected

Visualizes an incoming message.

Parameters

msg	the message
toAgent	ID of the destination agent
viz	the visualization strategy

Reimplemented in frodo2.gui.ConsoleVisualizer, and frodo2.gui.jung.JungVisualizer.

◆ showOutgoingAgentMessage() [1/2]

final void frodo2.gui.Visualizer.showOutgoingAgentMessage	(	Object	fromAgent,
		Message	msg,
		Object	toAgent )

Visualizes an outgoing message.

Parameters

fromAgent	ID of the source agent
msg	the message
toAgent	ID of the destination agent

References getMsgViz(), frodo2.communication.Message.getType(), frodo2.gui.Visualizer.MsgVisualization.NONE, and showOutgoingAgentMessage().

Referenced by frodo2.algorithms.test.MessageDebugger.notifyOut(), and showOutgoingAgentMessage().

Here is the call graph for this function:

◆ showOutgoingAgentMessage() [2/2]

abstract void frodo2.gui.Visualizer.showOutgoingAgentMessage	(	Object	fromAgent,
		Message	msg,
		Object	toAgent,
		MsgVisualization	viz )

abstractprotected

Visualizes an outgoing message.

Parameters

fromAgent	ID of the source agent
msg	the message
toAgent	ID of the destination agent
viz	the visualization strategy

Reimplemented in frodo2.gui.ConsoleVisualizer, and frodo2.gui.jung.JungVisualizer.

◆ wait()

final void frodo2.gui.Visualizer.wait ( MsgVisualization viz )

protected

Waits until the specified condition.

Parameters

viz	the visualization strategy

References controls, and getDisplayTime().

Referenced by frodo2.gui.jung.JungVisualizer.showIncomingAgentMessage(), and frodo2.gui.jung.JungVisualizer.showOutgoingAgentMessage().

Here is the call graph for this function:

Member Data Documentation

◆ controls

VisualizerControls frodo2.gui.Visualizer.controls

staticprivate

The GUI to control how much time each message is displayed.

Referenced by getMsgViz(), Visualizer(), and wait().

◆ defaultViz

MsgVisualization frodo2.gui.Visualizer.defaultViz = MsgVisualization.STEPPED

staticprivate

The default message visualization strategy.

Referenced by getMsgViz().

◆ displayTime

long frodo2.gui.Visualizer.displayTime = 25

staticprivate

How long each message should be displayed, in ms.

Referenced by getDisplayTime().

◆ msgViz

final ConcurrentHashMap<MessageType, MsgVisualization> frodo2.gui.Visualizer.msgViz = new ConcurrentHashMap<MessageType, MsgVisualization> ()

staticprivate

For each message type, how long to display messages.

Referenced by getMsgViz(), and setMsgViz().

The documentation for this class was generated from the following file:

src/frodo2/gui/Visualizer.java
