Inheritance diagram for frodo2.gui.jung.JungVisualizer:

[legend]

Public Member Functions
	JungVisualizer ()
	Constructor.
void	render (DCOPProblemInterface<?, ?> problem)
boolean	setCompiled (boolean compiled)
void	actionPerformed (ActionEvent e)
Public Member Functions inherited from frodo2.gui.Visualizer
final void	showOutgoingAgentMessage (Object fromAgent, Message msg, Object toAgent)
	Visualizes an outgoing message.
final void	showIncomingAgentMessage (Message msg, Object toAgent)
	Visualizes an incoming message.

Static Public Member Functions
static String	toHTML (String str)
	Converts an input string to HTML.
Static Public Member Functions inherited from frodo2.gui.Visualizer
static long	getDisplayTime ()
static MsgVisualization	getMsgViz (MessageType msgType)
	Looks up the visualization strategy for a given message type.
static void	setMsgViz (MessageType msgType, MsgVisualization viz)
	Sets the visualization strategy for a given message type.

Protected Member Functions
void	showOutgoingAgentMessage (Object fromAgent, Message msg, Object toAgent, MsgVisualization viz)
void	showIncomingAgentMessage (Message msg, Object toAgent, MsgVisualization viz)
Protected Member Functions inherited from frodo2.gui.Visualizer
	Visualizer ()
	Constructor.
final void	wait (MsgVisualization viz)
	Waits until the specified condition.

Private Member Functions
void	init ()
	Initializes the VisualizationViewer.
void	render ()
	Renders the problem instance.
void	drawVertices ()
	Draws the vertices.
void	drawEdges ()
	Draws the edges.

Private Attributes
Graph< String, String >	graph = Graphs.synchronizedGraph(new SparseGraph<String, String>())
	The JUNG graph.
VisualizationViewer< String, String >	vv
	The JUNG visualization viewer.
DCOPProblemInterface<?, ?>	problem
	The problem instance to be rendered.
HashMap< String, Color >	agentColors = new HashMap<String, Color> ()
	The color assigned to each agent.
LoadingCache< String, Paint >	vertexColors
	The color of each vertex.
boolean	compiled = false
	If true, then the nodes are the agents.
JFrame	frame
	The frame.
AbstractLayout< String, String >	layout
	The layout.
ConcurrentHashMap< String, Message >	inMsgs = new ConcurrentHashMap<String, Message> ()
	For each agent (name), its incoming message.

Detailed Description

A Visualizer using JUNG2.

Author: Thomas Leaute

See also: "http://jung.sourceforge.net"

Constructor & Destructor Documentation

◆ JungVisualizer()

frodo2.gui.jung.JungVisualizer.JungVisualizer ( )

Constructor.

Member Function Documentation

◆ actionPerformed()

void frodo2.gui.jung.JungVisualizer.actionPerformed ( ActionEvent e )

See also: java.awt.event.ActionListener#actionPerformed(java.awt.event.ActionEvent)

Bug: Not working

References layout, and vv.

◆ drawEdges()

void frodo2.gui.jung.JungVisualizer.drawEdges ( )

private

Draws the edges.

References frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable< U > >.getAgentNeighborhoods(), and frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getAgents().

Referenced by render().

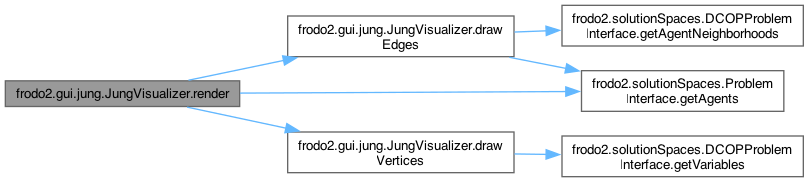

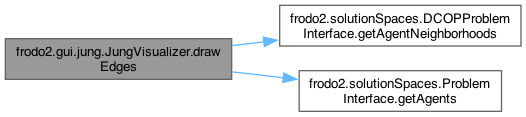

Here is the call graph for this function:

◆ drawVertices()

void frodo2.gui.jung.JungVisualizer.drawVertices ( )

private

Draws the vertices.

References frodo2.solutionSpaces.DCOPProblemInterface< V extends Addable< V >, U extends Addable< U > >.getVariables(), and problem.

Referenced by render().

Here is the call graph for this function:

◆ init()

void frodo2.gui.jung.JungVisualizer.init ( )

private

Initializes the VisualizationViewer.

Todo: Make the layout parameters configurable in the GUI

Todo: Update the title according to the display mode

Bug: The Reset button should scale back to layout

Bug: Keeps jumping around

Bug: Results in unnecessary edge crossings

Bug: Typically doesn't converge

Bug: Apparently experimental

References graph, layout, and vv.

Referenced by render().

◆ render() [1/2]

void frodo2.gui.jung.JungVisualizer.render ( )

private

Renders the problem instance.

Todo: Assign a color to each agent

References drawEdges(), drawVertices(), and frodo2.solutionSpaces.ProblemInterface< V extends Addable< V >, U extends Addable< U > >.getAgents().

Here is the call graph for this function:

◆ render() [2/2]

void frodo2.gui.jung.JungVisualizer.render ( DCOPProblemInterface<?, ?> problem )

See also: Visualizer#render(DCOPProblemInterface)

Todo: Update the title according to the display mode

Reimplemented from frodo2.gui.Visualizer.

References init(), problem, and render().

Referenced by render().

Here is the call graph for this function:

◆ setCompiled()

boolean frodo2.gui.jung.JungVisualizer.setCompiled ( boolean compiled )

See also: Visualizer.setCompiled(boolean)

Reimplemented from frodo2.gui.Visualizer.

References compiled.

◆ showIncomingAgentMessage()

void frodo2.gui.jung.JungVisualizer.showIncomingAgentMessage	(	Message	msg,
		Object	toAgent,
		MsgVisualization	viz )

protected

See also: Visualizer.showIncomingAgentMessage(Message, java.lang.Object, MsgVisualization)

Todo: Only undo when the agent is finished processing the message

Reimplemented from frodo2.gui.Visualizer.

References frodo2.gui.Visualizer.wait().

Here is the call graph for this function:

◆ showOutgoingAgentMessage()

void frodo2.gui.jung.JungVisualizer.showOutgoingAgentMessage	(	Object	fromAgent,
		Message	msg,
		Object	toAgent,
		MsgVisualization	viz )

protected

See also: Visualizer.showOutgoingAgentMessage(java.lang.Object, Message, java.lang.Object, MsgVisualization)

Todo: Set the edge label to a message image

Reimplemented from frodo2.gui.Visualizer.

References toHTML(), frodo2.communication.Message.toString(), and frodo2.gui.Visualizer.wait().

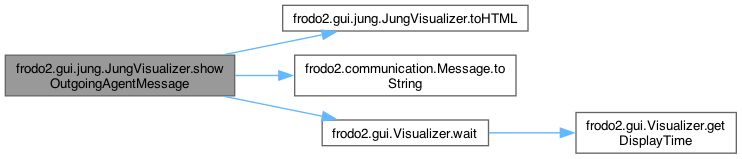

Here is the call graph for this function:

◆ toHTML()

String frodo2.gui.jung.JungVisualizer.toHTML ( String str )

static

Converts an input string to HTML.

Parameters

str	the input string

Returns: an HTML conversion of the input string

Referenced by showOutgoingAgentMessage().

Member Data Documentation

◆ agentColors

HashMap<String, Color> frodo2.gui.jung.JungVisualizer.agentColors = new HashMap<String, Color> ()

private

The color assigned to each agent.

◆ compiled

boolean frodo2.gui.jung.JungVisualizer.compiled = false

private

If true, then the nodes are the agents.

Referenced by setCompiled().

◆ frame

JFrame frodo2.gui.jung.JungVisualizer.frame

private

The frame.

◆ graph

Graph<String, String> frodo2.gui.jung.JungVisualizer.graph = Graphs.synchronizedGraph(new SparseGraph<String, String>())

private

The JUNG graph.

Referenced by init().

◆ inMsgs

ConcurrentHashMap<String, Message> frodo2.gui.jung.JungVisualizer.inMsgs = new ConcurrentHashMap<String, Message> ()

private

For each agent (name), its incoming message.

◆ layout

AbstractLayout<String, String> frodo2.gui.jung.JungVisualizer.layout

private

The layout.

Referenced by actionPerformed(), and init().

◆ problem

DCOPProblemInterface<?, ?> frodo2.gui.jung.JungVisualizer.problem

private

The problem instance to be rendered.

Referenced by drawVertices(), and render().

◆ vertexColors

LoadingCache<String, Paint> frodo2.gui.jung.JungVisualizer.vertexColors

private

Initial value:

=
                        CacheBuilder.newBuilder().build(
                                        CacheLoader.from(Functions.<Paint>constant(Color.white)))

The color of each vertex.

◆ vv

VisualizationViewer<String,String> frodo2.gui.jung.JungVisualizer.vv

private

The JUNG visualization viewer.

Referenced by actionPerformed(), and init().

The documentation for this class was generated from the following file:

src/frodo2/gui/jung/JungVisualizer.java
