frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > > Class Template Reference

JUnit tests for Util reuse in S-DPOP. More...

Inheritance diagram for frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >:

Public Member Functions
	TestSDPOP (String method, Class< V > domClass, Class< U > utilClass)
	Constructor.
void	testCorrectness ()
	running the test by comparing Solution of S-DPOP to solution of DPOP
Solution< V, U >	testGeneric (int changeType)
	provides a generic test method which takes the test type as argument
void	testAddDisconnected ()
	Add a disconnected variable to the problem, no UTIL message should be sent.
void	testAddOneToRoot ()
	adds a single variable to the root, only 1 util-msg should be sent
void	testChangeLeafVariableName ()
	change the name of a leaf variable with no backedges, only 1 util-msg should be sent
void	testReuse ()
	Checks that no UTIL message is sent when the problem doesn't change.

Static Public Member Functions
static TestSuite	suite ()
static Document	modifyProblemRandomly (Document problem, double nodeRatio)

Static Public Attributes
static int	maxNbrVars = 10
	Maximum number of variables.
static int	maxNbrEdges = 40
	Maximum number of edges in the primal constraint graph.
static int	maxNbrAgents = 10
	Maximum number of agents.
static final int	TEST_RANDOM_CHANGE = 1
	test type
static final int	TEST_CHANGE_LEAF_NAME = 2
	test type
static final int	TEST_ADD_ROOT_NEIGHBOR = 3
	test type
static final int	TEST_ADD_DISCONNECTED = 4
	test type
static double	changeRatio = 0.5
	Probability of changing any given relation when randomly modifying problem.

Protected Member Functions
void	setUp () throws Exception
void	tearDown ()

Private Member Functions
Document	changeLeafName (Document problem2)
	changes name of one leaf variable with no back-edges
Document	addDisconnected (Document problem2)
	adds one disconnected variable to the problem
Document	addRootNeighbor (Document problem2)
	adds a neighbor to the root of the problem

Private Attributes
Document	SDPOPagent = null
	S-DPOP agent.
Document	DPOPagent = null
	DPOP agent.
DPOPsolver< V, U >	DPOPsolver = null
	DPOP solver.
DPOPsolver< V, U >	SDPOPsolver = null
	S-DPOP solver.
Document	problem = null
	The problem.
Class< V >	domClass
	The class used for variable values.
Class< U >	utilClass
	The class used for utility values.

Detailed Description

JUnit tests for Util reuse in S-DPOP.

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Author

Jonas Helfer, Thomas Leaute

Constructor & Destructor Documentation

TestSDPOP()

frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.TestSDPOP	(	String	method,
		Class< V >	domClass,
		Class< U >	utilClass )

Constructor.

Parameters

method	the name of the test method
domClass	The class used for variable values
utilClass	The class used for utility values

References domClass, and utilClass.

Referenced by suite().

Member Function Documentation

addDisconnected()

Document frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.addDisconnected ( Document problem2 )

private

adds one disconnected variable to the problem

Parameters

problem2

original problem

Returns

modified problem

Referenced by testGeneric().

addRootNeighbor()

Document frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.addRootNeighbor ( Document problem2 )

private

adds a neighbor to the root of the problem

Parameters

problem2

original problem

Returns

modified problem

Todo

for this I will need to know the (or a) root of the problem

Referenced by testGeneric().

changeLeafName()

Document frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.changeLeafName ( Document problem2 )

private

changes name of one leaf variable with no back-edges

Parameters

problem2

original problem

Returns

modified problem

Todo

: for this I will need to identify leafs without roots, which is a bit tricky...

Referenced by testGeneric().

modifyProblemRandomly()

Document frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.modifyProblemRandomly ( Document problem, double nodeRatio )

static

Parameters

problem	the initial problem
nodeRatio	probability of changing any given relation

Returns

the modified problem

References problem.

Referenced by testGeneric().

setUp()

void frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.setUp ( ) throws Exception

protected

See also

junit.framework.TestCase#setUp()

References frodo2.algorithms.test.AllTests.createRandProblem(), DPOPagent, DPOPsolver, maxNbrAgents, maxNbrEdges, maxNbrVars, and frodo2.algorithms.XCSPparser< V extends Addable< V >, U extends Addable< U > >.parse().

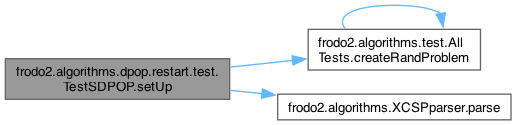

Here is the call graph for this function:

suite()

TestSuite frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.suite ( )

static

Returns

the test suite

Todo

: implement and add the rest of the tests

References suite(), and TestSDPOP().

Referenced by frodo2.algorithms.dpop.restart.test.AllTestsS_DPOP.suite(), and suite().

Here is the call graph for this function:

tearDown()

void frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.tearDown ( )

protected

See also

junit.framework.TestCase#tearDown()

testAddDisconnected()

void frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.testAddDisconnected

(

)

Add a disconnected variable to the problem, no UTIL message should be sent.

References frodo2.algorithms.Solution< V, U >.getMsgNbrs(), TEST_ADD_DISCONNECTED, testGeneric(), and frodo2.algorithms.dpop.UTILpropagation< Val extends Addable< Val >, U extends Addable< U > >.UTIL_MSG_TYPE.

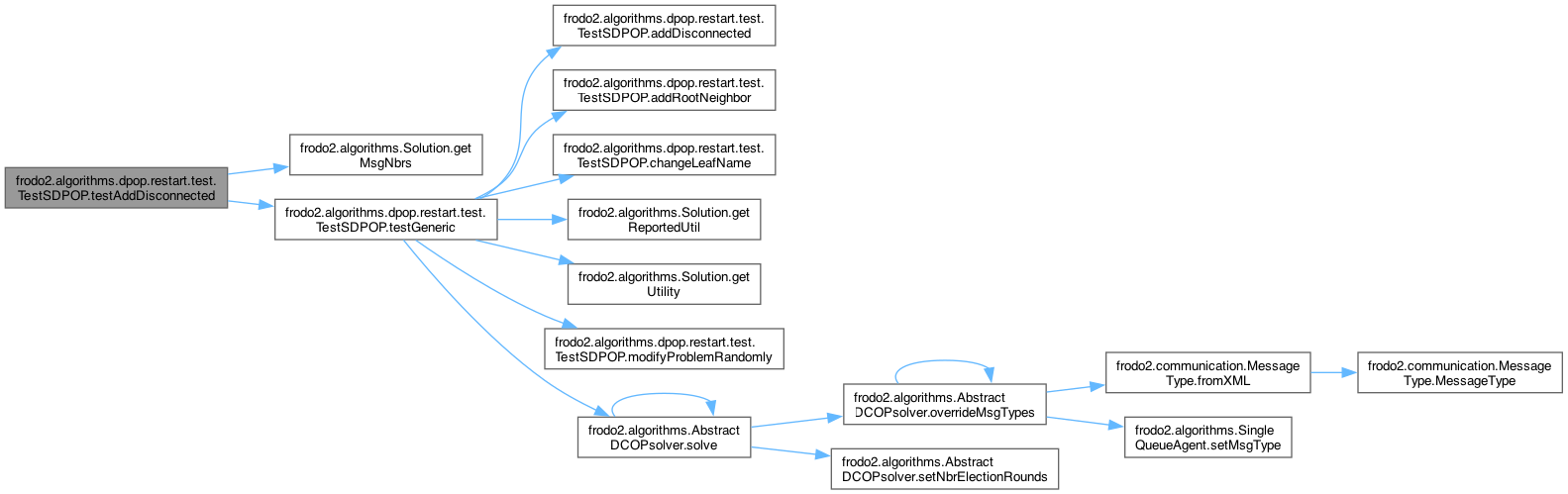

Here is the call graph for this function:

testAddOneToRoot()

void frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.testAddOneToRoot

(

)

adds a single variable to the root, only 1 util-msg should be sent

Todo

assertions

References TEST_ADD_ROOT_NEIGHBOR, and testGeneric().

Here is the call graph for this function:

testChangeLeafVariableName()

void frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.testChangeLeafVariableName

(

)

change the name of a leaf variable with no backedges, only 1 util-msg should be sent

Todo

assertions

References TEST_CHANGE_LEAF_NAME, and testGeneric().

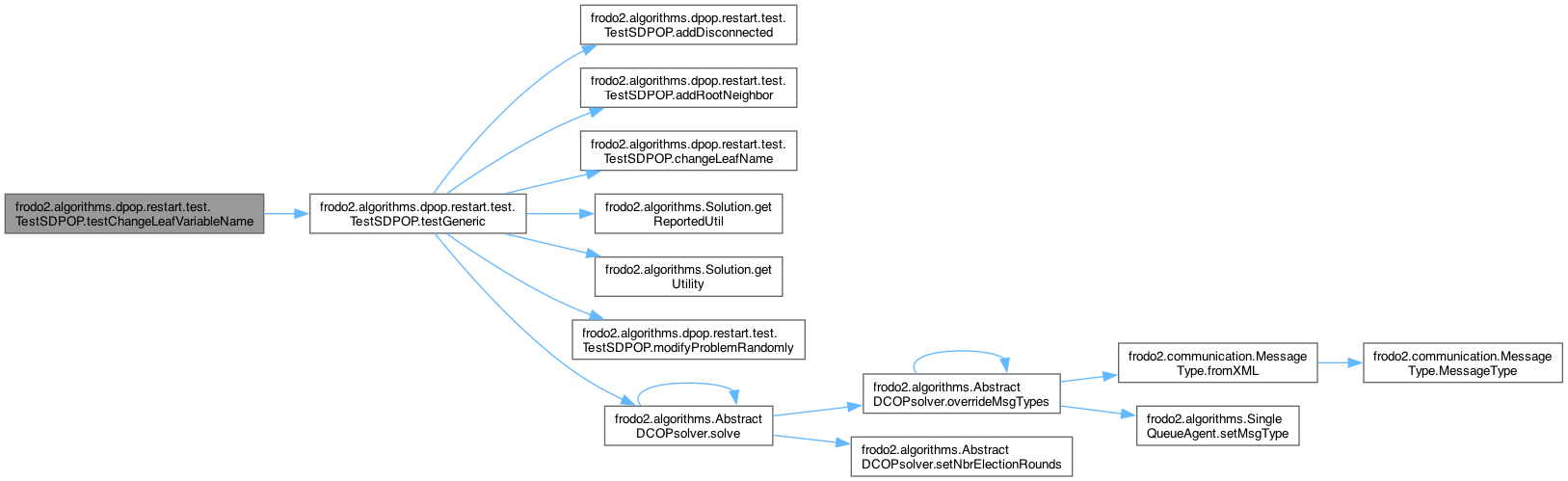

Here is the call graph for this function:

testCorrectness()

void frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.testCorrectness

(

)

running the test by comparing Solution of S-DPOP to solution of DPOP

References TEST_RANDOM_CHANGE, and testGeneric().

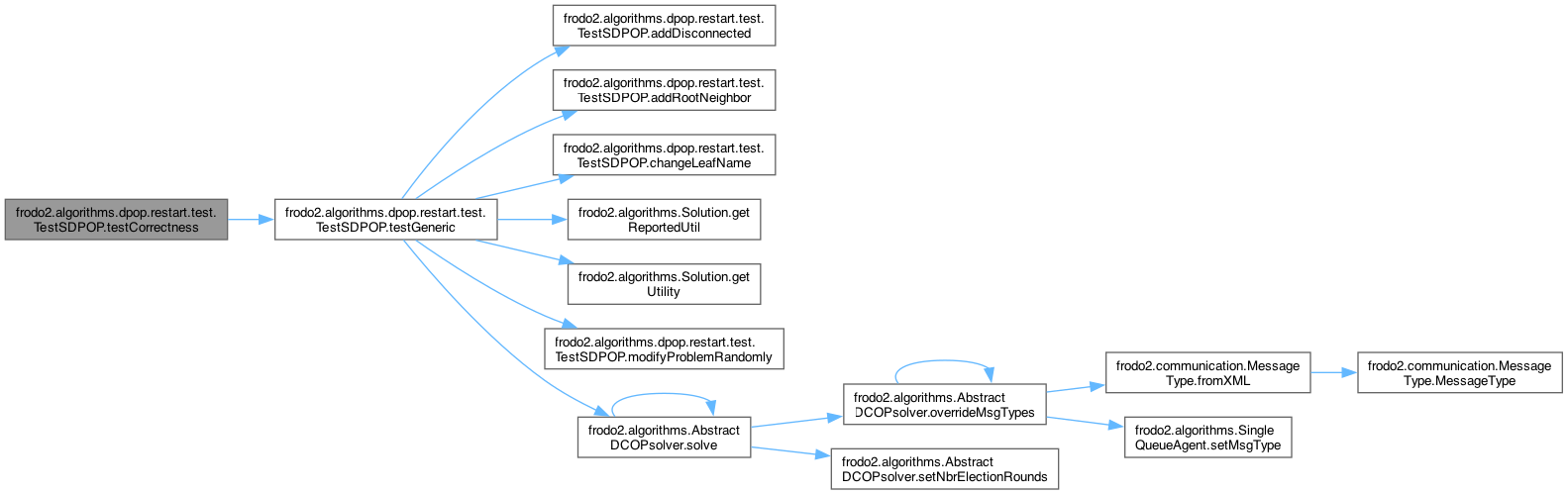

Here is the call graph for this function:

testGeneric()

Solution< V, U > frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.testGeneric

(

int

changeType

)

provides a generic test method which takes the test type as argument

Parameters

changeType

specifies the type of change to be tested

Returns

the solution of the S-DPOP execution

References addDisconnected(), addRootNeighbor(), changeLeafName(), changeRatio, DPOPsolver, frodo2.algorithms.Solution< V, U >.getReportedUtil(), frodo2.algorithms.Solution< V, U >.getUtility(), modifyProblemRandomly(), problem, SDPOPagent, SDPOPsolver, frodo2.algorithms.AbstractDCOPsolver< V extends Addable< V >, U extends Addable< U >, S extends Solution< V, U >.solve(), TEST_ADD_DISCONNECTED, TEST_ADD_ROOT_NEIGHBOR, TEST_CHANGE_LEAF_NAME, and TEST_RANDOM_CHANGE.

Referenced by testAddDisconnected(), testAddOneToRoot(), testChangeLeafVariableName(), and testCorrectness().

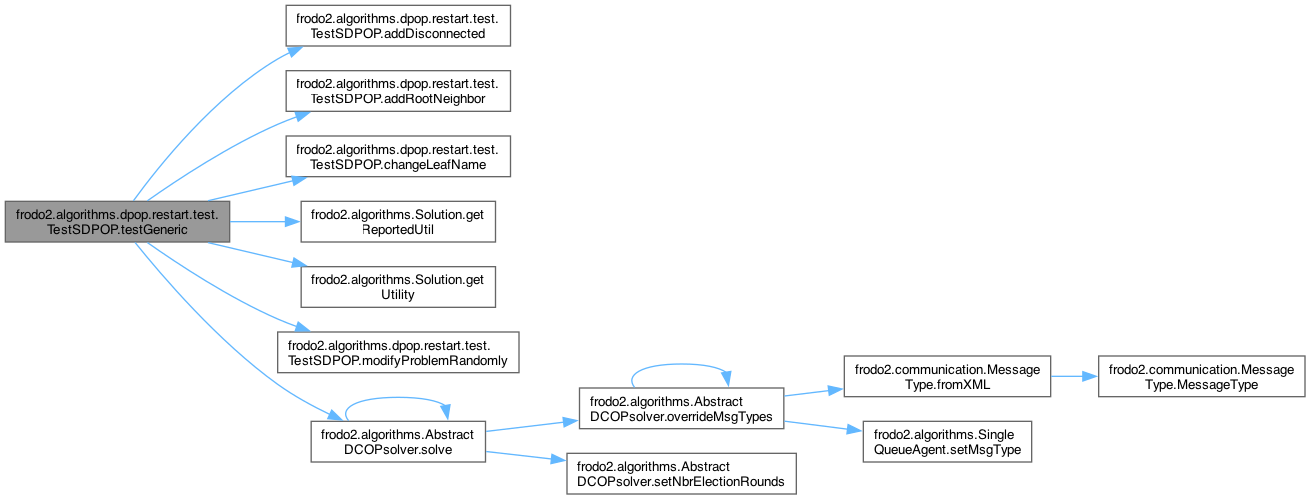

Here is the call graph for this function:

testReuse()

void frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.testReuse

(

)

Checks that no UTIL message is sent when the problem doesn't change.

References DPOPsolver, frodo2.algorithms.Solution< V, U >.getMsgSizes(), frodo2.algorithms.Solution< V, U >.getReportedUtil(), frodo2.algorithms.Solution< V, U >.getUtility(), problem, SDPOPagent, SDPOPsolver, frodo2.algorithms.AbstractDCOPsolver< V extends Addable< V >, U extends Addable< U >, S extends Solution< V, U >.solve(), and frodo2.algorithms.dpop.UTILpropagation< Val extends Addable< Val >, U extends Addable< U > >.UTIL_MSG_TYPE.

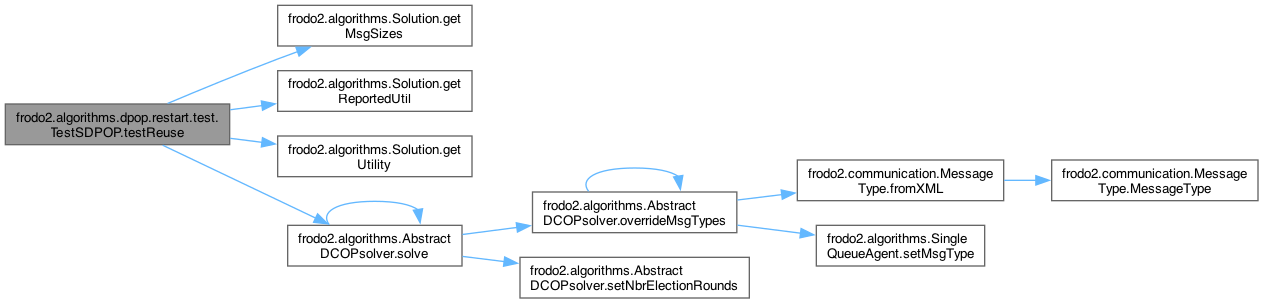

Here is the call graph for this function:

Member Data Documentation

changeRatio

double frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.changeRatio = 0.5

static

Probability of changing any given relation when randomly modifying problem.

Referenced by testGeneric().

domClass

Class<V> frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.domClass

private

The class used for variable values.

Referenced by TestSDPOP().

DPOPagent

Document frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.DPOPagent = null

private

DPOP agent.

Referenced by setUp().

DPOPsolver

DPOPsolver<V, U> frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.DPOPsolver = null

private

DPOP solver.

Referenced by setUp(), testGeneric(), and testReuse().

maxNbrAgents

int frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.maxNbrAgents = 10

static

Maximum number of agents.

Referenced by setUp().

maxNbrEdges

int frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.maxNbrEdges = 40

static

Maximum number of edges in the primal constraint graph.

Referenced by setUp().

maxNbrVars

int frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.maxNbrVars = 10

static

Maximum number of variables.

Referenced by setUp().

problem

Document frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.problem = null

private

The problem.

Referenced by modifyProblemRandomly(), testGeneric(), and testReuse().

SDPOPagent

Document frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.SDPOPagent = null

private

S-DPOP agent.

Referenced by testGeneric(), and testReuse().

SDPOPsolver

DPOPsolver<V, U> frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.SDPOPsolver = null

private

S-DPOP solver.

Referenced by testGeneric(), and testReuse().

TEST_ADD_DISCONNECTED

final int frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.TEST_ADD_DISCONNECTED = 4

static

test type

Referenced by testAddDisconnected(), and testGeneric().

TEST_ADD_ROOT_NEIGHBOR

final int frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.TEST_ADD_ROOT_NEIGHBOR = 3

static

test type

Referenced by testAddOneToRoot(), and testGeneric().

TEST_CHANGE_LEAF_NAME

final int frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.TEST_CHANGE_LEAF_NAME = 2

static

test type

Referenced by testChangeLeafVariableName(), and testGeneric().

TEST_RANDOM_CHANGE

final int frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.TEST_RANDOM_CHANGE = 1

static

test type

Todo

Use an enum instead

Referenced by testCorrectness(), and testGeneric().

utilClass

Class<U> frodo2.algorithms.dpop.restart.test.TestSDPOP< V extends Addable< V >, U extends Addable< U > >.utilClass

private

The class used for utility values.

Referenced by TestSDPOP().

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/dpop/restart/test/TestSDPOP.java
