org.jacop.constraints.DisjointCloneable Class Reference

A cloneable version of the Disjoint constraint. More...

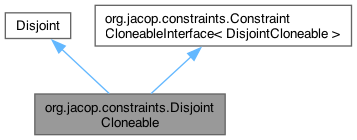

Inheritance diagram for org.jacop.constraints.DisjointCloneable:

Public Member Functions
	DisjointCloneable (ArrayList<? extends ArrayList<? extends IntVarCloneable > > rectangles)
	It creates a diff2 constraint.
	DisjointCloneable (IntVarCloneable[][] rectangles)
	It creates a diff2 constraint.
	DisjointCloneable (Rectangle[] rectangles, boolean doProfile)
	DisjointCloneable (ArrayList<? extends ArrayList<? extends IntVarCloneable > > rectangles, boolean profile)
	It creates a diff2 constraint.
	DisjointCloneable (IntVarCloneable[][] rectangles, boolean profile)
	It creates a diff2 constraint.
	DisjointCloneable (ArrayList<? extends IntVarCloneable > o1, ArrayList<? extends IntVarCloneable > o2, ArrayList<? extends IntVarCloneable > l1, ArrayList<? extends IntVarCloneable > l2)
	It creates a diff2 constraint.
	DisjointCloneable (IntVarCloneable[] o1, IntVarCloneable[] o2, IntVarCloneable[] l1, IntVarCloneable[] l2)
	It creates a diff2 constraint.
	DisjointCloneable (ArrayList< IntVarCloneable > o1, ArrayList< IntVarCloneable > o2, ArrayList< IntVarCloneable > l1, ArrayList< IntVarCloneable > l2, boolean profile)
	It creates a diff2 constraint.
	DisjointCloneable (IntVarCloneable[] o1, IntVarCloneable[] o2, IntVarCloneable[] l1, IntVarCloneable[] l2, boolean profile)
	It creates a diff2 constraint.
DisjointCloneable	cloneInto (StoreCloneable targetStore) throws FailException
Public Member Functions inherited from org.jacop.constraints.ConstraintCloneableInterface< DisjointCloneable >
abstract C	cloneInto (StoreCloneable targetStore) throws CloneNotSupportedException, FailException
	Creates a new constraint that is a (state-less) clone of this one, but expressed on the variables with the same names found in the input store.

Detailed Description

A cloneable version of the Disjoint constraint.

Author

Thomas Leaute

Constructor & Destructor Documentation

DisjointCloneable() [1/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable

(

ArrayList<? extends ArrayList<? extends IntVarCloneable > >

rectangles

)

It creates a diff2 constraint.

Parameters

rectangles

list of rectangles with origins and lengths in both dimensions.

Referenced by cloneInto().

DisjointCloneable() [2/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable

(

IntVarCloneable

rectangles[][]

)

It creates a diff2 constraint.

Parameters

rectangles

list of rectangles with origins and lengths in both dimensions.

DisjointCloneable() [3/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable	(	Rectangle[]	rectangles,
		boolean	doProfile )

Parameters

rectangles	a list of rectangles.
doProfile	should profile be computed and used.

DisjointCloneable() [4/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable	(	ArrayList<? extends ArrayList<? extends IntVarCloneable > >	rectangles,
		boolean	profile )

It creates a diff2 constraint.

Parameters

rectangles	list of rectangles with origins and lengths in both dimensions.
profile	specifies if the profile is computed and used.

DisjointCloneable() [5/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable	(	IntVarCloneable	rectangles[][],
		boolean	profile )

It creates a diff2 constraint.

Parameters

rectangles	list of rectangles with origins and lengths in both dimensions.
profile	specifies if the profile is computed and used.

DisjointCloneable() [6/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable	(	ArrayList<? extends IntVarCloneable >	o1,
		ArrayList<? extends IntVarCloneable >	o2,
		ArrayList<? extends IntVarCloneable >	l1,
		ArrayList<? extends IntVarCloneable >	l2 )

It creates a diff2 constraint.

Parameters

o1	list of variables denoting the origin in the first dimension.
o2	list of variables denoting the origin in the second dimension.
l1	list of variables denoting the length in the first dimension.
l2	list of variables denoting the length in the second dimension.

DisjointCloneable() [7/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable	(	IntVarCloneable[]	o1,
		IntVarCloneable[]	o2,
		IntVarCloneable[]	l1,
		IntVarCloneable[]	l2 )

It creates a diff2 constraint.

Parameters

o1	list of variables denoting the origin in the first dimension.
o2	list of variables denoting the origin in the second dimension.
l1	list of variables denoting the length in the first dimension.
l2	list of variables denoting the length in the second dimension.

DisjointCloneable() [8/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable	(	ArrayList< IntVarCloneable >	o1,
		ArrayList< IntVarCloneable >	o2,
		ArrayList< IntVarCloneable >	l1,
		ArrayList< IntVarCloneable >	l2,
		boolean	profile )

It creates a diff2 constraint.

Parameters

o1	list of variables denoting the origin in the first dimension.
o2	list of variables denoting the origin in the second dimension.
l1	list of variables denoting the length in the first dimension.
l2	list of variables denoting the length in the second dimension.
profile	specifies if the profile should be computed.

DisjointCloneable() [9/9]

org.jacop.constraints.DisjointCloneable.DisjointCloneable	(	IntVarCloneable[]	o1,
		IntVarCloneable[]	o2,
		IntVarCloneable[]	l1,
		IntVarCloneable[]	l2,
		boolean	profile )

It creates a diff2 constraint.

Parameters

o1	list of variables denoting the origin in the first dimension.
o2	list of variables denoting the origin in the second dimension.
l1	list of variables denoting the length in the first dimension.
l2	list of variables denoting the length in the second dimension.
profile	specifies if the profile should be computed.

Member Function Documentation

cloneInto()

DisjointCloneable org.jacop.constraints.DisjointCloneable.cloneInto

(

StoreCloneable

targetStore

)

throws FailException

See also

org.jacop.constraints.ConstraintCloneableInterface.cloneInto(org.jacop.core.StoreCloneable)

References org.jacop.constraints.DiffCloneable.cloneRectangles(), and DisjointCloneable().

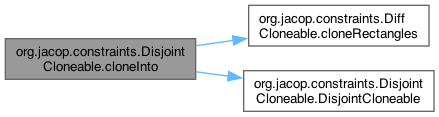

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/org/jacop/constraints/DisjointCloneable.java
