org.jacop.constraints.DiffCloneable Class Reference

A cloneable version of the Diff constraint. More...

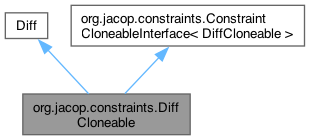

Inheritance diagram for org.jacop.constraints.DiffCloneable:

Public Member Functions
	DiffCloneable (IntVarCloneable[][] rectangles)
	It specifies a diff constraint.
	DiffCloneable (ArrayList<? extends ArrayList<? extends IntVarCloneable > > rectangles)
	It specifies a diffn constraint.
	DiffCloneable (Rectangle[] rectangles, boolean doProfile)
	It specifies a diff constraint.
	DiffCloneable (ArrayList<? extends ArrayList<? extends IntVarCloneable > > rectangles, boolean profile)
	It specifies a diff constraint.
	DiffCloneable (IntVarCloneable[][] rectangles, boolean profile)
	It specifies a diff constraint.
	DiffCloneable (IntVarCloneable[] origin1, IntVarCloneable[] origin2, IntVarCloneable[] length1, IntVarCloneable[] length2)
	It constructs a diff constraint.
	DiffCloneable (ArrayList<? extends IntVarCloneable > o1, ArrayList<? extends IntVarCloneable > o2, ArrayList<? extends IntVarCloneable > l1, ArrayList<? extends IntVarCloneable > l2)
	It constructs a diff constraint.
	DiffCloneable (IntVarCloneable[] o1, IntVarCloneable[] o2, IntVarCloneable[] l1, IntVarCloneable[] l2, boolean profile)
	It constructs a diff constraint.
	DiffCloneable (ArrayList<? extends IntVarCloneable > o1, ArrayList<? extends IntVarCloneable > o2, ArrayList<? extends IntVarCloneable > l1, ArrayList<? extends IntVarCloneable > l2, boolean profile)
	It constructs a diff constraint.
DiffCloneable	cloneInto (StoreCloneable targetStore) throws FailException
Public Member Functions inherited from org.jacop.constraints.ConstraintCloneableInterface< DiffCloneable >
abstract C	cloneInto (StoreCloneable targetStore) throws CloneNotSupportedException, FailException
	Creates a new constraint that is a (state-less) clone of this one, but expressed on the variables with the same names found in the input store.

Static Package Functions
static Rectangle[]	cloneRectangles (Rectangle[] rectangles, StoreCloneable targetStore) throws FailException
	Clones the rectangles into the target store.

Detailed Description

A cloneable version of the Diff constraint.

Author

Thomas Leaute

Constructor & Destructor Documentation

DiffCloneable() [1/9]

org.jacop.constraints.DiffCloneable.DiffCloneable

(

IntVarCloneable

rectangles[][]

)

It specifies a diff constraint.

Parameters

rectangles

list of rectangles which can not overlap in at least one dimension.

Referenced by cloneInto().

DiffCloneable() [2/9]

org.jacop.constraints.DiffCloneable.DiffCloneable

(

ArrayList<? extends ArrayList<? extends IntVarCloneable > >

rectangles

)

It specifies a diffn constraint.

Parameters

rectangles

list of rectangles which can not overlap in at least one dimension.

DiffCloneable() [3/9]

org.jacop.constraints.DiffCloneable.DiffCloneable	(	Rectangle[]	rectangles,
		boolean	doProfile )

It specifies a diff constraint.

Parameters

rectangles	list of rectangles which can not overlap in at least one dimension.
doProfile	should the constraint compute and use the profile functionality.

DiffCloneable() [4/9]

org.jacop.constraints.DiffCloneable.DiffCloneable	(	ArrayList<? extends ArrayList<? extends IntVarCloneable > >	rectangles,
		boolean	profile )

It specifies a diff constraint.

Parameters

profile	specifies is the profiles are used.
rectangles	list of rectangles which can not overlap in at least one dimension.

DiffCloneable() [5/9]

org.jacop.constraints.DiffCloneable.DiffCloneable	(	IntVarCloneable	rectangles[][],
		boolean	profile )

It specifies a diff constraint.

Parameters

profile	specifies is the profiles are used.
rectangles	list of rectangles which can not overlap in at least one dimension.

DiffCloneable() [6/9]

org.jacop.constraints.DiffCloneable.DiffCloneable	(	IntVarCloneable[]	origin1,
		IntVarCloneable[]	origin2,
		IntVarCloneable[]	length1,
		IntVarCloneable[]	length2 )

It constructs a diff constraint.

Parameters

origin1	list of variables denoting origin of the rectangle in the first dimension.
origin2	list of variables denoting origin of the rectangle in the second dimension.
length1	list of variables denoting length of the rectangle in the first dimension.
length2	list of variables denoting length of the rectangle in the second dimension.

DiffCloneable() [7/9]

org.jacop.constraints.DiffCloneable.DiffCloneable	(	ArrayList<? extends IntVarCloneable >	o1,
		ArrayList<? extends IntVarCloneable >	o2,
		ArrayList<? extends IntVarCloneable >	l1,
		ArrayList<? extends IntVarCloneable >	l2 )

It constructs a diff constraint.

Parameters

o1	list of variables denoting origin of the rectangle in the first dimension.
o2	list of variables denoting origin of the rectangle in the second dimension.
l1	list of variables denoting length of the rectangle in the first dimension.
l2	list of variables denoting length of the rectangle in the second dimension.

DiffCloneable() [8/9]

org.jacop.constraints.DiffCloneable.DiffCloneable	(	IntVarCloneable[]	o1,
		IntVarCloneable[]	o2,
		IntVarCloneable[]	l1,
		IntVarCloneable[]	l2,
		boolean	profile )

It constructs a diff constraint.

Parameters

o1	list of variables denoting origin of the rectangle in the first dimension.
o2	list of variables denoting origin of the rectangle in the second dimension.
l1	list of variables denoting length of the rectangle in the first dimension.
l2	list of variables denoting length of the rectangle in the second dimension.
profile	it specifies if the profile should be computed and used.

DiffCloneable() [9/9]

org.jacop.constraints.DiffCloneable.DiffCloneable	(	ArrayList<? extends IntVarCloneable >	o1,
		ArrayList<? extends IntVarCloneable >	o2,
		ArrayList<? extends IntVarCloneable >	l1,
		ArrayList<? extends IntVarCloneable >	l2,
		boolean	profile )

It constructs a diff constraint.

Parameters

o1	list of variables denoting origin of the rectangle in the first dimension.
o2	list of variables denoting origin of the rectangle in the second dimension.
l1	list of variables denoting length of the rectangle in the first dimension.
l2	list of variables denoting length of the rectangle in the second dimension.
profile	it specifies if the profile should be computed and used.

Member Function Documentation

cloneInto()

DiffCloneable org.jacop.constraints.DiffCloneable.cloneInto

(

StoreCloneable

targetStore

)

throws FailException

See also

org.jacop.constraints.ConstraintCloneableInterface.cloneInto(org.jacop.core.StoreCloneable)

References cloneRectangles(), and DiffCloneable().

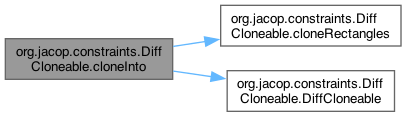

Here is the call graph for this function:

cloneRectangles()

Rectangle[] org.jacop.constraints.DiffCloneable.cloneRectangles ( Rectangle[] rectangles, StoreCloneable targetStore ) throws FailException

staticpackage

Clones the rectangles into the target store.

Parameters

rectangles	the rectangles to be cloned
targetStore	the target store

Returns

cloned rectangles

Exceptions

FailException

if one of the variables has an empty domain

Referenced by org.jacop.constraints.Diff2Cloneable.cloneInto(), cloneInto(), org.jacop.constraints.DisjointCloneable.cloneInto(), and org.jacop.constraints.DisjointConditionalCloneable.cloneInto().

---

The documentation for this class was generated from the following file:

• src/org/jacop/constraints/DiffCloneable.java
