frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > > Class Template Reference

This class is designed to store GOODs received by a node from its children, and is used in the ASODPOP algorithm. More...

Inheritance diagram for frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >:

Public Member Functions
	InnerNodeTree (String ownVariable, Val[] ownVariableDomain, UtilitySolutionSpace< Val, U > space, int numberOfChildren, U zero, U infeasibleUtil, boolean maximize, boolean collectStats)
	A constructor (Only used in testing the datastructure).
	InnerNodeTree (String ownVariable, Val[] ownVariableDomain, List< UtilitySolutionSpace< Val, U > > spaces, int numberOfChildren, U zero, U infeasibleUtil, boolean maximize, boolean collectStats)
	A constructor.
int	add (Good< Val, U > g, int sender)
	This method adds a received GOOD to the tree.
Good< Val, U >	getAmax ()
	This method obtains the aMax.
void	getBestAssignmentForOwnVariable (HashMap< String, Val > assignments)
	Given the assignment of variables in its separator, this method returns the best assignment possible.
Val	getRandomValue ()
HashMap< String, Val >	getChildValues (HashMap< String, Val > parentContext, int child)
	Given a map that maps variables to values, this method returns the values belonging to the variables in a child's separator.
int	getVariableIndex (String variable)
int	getSpeculativeUTILcounter ()
int	getUTILcounter ()
boolean	knowsVariable (String variable)
boolean	notEnoughInfo ()
	If there is only one variable in this tree, that means that there is not enough information to send a good.
int	getNbrVariables ()

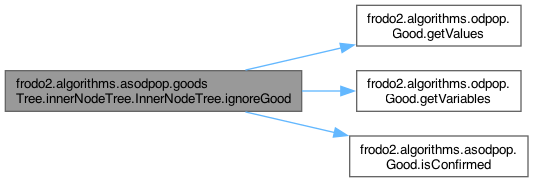

boolean	ignoreGood (Good< Val, U > g, int sender)
	If this good reports a value for an already confirmed assignment, the information in the good can be considered outdated and should be ignored.

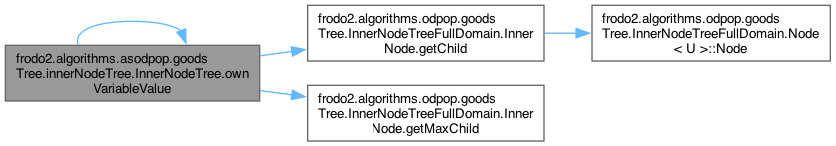

void	ownVariableValue (HashMap< String, Val > currentContext)
	Returns the value of the trees own variable for the current next best assignment.
boolean	checkLeaf (LeafNode< U > leaf, IntArrayWrapper currentPath, boolean checkUB, U utility, int sender)
	Method to check that the utility and UB are consistent with the available information.
Public Member Functions inherited from frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >
boolean	add (Good< Val, U > g, int sender)
	Adds a good to the tree.
void	setFinalDomainSize (String[] variables, int[] domainSize)
String	toString ()
	Method used for debugging purposes.
IntArrayWrapper	createIntArrayWrapper (int[] array)
boolean	checkLeaf (L leaf, IntArrayWrapper currentPath, boolean checkUB, U utility, int sender)
	Method to check that the utility and UB are consistent with the available information.
Val[][]	getDomains ()

Protected Member Functions
int[]	addNewVariable (String[] allVariables, HashMap< String, Val > newVariables, int sender)
LeafNode< U >	createLeaf (IntArrayWrapper currentPath, boolean real, frodo2.algorithms.odpop.Good< Val, U > g, int child, final boolean withUB)
	Method to create a new leaf node.
LeafNode< U >	createLeaf (IntArrayWrapper currentPath, boolean real, final boolean withUB)
	Method to create a new leaf node.
void	finalDomainSizeReceiver ()
	logs the reception of a domain size info message
boolean	findUnused (int depth, int[] localPath, int[] unusedPath, InnerNode< U, LeafNode< U > > currentNode)
	Looks for parts of the tree where the local solution as defined by localPath can still be used to create new leafs.
void	init (int numberOfChildren, U zero)
	Initialize all the variables of the tree.
void	nextVariableAssignment (int[] max, int[] position)
	Given a point in the domain space of value combinations between 0 and max, the next point is calculated and position is set to this new point.
void	updateLocalProblem ()
Protected Member Functions inherited from frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >
	InnerNodeTree (String ownVariable, Val[] ownVariableDomain, UtilitySolutionSpace< Val, U > space, U zero, int numberOfChildren, U infeasibleUtil, boolean maximize, boolean collectStats)
	A constructor.
void	addNewDomainElement (HashMap< String, Val > newValues)
	This method adds a new variable to the data structure.
void	addNewDomainElementNoUB (int depth, int horizon, IntArrayWrapper currentPath, int[] partialPath, int[] newDomainPath, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L > currentNodeUncast, Good< Val, U > g, U utilityDelta, int sender, boolean onPartialPath, boolean fill)
	This method is called when a new domain element is discovered before the UBs can be calculated.
void	addNewDomainElementWithUB (int depth, int horizon, IntArrayWrapper currentPath, int[] partialPath, int[] newDomainPath, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L > currentNodeUncast, Good< Val, U > g, U utilityDelta, int sender, boolean onPartialPath, boolean fill)
	This method is called when a new domain element is discovered while the UB is already set.
int[]	addNewVariable (String[] allVariables, HashMap< String, Val > newVariables, int sender)
	This method adds new variables to the data structure.
void	changeDummyToReal (int depth, InnerNode< U, L > currentNode, boolean change)
	Changes all dummy children of the variables in dummyToReal to real nodes.
InnerNode< U, L >	createInnerNode (int numberOfChildren)
L	createLeaf (IntArrayWrapper currentPath, boolean real, Good< Val, U > g, int child, final boolean withUB)
	Method to create a new leaf node.
frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L >	createPathNoUB (int depth, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNodeTree.IntArrayWrapper currentPathUncast, int[] partialPath, boolean real, Good< Val, U > g, int sender)
	Given a partial path, this method creates the path in the tree.
boolean	findUnused (int depth, int[] localPath, InnerNode< U, L > currentNode)
	Check whether the assignment to the local problem, represented by localPath, can still be used somewhere.
U	getOwnVariableOptions (int[] optimalPath, Val[] assignments)
	Given the assignment of variables in its separator, this method returns the utility for all domain elements of the own variable.
void	init (int numberOfChildren, U zero)
	Initialize all the variables of the tree.
U	initiateBounds (frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L > currentNodeUncast, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNodeTree.IntArrayWrapper currentPathUncast, int depth, boolean onLocalPath, Good< Val, U > g, int sender)
	This method adds the dummy part to the tree.
void	updatePath (int depth, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNodeTree.IntArrayWrapper currentPathUncast, int[] partialPath, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L > currentNodeUncast, Good< Val, U > g, U utilityDelta, int sender, boolean onLocalPath, final boolean withUB)
	This method walks trough the tree according to the given partial path and finds all leaf nodes that correspond to assignments that are compatible with the good to be added.
boolean	upperBoundChangesUtil (frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L > node, U UB)
void	removeDummies (int removalDepth, boolean[] change, int depth, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L > currentNodeUncast)
	Remove the dummy element for the variables marked in change.
boolean	hasSupport (IntArrayWrapper currentPath)
	Method to check whether a particular leaf node has support, i.e.
boolean	checkTree (int depth, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U, L > currentNodeUncast, frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNodeTree.IntArrayWrapper currentPathUncast, boolean UB, boolean checkLeafs, boolean checkSupport, boolean checkUtil)
	This method checks the tree on the following properties.

Protected Attributes
U[]	localOptions
	For each option the optimal utility your own local problem provides.
Protected Attributes inherited from frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >
HashMap< String, Integer >	finalDomainSizeUnknownVariables
	the final domain sizes of as yet unknown variables
boolean[]	dummy
	Used to determine whether a variable has a dummy element or not.
int	dummyDepth
	The depth until where one can find dummy variables.
int	numberOfDummies
	Counts the number of dummy variables in the tree.
int	numberOfAncestors
	Stores the number of higher priority neighbours.
int	upperboundArraySize
	The size of the array containing precalculated upperbounds.
ArrayList< HashMap< IntArrayWrapper, U > >	goodsReceived
	For each child a map that stores the utilities received from children.

Private Member Functions
boolean	checkGood (Val[] values)
	Method used to check whether the assignment to be reported by the good point to an existing assignment.

Private Attributes
ArrayList< HashMap< IntArrayWrapper, Boolean > >	goodsConfirmed
	For each child a map that stores the utilities received from children.
Val[]	optimalLocalSolution
	The optimal solution of the local problem.
int	speculativeUTILcounter
	Counts the number of speculative UTIL messages.
int	UTILcounter = 0
	Counts the total number of UTIl messages received.

Static Private Attributes
static final long	serialVersionUID = 4206985864919963001L
	Used for serialization.

Detailed Description

This class is designed to store GOODs received by a node from its children, and is used in the ASODPOP algorithm.

A GOOD contains an assignment to a set of variables, a utility and a variable denoting whether it is a confirmed or speculative good. A GOOD is identified by its assignment, and in this class the GOODs are ordered using a tree based on these assignments.

The basic functionality of this class is to either add a received GOOD to the tree, or to obtain the assignment that has the highest utility.

Author

Brammert

Parameters

<Val>	type used for variable values
<U>	type used for utility values

Todo

write Unit test for this class

Constructor & Destructor Documentation

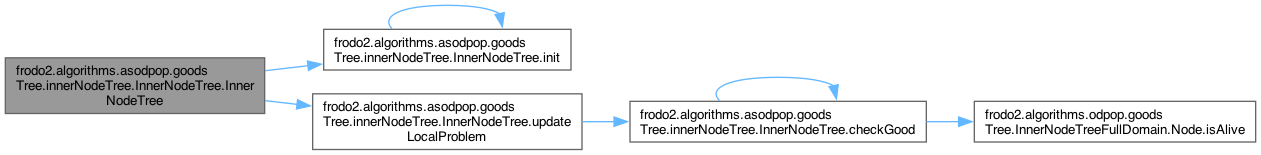

InnerNodeTree() [1/2]

frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.InnerNodeTree	(	String	ownVariable,
		Val[]	ownVariableDomain,
		UtilitySolutionSpace< Val, U >	space,
		int	numberOfChildren,
		U	zero,
		U	infeasibleUtil,
		boolean	maximize,
		boolean	collectStats )

A constructor (Only used in testing the datastructure).

Warning

we assume that the agent's own variable is put in the end of variables_order

Parameters

ownVariable	The variable ID
ownVariableDomain	The domain of ownVariable
space	A list of utility values for the different value combinations
numberOfChildren	The number of children
zero	The zero utility
infeasibleUtil	The infeasible utility
maximize	when true we are maximizing, when false we are minimizing
collectStats	true when statistics should be collected, and false otherwise

References init(), and updateLocalProblem().

Here is the call graph for this function:

InnerNodeTree() [2/2]

frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.InnerNodeTree	(	String	ownVariable,
		Val[]	ownVariableDomain,
		List< UtilitySolutionSpace< Val, U > >	spaces,
		int	numberOfChildren,
		U	zero,
		U	infeasibleUtil,
		boolean	maximize,
		boolean	collectStats )

A constructor.

Warning

we assume that the agents own variable is put in the end of variables_order

Parameters

ownVariable	The variable ID
ownVariableDomain	The domain of ownVariable
spaces	The hypercubes representing the local problem
numberOfChildren	The number of children
zero	The zero utility
infeasibleUtil	The infeasible utility
maximize	when true we are maximizing, when false we are minimizing
collectStats	true when statistics should be collected, and false otherwise

References init(), and updateLocalProblem().

Here is the call graph for this function:

Member Function Documentation

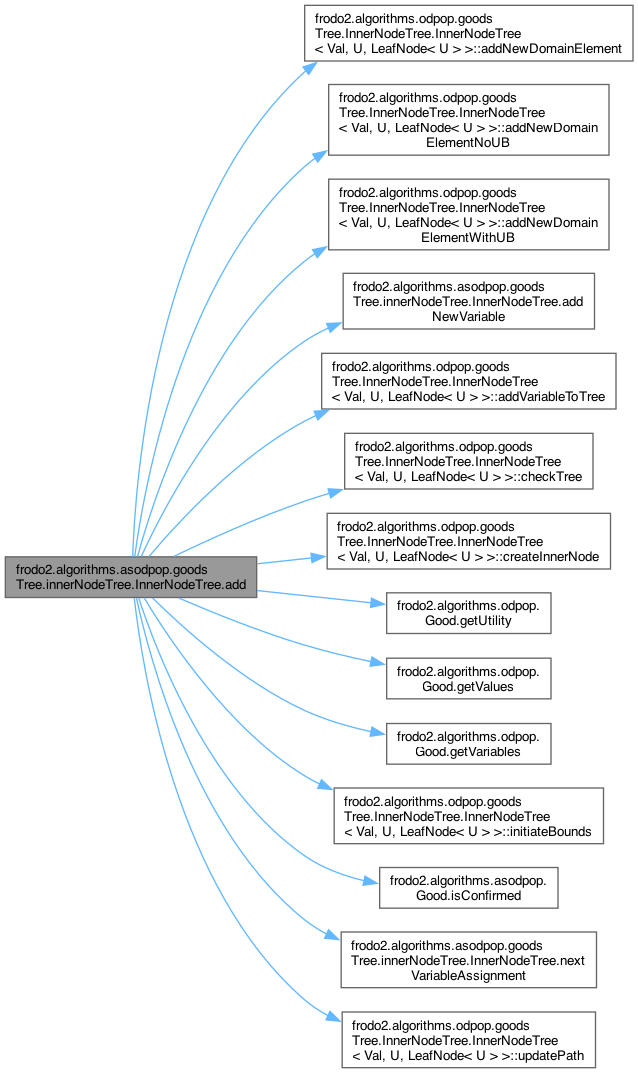

add()

int frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.add	(	Good< Val, U >	g,
		int	sender )

This method adds a received GOOD to the tree.

Parameters

g	The good to be added
sender	The sender of the good

Returns

true when a new variable has been discovered

References frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.addNewDomainElement(), frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.addNewDomainElementNoUB(), frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.addNewDomainElementWithUB(), addNewVariable(), frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.addVariableToTree(), frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.checkTree(), frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.createInnerNode(), frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.dummy, frodo2.algorithms.odpop.Good< Val extends Addable< Val >, U extends Addable< U > >.getUtility(), frodo2.algorithms.odpop.Good< Val extends Addable< Val >, U extends Addable< U > >.getValues(), frodo2.algorithms.odpop.Good< Val extends Addable< Val >, U extends Addable< U > >.getVariables(), goodsConfirmed, frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.goodsReceived, frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.initiateBounds(), frodo2.algorithms.asodpop.Good< Val extends Addable< Val >, U extends Addable< U > >.isConfirmed(), nextVariableAssignment(), frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.numberOfDummies, and frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.updatePath().

Here is the call graph for this function:

addNewVariable()

int[] frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.addNewVariable ( String[] allVariables, HashMap< String, Val > newVariables, int sender )

protected

See also

frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree.addNewVariable(java.lang.String[], java.util.HashMap, int)

Referenced by add().

checkGood()

boolean frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.checkGood ( Val[] values )

private

Method used to check whether the assignment to be reported by the good point to an existing assignment.

Author

Brammert Ottens, 1 nov 2009

Parameters

values

the values constituting the assigment

Returns

true when the assignment exists and false otherwise

References checkGood(), and frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.Node< U extends Addable< U > >.isAlive().

Referenced by checkGood(), and updateLocalProblem().

Here is the call graph for this function:

checkLeaf()

boolean frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.checkLeaf	(	LeafNode< U >	leaf,
		IntArrayWrapper	currentPath,
		boolean	checkUB,
		U	utility,
		int	sender )

Method to check that the utility and UB are consistent with the available information.

The utility should match exactly, but because UBs are only recomputed when necessary, and then should only decrease by such a recomputation, the stored UB should be at least as high as the real UB

Parameters

leaf	the leaf to be checked
currentPath	the path to this leaf
checkUB	true when the UB must be checked
utility	the utility reported by the sender
sender	the sender of the good

Returns

always returns true

References goodsConfirmed, and frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.goodsReceived.

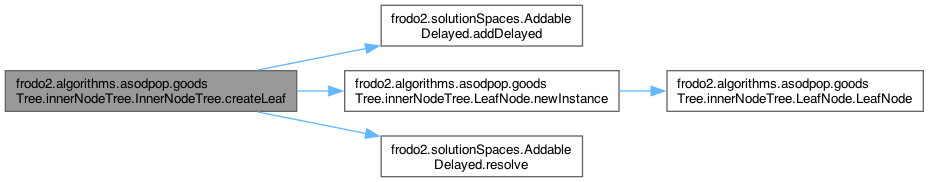

createLeaf() [1/2]

LeafNode< U > frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.createLeaf ( IntArrayWrapper currentPath, boolean real, final boolean withUB )

protected

Method to create a new leaf node.

Parameters

currentPath	The path to the leaf
real	true when the leaf points to a real assignment
withUB	true when the upper bound must be set

Returns

the new leaf node

References frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.addDelayed(), goodsConfirmed, frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.goodsReceived, frodo2.algorithms.asodpop.goodsTree.innerNodeTree.LeafNode< U extends Addable< U > >.newInstance(), and frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.resolve().

Here is the call graph for this function:

createLeaf() [2/2]

LeafNode< U > frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.createLeaf ( IntArrayWrapper currentPath, boolean real, frodo2.algorithms.odpop.Good< Val, U > g, int child, final boolean withUB )

protected

Method to create a new leaf node.

Parameters

currentPath	The path to the leaf
real	true when the leaf points to a real assignment
g	the received good
child	the child that reported it
withUB	true when the upper bound must be set

Returns

the new leaf node

References frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.addDelayed(), goodsConfirmed, frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.goodsReceived, frodo2.algorithms.asodpop.goodsTree.innerNodeTree.LeafNode< U extends Addable< U > >.newInstance(), and frodo2.solutionSpaces.AddableDelayed< T extends Addable< T > >.resolve().

Here is the call graph for this function:

finalDomainSizeReceiver()

void frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.finalDomainSizeReceiver ( )

protected

logs the reception of a domain size info message

References frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.finalDomainSizeUnknownVariables.

findUnused()

boolean frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.findUnused ( int depth, int[] localPath, int[] unusedPath, InnerNode< U, LeafNode< U > > currentNode )

protected

Looks for parts of the tree where the local solution as defined by localPath can still be used to create new leafs.

Author

Brammert Ottens, 5 okt 2009

Parameters

depth	the current depth in the tree
localPath	the path representing the local solution
unusedPath	a path where the local solution has not yet been used
currentNode	the current node being visited

Returns

true when there are unused parts of the tree, and false otherwise

References findUnused().

Referenced by findUnused().

Here is the call graph for this function:

getAmax()

Good< Val, U > frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getAmax

(

)

This method obtains the aMax.

If aMax is a confirmed assignment, i.e. no other assignment will ever have a higher utility, then the path belonging to aMax must be removed.

Returns

Good

References getAmax().

Referenced by getAmax().

Here is the call graph for this function:

getBestAssignmentForOwnVariable()

void frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getBestAssignmentForOwnVariable

(

HashMap< String, Val >

assignments

)

Given the assignment of variables in its separator, this method returns the best assignment possible.

Parameters

assignments

the, possible partial, assignment to the variables in the variables separator

References frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.getOwnVariableOptions().

Here is the call graph for this function:

getChildValues()

HashMap< String, Val > frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getChildValues	(	HashMap< String, Val >	parentContext,
		int	child )

Given a map that maps variables to values, this method returns the values belonging to the variables in a child's separator.

Author

Brammert Ottens, 19 aug 2009

Parameters

parentContext	the value map
child	the child for who we want to know the separator values

Returns

an array containing the values of the child's separator variables

getNbrVariables()

int frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getNbrVariables

(

)

Returns

the number of variables stored in this goods tree

getRandomValue()

Val frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getRandomValue

(

)

Author

Brammert Ottens, 26 mei 2010

Returns

a random value in the domain of the owning variable

getSpeculativeUTILcounter()

int frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getSpeculativeUTILcounter

(

)

Returns

total number of speculative UTIl messages received

getUTILcounter()

int frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getUTILcounter

(

)

Returns

total number of UTIl messages received

getVariableIndex()

int frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.getVariableIndex

(

String

variable

)

Parameters

variable

variable ID

Returns

the depth of the variable in the array

ignoreGood()

boolean frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.ignoreGood	(	Good< Val, U >	g,
		int	sender )

If this good reports a value for an already confirmed assignment, the information in the good can be considered outdated and should be ignored.

Author

Brammert Ottens, 4 sep 2009

Parameters

g	the good to be checked
sender	the sender of the good

Returns

true when the assignment in the good already has a confirmed utility

References frodo2.algorithms.odpop.Good< Val extends Addable< Val >, U extends Addable< U > >.getValues(), frodo2.algorithms.odpop.Good< Val extends Addable< Val >, U extends Addable< U > >.getVariables(), goodsConfirmed, and frodo2.algorithms.asodpop.Good< Val extends Addable< Val >, U extends Addable< U > >.isConfirmed().

Here is the call graph for this function:

init()

void frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.init ( int numberOfChildren, U zero )

protected

Initialize all the variables of the tree.

Parameters

numberOfChildren	The number of children
zero	The zero utility

References frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.dummy, frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.dummyDepth, frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.finalDomainSizeUnknownVariables, goodsConfirmed, frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.goodsReceived, init(), localOptions, optimalLocalSolution, and frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree< Val, U, LeafNode< U > >.upperboundArraySize.

Referenced by init(), InnerNodeTree(), and InnerNodeTree().

Here is the call graph for this function:

knowsVariable()

boolean frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.knowsVariable

(

String

variable

)

Parameters

variable

The variable for which we want to know whether this tree is aware of it

Returns

true if this tree is familier with this variable

nextVariableAssignment()

void frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.nextVariableAssignment ( int[] max, int[] position )

protected

Given a point in the domain space of value combinations between 0 and max, the next point is calculated and position is set to this new point.

Author

Brammert Ottens, 19 jul 2009

Parameters

max	for each entry the maximal value
position	the position in the domain space

Referenced by add().

notEnoughInfo()

boolean frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.notEnoughInfo

(

)

If there is only one variable in this tree, that means that there is not enough information to send a good.

Returns

boolean

ownVariableValue()

void frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.ownVariableValue

(

HashMap< String, Val >

currentContext

)

Returns the value of the trees own variable for the current next best assignment.

Author

Brammert Ottens, 10 nov 2009

Parameters

currentContext

The current assignment of all variables in ownVariable's separator

References frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U extends Addable< U >, L extends LeafNode< U > >.getChild(), frodo2.algorithms.odpop.goodsTree.InnerNodeTreeFullDomain.InnerNode< U extends Addable< U >, L extends LeafNode< U > >.getMaxChild(), and ownVariableValue().

Referenced by ownVariableValue().

Here is the call graph for this function:

updateLocalProblem()

void frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.updateLocalProblem ( )

protected

See also

frodo2.algorithms.odpop.goodsTree.InnerNodeTree.InnerNodeTree.updateLocalProblem()

References checkGood(), and optimalLocalSolution.

Referenced by InnerNodeTree(), and InnerNodeTree().

Here is the call graph for this function:

Member Data Documentation

goodsConfirmed

ArrayList<HashMap<IntArrayWrapper, Boolean> > frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.goodsConfirmed

private

For each child a map that stores the utilities received from children.

Referenced by add(), checkLeaf(), createLeaf(), createLeaf(), ignoreGood(), and init().

localOptions

U [] frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.localOptions

protected

For each option the optimal utility your own local problem provides.

Referenced by init().

optimalLocalSolution

Val [] frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.optimalLocalSolution

private

The optimal solution of the local problem.

Referenced by init(), and updateLocalProblem().

serialVersionUID

final long frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.serialVersionUID = 4206985864919963001L

staticprivate

Used for serialization.

speculativeUTILcounter

int frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.speculativeUTILcounter

private

Counts the number of speculative UTIL messages.

UTILcounter

int frodo2.algorithms.asodpop.goodsTree.innerNodeTree.InnerNodeTree< Val extends Addable< Val >, U extends Addable< U > >.UTILcounter = 0

private

Counts the total number of UTIl messages received.

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/asodpop/goodsTree/innerNodeTree/InnerNodeTree.java
