A solution iterator for BasicHypercubes. More...

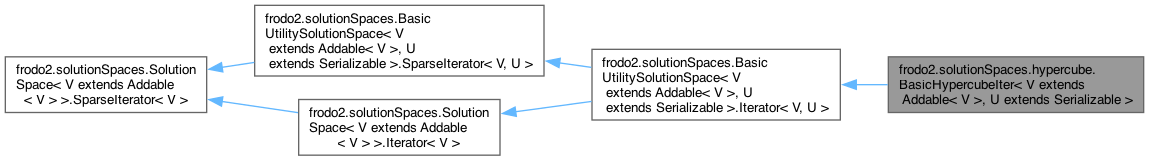

Inheritance diagram for frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >:

[legend]

Public Member Functions
long	getNbrSolutions ()
V[]	nextSolution ()
U	nextUtility ()
V[]	getCurrentSolution ()
U	getCurrentUtility ()
void	setCurrentUtility (U util)
	Sets the utility of the current solution.
String[]	getVariablesOrder ()
V[][]	getDomains ()
boolean	hasNext ()
void	update ()
String	toString ()

Protected Member Functions
	BasicHypercubeIter ()
	Empty constructor.
	BasicHypercubeIter (BasicHypercube< V, U > space, V[] assignment, U skippedUtil)
	Constructor.
	BasicHypercubeIter (final BasicHypercube< V, U > space, final String[] variables, final V[][] domains, final V[] assignment, U skippedUtil)
	Constructor.
	BasicHypercubeIter (BasicHypercube< V, U > space, String[] varOrder, V[] assignment, U skippedUtil)
	Constructor.
int	iter ()
	Moves to the next solution.

Protected Attributes
U[]	utilities
	The space's utility array.
U	utility
	Current utility value.
int	utilIndex
	The index of the current utility value in the utility array.
int[][]	steps
	For each variable:
V[]	solution
	Current variable assignments.
BasicHypercube< V, U >	space
	The BasicHypercube we are iterating over.
String[]	variables
	The order of iteration over the variables.
int	nbrVars
	The number of variables.
V[][]	domains
	The variables' domains.
int[]	valIndexes
	For each variable, the index in its domain of the current assignment.
long	nbrSolLeft
	The number of solutions left to iterate over.
long	nbrSols
	The total number of solutions to iterate over.

Private Attributes
U	skippedUtil
	The utility value that is skipped in sparse iterator mode.

Detailed Description

A solution iterator for BasicHypercubes.

Author: Thomas Leaute

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Constructor & Destructor Documentation

◆ BasicHypercubeIter() [1/4]

frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.BasicHypercubeIter ( )

protected

Empty constructor.

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), and BasicHypercubeIter().

◆ BasicHypercubeIter() [2/4]

frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.BasicHypercubeIter	(	BasicHypercube< V, U >	space,
		V[]	assignment,
		U	skippedUtil )

protected

Constructor.

Parameters

space	the BasicHypercube to iterate over
assignment	An array that will be used as the output of nextSolution()
skippedUtil	The utility value to skip, if any

References BasicHypercubeIter(), domains, nbrVars, skippedUtil, solution, space, steps, utilIndex, and valIndexes.

Here is the call graph for this function:

◆ BasicHypercubeIter() [3/4]

frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.BasicHypercubeIter	(	final BasicHypercube< V, U >	space,
		final String[]	variables,
		final V	domains[][],
		final V[]	assignment,
		U	skippedUtil )

protected

Constructor.

Parameters

space	the BasicHypercube to iterate over
variables	the variables to iterate over; may include variables not in the space
domains	the variables' domains
assignment	An array that will be used as the output of nextSolution()
skippedUtil	The utility value that should be skipped, if any

Warning: The input array of variables must contain all of the space's variables, and the input domains must be sub-domains of the space's.

References BasicHypercubeIter(), domains, nbrSolLeft, nbrVars, skippedUtil, solution, space, steps, utilIndex, valIndexes, and variables.

Here is the call graph for this function:

◆ BasicHypercubeIter() [4/4]

frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.BasicHypercubeIter	(	BasicHypercube< V, U >	space,
		String[]	varOrder,
		V[]	assignment,
		U	skippedUtil )

protected

Constructor.

Parameters

space	the BasicHypercube to iterate over
varOrder	the order of iteration of the variables
assignment	An array that will be used as the output of nextSolution()
skippedUtil	The utility value to skip, if any

Warning: The input array of variables must contain exactly all of the space's variables.

References BasicHypercubeIter(), nbrVars, skippedUtil, solution, space, steps, utilIndex, valIndexes, and variables.

Here is the call graph for this function:

Member Function Documentation

◆ getCurrentSolution()

V[] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.getCurrentSolution ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.getCurrentSolution()

Warning: Returns a pointer to an internal data structure that will be modified by subsequent calls to next().

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

Referenced by getCurrentUtility().

◆ getCurrentUtility()

U frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.getCurrentUtility ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.getCurrentUtility()

Implements frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.SparseIterator< V, U >.

References getCurrentSolution(), and frodo2.solutionSpaces.hypercube.BasicHypercube< V extends Addable< V >, U extends Serializable >.incrNCCCs().

Here is the call graph for this function:

◆ getDomains()

V[][] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.getDomains ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.getDomains()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

◆ getNbrSolutions()

long frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.getNbrSolutions ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.getNbrSolutions()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.Iterator< V >.

◆ getVariablesOrder()

String[] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.getVariablesOrder ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.getVariablesOrder()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

◆ hasNext()

boolean frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.hasNext ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.hasNext()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.Iterator< V >.

◆ iter()

int frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.iter ( )

protected

Moves to the next solution.

Returns: the new utilIndex

Referenced by nextSolution(), and nextUtility().

◆ nextSolution()

V[] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.nextSolution ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.nextSolution()

Warning: Returns a pointer to an internal data structure that will be modified by subsequent calls to next().

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

References frodo2.solutionSpaces.hypercube.BasicHypercube< V extends Addable< V >, U extends Serializable >.incrNCCCs(), iter(), and space.

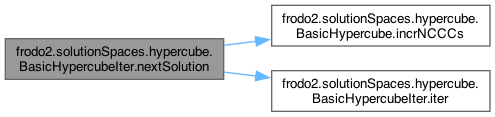

Here is the call graph for this function:

◆ nextUtility()

U frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.nextUtility ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.nextUtility()

Implements frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.SparseIterator< V, U >.

References frodo2.solutionSpaces.hypercube.BasicHypercube< V extends Addable< V >, U extends Serializable >.incrNCCCs(), iter(), and space.

Here is the call graph for this function:

◆ setCurrentUtility()

void frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.setCurrentUtility ( U util )

Sets the utility of the current solution.

Parameters

util	the new utility

Implements frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.SparseIterator< V, U >.

◆ toString()

String frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.toString ( )

See also: java.lang.Object#toString()

◆ update()

void frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.update ( )

See also: frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.update()

Todo: Auto-generated method stub

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

Member Data Documentation

◆ domains

V [][] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.domains

protected

The variables' domains.

Referenced by BasicHypercubeIter(), and BasicHypercubeIter().

◆ nbrSolLeft

long frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.nbrSolLeft

protected

The number of solutions left to iterate over.

Referenced by BasicHypercubeIter().

◆ nbrSols

long frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.nbrSols

protected

The total number of solutions to iterate over.

◆ nbrVars

int frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.nbrVars

protected

The number of variables.

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), and BasicHypercubeIter().

◆ skippedUtil

U frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.skippedUtil

private

The utility value that is skipped in sparse iterator mode.

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), and BasicHypercubeIter().

◆ solution

V [] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.solution

protected

Current variable assignments.

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), and BasicHypercubeIter().

◆ space

BasicHypercube<V, U> frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.space

protected

The BasicHypercube we are iterating over.

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), BasicHypercubeIter(), nextSolution(), and nextUtility().

◆ steps

int [][] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.steps

protected

For each variable:

the first entry is the incremental step when changing from the last value back to the first
entry i is the incremental step in the space's utility array when changing the variable's value from value at index i - 1 to value at index i (in the input domain array)

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), and BasicHypercubeIter().

◆ utilIndex

int frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.utilIndex

protected

The index of the current utility value in the utility array.

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), and BasicHypercubeIter().

◆ utilities

U [] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.utilities

protected

The space's utility array.

◆ utility

U frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.utility

protected

Current utility value.

◆ valIndexes

int [] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.valIndexes

protected

For each variable, the index in its domain of the current assignment.

Referenced by BasicHypercubeIter(), BasicHypercubeIter(), and BasicHypercubeIter().

◆ variables

String [] frodo2.solutionSpaces.hypercube.BasicHypercubeIter< V extends Addable< V >, U extends Serializable >.variables

protected

The order of iteration over the variables.

Referenced by BasicHypercubeIter(), and BasicHypercubeIter().

The documentation for this class was generated from the following file:

src/frodo2/solutionSpaces/hypercube/BasicHypercubeIter.java
