frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable > Class Template Reference

Leader election message containing two payloads: the sender agent, and its current maxID. More...

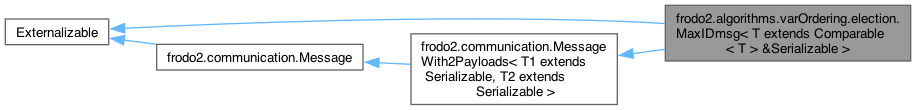

Inheritance diagram for frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >:

Public Member Functions
	MaxIDmsg ()
	Empty constructor.
	MaxIDmsg (String sender, T maxID)
	Constructor.
void	writeExternal (ObjectOutput out) throws IOException
void	readExternal (ObjectInput in) throws IOException, ClassNotFoundException
String	getSender ()
T	getMaxID ()
String	toString ()
Public Member Functions inherited from frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >
	MessageWith2Payloads (MessageType type, T1 payload1, T2 payload2)
	Constructor.
	MessageWith2Payloads ()
	Empty constructor.
MessageWith2Payloads< T1, T2 >	clone ()
T1	getPayload1 ()
void	setPayload1 (T1 payload1)
T2	getPayload2 ()
void	setPayload2 (T2 payload2)
Public Member Functions inherited from frodo2.communication.Message
	Message (MessageType type)
	Constructor.
	Message ()
	Empty constructor.
MessageType	getType ()
void	fakeSerialize ()
	Pretends to serialize the message.

Static Private Attributes
static final long	serialVersionUID = -3182721919850385243L
	Used for serialization.

Additional Inherited Members
Protected Attributes inherited from frodo2.communication.Message
MessageType	type
	The type of this message.

Detailed Description

Leader election message containing two payloads: the sender agent, and its current maxID.

Parameters

<T>	the type used for agent IDs

Constructor & Destructor Documentation

MaxIDmsg() [1/2]

frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.MaxIDmsg

(

)

Empty constructor.

MaxIDmsg() [2/2]

frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.MaxIDmsg	(	String	sender,
		T	maxID )

Constructor.

Parameters

sender	the ID of the sender agent
maxID	the current maxID

References frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.LE_MSG_TYPE.

Member Function Documentation

getMaxID()

T frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.getMaxID

(

)

Returns

the current maxID

References frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >.getPayload2().

Referenced by toString(), and writeExternal().

Here is the call graph for this function:

getSender()

String frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.getSender

(

)

Returns

the ID of the sender agent

References frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >.getPayload1().

Referenced by toString(), and writeExternal().

Here is the call graph for this function:

readExternal()

void frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.readExternal

(

ObjectInput

in

)

throws IOException, ClassNotFoundException

See also

java.io.Externalizable#readExternal(java.io.ObjectInput)

Reimplemented from frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >.

References frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.LE_MSG_TYPE, readExternal(), frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >.setPayload1(), and frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >.setPayload2().

Referenced by readExternal().

Here is the call graph for this function:

toString()

String frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.toString

(

)

See also

frodo2.communication.Message.toString()

Reimplemented from frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >.

References getMaxID(), getSender(), and frodo2.algorithms.varOrdering.election.LeaderElectionMaxID< T extends Comparable< T > &Serializable >.LE_MSG_TYPE.

Here is the call graph for this function:

writeExternal()

void frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.writeExternal

(

ObjectOutput

out

)

throws IOException

See also

java.io.Externalizable#writeExternal(java.io.ObjectOutput)

Reimplemented from frodo2.communication.MessageWith2Payloads< T1 extends Serializable, T2 extends Serializable >.

References getMaxID(), and getSender().

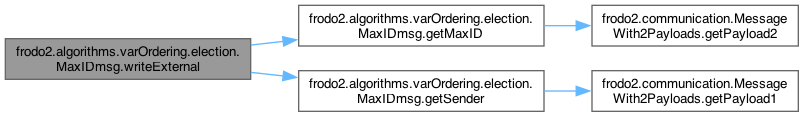

Here is the call graph for this function:

Member Data Documentation

serialVersionUID

final long frodo2.algorithms.varOrdering.election.MaxIDmsg< T extends Comparable< T > &Serializable >.serialVersionUID = -3182721919850385243L

staticprivate

Used for serialization.

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/varOrdering/election/MaxIDmsg.java
