Convenience class to hold variable information. More...

Public Member Functions
	VariableInfo (String variableID, V[] domain, String parent, List< String > children, Class< SamplingProcedure< V > > samplingClass, Class< TerminationCondition< V > > terminationClass)
	Constructor.
boolean	storeCOSTmsg (COSTmsg msg)
void	setSize (long size)
void	setSeparator (Set< String > separator)
V	solveSingleton (boolean maximize)
	Solve the local problem of a singleton variable.
boolean	finishedSampling (double error, double delta)
boolean	sample ()
	Method used to sample the values of the variable.
boolean	setContext (String sender, String[] variables, V[] values)
	Method used to update the context after a VALUE message has been received.
AddableReal	solveLeaf ()
	Solve the local problem of a leaf, given the context.
VALUEmsg< V >	getNewValueMessage (String child, boolean finished)
Message	getCostMessage ()
String	getParent ()
void	storeConstraint (UtilitySolutionSpace< V, AddableReal > space)
	Makes this variable responsible for this constraint.
List< String >	getChildren ()
SolutionCollector.AssignmentMessage< V >	getAssignmentMessage (V value)
SolutionCollector.AssignmentMessage< V >	getAssignmentMessage (String var, V value)
AddableReal	getFinalBound ()
String	toString ()

Protected Member Functions
SearchNode< V >	createNode (int domainSize, boolean maximize, boolean IGNORE_INF)
	Method to create search node.

Protected Attributes
String	variableID
	The name of the variable.
V[]	domain
	The domain of the variable.
int	domainSize
	The size of the domain.
String	parent
	The parent of the variable.
final boolean	leaf
	`true` when the variable is a leaf node, and `false` otherwise
boolean	parentFinished
	`true` when the parent finished sampling
int	nbrChildren
	The number of children of this variable.
long	size
	The maximal number of nodes below any node of this variable.
int	contextSize
	The size of the context.
V[]	context
	The current value assignment of all agents in the separator.
HashMap< String, Integer >	contextPointer
	For each context variable, the position in the context array.
String[]	contextVariables
	The context variables.
V	currentValue
	The currently sampled value.
int	currentValueIndex
	The index of the current value.
UtilitySolutionSpace< V, AddableReal >	space
	The local problem of the variable.
SamplingProcedure< V >	sampler
	The sampler used.
SearchNode< V >	node
	The distribution corresponding to the current context.
HashMap< State< V >, SearchNode< V > >	distributions
	For each possible context value seen, the collected information.
AddableReal	reportedSample
	sum of all samples reported by the children for the current context
Message	nextCostMsg
	The next cost message to be sent.
int	costMessagesReceived
	The number of COST messages received as a reply on the last VALUE message.
ArrayList< VALUEmsg< V > >	toBeProcessed
	List of to be processed value messages.
AddableReal	penalty
	penalty used to replace an infeasible solution
boolean	receivedNormalize
	`true` when normalization is finished for this variable, and `false` otherwise

Private Attributes
List< String >	children
	The list of children.
TerminationCondition< V >	termination
	The termination condition used.
Bound< V >	bound
	The bound used for sampling.

Detailed Description

Convenience class to hold variable information.

Author: Brammert Ottens, 7 jul. 2011

Constructor & Destructor Documentation

◆ VariableInfo()

frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.VariableInfo	(	String	variableID,
		V[]	domain,
		String	parent,
		List< String >	children,
		Class< SamplingProcedure< V > >	samplingClass,
		Class< TerminationCondition< V > >	terminationClass )

Constructor.

Parameters

variableID	the name of the variable
domain	the domain of the variable
parent	the parent of the variable
children	list of the children of the variable
samplingClass	the class of the sampling method
terminationClass	the class of the termination condition

References children, domain, nbrChildren, parent, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.samplingClass, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.terminationClass, and variableID.

Member Function Documentation

◆ createNode()

SearchNode< V > frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.createNode	(	int	domainSize,
		boolean	maximize,
		boolean	IGNORE_INF )

protected

Method to create search node.

Author: Brammert Ottens, 4 nov. 2011

Parameters

domainSize	the size of the domain
maximize	`true` when maximizing, and `false` otherwise
IGNORE_INF	`true` when infeasible utilities are to be ignored, and `false` otherwise

Returns: a new search node

References domainSize, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.IGNORE_INF, and frodo2.algorithms.duct.Sampling< V extends Addable< V > >.maximize.

Referenced by setContext().

◆ finishedSampling()

boolean frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.finishedSampling	(	double	error,
		double	delta )

Author: Brammert Ottens, 7 jul. 2011

Parameters

error	the intended error
delta	the delta that determines the probability

Returns: true when enough samples have been received, false otherwise

References frodo2.algorithms.duct.Sampling< V extends Addable< V > >.delta, domain, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.error, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.maximize, node, and termination.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ getAssignmentMessage() [1/2]

SolutionCollector.AssignmentMessage< V > frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.getAssignmentMessage	(	String	var,
		V	value )

Author: Brammert Ottens, 18 okt. 2011

Parameters

var	the variable for which the assignment is reported
value	the value of the assignment

Returns: an assignment message to report value value

◆ getAssignmentMessage() [2/2]

SolutionCollector.AssignmentMessage< V > frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.getAssignmentMessage ( V value )

Author: Brammert Ottens, 18 okt. 2011

Parameters

value the value of the assignment

Returns: an assignment message to report value value

References variableID.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ getChildren()

List< String > frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.getChildren ( )

Author: Brammert Ottens, 7 jul. 2011

Returns: a list containing the children of this variable

References children.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.reportValue().

◆ getCostMessage()

Message frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.getCostMessage ( )

Author: Brammert Ottens, 7 jul. 2011

Returns: a COST message to be reported to the parent

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ getFinalBound()

AddableReal frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.getFinalBound ( )

Returns: the final bound

References frodo2.algorithms.duct.Sampling< V extends Addable< V > >.delta, node, and frodo2.algorithms.duct.Sampling< V extends Addable< V > >.scalingFactor.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ getNewValueMessage()

VALUEmsg< V > frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.getNewValueMessage	(	String	child,
		boolean	finished )

Author: Brammert Ottens, 7 jul. 2011

Parameters

child	the child for which the VALUE message is meant
finished	`true` when the variable is ready with sampling, and `false` otherwise

Returns: a value message containing the newly chosen value;

References frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VALUE_FIN_MSG_TYPE, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VALUE_MSG_TYPE, and variableID.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.reportValue().

◆ getParent()

String frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.getParent ( )

Author: Brammert Ottens, 7 jul. 2011

Returns: the parent of this variable

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ sample()

boolean frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.sample ( )

Method used to sample the values of the variable.

Based on the context, and a give probability distribution this method chooses a value for variablID and stores it in context

Author: Brammert Ottens, 7 jul. 2011

Returns: true when the current local problem is feasible, false otherwise

References bound, context, contextVariables, currentValue, currentValueIndex, domain, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.infeasibleUtility, node, sampler, and space.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ setContext()

boolean frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.setContext	(	String	sender,
		String[]	variables,
		V[]	values )

Method used to update the context after a VALUE message has been received.

Author: Brammert Ottens, 7 jul. 2011

Parameters

sender	the sender of the VALUE message
variables	the reported variables
values	the context as reported by the parent

Returns: always returns true

References context, contextPointer, contextVariables, createNode(), distributions, domain, domainSize, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.IGNORE_INF, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.infeasibleUtility, frodo2.algorithms.duct.SearchNode< V extends Addable< V > >.initSampling(), leaf, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.maximize, node, and space.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), frodo2.algorithms.duct.SamplingChild< V extends Addable< V > >.notifyIn(), and frodo2.algorithms.duct.SamplingChildSearch< V extends Addable< V > >.notifyIn().

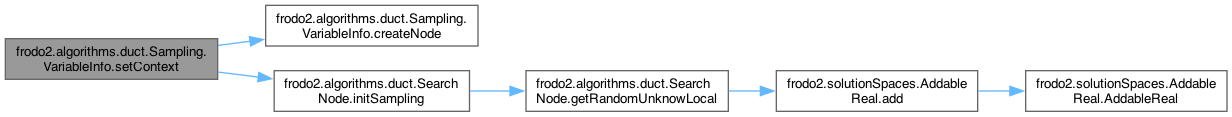

Here is the call graph for this function:

◆ setSeparator()

void frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.setSeparator ( Set< String > separator )

Author: Brammert Ottens, 25 aug. 2011

Parameters

separator the separator of the variable

References contextPointer, contextSize, contextVariables, domain, setSeparator(), and variableID.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), and setSeparator().

Here is the call graph for this function:

◆ setSize()

void frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.setSize ( long size )

Author: Brammert Ottens, 11 nov. 2011

Parameters

size	the maximal number of nodes below any node of this variable

References frodo2.algorithms.duct.Sampling< V extends Addable< V > >.boundClass, and size.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), frodo2.algorithms.duct.SamplingChild< V extends Addable< V > >.notifyIn(), and frodo2.algorithms.duct.SamplingChildSearch< V extends Addable< V > >.notifyIn().

◆ solveLeaf()

AddableReal frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.solveLeaf ( )

Solve the local problem of a leaf, given the context.

Author: Brammert Ottens, 29 aug. 2011

Returns: the maximal utility obtainable given the context

References frodo2.solutionSpaces.AddableReal.compareTo(), context, contextSize, contextVariables, currentValue, domain, domainSize, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.infeasibleUtility, leaf, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.maximize, penalty, and space.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

Here is the call graph for this function:

◆ solveSingleton()

V frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.solveSingleton ( boolean maximize )

Solve the local problem of a singleton variable.

Author: Brammert Ottens, 24 aug. 2011

Parameters

maximize true when maximizing, and false otherwise

Returns: the optimal value assignment

References children, frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable< U > >.ProjOutput< V extends Addable< V >, U extends Addable< U > >.getAssignments(), frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.getUtility(), frodo2.algorithms.duct.Sampling< V extends Addable< V > >.maximize, parent, and space.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

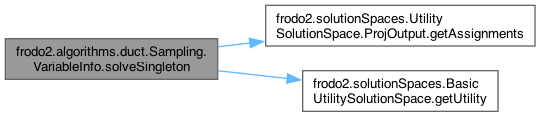

Here is the call graph for this function:

◆ storeConstraint()

void frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.storeConstraint ( UtilitySolutionSpace< V, AddableReal > space )

Makes this variable responsible for this constraint.

Parameters

space the constraint

References frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable< U > >.join(), and space.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

Here is the call graph for this function:

◆ storeCOSTmsg()

boolean frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.storeCOSTmsg ( COSTmsg msg )

Author: Brammert Ottens, 7 jul. 2011

Parameters

msg	the message to be stored

Returns: true when enough cost messages have been received, false otherwise

References frodo2.algorithms.duct.COSTmsg.getCost(), frodo2.algorithms.duct.Sampling< V extends Addable< V > >.infeasibleUtility, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.maximize, nbrChildren, nextCostMsg, node, parent, penalty, reportedSample, and sampler.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

Here is the call graph for this function:

◆ toString()

String frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.toString ( )

See also: java.lang.Object#toString()

References contextSize, frodo2.algorithms.duct.Sampling< V extends Addable< V > >.delta, node, and variableID.

Member Data Documentation

◆ bound

Bound<V> frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.bound

private

The bound used for sampling.

Referenced by sample().

◆ children

List<String> frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.children

private

The list of children.

Referenced by getChildren(), solveSingleton(), and VariableInfo().

◆ context

V [] frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.context

protected

The current value assignment of all agents in the separator.

Referenced by sample(), setContext(), and solveLeaf().

◆ contextPointer

HashMap<String, Integer> frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.contextPointer

protected

For each context variable, the position in the context array.

Referenced by setContext(), and setSeparator().

◆ contextSize

int frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.contextSize

protected

The size of the context.

Referenced by setSeparator(), solveLeaf(), and toString().

◆ contextVariables

String [] frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.contextVariables

protected

The context variables.

Referenced by sample(), setContext(), setSeparator(), and solveLeaf().

◆ costMessagesReceived

int frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.costMessagesReceived

protected

The number of COST messages received as a reply on the last VALUE message.

◆ currentValue

V frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.currentValue

protected

The currently sampled value.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), sample(), and solveLeaf().

◆ currentValueIndex

int frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.currentValueIndex

protected

The index of the current value.

Referenced by sample().

◆ distributions

HashMap<State<V>, SearchNode<V> > frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.distributions

protected

For each possible context value seen, the collected information.

Referenced by setContext().

◆ domain

V [] frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.domain

protected

The domain of the variable.

Referenced by finishedSampling(), sample(), setContext(), setSeparator(), solveLeaf(), and VariableInfo().

◆ domainSize

int frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.domainSize

protected

The size of the domain.

Referenced by createNode(), setContext(), and solveLeaf().

◆ leaf

final boolean frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.leaf

protected

true when the variable is a leaf node, and false otherwise

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), setContext(), and solveLeaf().

◆ nbrChildren

int frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.nbrChildren

protected

The number of children of this variable.

Referenced by storeCOSTmsg(), and VariableInfo().

◆ nextCostMsg

Message frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.nextCostMsg

protected

The next cost message to be sent.

Referenced by storeCOSTmsg().

◆ node

SearchNode<V> frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.node

protected

The distribution corresponding to the current context.

Referenced by finishedSampling(), getFinalBound(), sample(), setContext(), storeCOSTmsg(), and toString().

◆ parent

String frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.parent

protected

The parent of the variable.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), solveSingleton(), storeCOSTmsg(), and VariableInfo().

◆ parentFinished

boolean frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.parentFinished

protected

true when the parent finished sampling

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ penalty

AddableReal frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.penalty

protected

penalty used to replace an infeasible solution

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), solveLeaf(), and storeCOSTmsg().

◆ receivedNormalize

boolean frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.receivedNormalize

protected

true when normalization is finished for this variable, and false otherwise

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ reportedSample

AddableReal frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.reportedSample

protected

sum of all samples reported by the children for the current context

Referenced by storeCOSTmsg().

◆ sampler

SamplingProcedure<V> frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.sampler

protected

The sampler used.

Referenced by sample(), and storeCOSTmsg().

◆ size

long frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.size

protected

The maximal number of nodes below any node of this variable.

Referenced by setSize().

◆ space

UtilitySolutionSpace<V, AddableReal> frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.space

protected

The local problem of the variable.

Referenced by sample(), setContext(), solveLeaf(), solveSingleton(), and storeConstraint().

◆ termination

TerminationCondition<V> frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.termination

private

The termination condition used.

Referenced by finishedSampling().

◆ toBeProcessed

ArrayList<VALUEmsg<V> > frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.toBeProcessed

protected

List of to be processed value messages.

Referenced by frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn().

◆ variableID

String frodo2.algorithms.duct.Sampling< V extends Addable< V > >.VariableInfo.variableID

protected

The name of the variable.

Referenced by getAssignmentMessage(), getNewValueMessage(), frodo2.algorithms.duct.Sampling< V extends Addable< V > >.notifyIn(), setSeparator(), toString(), and VariableInfo().

The documentation for this class was generated from the following file:

src/frodo2/algorithms/duct/Sampling.java

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VariableInfo()

Member Function Documentation

◆ createNode()

◆ finishedSampling()

◆ getAssignmentMessage() [1/2]

◆ getAssignmentMessage() [2/2]

◆ getChildren()

◆ getCostMessage()

◆ getFinalBound()

◆ getNewValueMessage()

◆ getParent()

◆ sample()

◆ setContext()

◆ setSeparator()

◆ setSize()

◆ solveLeaf()

◆ solveSingleton()

◆ storeConstraint()

◆ storeCOSTmsg()

◆ toString()

Member Data Documentation

◆ bound

◆ children

◆ context

◆ contextPointer

◆ contextSize

◆ contextVariables

◆ costMessagesReceived

◆ currentValue

◆ currentValueIndex

◆ distributions

◆ domain

◆ domainSize

◆ leaf

◆ nbrChildren

◆ nextCostMsg

◆ node

◆ parent

◆ parentFinished

◆ penalty

◆ receivedNormalize

◆ reportedSample

◆ sampler

◆ size

◆ space

◆ termination

◆ toBeProcessed

◆ variableID
