org.jacop.constraints.SoftGCCCloneable Class Reference

A cloneable version of the SoftGCC constraint. More...

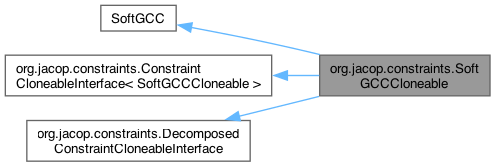

Inheritance diagram for org.jacop.constraints.SoftGCCCloneable:

Classes
class	SoftGCCBuilderCloneable
	A NetworkBuilder for SoftGCCCloneable. More...

Public Member Functions
	SoftGCCCloneable (IntVarCloneable[] xVars, IntVarCloneable[] hardCounters, IntVarCloneable[] softCounters, IntVarCloneable costVar, ViolationMeasure violationMeasure)
	It specifies soft-GCC constraint.
	SoftGCCCloneable (IntVarCloneable[] xVars, IntVarCloneable[] hardCounters, int[] countedValue, IntVarCloneable[] softCounters, IntVarCloneable costVar, ViolationMeasure violationMeasure)
	It specifies soft-GCC constraint.
	SoftGCCCloneable (IntVarCloneable[] xVars, IntVarCloneable[] hardCounters, int[] softLowerBound, int[] softUpperBound, IntVarCloneable costVar, ViolationMeasure violationMeasure)
	It specifies soft-GCC constraint.
	SoftGCCCloneable (IntVarCloneable[] xVars, int[] hardLowerBound, int[] hardUpperBound, IntVarCloneable[] softCounters, IntVarCloneable costVar, ViolationMeasure violationMeasure)
	It specifies soft-GCC constraint.
	SoftGCCCloneable (IntVarCloneable[] xVars, IntVarCloneable[] hardCounters, int[] countedValue, int[] softLowerBound, int[] softUpperBound, IntVarCloneable costVar, ViolationMeasure violationMeasure)
	It specifies soft-GCC constraint.
	SoftGCCCloneable (IntVarCloneable[] xVars, int[] hardLowerBound, int[] hardUpperBound, int[] countedValue, IntVarCloneable[] softCounters, IntVarCloneable costVar, ViolationMeasure violationMeasure)
	It specifies soft-GCC constraint.
SoftGCCCloneable	cloneInto (StoreCloneable targetStore) throws FailException
List< IntVar >	arguments ()
String	id ()
List< Constraint >	decompose (Store store)
Public Member Functions inherited from org.jacop.constraints.ConstraintCloneableInterface< SoftGCCCloneable >
abstract C	cloneInto (StoreCloneable targetStore) throws CloneNotSupportedException, FailException
	Creates a new constraint that is a (state-less) clone of this one, but expressed on the variables with the same names found in the input store.

Private Attributes
final String	id
	This constraint's ID/name.

Static Private Attributes
static int	idNbr = 0
	Used to increment the id of constraints.

Detailed Description

A cloneable version of the SoftGCC constraint.

Author

Thomas Leaute

Constructor & Destructor Documentation

SoftGCCCloneable() [1/6]

org.jacop.constraints.SoftGCCCloneable.SoftGCCCloneable	(	IntVarCloneable[]	xVars,
		IntVarCloneable[]	hardCounters,
		IntVarCloneable[]	softCounters,
		IntVarCloneable	costVar,
		ViolationMeasure	violationMeasure )

It specifies soft-GCC constraint.

Parameters

xVars	variables over which counting takes place.
hardCounters	counter variables for different values being counted. (hard)
softCounters	counter variables that may be violated.
costVar	a cost variable specifying the cost of violations.
violationMeasure	it is only accepted to use Value_Based violation measure.

References idNbr.

Referenced by cloneInto().

SoftGCCCloneable() [2/6]

org.jacop.constraints.SoftGCCCloneable.SoftGCCCloneable	(	IntVarCloneable[]	xVars,
		IntVarCloneable[]	hardCounters,
		int[]	countedValue,
		IntVarCloneable[]	softCounters,
		IntVarCloneable	costVar,
		ViolationMeasure	violationMeasure )

It specifies soft-GCC constraint.

Parameters

xVars	variables over which counting takes place.
hardCounters	counter variables for different values being counted. (hard)
countedValue	it specifies values which occurrence is being counted.
softCounters	counter variables for different values being counted. (soft)
costVar	a cost variable specifying the cost of violations.
violationMeasure	it is only accepted to use Value_Based violation measure.

References idNbr.

SoftGCCCloneable() [3/6]

org.jacop.constraints.SoftGCCCloneable.SoftGCCCloneable	(	IntVarCloneable[]	xVars,
		IntVarCloneable[]	hardCounters,
		int[]	softLowerBound,
		int[]	softUpperBound,
		IntVarCloneable	costVar,
		ViolationMeasure	violationMeasure )

It specifies soft-GCC constraint.

Parameters

xVars	variables over which counting takes place.
hardCounters	counter variables for different values being counted. (hard)
softLowerBound	it specifies constraint what is the minimal number of occurrences. (soft)
softUpperBound	it specifies constraint what is the maximal number of occurrences. (soft)
costVar	a cost variable specifying the cost of violations.
violationMeasure	it is only accepted to use Value_Based violation measure.

References idNbr.

SoftGCCCloneable() [4/6]

org.jacop.constraints.SoftGCCCloneable.SoftGCCCloneable	(	IntVarCloneable[]	xVars,
		int[]	hardLowerBound,
		int[]	hardUpperBound,
		IntVarCloneable[]	softCounters,
		IntVarCloneable	costVar,
		ViolationMeasure	violationMeasure )

It specifies soft-GCC constraint.

Parameters

xVars	variables over which counting takes place.
hardLowerBound	it specifies constraint what is the minimal number of occurrences. (hard)
hardUpperBound	it specifies constraint what is the maximal number of occurrences. (hard)
softCounters	counter variables for different values being counted. (soft)
costVar	a cost variable specifying the cost of violations.
violationMeasure	it is only accepted to use Value_Based violation measure.

References idNbr.

SoftGCCCloneable() [5/6]

org.jacop.constraints.SoftGCCCloneable.SoftGCCCloneable	(	IntVarCloneable[]	xVars,
		IntVarCloneable[]	hardCounters,
		int[]	countedValue,
		int[]	softLowerBound,
		int[]	softUpperBound,
		IntVarCloneable	costVar,
		ViolationMeasure	violationMeasure )

It specifies soft-GCC constraint.

Parameters

xVars	variables over which counting takes place.
hardCounters	counter variables for different values being counted. Their domain specify hard constraints on the occurrences.
countedValue	it specifies values which occurrence is being counted.
softLowerBound	it specifies constraint what is the minimal number of occurrences.
softUpperBound	it specifies constraint what is the maximal number of occurrences.
costVar	a cost variable specifying the cost of violations.
violationMeasure	it is only accepted to use Value_Based violation measure.

References idNbr.

SoftGCCCloneable() [6/6]

org.jacop.constraints.SoftGCCCloneable.SoftGCCCloneable	(	IntVarCloneable[]	xVars,
		int[]	hardLowerBound,
		int[]	hardUpperBound,
		int[]	countedValue,
		IntVarCloneable[]	softCounters,
		IntVarCloneable	costVar,
		ViolationMeasure	violationMeasure )

It specifies soft-GCC constraint.

Parameters

xVars	variables over which counting takes place.
hardLowerBound	it specifies constraint what is the minimal number of occurrences. (hard)
hardUpperBound	it specifies constraint what is the maximal number of occurrences. (hard)
countedValue	it specifies values which occurrence is being counted.
softCounters	it specifies the number of occurrences (soft).
costVar	a cost variable specifying the cost of violations.
violationMeasure	it is only accepted to use Value_Based violation measure.

References idNbr.

Member Function Documentation

arguments()

List< IntVar > org.jacop.constraints.SoftGCCCloneable.arguments

(

)

See also

org.jacop.constraints.DecomposedConstraintCloneableInterface.arguments()

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

cloneInto()

SoftGCCCloneable org.jacop.constraints.SoftGCCCloneable.cloneInto

(

StoreCloneable

targetStore

)

throws FailException

See also

org.jacop.constraints.ConstraintCloneableInterface.cloneInto(org.jacop.core.StoreCloneable)

References SoftGCCCloneable().

Here is the call graph for this function:

decompose()

List< Constraint > org.jacop.constraints.SoftGCCCloneable.decompose

(

Store

store

)

See also

org.jacop.constraints.SoftGCC#decompose(org.jacop.core.Store)

id()

String org.jacop.constraints.SoftGCCCloneable.id

(

)

See also

org.jacop.constraints.DecomposedConstraintCloneableInterface.id()

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

Member Data Documentation

id

final String org.jacop.constraints.SoftGCCCloneable.id

private

This constraint's ID/name.

idNbr

int org.jacop.constraints.SoftGCCCloneable.idNbr = 0

staticprivate

Used to increment the id of constraints.

Referenced by SoftGCCCloneable(), SoftGCCCloneable(), SoftGCCCloneable(), SoftGCCCloneable(), SoftGCCCloneable(), and SoftGCCCloneable().

---

The documentation for this class was generated from the following file:

• src/org/jacop/constraints/SoftGCCCloneable.java
