A matrix over a finite field. More...

Inheritance diagram for frodo2.algorithms.mpc_discsp.Matrix:

Inheritance graph

[legend]

Public Member Functions
	Matrix (BigInteger[][] A, BigInteger mod)
	Constructor.
	Matrix (int m, int n, BigInteger mod)
	Constructor.
	Matrix (BigInteger[] v, BigInteger costModulo)
	Constructs a row vector.
String	toString ()
Matrix	inverse ()
BigInteger[][]	getArray ()
BigInteger[][]	getArrayCopy ()
Matrix	solve (Matrix B)
	Solves A*X = B, assuming this matrix is square and invertible.
int	getRowDimension ()
int	getColumnDimension ()
Matrix	getMatrix (final int[] r, final int j0, final int j1)
	Get a submatrix.
Matrix	times (final Matrix B)
	Multiplication.
void	set (int i, int j, BigInteger s)
	Sets a coefficient.

Static Public Member Functions
static Matrix	identity (final int m, final int n, BigInteger mod)
	Generates an identity matrix.

Protected Attributes
BigInteger[][]	A
	The coefficients.
final int	m
	The number of rows.
final int	n
	The number of columns.
final BigInteger	mod
	The prime modulus used for finite-field arithmetic.

Detailed Description

A matrix over a finite field.

Author: Thomas Leaute

See also: "http://math.nist.gov/javanumerics/jama/"

Constructor & Destructor Documentation

◆ Matrix() [1/3]

frodo2.algorithms.mpc_discsp.Matrix.Matrix	(	BigInteger	A[][],
		BigInteger	mod )

Constructor.

Parameters

A	The coefficients
mod	The prime modulus

References A, m, mod, and n.

Referenced by getMatrix(), identity(), inverse(), frodo2.algorithms.mpc_discsp.LUdecomposition.LUdecomposition(), frodo2.algorithms.mpc_discsp.LUdecomposition.solve(), solve(), and times().

◆ Matrix() [2/3]

frodo2.algorithms.mpc_discsp.Matrix.Matrix	(	int	m,
		int	n,
		BigInteger	mod )

Constructor.

Parameters

m	The number of rows
n	The number of columns
mod	The prime modulus

References A, m, mod, and n.

◆ Matrix() [3/3]

frodo2.algorithms.mpc_discsp.Matrix.Matrix	(	BigInteger[]	v,
		BigInteger	costModulo )

Constructs a row vector.

Parameters

v	the elements
costModulo	the prime modulo

Member Function Documentation

◆ getArray()

BigInteger[][] frodo2.algorithms.mpc_discsp.Matrix.getArray ( )

Returns: the coefficients

References A.

Referenced by getMatrix(), frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.notifyIn(), frodo2.algorithms.mpc_discsp.LUdecomposition.solve(), and times().

◆ getArrayCopy()

BigInteger[][] frodo2.algorithms.mpc_discsp.Matrix.getArrayCopy ( )

Returns: a deep copy of the coefficients

References A, m, and n.

Referenced by frodo2.algorithms.mpc_discsp.LUdecomposition.LUdecomposition().

◆ getColumnDimension()

int frodo2.algorithms.mpc_discsp.Matrix.getColumnDimension ( )

Returns: the number of columns

References n.

Referenced by frodo2.algorithms.mpc_discsp.LUdecomposition.solve().

◆ getMatrix()

Matrix frodo2.algorithms.mpc_discsp.Matrix.getMatrix	(	final int[]	r,
		final int	j0,
		final int	j1 )

Get a submatrix.

Parameters

r	Array of row indices.
j0	Initial column index
j1	Final column index

Returns: A(r(:),j0:j1)

References A, getArray(), Matrix(), and mod.

Referenced by frodo2.algorithms.mpc_discsp.LUdecomposition.solve().

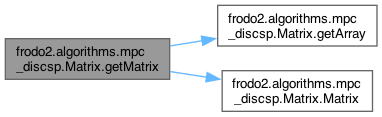

Here is the call graph for this function:

◆ getRowDimension()

int frodo2.algorithms.mpc_discsp.Matrix.getRowDimension ( )

Returns: the number of rows

References m.

Referenced by frodo2.algorithms.mpc_discsp.LUdecomposition.solve().

◆ identity()

Matrix frodo2.algorithms.mpc_discsp.Matrix.identity	(	final int	m,
		final int	n,
		BigInteger	mod )

static

Generates an identity matrix.

Parameters

m	The number of rows
n	The number of columns
mod	The prime modulus

Returns: identity matrix

References A, m, Matrix(), mod, and n.

Referenced by frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.init(), and inverse().

Here is the call graph for this function:

◆ inverse()

Matrix frodo2.algorithms.mpc_discsp.Matrix.inverse ( )

Returns: the inverse of this matrix, assuming it exists

References identity(), m, Matrix(), mod, and solve().

Referenced by frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.init().

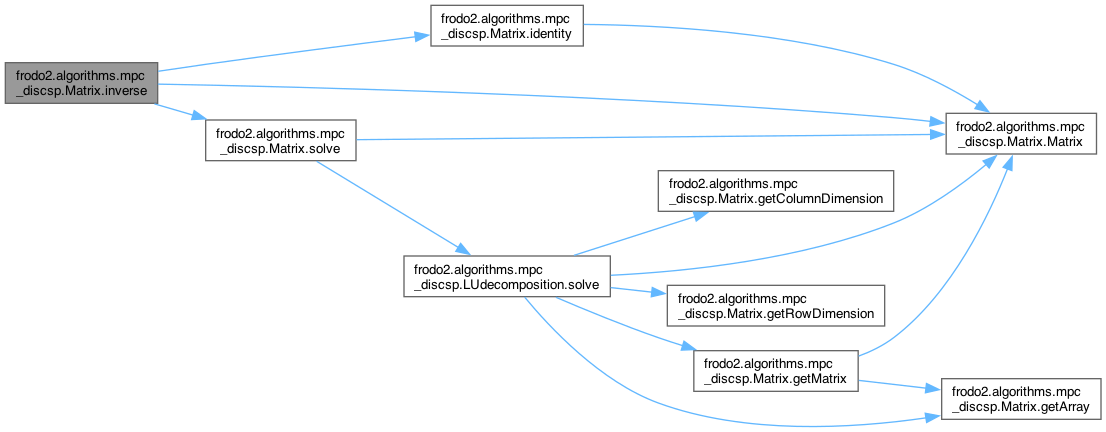

Here is the call graph for this function:

◆ set()

void frodo2.algorithms.mpc_discsp.Matrix.set	(	int	i,
		int	j,
		BigInteger	s )

Sets a coefficient.

Parameters

i	row number
j	column number
s	value

References A.

Referenced by frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.init().

◆ solve()

Matrix frodo2.algorithms.mpc_discsp.Matrix.solve ( Matrix B )

Solves A*X = B, assuming this matrix is square and invertible.

Parameters

B	right-hand-side matrix

Returns: X

Reimplemented in frodo2.algorithms.mpc_discsp.LUdecomposition.

References Matrix(), mod, and frodo2.algorithms.mpc_discsp.LUdecomposition.solve().

Referenced by inverse().

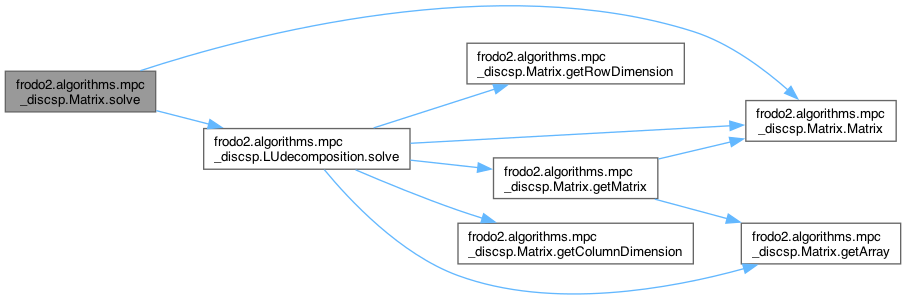

Here is the call graph for this function:

◆ times()

Matrix frodo2.algorithms.mpc_discsp.Matrix.times ( final Matrix B )

Multiplication.

Parameters

B	the other matrix

Returns: A*B

References A, getArray(), m, Matrix(), mod, and n.

Referenced by frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.init(), and frodo2.algorithms.mpc_discsp.MPC_DisCSP4< V extends Addable< V > >.notifyIn().

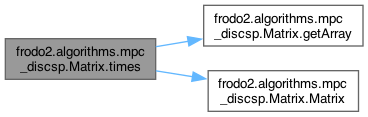

Here is the call graph for this function:

◆ toString()

String frodo2.algorithms.mpc_discsp.Matrix.toString ( )

See also: java.lang.Object#toString()

Member Data Documentation

◆ A

BigInteger [][] frodo2.algorithms.mpc_discsp.Matrix.A

protected

The coefficients.

Referenced by getArray(), getArrayCopy(), getMatrix(), identity(), frodo2.algorithms.mpc_discsp.LUdecomposition.LUdecomposition(), Matrix(), Matrix(), set(), frodo2.algorithms.mpc_discsp.LUdecomposition.solve(), and times().

◆ m

final int frodo2.algorithms.mpc_discsp.Matrix.m

protected

The number of rows.

Referenced by getArrayCopy(), getRowDimension(), identity(), inverse(), frodo2.algorithms.mpc_discsp.LUdecomposition.LUdecomposition(), Matrix(), Matrix(), frodo2.algorithms.mpc_discsp.LUdecomposition.solve(), and times().

◆ mod

final BigInteger frodo2.algorithms.mpc_discsp.Matrix.mod

protected

The prime modulus used for finite-field arithmetic.

Referenced by getMatrix(), identity(), inverse(), frodo2.algorithms.mpc_discsp.LUdecomposition.LUdecomposition(), Matrix(), Matrix(), frodo2.algorithms.mpc_discsp.LUdecomposition.solve(), solve(), and times().

◆ n

final int frodo2.algorithms.mpc_discsp.Matrix.n

protected

The number of columns.

Referenced by getArrayCopy(), getColumnDimension(), identity(), frodo2.algorithms.mpc_discsp.LUdecomposition.LUdecomposition(), Matrix(), Matrix(), frodo2.algorithms.mpc_discsp.LUdecomposition.solve(), and times().

The documentation for this class was generated from the following file:

src/frodo2/algorithms/mpc_discsp/Matrix.java
