org.jacop.constraints.LexCloneable Class Reference

A cloneable version of the Lex constraint. More...

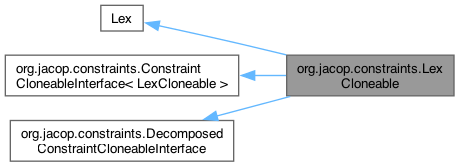

Inheritance diagram for org.jacop.constraints.LexCloneable:

Public Member Functions
	LexCloneable (IntVarCloneable[][] x)
	It creates a lexicographical order for vectors x[i], i.e.
	LexCloneable (IntVarCloneable[][] x, boolean lt)
	It creates a lexicographical order for vectors x[i], i.e.
LexCloneable	cloneInto (StoreCloneable targetStore) throws FailException
ArrayList< IntVar >	arguments ()
String	id ()
List< Constraint >	decomposeLERegular (Store store)
List< Constraint >	decomposeLTRegular (Store store)
List< Constraint >	decomposeLT (Store store)
List< Constraint >	decomposeLE (Store store)
Public Member Functions inherited from org.jacop.constraints.ConstraintCloneableInterface< LexCloneable >
abstract C	cloneInto (StoreCloneable targetStore) throws CloneNotSupportedException, FailException
	Creates a new constraint that is a (state-less) clone of this one, but expressed on the variables with the same names found in the input store.

Private Attributes
final String	id
	This constraint's ID/name.

Static Private Attributes
static int	idNbr = 0
	Used to increment the id of constraints.

Detailed Description

A cloneable version of the Lex constraint.

Author

Thomas Leaute

Constructor & Destructor Documentation

LexCloneable() [1/2]

org.jacop.constraints.LexCloneable.LexCloneable

(

IntVarCloneable

x[][]

)

It creates a lexicographical order for vectors x[i], i.e.

forall i, exists j : x[i][k] = x[i+1][k] for k < j and x[i][k] <= x[i+1][k] for k >= j

vectors x[i] does not need to be of the same size.

Parameters

x	vector of vectors which assignment is constrained by Lex constraint.

References idNbr.

Referenced by cloneInto().

LexCloneable() [2/2]

org.jacop.constraints.LexCloneable.LexCloneable	(	IntVarCloneable	x[][],
		boolean	lt )

It creates a lexicographical order for vectors x[i], i.e.

forall i, exists j : x[i][k] = x[i+1][k] for k < j and x[i][k] <= x[i+1][k] for k >= j

vectors x[i] does not need to be of the same size.

Parameters

x	vector of vectors which assignment is constrained by Lex constraint.
lt	defines if we require Lex_{<} (lt = false) or Lex_{<=} (lt = true)

References idNbr.

Member Function Documentation

arguments()

ArrayList< IntVar > org.jacop.constraints.LexCloneable.arguments

(

)

See also

DecomposedConstraintCloneableInterface.arguments()

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

cloneInto()

LexCloneable org.jacop.constraints.LexCloneable.cloneInto

(

StoreCloneable

targetStore

)

throws FailException

See also

ConstraintCloneableInterface.cloneInto(StoreCloneable)

References LexCloneable().

Here is the call graph for this function:

decomposeLE()

List< Constraint > org.jacop.constraints.LexCloneable.decomposeLE

(

Store

store

)

See also

org.jacop.constraints.Lex#decomposeLE(org.jacop.core.Store)

decomposeLERegular()

List< Constraint > org.jacop.constraints.LexCloneable.decomposeLERegular

(

Store

store

)

See also

org.jacop.constraints.Lex#decomposeLERegular(org.jacop.core.Store)

decomposeLT()

List< Constraint > org.jacop.constraints.LexCloneable.decomposeLT

(

Store

store

)

See also

org.jacop.constraints.Lex#decomposeLT(org.jacop.core.Store)

decomposeLTRegular()

List< Constraint > org.jacop.constraints.LexCloneable.decomposeLTRegular

(

Store

store

)

See also

org.jacop.constraints.Lex#decomposeLTRegular(org.jacop.core.Store)

id()

String org.jacop.constraints.LexCloneable.id

(

)

See also

DecomposedConstraintCloneableInterface.id()

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

Member Data Documentation

id

final String org.jacop.constraints.LexCloneable.id

private

This constraint's ID/name.

idNbr

int org.jacop.constraints.LexCloneable.idNbr = 0

staticprivate

Used to increment the id of constraints.

Referenced by LexCloneable(), and LexCloneable().

---

The documentation for this class was generated from the following file:

• src/org/jacop/constraints/LexCloneable.java
