org.jacop.constraints.diffn.NooverlapCloneable Class Reference

A cloneable version of the Nooverlap constraint. More...

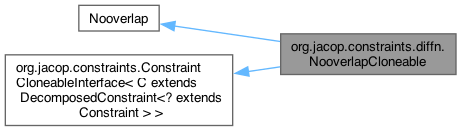

Inheritance diagram for org.jacop.constraints.diffn.NooverlapCloneable:

Public Member Functions
	NooverlapCloneable (IntVarCloneable[][] rectangle)
	It specifies a diff constraint.
	NooverlapCloneable (IntVarCloneable[][] rectangle, boolean strict)
	It specifies a diff constraint.
	NooverlapCloneable (IntVarCloneable[] origin1, IntVarCloneable[] origin2, IntVarCloneable[] length1, IntVarCloneable[] length2)
	It constructs a diff constraint.
	NooverlapCloneable (IntVarCloneable[] origin1, IntVarCloneable[] origin2, IntVarCloneable[] length1, IntVarCloneable[] length2, boolean strict)
	It constructs a diff constraint.
	NooverlapCloneable (List<? extends List<? extends IntVarCloneable > > rectangle)
	It specifies a diffn constraint.
	NooverlapCloneable (List<? extends List<? extends IntVarCloneable > > rectangle, boolean strict)
	It specifies a diffn constraint.
	NooverlapCloneable (List<? extends IntVarCloneable > o1, List<? extends IntVarCloneable > o2, List<? extends IntVarCloneable > l1, List<? extends IntVarCloneable > l2)
	It constructs a diff constraint.
	NooverlapCloneable (List<? extends IntVarCloneable > o1, List<? extends IntVarCloneable > o2, List<? extends IntVarCloneable > l1, List<? extends IntVarCloneable > l2, boolean strict)
	It constructs a diff constraint.
NooverlapCloneable	cloneInto (StoreCloneable targetStore) throws FailException

Detailed Description

A cloneable version of the Nooverlap constraint.

Author

Thomas Leaute

Constructor & Destructor Documentation

NooverlapCloneable() [1/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable

(

IntVarCloneable

rectangle[][]

)

It specifies a diff constraint.

Parameters

rectangle

list of rectangles which can not overlap in at least one dimension.

Referenced by cloneInto().

NooverlapCloneable() [2/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable	(	IntVarCloneable	rectangle[][],
		boolean	strict )

It specifies a diff constraint.

Parameters

rectangle	list of rectangles which can not overlap in at least one dimension.
strict	true- zero size rectangles need to be between other rectangles; false- these rectangles can be anywhere

NooverlapCloneable() [3/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable	(	IntVarCloneable[]	origin1,
		IntVarCloneable[]	origin2,
		IntVarCloneable[]	length1,
		IntVarCloneable[]	length2 )

It constructs a diff constraint.

Parameters

origin1	list of variables denoting origin of the rectangle in the first dimension.
origin2	list of variables denoting origin of the rectangle in the second dimension.
length1	list of variables denoting length of the rectangle in the first dimension.
length2	list of variables denoting length of the rectangle in the second dimension.

NooverlapCloneable() [4/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable	(	IntVarCloneable[]	origin1,
		IntVarCloneable[]	origin2,
		IntVarCloneable[]	length1,
		IntVarCloneable[]	length2,
		boolean	strict )

It constructs a diff constraint.

Parameters

origin1	list of variables denoting origin of the rectangle in the first dimension.
origin2	list of variables denoting origin of the rectangle in the second dimension.
length1	list of variables denoting length of the rectangle in the first dimension.
length2	list of variables denoting length of the rectangle in the second dimension.
strict	true- zero size rectangles need to be between other rectangles; false- these rectangles can be anywhere

NooverlapCloneable() [5/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable

(

List<? extends List<? extends IntVarCloneable > >

rectangle

)

It specifies a diffn constraint.

Parameters

rectangle

list of rectangles which can not overlap in at least one dimension.

NooverlapCloneable() [6/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable	(	List<? extends List<? extends IntVarCloneable > >	rectangle,
		boolean	strict )

It specifies a diffn constraint.

Parameters

rectangle	list of rectangles which can not overlap in at least one dimension.
strict	true- zero size rectangles need to be between other rectangles; false- these rectangles can be anywhere

NooverlapCloneable() [7/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable	(	List<? extends IntVarCloneable >	o1,
		List<? extends IntVarCloneable >	o2,
		List<? extends IntVarCloneable >	l1,
		List<? extends IntVarCloneable >	l2 )

It constructs a diff constraint.

Parameters

o1	list of variables denoting origin of the rectangle in the first dimension.
o2	list of variables denoting origin of the rectangle in the second dimension.
l1	list of variables denoting length of the rectangle in the first dimension.
l2	list of variables denoting length of the rectangle in the second dimension.

NooverlapCloneable() [8/8]

org.jacop.constraints.diffn.NooverlapCloneable.NooverlapCloneable	(	List<? extends IntVarCloneable >	o1,
		List<? extends IntVarCloneable >	o2,
		List<? extends IntVarCloneable >	l1,
		List<? extends IntVarCloneable >	l2,
		boolean	strict )

It constructs a diff constraint.

Parameters

o1	list of variables denoting origin of the rectangle in the first dimension.
o2	list of variables denoting origin of the rectangle in the second dimension.
l1	list of variables denoting length of the rectangle in the first dimension.
l2	list of variables denoting length of the rectangle in the second dimension.
strict	true- zero size rectangles need to be between other rectangles; false- these rectangles can be anywhere

Member Function Documentation

cloneInto()

NooverlapCloneable org.jacop.constraints.diffn.NooverlapCloneable.cloneInto

(

StoreCloneable

targetStore

)

throws FailException

See also

org.jacop.constraints.ConstraintCloneableInterface.cloneInto(org.jacop.core.StoreCloneable)

Implements org.jacop.constraints.ConstraintCloneableInterface< C extends DecomposedConstraint<? extends Constraint > >.

References NooverlapCloneable().

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/org/jacop/constraints/diffn/NooverlapCloneable.java
