Predicate wrapper that translates a predicate expression from XCSP into constraints available in JaCoP. More...

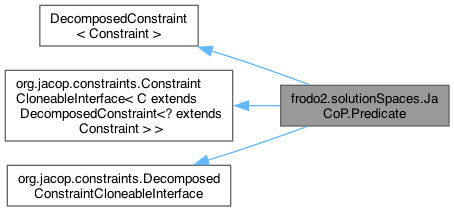

Inheritance diagram for frodo2.solutionSpaces.JaCoP.Predicate:

[legend]

Public Member Functions
	Predicate (String constraintParameters, String predicateParameters, String description, StoreCloneable store)
	It creates/imposes constraints into the store as soon as the Predicate constraint is being imposed.
String	toString ()
ArrayList< Constraint >	decompose (Store store) throws FailException
PrimitiveConstraint	getConstraint (StoreCloneable store) throws FailException
	It allows to obtain the constraint specified by the predicate without imposing it.
void	imposeDecomposition (Store store) throws FailException
ArrayList< Var >	auxiliaryVariables ()
List< IntVarCloneable >	arguments ()
Predicate	cloneInto (StoreCloneable targetStore) throws CloneNotSupportedException
String	id ()

Package Attributes
String	constraintParameters
	The XCSP parameters of the constraint.
final boolean	debug = false
	Whether to print out debug information.
String	description
	The functional representation of the predicate.
StoreCloneable	store
	The constraint store.
String	predicateParameters
	The XCSP parameters of the predicate.
ArrayList< Constraint >	decompositionConstraints
	The auxiliary constraints created.
ArrayList< Var >	auxilaryVariables
	The auxiliary variables created.
IntVarCloneable	valuationVar
	The utility variable (if this is a soft constraint).

Private Member Functions
Object	parse (String token, StringTokenizer tokenizer, StoreCloneable store, HashMap< String, Object > variableMaping) throws FailException

Static Private Member Functions
static IntVarCloneable	getIntVarCloneable (StoreCloneable store, String name, String name2, int minVal, int maxVal) throws FailException
	Looks up or creates a variable in the input store.
static IntVarCloneable	getIntVarCloneable (StoreCloneable store, String name, String name2, IntDomain dom) throws FailException
	Looks up or creates a variable in the input store.

Detailed Description

Predicate wrapper that translates a predicate expression from XCSP into constraints available in JaCoP.

It accepts only functional representation. Possibly, some auxiliary variables will be created.

Author: Radoslaw Szymanek and Krzysztof Kuchcinski for the initial version developed for JaCoP 2.4;; Arnaud Jutzeler and Thomas Leaute for the modified version ported to FRODO and JaCoP 3.

Constructor & Destructor Documentation

◆ Predicate()

frodo2.solutionSpaces.JaCoP.Predicate.Predicate	(	String	constraintParameters,
		String	predicateParameters,
		String	description,
		StoreCloneable	store )

It creates/imposes constraints into the store as soon as the Predicate constraint is being imposed.

Parameters

constraintParameters	parameters to the constraint.
predicateParameters	parameters specified within a predicate definition.
description	description of the constraint specified as the predicate.
store	the constraint store in which context the constraints are being created/imposed.

References constraintParameters, decompose(), description, predicateParameters, and store.

Referenced by cloneInto().

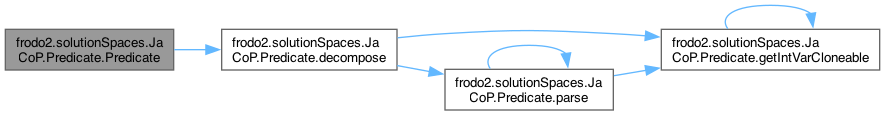

Here is the call graph for this function:

Member Function Documentation

◆ arguments()

List< IntVarCloneable > frodo2.solutionSpaces.JaCoP.Predicate.arguments ( )

See also: org.jacop.constraints.DecomposedConstraintCloneableInterface.arguments()

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

References valuationVar.

◆ auxiliaryVariables()

ArrayList< Var > frodo2.solutionSpaces.JaCoP.Predicate.auxiliaryVariables ( )

See also: org.jacop.constraints.DecomposedConstraint#auxiliaryVariables()

References auxilaryVariables.

◆ cloneInto()

Predicate frodo2.solutionSpaces.JaCoP.Predicate.cloneInto ( StoreCloneable targetStore ) throws CloneNotSupportedException

See also: org.jacop.constraints.ConstraintCloneableInterface.cloneInto(org.jacop.core.StoreCloneable)

Implements org.jacop.constraints.ConstraintCloneableInterface< C extends DecomposedConstraint<? extends Constraint > >.

References Predicate().

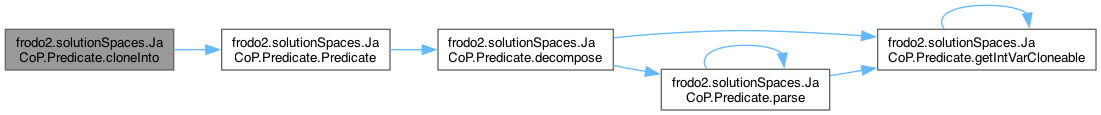

Here is the call graph for this function:

◆ decompose()

ArrayList< Constraint > frodo2.solutionSpaces.JaCoP.Predicate.decompose ( Store store ) throws FailException

See also: org.jacop.constraints.DecomposedConstraint#decompose(org.jacop.core.Store)

References auxilaryVariables, constraintParameters, debug, decompositionConstraints, description, getIntVarCloneable(), parse(), predicateParameters, and store.

Referenced by imposeDecomposition(), and Predicate().

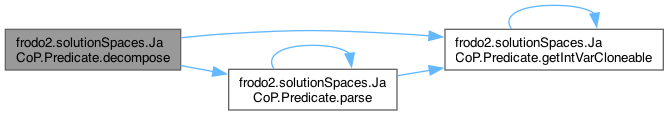

Here is the call graph for this function:

◆ getConstraint()

PrimitiveConstraint frodo2.solutionSpaces.JaCoP.Predicate.getConstraint ( StoreCloneable store ) throws FailException

It allows to obtain the constraint specified by the predicate without imposing it.

Parameters

store the constraint store in which context the constraint is being created.

Returns: the constraint represented by this predicate constraint (expression).

Exceptions

FailException thrown if a variable with an empty domain was encountered

Bug: Can't the token also be an IntVar or an Integer?...

References constraintParameters, debug, description, parse(), predicateParameters, and store.

Here is the call graph for this function:

◆ getIntVarCloneable() [1/2]

IntVarCloneable frodo2.solutionSpaces.JaCoP.Predicate.getIntVarCloneable	(	StoreCloneable	store,
		String	name,
		String	name2,
		int	minVal,
		int	maxVal ) throws FailException

staticprivate

Looks up or creates a variable in the input store.

Parameters

store	the store
name	the name of the variable
name2	another, synonymous name for the variable (if any)
minVal	minimum variable value
maxVal	maximum variable value

Returns: the variable

Exceptions

FailException if the resulting variable domain is empty

References getIntVarCloneable(), and store.

Referenced by decompose(), getIntVarCloneable(), and parse().

Here is the call graph for this function:

◆ getIntVarCloneable() [2/2]

IntVarCloneable frodo2.solutionSpaces.JaCoP.Predicate.getIntVarCloneable	(	StoreCloneable	store,
		String	name,
		String	name2,
		IntDomain	dom ) throws FailException

staticprivate

Looks up or creates a variable in the input store.

Parameters

store	the store
name	the name of the variable
name2	another, synonymous name for the variable (if any)
dom	the variable domain

Returns: the variable

Exceptions

FailException if the resulting variable domain is empty

References store.

◆ id()

String frodo2.solutionSpaces.JaCoP.Predicate.id ( )

See also: org.jacop.constraints.DecomposedConstraintCloneableInterface.id()

Todo: Auto-generated method stub

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

◆ imposeDecomposition()

void frodo2.solutionSpaces.JaCoP.Predicate.imposeDecomposition ( Store store ) throws FailException

See also: org.jacop.constraints.DecomposedConstraint#imposeDecomposition(org.jacop.core.Store)

References auxilaryVariables, decompose(), decompositionConstraints, and store.

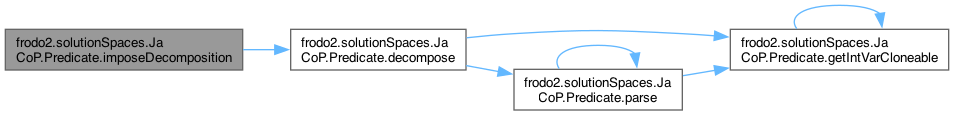

Here is the call graph for this function:

◆ parse()

Object frodo2.solutionSpaces.JaCoP.Predicate.parse	(	String	token,
		StringTokenizer	tokenizer,
		StoreCloneable	store,
		HashMap< String, Object >	variableMaping ) throws FailException

private

Parameters

token	the current token
tokenizer	the tokenizer
store	the constraint store
variableMaping	a mapping from name to variable or constant

Returns: a constraint

Exceptions

FailException thrown if one of the encountered variables has an empty domain

References auxilaryVariables, decompositionConstraints, getIntVarCloneable(), parse(), and store.

Referenced by decompose(), getConstraint(), and parse().

Here is the call graph for this function:

◆ toString()

String frodo2.solutionSpaces.JaCoP.Predicate.toString ( )

See also: java.lang.Object#toString()

Member Data Documentation

◆ auxilaryVariables

ArrayList<Var> frodo2.solutionSpaces.JaCoP.Predicate.auxilaryVariables

package

The auxiliary variables created.

Referenced by auxiliaryVariables(), decompose(), imposeDecomposition(), and parse().

◆ constraintParameters

String frodo2.solutionSpaces.JaCoP.Predicate.constraintParameters

package

The XCSP parameters of the constraint.

Referenced by decompose(), getConstraint(), and Predicate().

◆ debug

final boolean frodo2.solutionSpaces.JaCoP.Predicate.debug = false

package

Whether to print out debug information.

Referenced by decompose(), and getConstraint().

◆ decompositionConstraints

ArrayList<Constraint> frodo2.solutionSpaces.JaCoP.Predicate.decompositionConstraints

package

The auxiliary constraints created.

Referenced by decompose(), imposeDecomposition(), and parse().

◆ description

String frodo2.solutionSpaces.JaCoP.Predicate.description

package

The functional representation of the predicate.

Referenced by decompose(), getConstraint(), and Predicate().

◆ predicateParameters

String frodo2.solutionSpaces.JaCoP.Predicate.predicateParameters

package

The XCSP parameters of the predicate.

Referenced by decompose(), getConstraint(), and Predicate().

◆ store

StoreCloneable frodo2.solutionSpaces.JaCoP.Predicate.store

package

The constraint store.

Referenced by decompose(), getConstraint(), getIntVarCloneable(), getIntVarCloneable(), imposeDecomposition(), parse(), and Predicate().

◆ valuationVar

IntVarCloneable frodo2.solutionSpaces.JaCoP.Predicate.valuationVar

package

The utility variable (if this is a soft constraint).

Referenced by arguments(), and frodo2.solutionSpaces.JaCoP.JaCoPxcspParser< V extends Addable< V > >.parsePredicate().

The documentation for this class was generated from the following file:

src/frodo2/solutionSpaces/JaCoP/Predicate.java
