frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst Class Reference

Best first iterator. More...

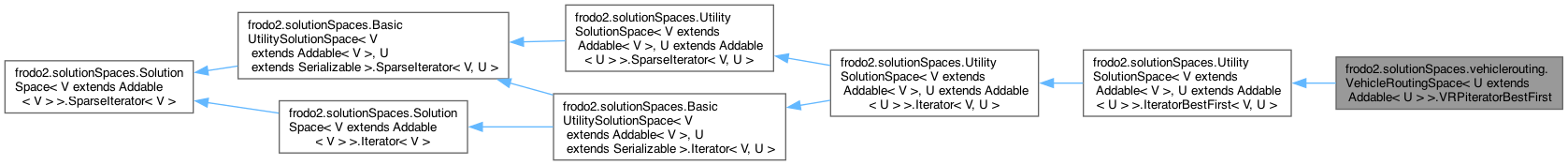

Inheritance diagram for frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst:

Public Member Functions
	VRPiteratorBestFirst (String[] variables, AddableInteger[][] domains, VehicleRoutingSpace< U > space)
	Constructor.
	VRPiteratorBestFirst (String[] variables, AddableInteger[][] domains, VehicleRoutingSpace< U > space, String[] fixedVariables, AddableInteger[] fixedValues)
	Constructor.
U	getCurrentUtility ()
U	getCurrentUtility (U bound, final boolean minimize)
U	nextUtility ()
U	nextUtility (U bound, final boolean minimize)
void	setCurrentUtility (U util)
AddableInteger[]	getCurrentSolution ()
AddableInteger[][]	getDomains ()
long	getNbrSolutions ()
String[]	getVariablesOrder ()
boolean	hasNext ()
AddableInteger[]	nextSolution ()
void	update ()
U	maximalCut ()

Private Member Functions
void	iter ()
	Generates the next solution.

Private Attributes
String[]	variables
	Variables over which to iterate.
boolean[]	fixed
	For each variable, when true, it's value is fixed.
AddableInteger[][]	domains
	The domains for the iteration variables.
AddableInteger[]	currentSolution
	The current solution.
U	currentUtility
	The utility of the current solution.
PriorityQueue< CustomerAssignment< U > >	orderedAssignments
	The set of assignments already.
HashSet< CustomerAssignment< U > >	alreadyGenerated
	Map of already generated assignments.
AddableInteger	one = new AddableInteger(1)
	All variables are binary, and will be either 0 or 1.
VehicleRoutingSpace< U >	space
	The space over which we are iterating.
long	numberOfSolutionsLeft
	The number of solutions left to iterate over.
final long	nbrSolutions
	The total number of solutions.

Detailed Description

Best first iterator.

The best solution is the one where no customer is served.

The generator is based on the idea that a solution serving a set of customers A will always be better than any solution whose set of customers is a proper superset of A. Thus, whenever a solution s is released, a new set of solutions is generated, based on s, where a customer is added.

Author

Brammert Ottens, 28 apr 2010

Constructor & Destructor Documentation

VRPiteratorBestFirst() [1/2]

frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.VRPiteratorBestFirst	(	String[]	variables,
		AddableInteger	domains[][],
		VehicleRoutingSpace< U >	space )

Constructor.

Parameters

variables	variables over which to iterate
domains	domains for the iteration variables
space	the space over which to iterate

References alreadyGenerated, domains, fixed, numberOfSolutionsLeft, orderedAssignments, space, variables, and frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VehicleRoutingSpace().

Here is the call graph for this function:

VRPiteratorBestFirst() [2/2]

frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.VRPiteratorBestFirst	(	String[]	variables,
		AddableInteger	domains[][],
		VehicleRoutingSpace< U >	space,
		String[]	fixedVariables,
		AddableInteger[]	fixedValues )

Constructor.

Parameters

variables	variables over which to iterate
domains	domains for the iteration variables
space	the space over which to iterate
fixedVariables	the variables who's values should be fixed
fixedValues	the values of the fixed variables

References alreadyGenerated, domains, fixed, numberOfSolutionsLeft, orderedAssignments, space, variables, and frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VehicleRoutingSpace().

Here is the call graph for this function:

Member Function Documentation

getCurrentSolution()

AddableInteger[] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.getCurrentSolution

(

)

See also

frodo2.solutionSpaces.SolutionSpace.Iterator.getCurrentSolution()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

References currentSolution.

getCurrentUtility() [1/2]

U frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.getCurrentUtility

(

)

See also

frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.getCurrentUtility()

Implements frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.SparseIterator< V, U >.

References currentUtility.

Referenced by getCurrentUtility(), and nextUtility().

getCurrentUtility() [2/2]

U frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.getCurrentUtility	(	U	bound,
		final boolean	minimize )

See also

frodo2.solutionSpaces.UtilitySolutionSpace.Iterator.getCurrentUtility(java.lang.Object, boolean)

Implements frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable< U > >.SparseIterator< V, U >.

References getCurrentUtility().

Here is the call graph for this function:

getDomains()

AddableInteger[][] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.getDomains

(

)

See also

frodo2.solutionSpaces.SolutionSpace.Iterator.getDomains()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

References domains.

getNbrSolutions()

long frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.getNbrSolutions

(

)

See also

frodo2.solutionSpaces.SolutionSpace.Iterator.getNbrSolutions()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.Iterator< V >.

getVariablesOrder()

String[] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.getVariablesOrder

(

)

See also

frodo2.solutionSpaces.SolutionSpace.Iterator.getVariablesOrder()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

References variables.

hasNext()

boolean frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.hasNext

(

)

See also

frodo2.solutionSpaces.SolutionSpace.Iterator.hasNext()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.Iterator< V >.

Referenced by nextUtility().

iter()

void frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.iter ( )

private

Generates the next solution.

Author

Brammert Ottens, 28 apr 2010

References alreadyGenerated, currentSolution, currentUtility, fixed, frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.CustomerAssignment< U extends Addable< U > >.generateAssignmentList(), frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.CustomerAssignment< U extends Addable< U > >.getAssignment(), frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.CustomerAssignment< U extends Addable< U > >.getUtility(), numberOfSolutionsLeft, one, orderedAssignments, space, and frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.zero.

Referenced by nextSolution(), and nextUtility().

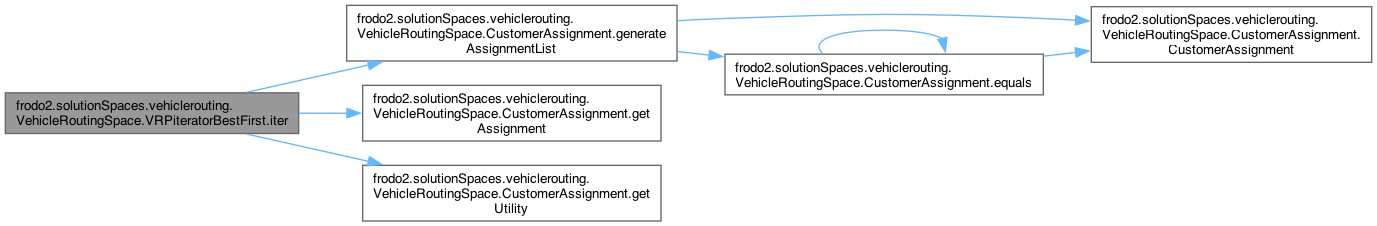

Here is the call graph for this function:

maximalCut()

U frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.maximalCut

(

)

See also

frodo2.solutionSpaces.UtilitySolutionSpace.IteratorBestFirst.maximalCut()

Implements frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable< U > >.IteratorBestFirst< V, U >.

References frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.infeasibleUtil.

nextSolution()

AddableInteger[] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.nextSolution

(

)

See also

frodo2.solutionSpaces.SolutionSpace.Iterator.nextSolution()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

References currentSolution, and iter().

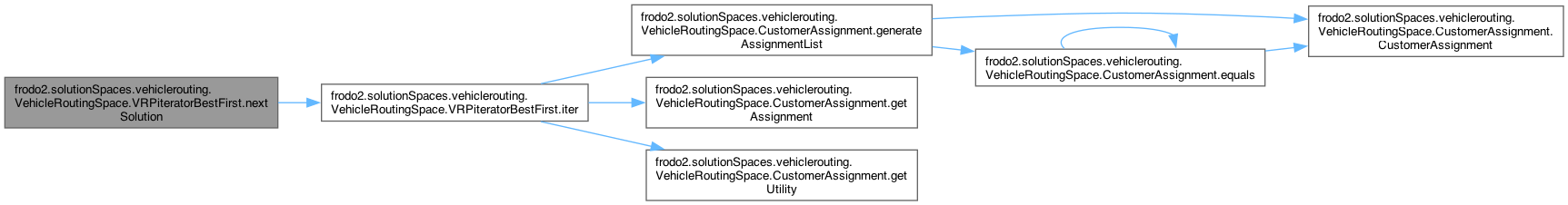

Here is the call graph for this function:

nextUtility() [1/2]

U frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.nextUtility

(

)

See also

frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.nextUtility()

Implements frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.SparseIterator< V, U >.

References currentSolution, currentUtility, and iter().

Referenced by nextUtility().

Here is the call graph for this function:

nextUtility() [2/2]

U frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.nextUtility	(	U	bound,
		final boolean	minimize )

See also

frodo2.solutionSpaces.UtilitySolutionSpace.Iterator.nextUtility(java.lang.Object, boolean)

Implements frodo2.solutionSpaces.UtilitySolutionSpace< V extends Addable< V >, U extends Addable< U > >.SparseIterator< V, U >.

References getCurrentUtility(), hasNext(), and nextUtility().

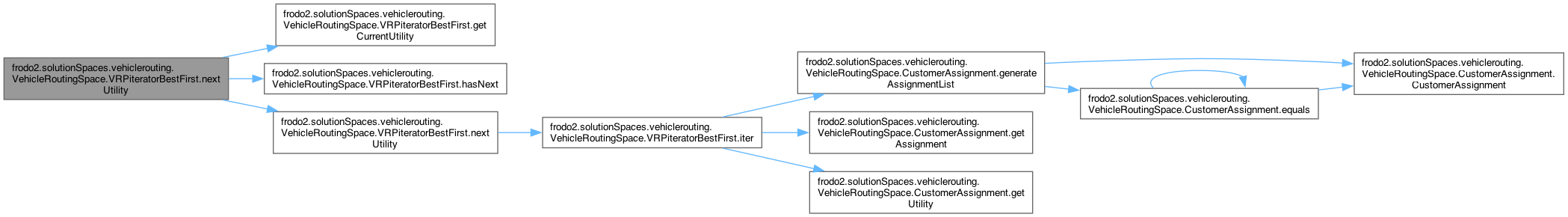

Here is the call graph for this function:

setCurrentUtility()

void frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.setCurrentUtility

(

U

util

)

See also

frodo2.solutionSpaces.BasicUtilitySolutionSpace.Iterator.setCurrentUtility(java.lang.Object)

Implements frodo2.solutionSpaces.BasicUtilitySolutionSpace< V extends Addable< V >, U extends Serializable >.SparseIterator< V, U >.

update()

void frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.update

(

)

See also

frodo2.solutionSpaces.SolutionSpace.Iterator.update()

Implements frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.SparseIterator< V >.

Member Data Documentation

alreadyGenerated

HashSet<CustomerAssignment<U> > frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.alreadyGenerated

private

Map of already generated assignments.

Referenced by iter(), VRPiteratorBestFirst(), and VRPiteratorBestFirst().

currentSolution

AddableInteger [] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.currentSolution

private

The current solution.

Referenced by getCurrentSolution(), iter(), nextSolution(), and nextUtility().

currentUtility

U frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.currentUtility

private

The utility of the current solution.

Referenced by getCurrentUtility(), iter(), and nextUtility().

domains

AddableInteger [][] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.domains

private

The domains for the iteration variables.

Referenced by getDomains(), VRPiteratorBestFirst(), and VRPiteratorBestFirst().

fixed

boolean [] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.fixed

private

For each variable, when true, it's value is fixed.

Referenced by iter(), VRPiteratorBestFirst(), and VRPiteratorBestFirst().

nbrSolutions

final long frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.nbrSolutions

private

The total number of solutions.

numberOfSolutionsLeft

long frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.numberOfSolutionsLeft

private

The number of solutions left to iterate over.

Referenced by iter(), VRPiteratorBestFirst(), and VRPiteratorBestFirst().

one

AddableInteger frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.one = new AddableInteger(1)

private

All variables are binary, and will be either 0 or 1.

Referenced by iter().

orderedAssignments

PriorityQueue<CustomerAssignment<U> > frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.orderedAssignments

private

The set of assignments already.

Referenced by iter(), VRPiteratorBestFirst(), and VRPiteratorBestFirst().

space

VehicleRoutingSpace<U> frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.space

private

The space over which we are iterating.

Referenced by iter(), VRPiteratorBestFirst(), and VRPiteratorBestFirst().

variables

String [] frodo2.solutionSpaces.vehiclerouting.VehicleRoutingSpace< U extends Addable< U > >.VRPiteratorBestFirst.variables

private

Variables over which to iterate.

Referenced by getVariablesOrder(), VRPiteratorBestFirst(), and VRPiteratorBestFirst().

---

The documentation for this class was generated from the following file:

• src/frodo2/solutionSpaces/vehiclerouting/VehicleRoutingSpace.java
