frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > > Class Template Reference

A message containing the optimal solution found so far. More...

Inheritance diagram for frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >:

Public Member Functions
	SolutionMsg ()
	Empty constructor used for externalization.
	SolutionMsg (MessageType type, Comparable<?> componentID, V[][] solution, U cost)
	Constructor.
void	writeExternal (ObjectOutput out) throws IOException
void	readExternal (ObjectInput in) throws IOException, ClassNotFoundException
Comparable<?>	getCompID ()
V[][]	getSolution ()
U	getCost ()
String	toString ()
Public Member Functions inherited from frodo2.communication.Message
	Message (MessageType type)
	Constructor.
	Message ()
	Empty constructor.
MessageType	getType ()
void	fakeSerialize ()
	Pretends to serialize the message.

Protected Attributes
Comparable<?>	componentID
	ID of the component in the constraint graph.
V[][]	solution
	The chosen assignments to variables.
U	cost
	The optimal cost.
Protected Attributes inherited from frodo2.communication.Message
MessageType	type
	The type of this message.

Detailed Description

A message containing the optimal solution found so far.

Parameters

<V>	the type used for variable values
<U>	the type used for utility values

Author

Alexandra Olteanu, Thomas Leaute

Constructor & Destructor Documentation

SolutionMsg() [1/2]

frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.SolutionMsg

(

)

Empty constructor used for externalization.

SolutionMsg() [2/2]

frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.SolutionMsg	(	MessageType	type,
		Comparable<?>	componentID,
		V	solution[][],
		U	cost )

Constructor.

Parameters

type	the type of this message
componentID	The ID of the component in the constraint graph
solution	the chosen assignments to variables
cost	the optimal cost

References componentID, cost, solution, and frodo2.communication.Message.type.

Member Function Documentation

getCompID()

Comparable<?> frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.getCompID

(

)

Returns

the ID of the component in the constraint graph

Referenced by frodo2.algorithms.afb.AFB< V extends Addable< V >, U extends Addable< U > >.processLinearOrdering().

getCost()

U frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.getCost

(

)

Returns

the optimal cost

Referenced by toString().

getSolution()

V[][] frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.getSolution

(

)

Returns

optimal assignments

Referenced by toString().

readExternal()

void frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.readExternal

(

ObjectInput

in

)

throws IOException, ClassNotFoundException

See also

java.io.Externalizable#readExternal(java.io.ObjectInput)

Reimplemented from frodo2.communication.Message.

References readExternal().

Referenced by readExternal().

Here is the call graph for this function:

toString()

String frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.toString

(

)

See also

Message.toString()

Reimplemented from frodo2.communication.Message.

References getCost(), and getSolution().

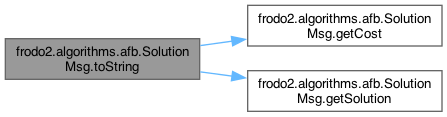

Here is the call graph for this function:

writeExternal()

void frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.writeExternal

(

ObjectOutput

out

)

throws IOException

See also

java.io.Externalizable#writeExternal(java.io.ObjectOutput)

Reimplemented from frodo2.communication.Message.

Member Data Documentation

componentID

Comparable<?> frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.componentID

protected

ID of the component in the constraint graph.

Referenced by SolutionMsg().

cost

U frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.cost

protected

The optimal cost.

Referenced by SolutionMsg().

solution

V [][] frodo2.algorithms.afb.SolutionMsg< V extends Addable< V >, U extends Addable< U > >.solution

protected

The chosen assignments to variables.

Referenced by SolutionMsg().

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/afb/SolutionMsg.java
