org.jacop.constraints.diffn.DiffnDecomposedCloneable Class Reference

A cloneable version of the DiffnDecomposed constraint. More...

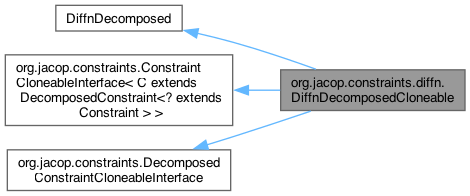

Inheritance diagram for org.jacop.constraints.diffn.DiffnDecomposedCloneable:

Public Member Functions
	DiffnDecomposedCloneable (IntVarCloneable[][] rectangle)
	It specifies a diff constraint.
	DiffnDecomposedCloneable (IntVarCloneable[] origin1, IntVarCloneable[] origin2, IntVarCloneable[] length1, IntVarCloneable[] length2)
	It constructs a diff constraint.
	DiffnDecomposedCloneable (List<? extends List<? extends IntVarCloneable > > rectangle)
	It specifies a diffn constraint.
	DiffnDecomposedCloneable (List<? extends IntVarCloneable > x, List<? extends IntVarCloneable > y, List<? extends IntVarCloneable > lx, List<? extends IntVarCloneable > ly)
	It constructs a diff constraint.
List<? extends Var >	arguments ()
String	id ()
DiffnDecomposedCloneable	cloneInto (StoreCloneable targetStore) throws FailException
List< Constraint >	decompose (Store store)

Private Attributes
final String	id
	This constraint's ID/name.

Static Private Attributes
static int	idNbr = 0
	Used to increment the id of constraints.

Detailed Description

A cloneable version of the DiffnDecomposed constraint.

Author

Thomas Leaute

Constructor & Destructor Documentation

DiffnDecomposedCloneable() [1/4]

org.jacop.constraints.diffn.DiffnDecomposedCloneable.DiffnDecomposedCloneable

(

IntVarCloneable

rectangle[][]

)

It specifies a diff constraint.

Parameters

rectangle

list of rectangles which can not overlap in at least one dimension.

References idNbr.

Referenced by cloneInto().

DiffnDecomposedCloneable() [2/4]

org.jacop.constraints.diffn.DiffnDecomposedCloneable.DiffnDecomposedCloneable	(	IntVarCloneable[]	origin1,
		IntVarCloneable[]	origin2,
		IntVarCloneable[]	length1,
		IntVarCloneable[]	length2 )

It constructs a diff constraint.

Parameters

origin1	list of variables denoting origin of the rectangle in the first dimension.
origin2	list of variables denoting origin of the rectangle in the second dimension.
length1	list of variables denoting length of the rectangle in the first dimension.
length2	list of variables denoting length of the rectangle in the second dimension.

References idNbr.

DiffnDecomposedCloneable() [3/4]

org.jacop.constraints.diffn.DiffnDecomposedCloneable.DiffnDecomposedCloneable

(

List<? extends List<? extends IntVarCloneable > >

rectangle

)

It specifies a diffn constraint.

Parameters

rectangle

list of rectangles which can not overlap in at least one dimension.

References idNbr.

DiffnDecomposedCloneable() [4/4]

org.jacop.constraints.diffn.DiffnDecomposedCloneable.DiffnDecomposedCloneable	(	List<? extends IntVarCloneable >	x,
		List<? extends IntVarCloneable >	y,
		List<? extends IntVarCloneable >	lx,
		List<? extends IntVarCloneable >	ly )

It constructs a diff constraint.

Parameters

x	list of variables denoting origin of the rectangle in the first dimension.
y	list of variables denoting origin of the rectangle in the second dimension.
lx	list of variables denoting length of the rectangle in the first dimension.
ly	list of variables denoting length of the rectangle in the second dimension.

References idNbr.

Member Function Documentation

arguments()

List<? extends Var > org.jacop.constraints.diffn.DiffnDecomposedCloneable.arguments

(

)

See also

org.jacop.constraints.DecomposedConstraintCloneableInterface.arguments()

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

cloneInto()

DiffnDecomposedCloneable org.jacop.constraints.diffn.DiffnDecomposedCloneable.cloneInto

(

StoreCloneable

targetStore

)

throws FailException

See also

org.jacop.constraints.ConstraintCloneableInterface.cloneInto(org.jacop.core.StoreCloneable)

Implements org.jacop.constraints.ConstraintCloneableInterface< C extends DecomposedConstraint<? extends Constraint > >.

References DiffnDecomposedCloneable().

Here is the call graph for this function:

decompose()

List< Constraint > org.jacop.constraints.diffn.DiffnDecomposedCloneable.decompose

(

Store

store

)

See also

org.jacop.constraints.diffn.DiffnDecomposed#decompose(org.jacop.core.Store)

id()

String org.jacop.constraints.diffn.DiffnDecomposedCloneable.id

(

)

See also

org.jacop.constraints.DecomposedConstraintCloneableInterface.id()

Implements org.jacop.constraints.DecomposedConstraintCloneableInterface.

Member Data Documentation

id

final String org.jacop.constraints.diffn.DiffnDecomposedCloneable.id

private

This constraint's ID/name.

idNbr

int org.jacop.constraints.diffn.DiffnDecomposedCloneable.idNbr = 0

staticprivate

Used to increment the id of constraints.

Referenced by DiffnDecomposedCloneable(), DiffnDecomposedCloneable(), DiffnDecomposedCloneable(), and DiffnDecomposedCloneable().

---

The documentation for this class was generated from the following file:

• src/org/jacop/constraints/diffn/DiffnDecomposedCloneable.java
