frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > > Class Template Reference

The class of the LABEL messages sent by MB-DPOP's labeling phase. More...

Inheritance diagram for frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >:

Public Member Functions
	LabelMsg ()
	Default constructor used for externalization.
	LabelMsg (String sender, String dest, HashMap< String, V[]> sep, HashMap< String, V[]> ccs)
	Constructor.
void	writeExternal (ObjectOutput out) throws IOException
void	readExternal (ObjectInput in) throws IOException, ClassNotFoundException
String	getSender ()
String	getDest ()
HashMap< String, V[]>	getSep ()
HashMap< String, V[]>	getCCs ()
String	toString ()
Public Member Functions inherited from frodo2.communication.MessageWith4Payloads< T1 extends Serializable, T2 extends Serializable, T3 extends Serializable, T4 extends Serializable >
	MessageWith4Payloads ()
	Empty constructor.
	MessageWith4Payloads (MessageType type, T1 payload1, T2 payload2, T3 payload3, T4 payload4)
	Constructor.
MessageWith4Payloads< T1, T2, T3, T4 >	clone ()
T1	getPayload1 ()
void	setPayload1 (T1 payload1)
T2	getPayload2 ()
void	setPayload2 (T2 payload2)
T3	getPayload3 ()
void	setPayload3 (T3 payload3)
T4	getPayload4 ()
void	setPayload4 (T4 payload4)
Public Member Functions inherited from frodo2.communication.Message
	Message (MessageType type)
	Constructor.
	Message ()
	Empty constructor.
MessageType	getType ()
void	fakeSerialize ()
	Pretends to serialize the message.

Static Public Attributes
static final MessageType	LABEL_MSG_TYPE = new MessageType ("MB-DPOP", "LabelingPhase", "Label")
	The type of the message.

Additional Inherited Members
Protected Attributes inherited from frodo2.communication.Message
MessageType	type
	The type of this message.

Detailed Description

The class of the LABEL messages sent by MB-DPOP's labeling phase.

Author

Thomas Leaute

Parameters

<V>	the type used for variable values

Constructor & Destructor Documentation

LabelMsg() [1/2]

frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.LabelMsg

(

)

Default constructor used for externalization.

References LABEL_MSG_TYPE.

LabelMsg() [2/2]

frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.LabelMsg	(	String	sender,
		String	dest,
		HashMap< String, V[]>	sep,
		HashMap< String, V[]>	ccs )

Constructor.

Parameters

sender	the sender variable
dest	the destination variable
sep	the separator of the sender variable, with the corresponding domains
ccs	cycle-cutset variables and their respective domains

References LABEL_MSG_TYPE.

Member Function Documentation

getCCs()

HashMap< String, V[]> frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.getCCs

(

)

Returns

cycle-cutset variables and their respective domains

Referenced by frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.notifyIn(), frodo2.algorithms.dpop.memory.MemoryBoundedUTIL< V extends Addable< V >, U extends Addable< U > >.notifyIn(), toString(), and writeExternal().

getDest()

String frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.getDest

(

)

Returns

the destination variable

Referenced by frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.notifyIn(), frodo2.algorithms.dpop.memory.MemoryBoundedUTIL< V extends Addable< V >, U extends Addable< U > >.notifyIn(), toString(), and writeExternal().

getSender()

String frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.getSender

(

)

Returns

the sender variable

Referenced by frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.notifyIn(), frodo2.algorithms.dpop.memory.MemoryBoundedUTIL< V extends Addable< V >, U extends Addable< U > >.notifyIn(), and writeExternal().

getSep()

HashMap< String, V[]> frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.getSep

(

)

Returns

the separator of the sender variable, with the corresponding domains

Referenced by frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.notifyIn(), frodo2.algorithms.dpop.memory.MemoryBoundedUTIL< V extends Addable< V >, U extends Addable< U > >.notifyIn(), toString(), and writeExternal().

readExternal()

void frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.readExternal

(

ObjectInput

in

)

throws IOException, ClassNotFoundException

See also

java.io.Externalizable#readExternal(java.io.ObjectInput)

Reimplemented from frodo2.communication.MessageWith4Payloads< T1 extends Serializable, T2 extends Serializable, T3 extends Serializable, T4 extends Serializable >.

References readExternal().

Referenced by readExternal().

Here is the call graph for this function:

toString()

String frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.toString

(

)

See also

MessageWith4Payloads.toString()

Reimplemented from frodo2.communication.MessageWith4Payloads< T1 extends Serializable, T2 extends Serializable, T3 extends Serializable, T4 extends Serializable >.

References getCCs(), getDest(), and getSep().

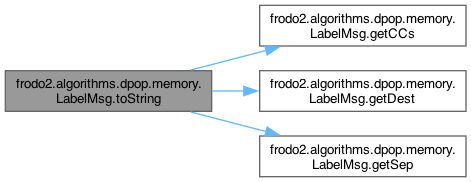

Here is the call graph for this function:

writeExternal()

void frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.writeExternal

(

ObjectOutput

out

)

throws IOException

See also

java.io.Externalizable#writeExternal(java.io.ObjectOutput)

Reimplemented from frodo2.communication.MessageWith4Payloads< T1 extends Serializable, T2 extends Serializable, T3 extends Serializable, T4 extends Serializable >.

References getCCs(), getDest(), getSender(), getSep(), and frodo2.solutionSpaces.SolutionSpace< V extends Addable< V > >.Iterator< V >.hasNext().

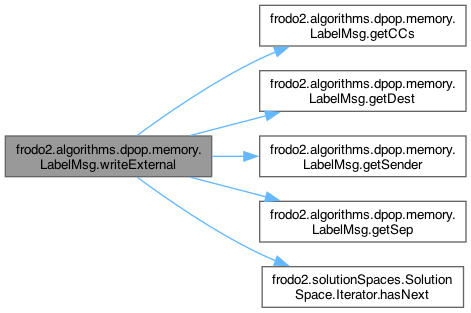

Here is the call graph for this function:

Member Data Documentation

LABEL_MSG_TYPE

final MessageType frodo2.algorithms.dpop.memory.LabelMsg< V extends Addable< V > >.LABEL_MSG_TYPE = new MessageType ("MB-DPOP", "LabelingPhase", "Label")

static

The type of the message.

Referenced by frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.getMsgTypes(), frodo2.algorithms.dpop.memory.MemoryBoundedUTIL< V extends Addable< V >, U extends Addable< U > >.getMsgTypes(), LabelMsg(), LabelMsg(), frodo2.algorithms.dpop.memory.LabelingPhase< V extends Addable< V > >.notifyIn(), and frodo2.algorithms.dpop.memory.MemoryBoundedUTIL< V extends Addable< V >, U extends Addable< U > >.notifyIn().

---

The documentation for this class was generated from the following file:

• src/frodo2/algorithms/dpop/memory/LabelMsg.java
