Renders and displays DOT code. More...

Inheritance diagram for frodo2.gui.DOTrenderer:

[legend]

Public Member Functions
	DOTrenderer (String title, String dotCode)
	Constructor of this JFrame instance.
	DOTrenderer (String title, String dotCode, String layout)
	Constructor of this JFrame instance.
void	actionPerformed (ActionEvent e)
	This method is called whenever a button is pressed.

Private Member Functions
boolean	createDOTFile (String dotCode, String fileName)
	This method creates a temporary file from a string representing DOT code.
ImageIcon	createDOTfigure ()
	This method calls the layout executable in order to create an image from the DOT code given in a temporary file.
ImageIcon	zoomFigure (ImageIcon figure, boolean zoomIn)
synchronized int	increaseFileID ()
void	copyFile (File srcFile, File destFile)
	This method is used to copy a file.

Private Attributes
String	dotFileName
	Name of temporary .dot file of this DOTrenderer instance.
Image	dotImage
	Image displayed by this DOTrenderer instance.
JLabel	content
	Component displaying the image.
ImageIcon	currentDotImage
	Currently displayed image; size may be different from original image.
String	layout
	The name of the Graphviz executable.

Static Private Attributes
static final long	serialVersionUID = -8149101075827511346L
	Serial version ID of JFrame.
static final String	TEMP_DOT_FILE_NAME = ".temp"
	String determining name of temporary files.
static int	TEMP_FILE_ID = 0
	Integer used to create unique file names.
static final Object	posLock = new Object ()
	Lock to synchronize access to xPos and yPos.
static int	xPos = 0
	The x position of the next window.
static int	yPos = 30
	The y position of the next window.

Detailed Description

Renders and displays DOT code.

Author: Andreas Schaedeli, Thomas Leaute

Todo: Increase scrolling speed.

Constructor & Destructor Documentation

◆ DOTrenderer() [1/2]

frodo2.gui.DOTrenderer.DOTrenderer	(	String	title,
		String	dotCode )

Constructor of this JFrame instance.

Determines size and components of the Frame. Uses the dot layout.

Parameters

title	JFrame title
dotCode	DOT formatted code to be displayed as image

◆ DOTrenderer() [2/2]

frodo2.gui.DOTrenderer.DOTrenderer	(	String	title,
		String	dotCode,
		String	layout )

Constructor of this JFrame instance.

Determines size and components of the Frame.

Parameters

title	JFrame title
dotCode	DOT formatted code to be displayed as image
layout	one of the following: dot, neato, twopi, circo, fdp, sfdp

References content, createDOTfigure(), createDOTFile(), currentDotImage, dotFileName, increaseFileID(), layout, posLock, TEMP_DOT_FILE_NAME, xPos, and yPos.

Here is the call graph for this function:

Member Function Documentation

◆ actionPerformed()

void frodo2.gui.DOTrenderer.actionPerformed ( ActionEvent e )

This method is called whenever a button is pressed.

According to which button is concerned, the corresponding action is taken.

Parameters

e	Action event

References content, copyFile(), currentDotImage, dotFileName, and zoomFigure().

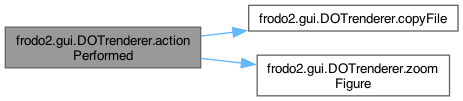

Here is the call graph for this function:

◆ copyFile()

void frodo2.gui.DOTrenderer.copyFile	(	File	srcFile,
		File	destFile )

private

This method is used to copy a file.

This is needed, as all the files created are only temporary and will be deleted when JVM exits. Therefore, to keep them, they need to be copied to files that will not be deleted. For this, the input file is read and the content is written to the destination file.

Parameters

srcFile	Source file (temporary)
destFile	Destination file (durable)

Referenced by actionPerformed().

◆ createDOTfigure()

ImageIcon frodo2.gui.DOTrenderer.createDOTfigure ( )

private

This method calls the layout executable in order to create an image from the DOT code given in a temporary file.

Returns: ImageIcon representing the image created from DOT code

Bug: err will not be closed

References dotFileName, and dotImage.

Referenced by DOTrenderer().

◆ createDOTFile()

boolean frodo2.gui.DOTrenderer.createDOTFile	(	String	dotCode,
		String	fileName )

private

This method creates a temporary file from a string representing DOT code.

Parameters

dotCode	String representing DOT formatted code
fileName	Name of temporary file where code should be saved

Returns: true if creation of file was successful, else false

Referenced by DOTrenderer().

◆ increaseFileID()

synchronized int frodo2.gui.DOTrenderer.increaseFileID ( )

private

Returns: Unique identifier for temporary files

References TEMP_FILE_ID.

Referenced by DOTrenderer().

◆ zoomFigure()

ImageIcon frodo2.gui.DOTrenderer.zoomFigure	(	ImageIcon	figure,
		boolean	zoomIn )

private

Parameters

figure	Currently displayed image
zoomIn	true if user wants to zoom in, false if he wants to zoom out

Returns: Scaled instance of the image

References dotImage.

Referenced by actionPerformed().

Member Data Documentation

◆ content

JLabel frodo2.gui.DOTrenderer.content

private

Component displaying the image.

Referenced by actionPerformed(), and DOTrenderer().

◆ currentDotImage

ImageIcon frodo2.gui.DOTrenderer.currentDotImage

private

Currently displayed image; size may be different from original image.

Referenced by actionPerformed(), and DOTrenderer().

◆ dotFileName

String frodo2.gui.DOTrenderer.dotFileName

private

Name of temporary .dot file of this DOTrenderer instance.

Referenced by actionPerformed(), createDOTfigure(), and DOTrenderer().

◆ dotImage

Image frodo2.gui.DOTrenderer.dotImage

private

Image displayed by this DOTrenderer instance.

Referenced by createDOTfigure(), and zoomFigure().

◆ layout

String frodo2.gui.DOTrenderer.layout

private

The name of the Graphviz executable.

Referenced by DOTrenderer().

◆ posLock

final Object frodo2.gui.DOTrenderer.posLock = new Object ()

staticprivate

Lock to synchronize access to xPos and yPos.

Referenced by DOTrenderer().

◆ serialVersionUID

final long frodo2.gui.DOTrenderer.serialVersionUID = -8149101075827511346L

staticprivate

Serial version ID of JFrame.

◆ TEMP_DOT_FILE_NAME

final String frodo2.gui.DOTrenderer.TEMP_DOT_FILE_NAME = ".temp"

staticprivate

String determining name of temporary files.

Referenced by DOTrenderer().

◆ TEMP_FILE_ID

int frodo2.gui.DOTrenderer.TEMP_FILE_ID = 0

staticprivate

Integer used to create unique file names.

Referenced by increaseFileID().

◆ xPos

int frodo2.gui.DOTrenderer.xPos = 0

staticprivate

The x position of the next window.

Referenced by DOTrenderer().

◆ yPos

int frodo2.gui.DOTrenderer.yPos = 30

staticprivate

The y position of the next window.

Referenced by DOTrenderer().

The documentation for this class was generated from the following file:

src/frodo2/gui/DOTrenderer.java
