This is a queue output pipe that sends messages through TCP. More...

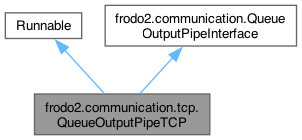

Inheritance diagram for frodo2.communication.tcp.QueueOutputPipeTCP:

[legend]

Classes
class	RawDataInfo
	A convenience class used to store information about raw data. More...
class	RawDataSender
	A thread that listens for requests to serialize or discard raw data. More...
class	RawDataServer
	The thread responsible for waiting for requests for raw data. More...

Public Member Functions
void	pushMessage (MessageWrapper msgWrap)
void	close ()
	Close all pipes, and tells the thread to stop.
void	run ()
	Continuously checks if there are messages to be sent and sends them.
String	toDOT ()

Package Functions
	QueueOutputPipeTCP (String address, int port, String rawDataIP, int rawDataPort) throws UnknownHostException, IOException
	Constructor.
	QueueOutputPipeTCP (String address, int port) throws UnknownHostException, IOException
	Constructor.

Private Member Functions
void	init (ObjectOutputStream output, String address, int port, String rawDataIP, int rawDataPort)
	Initializes the output pipe.

Private Attributes
LinkedList< Message >	messages = new LinkedList <Message> ()
	List into which pushed messages should be added, until they are sent.
String	rawDataIP
	IP address to which recipients should connect to request raw data.
int	rawDataPort
	Port number on which the pipe should wait for requests for raw data.
boolean	keepGoing = true
	Used to tell the thread to stop.
ObjectOutputStream	output
	Output stream to which outgoing messages should be written.
Socket	socket
	The output socket.
String	name
	The name of this pipe, used only by QueueOutputPipeTCP.toDOT().
Integer	rawDataID = 0
	The ID incremented each time a message with raw data is sent.
final ReentrantLock	rawDataID_lock = new ReentrantLock()
	Lock for the rawDataID field.
final ReentrantLock	rawDataInfos_lock = new ReentrantLock()
	Lock for the rawDataInfos field.
final ReentrantLock	messages_lock = new ReentrantLock()
	Lock for the messages field.
final Condition	messageReceived = messages_lock.newCondition()
	Condition used to signal that the messages list is not empty.
HashMap< Integer, RawDataInfo >	rawDataInfos = new HashMap<Integer, RawDataInfo> ()
	For each raw data ID, the information about the corresponding raw data.
RawDataServer	rawDataServer
	The thread responsible for waiting for requests for raw data.
Thread	myThread
	The QueueOutputPipeTCP's thread.

Static Private Attributes
static String	myThreadName = "QueueOutputPipeTCP"
	The name of this QueueOutputPipeTCP's thread.

Detailed Description

This is a queue output pipe that sends messages through TCP.

Author: Thomas Leaute

Todo: Use ZIP streams to reduce information exchange?...

Constructor & Destructor Documentation

◆ QueueOutputPipeTCP() [1/2]

frodo2.communication.tcp.QueueOutputPipeTCP.QueueOutputPipeTCP	(	String	address,
		int	port,
		String	rawDataIP,
		int	rawDataPort ) throws UnknownHostException, IOException

package

Constructor.

Parameters

address	IP address of the recipient
port	port number of the recipient
rawDataIP	IP address to which recipients should connect to request raw data
rawDataPort	port number on which the pipe should wait for requests for raw data

Exceptions

IOException	thrown if an I/O error occurs while setting up the connection
UnknownHostException	thrown if the provided address does not work

References init(), rawDataIP, and rawDataPort.

Here is the call graph for this function:

◆ QueueOutputPipeTCP() [2/2]

frodo2.communication.tcp.QueueOutputPipeTCP.QueueOutputPipeTCP	(	String	address,
		int	port ) throws UnknownHostException, IOException

package

Constructor.

Sets the raw data port to \ port + 1 and the raw data IP to "localhost."

Parameters

address	IP address of the recipient
port	port number of the recipient

Exceptions

IOException	thrown if an I/O error occurs while setting up the connection
UnknownHostException	thrown if the provided address does not work

References init().

Here is the call graph for this function:

Member Function Documentation

◆ close()

void frodo2.communication.tcp.QueueOutputPipeTCP.close ( )

Close all pipes, and tells the thread to stop.

Implements frodo2.communication.QueueOutputPipeInterface.

References keepGoing, myThread, and rawDataServer.

◆ init()

void frodo2.communication.tcp.QueueOutputPipeTCP.init	(	ObjectOutputStream	output,
		String	address,
		int	port,
		String	rawDataIP,
		int	rawDataPort )

private

Initializes the output pipe.

Parameters

output	output stream to which outgoing messages should be written
address	IP address of the recipient (only used by QueueOutputPipeTCP.toDOT())
port	port number of the recipient (only used by QueueOutputPipeTCP.toDOT())
rawDataIP	IP address to which recipients should connect to request raw data
rawDataPort	port number on which the pipe should wait for requests for raw data

References myThread, myThreadName, output, rawDataIP, and rawDataPort.

Referenced by QueueOutputPipeTCP(), and QueueOutputPipeTCP().

◆ pushMessage()

void frodo2.communication.tcp.QueueOutputPipeTCP.pushMessage ( MessageWrapper msgWrap )

See also: frodo2.communication.QueueOutputPipeInterface.pushMessage(frodo2.communication.MessageWrapper)

Implements frodo2.communication.QueueOutputPipeInterface.

References frodo2.communication.MessageWrapper.getMessage(), messageReceived, messages, and messages_lock.

Here is the call graph for this function:

◆ run()

void frodo2.communication.tcp.QueueOutputPipeTCP.run ( )

Continuously checks if there are messages to be sent and sends them.

Todo: There is a privacy issue when the raw data is already serialized: the recipients learn the IP address of the sender of the raw data

Todo: Reset the streams regularly to get rid of references to previously sent objects that prevent garbage collection?

References frodo2.communication.MessageWithRawData.getHandler(), keepGoing, messageReceived, messages, messages_lock, output, rawDataID, rawDataID_lock, rawDataInfos, rawDataInfos_lock, rawDataIP, rawDataPort, rawDataServer, frodo2.communication.MessageWithRawData.setHandler(), and frodo2.communication.Message.writeExternal().

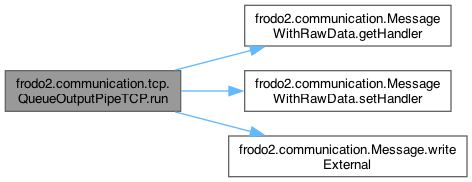

Here is the call graph for this function:

◆ toDOT()

String frodo2.communication.tcp.QueueOutputPipeTCP.toDOT ( )

See also: frodo2.communication.QueueOutputPipeInterface.toDOT()

Implements frodo2.communication.QueueOutputPipeInterface.

References name.

Member Data Documentation

◆ keepGoing

boolean frodo2.communication.tcp.QueueOutputPipeTCP.keepGoing = true

private

Used to tell the thread to stop.

Referenced by close(), and run().

◆ messageReceived

final Condition frodo2.communication.tcp.QueueOutputPipeTCP.messageReceived = messages_lock.newCondition()

private

Condition used to signal that the messages list is not empty.

Referenced by pushMessage(), and run().

◆ messages

LinkedList<Message> frodo2.communication.tcp.QueueOutputPipeTCP.messages = new LinkedList <Message> ()

private

List into which pushed messages should be added, until they are sent.

Referenced by pushMessage(), and run().

◆ messages_lock

final ReentrantLock frodo2.communication.tcp.QueueOutputPipeTCP.messages_lock = new ReentrantLock()

private

Lock for the messages field.

Referenced by pushMessage(), and run().

◆ myThread

Thread frodo2.communication.tcp.QueueOutputPipeTCP.myThread

private

The QueueOutputPipeTCP's thread.

Referenced by close(), and init().

◆ myThreadName

String frodo2.communication.tcp.QueueOutputPipeTCP.myThreadName = "QueueOutputPipeTCP"

staticprivate

The name of this QueueOutputPipeTCP's thread.

Referenced by init().

◆ name

String frodo2.communication.tcp.QueueOutputPipeTCP.name

private

The name of this pipe, used only by QueueOutputPipeTCP.toDOT().

Referenced by toDOT().

◆ output

ObjectOutputStream frodo2.communication.tcp.QueueOutputPipeTCP.output

private

Output stream to which outgoing messages should be written.

Referenced by init(), and run().

◆ rawDataID

Integer frodo2.communication.tcp.QueueOutputPipeTCP.rawDataID = 0

private

The ID incremented each time a message with raw data is sent.

Referenced by frodo2.communication.tcp.QueueOutputPipeTCP.RawDataSender.run(), and run().

◆ rawDataID_lock

final ReentrantLock frodo2.communication.tcp.QueueOutputPipeTCP.rawDataID_lock = new ReentrantLock()

private

Lock for the rawDataID field.

Referenced by run().

◆ rawDataInfos

HashMap<Integer, RawDataInfo> frodo2.communication.tcp.QueueOutputPipeTCP.rawDataInfos = new HashMap<Integer, RawDataInfo> ()

private

For each raw data ID, the information about the corresponding raw data.

Referenced by frodo2.communication.tcp.QueueOutputPipeTCP.RawDataSender.run(), and run().

◆ rawDataInfos_lock

final ReentrantLock frodo2.communication.tcp.QueueOutputPipeTCP.rawDataInfos_lock = new ReentrantLock()

private

Lock for the rawDataInfos field.

Referenced by frodo2.communication.tcp.QueueOutputPipeTCP.RawDataSender.run(), and run().

◆ rawDataIP

String frodo2.communication.tcp.QueueOutputPipeTCP.rawDataIP

private

IP address to which recipients should connect to request raw data.

Referenced by init(), QueueOutputPipeTCP(), and run().

◆ rawDataPort

int frodo2.communication.tcp.QueueOutputPipeTCP.rawDataPort

private

Port number on which the pipe should wait for requests for raw data.

Referenced by init(), QueueOutputPipeTCP(), frodo2.communication.tcp.QueueOutputPipeTCP.RawDataServer.RawDataServer(), and run().

◆ rawDataServer

RawDataServer frodo2.communication.tcp.QueueOutputPipeTCP.rawDataServer

private

The thread responsible for waiting for requests for raw data.

Referenced by close(), and run().

◆ socket

Socket frodo2.communication.tcp.QueueOutputPipeTCP.socket

private

The output socket.

The documentation for this class was generated from the following file:

src/frodo2/communication/tcp/QueueOutputPipeTCP.java
